User Manual for Konova MS 50 Kit for 47.2" Slider Click to enlarge the picture
Contents of the user manual for the Konova MS 50 Kit for 47.2"
- Product category: Tripods, Supports & Rigs Konova
- Brand: Konova
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Konova Tripods, Supports & Rigs
 |
User manual for the Konova MS 50 Kit for 47.2" contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Konova product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Konova user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Konova product will considerably shorten its lifespan!
|

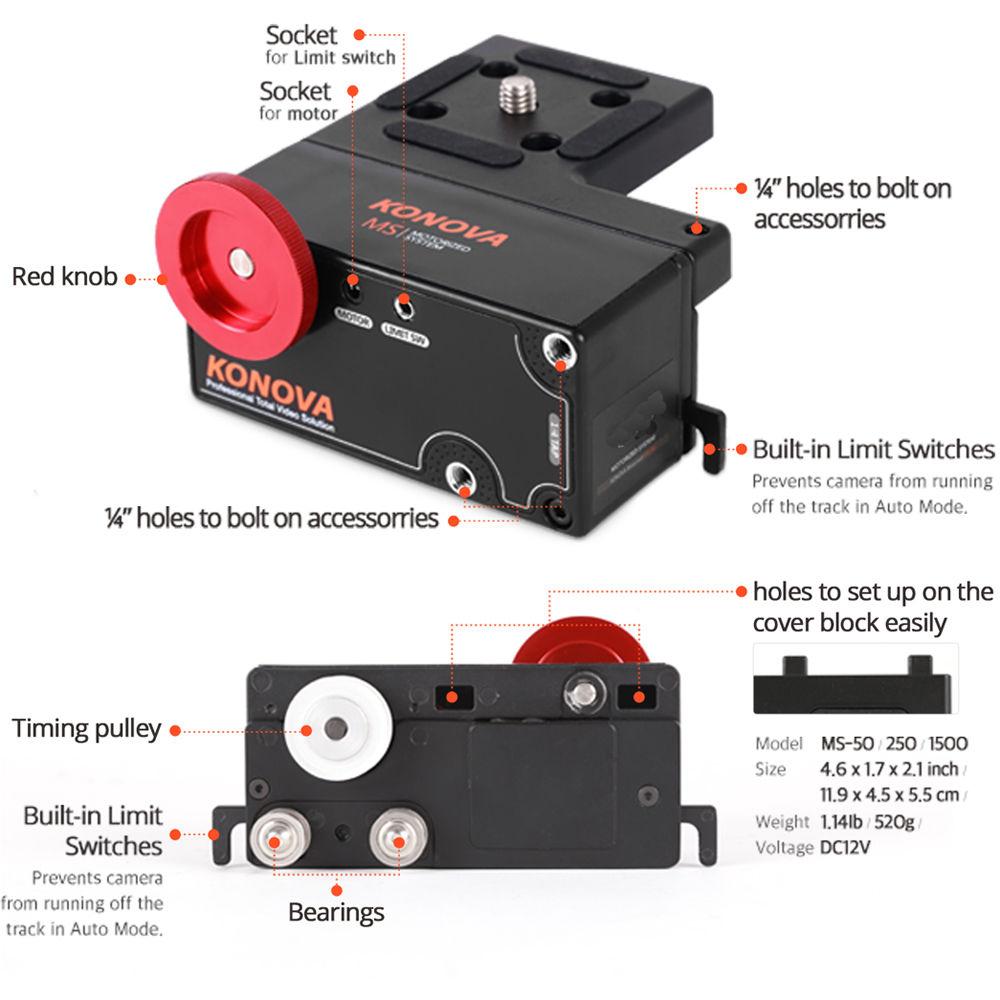

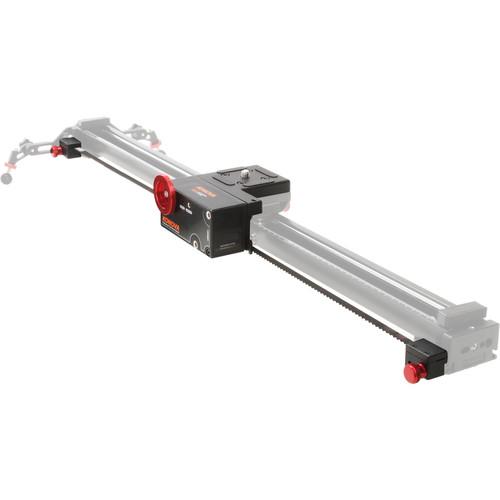

Product description Add motorized motion to your 47.2" Konova slider with the Konova MS 50 Kit. The kit includes Konova's MS-50 motor, a 47.2" drive belt with belt blocks, and a motor and limit switch cable. The MS-50 motor supports loads up to 44 lb for horizontal slides, 4.4 lb for vertical slides, and features a 50:1 gear ratio for fast movement with low torque, good for videos and lighter rigs. A 3/8"-16 screw lets you mount a fluid head or ball head, while three 1/4"-20 threaded holes serve as mounting points for attaching optional accessories. Built-in limit switches at the end of the motor prevents your camera from running off the track when operating in Auto mode.

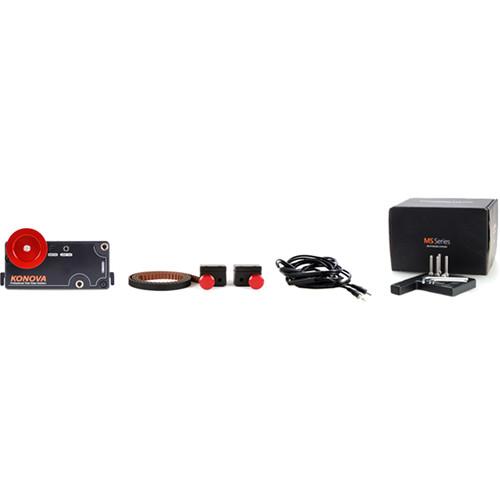

Note: In order to operate the motor, a separately available power supply is required. Basic Pan-Tilt or Smart Pan-Tilt Controller is required. In the Box Konova MS 50 Kit for 47.2" Slider MS Motor (50:1) 47.2" Drive Belt and Belt Block Motor and Limit Switch Cable Bolts 2mm Wrench 2.5mm Wrench 4mm Wrench Table of Contents
|
Upload User Manual
Have you got an user manual for the Konova MS 50 Kit for 47.2" Slider in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

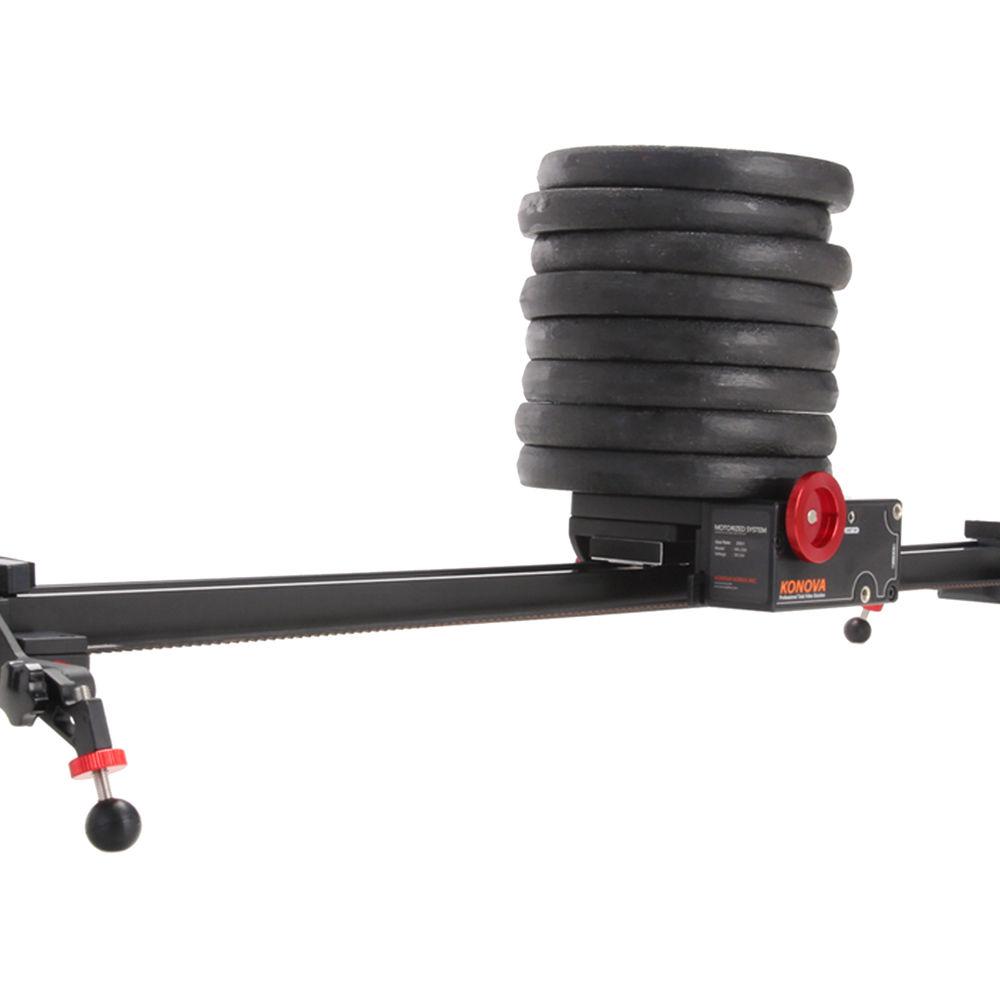

Technical parametersKonova MS 50120 Specs | | | Load Capacity | Horizontal: 44 lb (20 kg)
Vertical: 4.4 lb (2 kg) | | Gear Ratio | 50:1 | | Horizontal Moving Speed | 3.4 to 18.3 sec / ft (11 to 60 sec / m)
Tested with 9 lb (4 kg) weight and Basic Pan-Tilt Controller (Ramp: 0%) | | Vertical Moving Speed | Rise: 7.6 to 14.6 sec / ft (25 to 48 sec / m)
Descend: 3.4 to 3.7 sec / ft (11 to 12 sec / m)
Test with 6.6 lb (3 kg) weight and Basic Pan-Tilt Controller (Ramp: 0%) | | Mount Type | 3/8"-16 | | Accessory Mounting Threads | 3 x 1/4"-20 | | Power Requirements | 12 VDC / 3.5 A | | Dimensions | 4.6 x 1.7 x 2.1" (11.9 x 4.5 x 5.5 cm) | | Weight | 1.14 lb (0.52 kg) |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 24 owners. Add your rating and experience with the product.
