User Manual for Konova MSB 1500 Bundle with MS Kit and Basic Pan-Tilt Controller Click to enlarge the picture
Contents of the user manual for the Konova MSB 1500 Bundle with MS
- Product category: Tripods, Supports & Rigs Konova
- Brand: Konova
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Konova Tripods, Supports & Rigs
 |
User manual for the Konova MSB 1500 Bundle with MS contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Konova product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Konova user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Konova product will considerably shorten its lifespan!
|

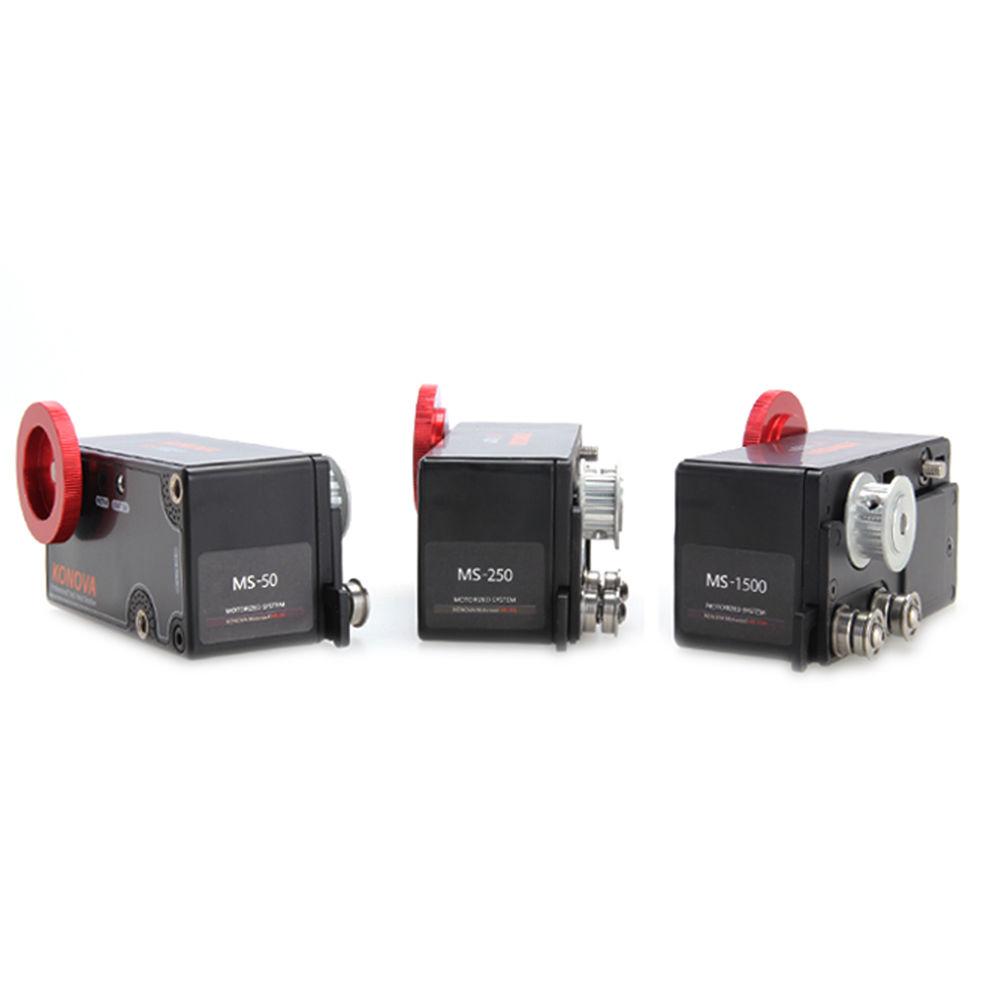

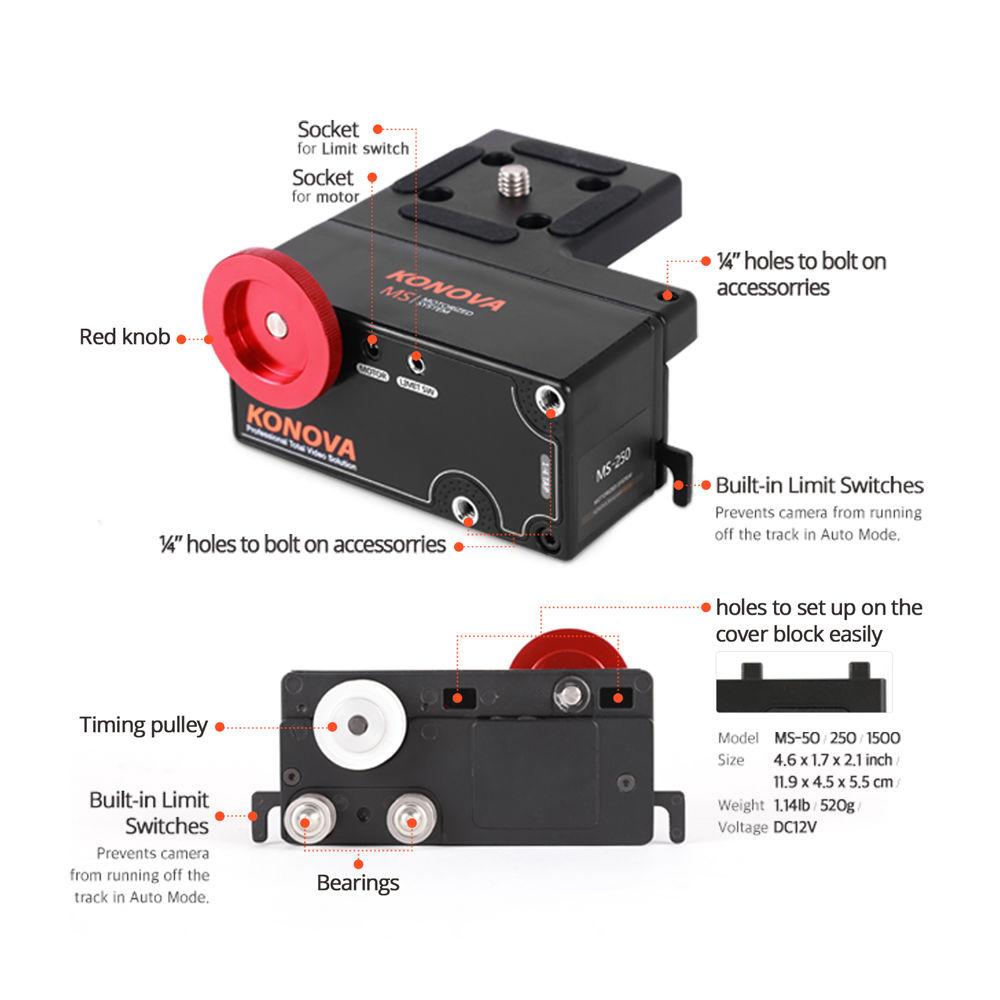

Product description Add motion control capabilities to your K3 slider with this MSB 1500 Bundle from Konova. The kit includes everything you need to set up your slider and also offers room for expansion into more advanced techniques with separately available accessories. Konova's 1500:1 MS Motor kit comes with the MS motor itself, mounting accessories, and a 59" belt which can be cut to fit shorter sliders. Motion control programmability is provided via the Basic Pan/Tilt Controller. The controller is compatible with separately available motorized heads which can accomplish complex timed camera movements when mounted atop a slider. See below for more information on each of the items included in this kit. - MS 1500 Kit for 59.1" Slider Add motorized motion to your 59.1" Konova slider with the Konova MS 1500 Kit. The kit includes Konova's MS-1500 motor, a 59.1" drive belt with belt blocks, and a motor and limit switch cable. The MS-1500 motor supports loads up to 44 lb for horizontal slides, 13 lb for vertical slides, and features a 1500:1 gear ratio for slow movement with high torque, good for long time lapses and heavier rigs. A 3/8"-16 screw lets you mount a fluid head or ball head, while three 1/4"-20 threaded holes serve as mounting points for attaching optional accessories. Built-in limit switches at the end of the motor prevents your camera from running off the track when operating in Auto mode.

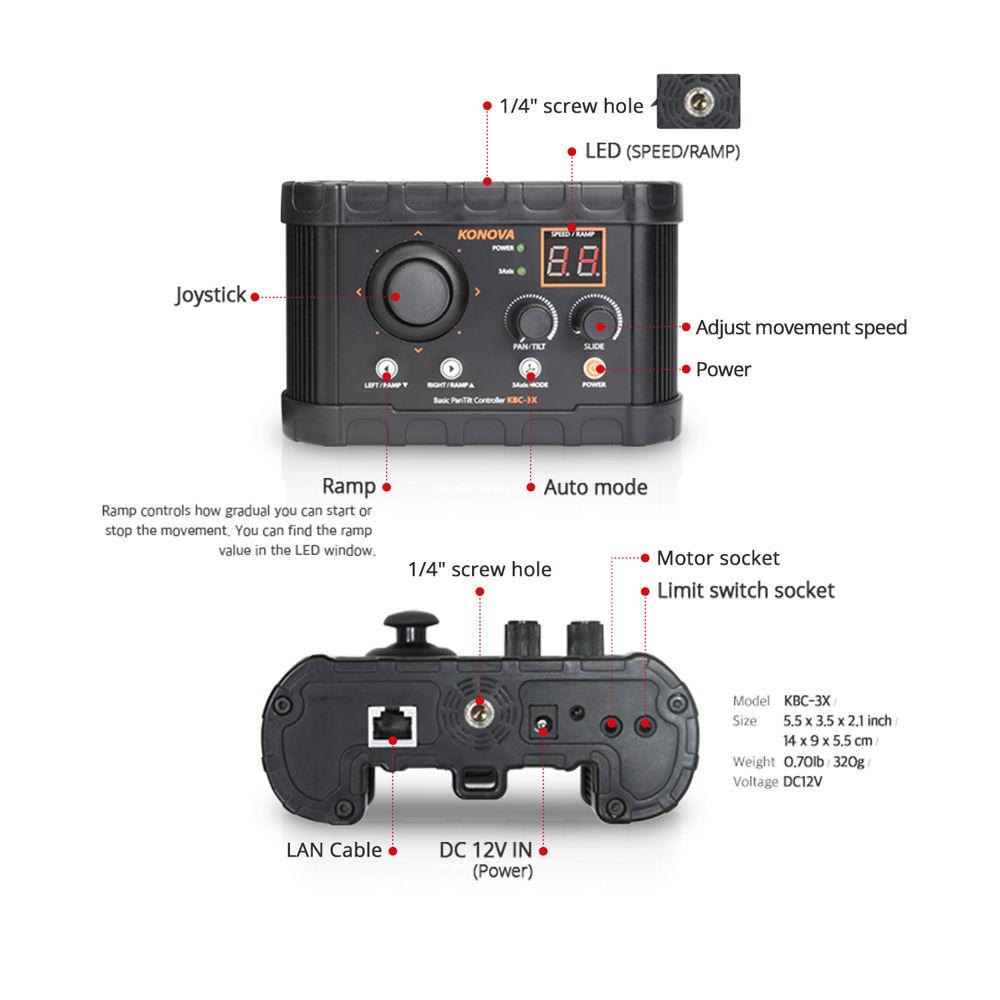

Note: In order to operate the motor, a separately available power supply is required. Basic Pan-Tilt or Smart Pan-Tilt Controller is required. - Basic Pan-Tilt Controller
- AC Adapter for MSS Bundle

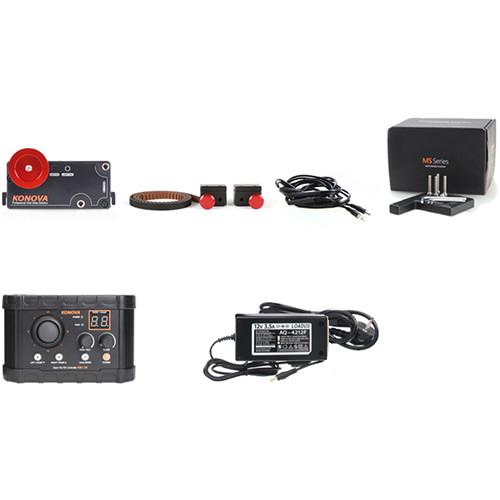

In the Box Bundle Items MS 1500 Kit for 59.1" Slider - 59.1" Drive Belt and Belt Block
- Motor and Limit Switch Cable
Basic Pan-Tilt Controller AC Adapter for MSS Bundle Table of Contents
|
Upload User Manual
Have you got an user manual for the Konova MSB 1500 Bundle with MS Kit and Basic Pan-Tilt Controller in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - MS 1500 Kit for 59.1" Slider

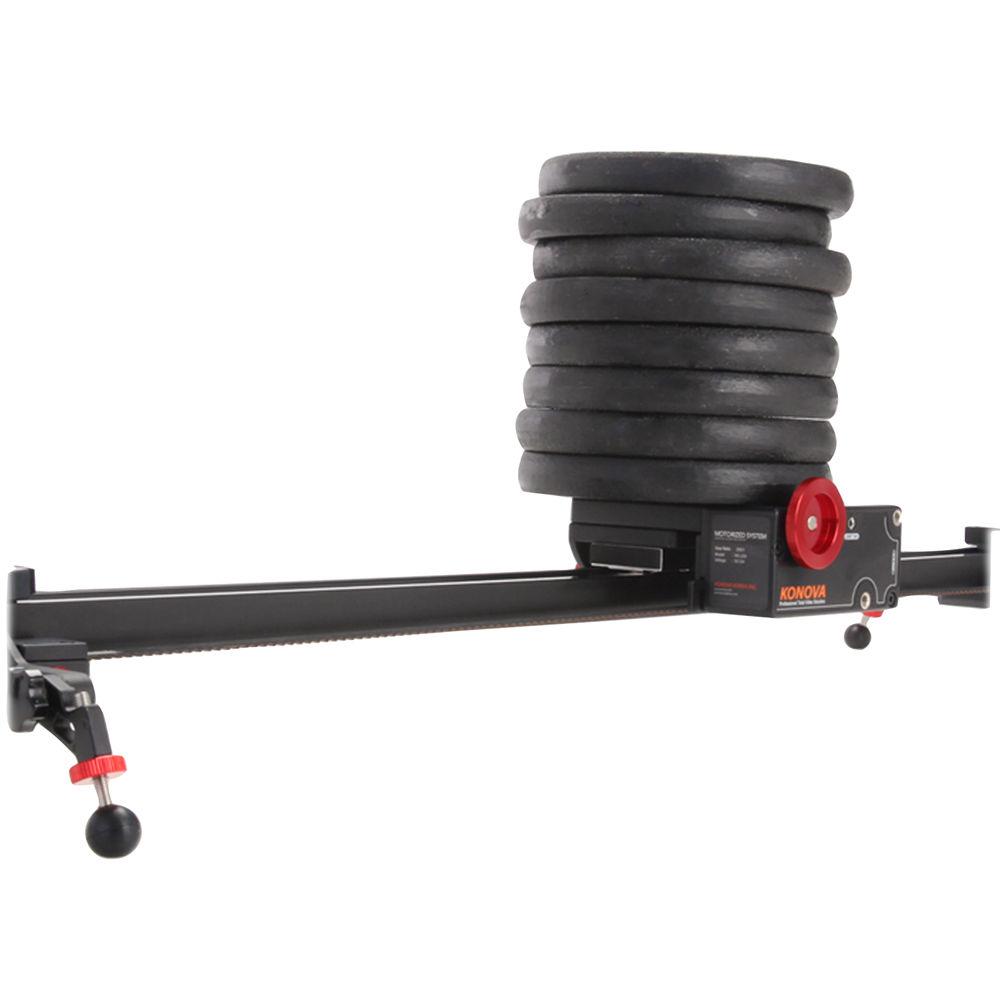

| | | Load Capacity | Horizontal: 44 lb (20 kg)
Vertical: 13 lb (6 kg) | | Gear Ratio | 1500:1 | | Horizontal Moving Speed | 89.3 to 223.7 sec / ft (293 to 734 sec / m)
Tested with 9 lb (4 kg) weight and Basic Pan-Tilt Controller (Ramp: 0%) | | Vertical Moving Speed | Rise: 96.9 to 254.5 sec / ft (318 to 835 sec / m)
Descend: 93.6 to 139 sec / ft (307 to 456 sec / m)
Test with 13 lb (6 kg) weight and Basic Pan-Tilt Controller (Ramp: 0%) | | Mount Type | 3/8"-16 | | Accessory Mounting Threads | 3 x 1/4"-20 | | Power Requirements | 12 VDC / 3.5 A | | Dimensions | 4.6 x 1.7 x 2.1" (11.9 x 4.5 x 5.5 cm) | | Weight | 1.14 lb (0.52 kg) | - Basic Pan-Tilt Controller
| | | Box Dimensions (LxWxH) | 10.7 x 7.2 x 4.3" | - AC Adapter for MSS Bundle
| | | Box Dimensions (LxWxH) | 6.1 x 4.4 x 3.0" |
