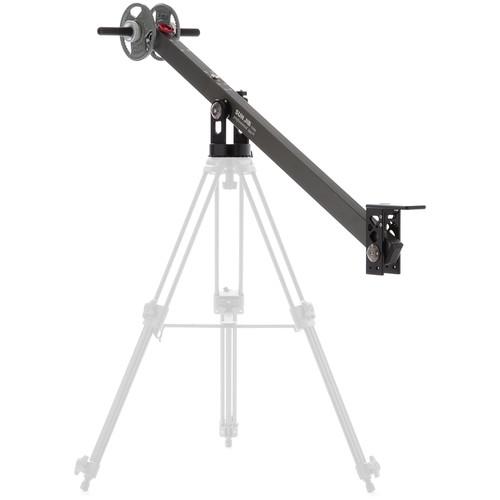

User Manual for Konova S700 SUNJIB Mini-Jib Crane Click to enlarge the picture
Contents of the user manual for the Konova S700 SUNJIB Mini-Jib Crane
- Product category: Cranes & Jibs Konova
- Brand: Konova
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Konova Cranes & Jibs
 |
User manual for the Konova S700 SUNJIB Mini-Jib Crane contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Konova product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Konova user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Konova product will considerably shorten its lifespan!
|

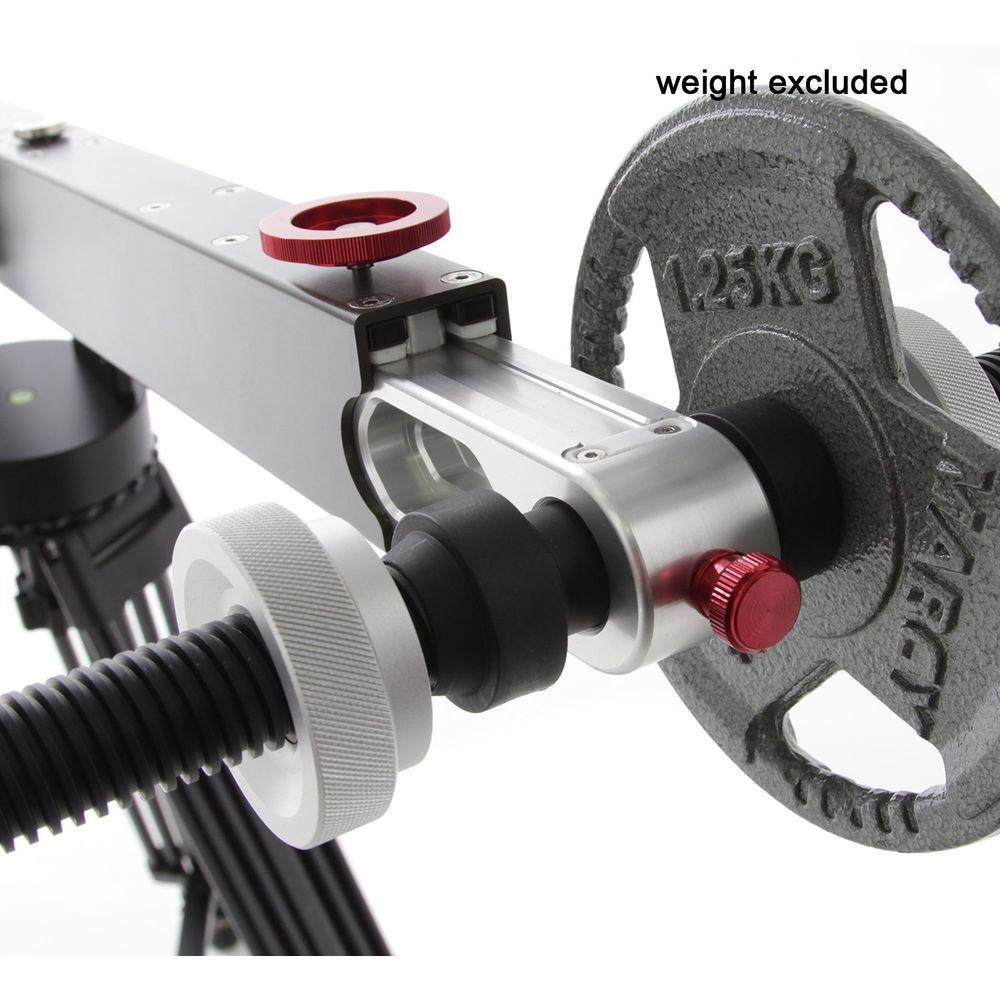

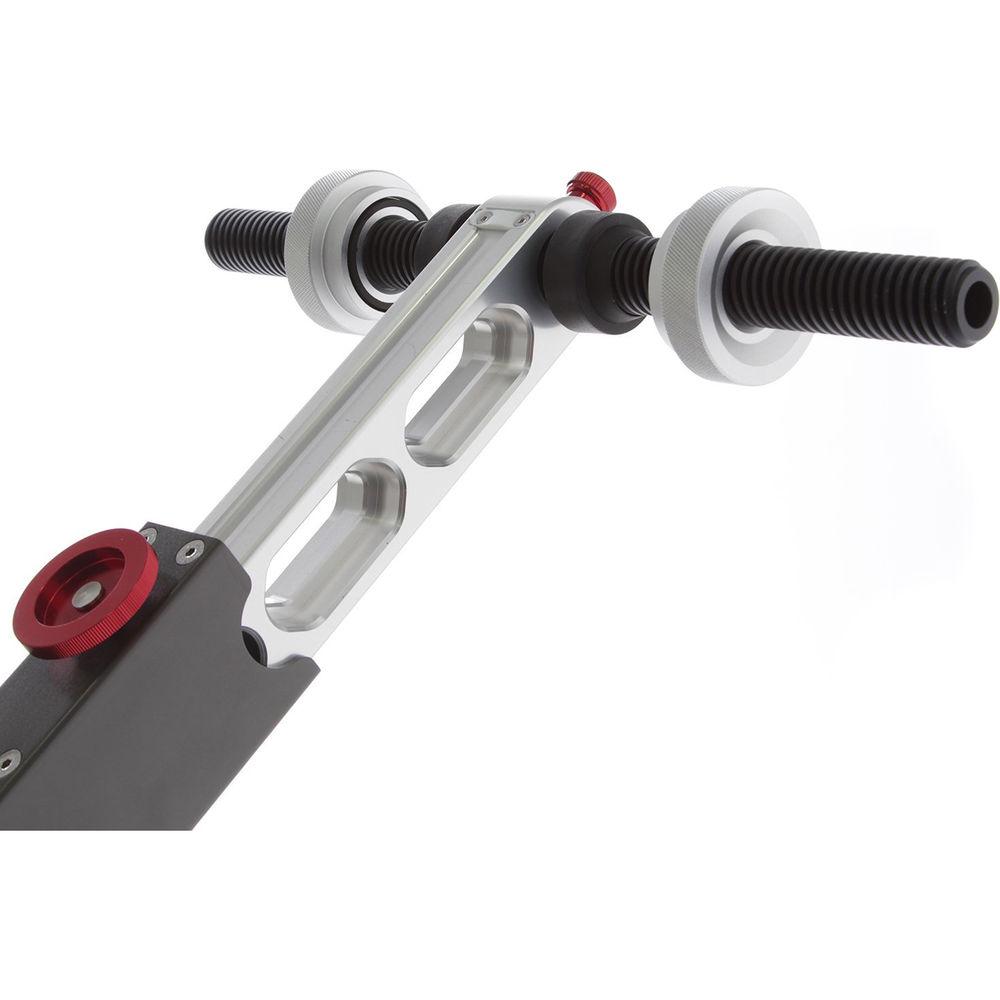

Product description The Konova S700 SUNJIB Mini-Jib Crane features a balance bar which is installed inside the boom. Offering a maximum payload of 44 lb, it can hold DSLRs to heavier cinema-style cameras. The crane's head plate supports both flat and ball head bases, and the jib is compatible with a wide variety of tripods. - 6061-T6 aluminum and SM45C steel construction with hard anodizing and nickel-titanium plating
- Easy to assemble and disassemble
- Drag system for reducing vibrations while shooting
- Smoother boom-up, boom-down, and swing movements

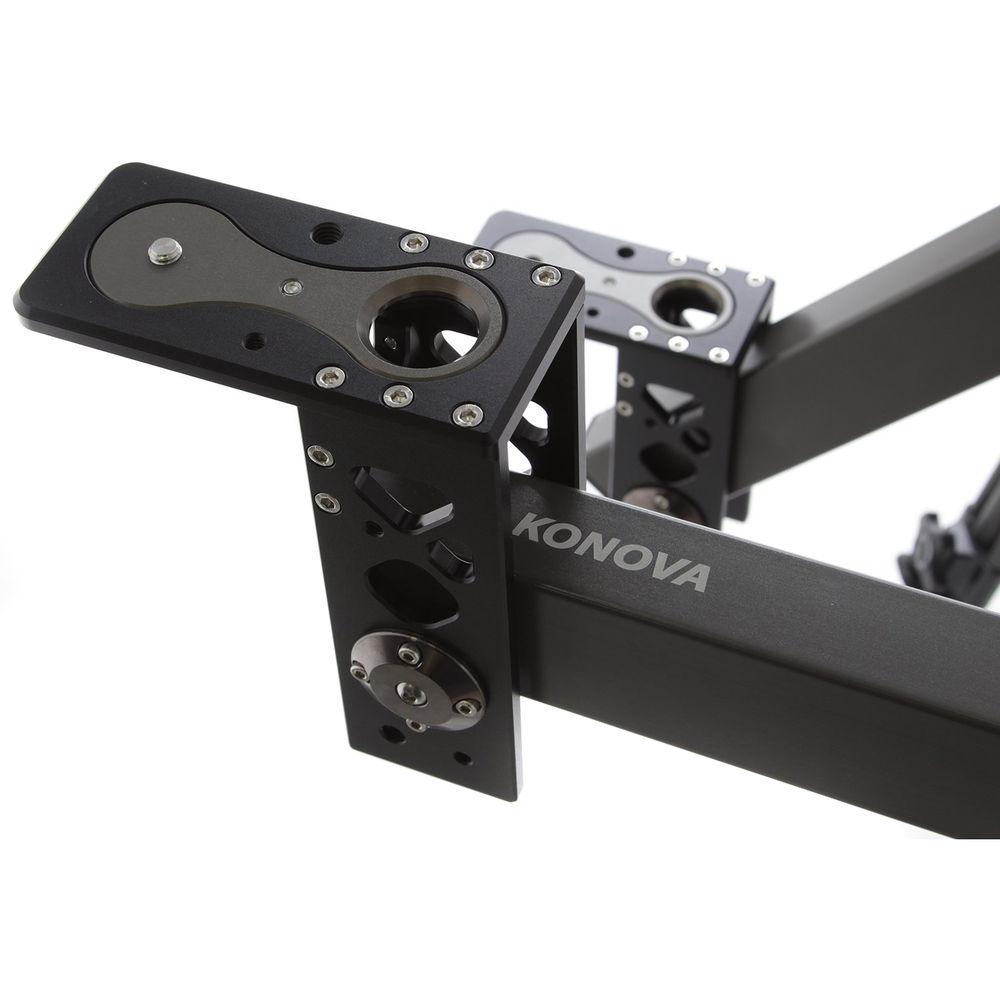

- Flat base and ball head base can be installed on SUNJIB head
- You can change the position of bracket on the head with hex wrench
- Compatible with various accessories with 1/4"-20 and 3/8"-16 screws
- Head plate can be installed on or beneath SUNJIB's head for low-angle shooting

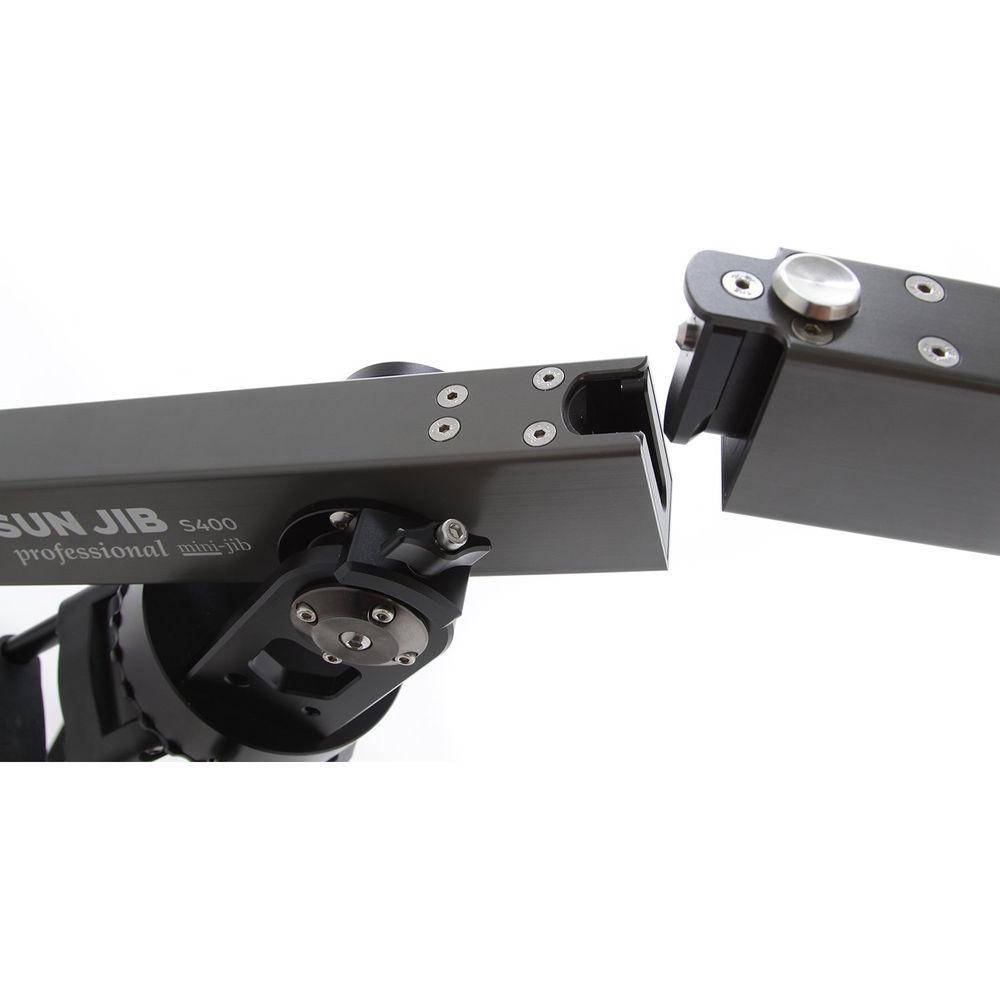

- Gear wheel for quick installation during assembly or disassembly
- Compatible with tripods, sliders, and filming accessories

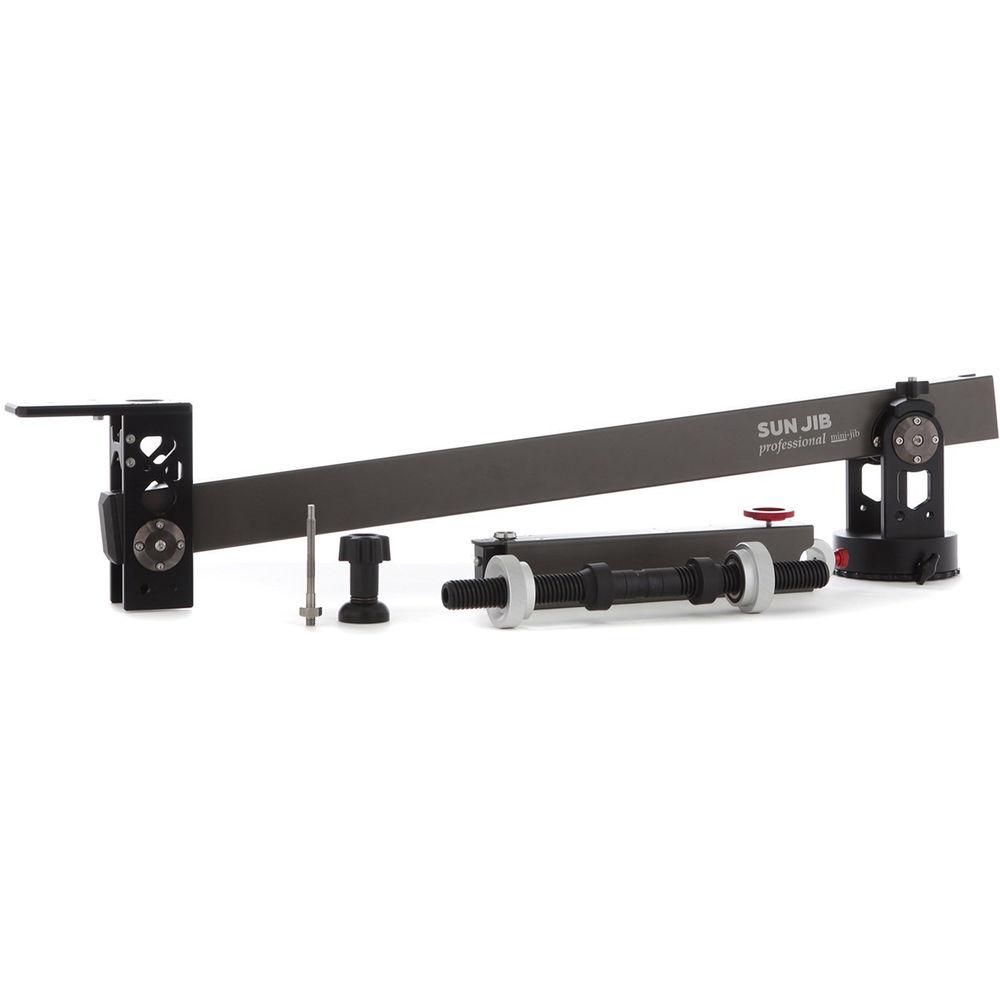

UPC: 191104000017 In the Box Konova S700 SUNJIB Mini-Jib Crane Main Arm Balancing Arm Bowl Case Adapter Half Bowl Knob Weight Bar 2 x Weight Lock Knob 2 x Weight Lock Ring Telescopic Balancing Bar Lock Knob Weight Bar Lock Knob Hex Wrench Carry Bag Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Konova S700 SUNJIB Mini-Jib Crane in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

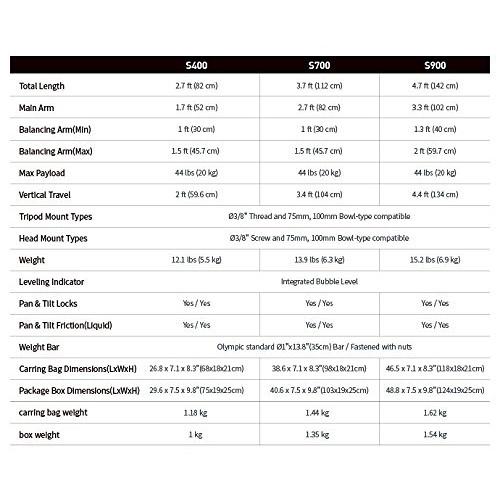

Technical parametersKonova S700 Specs | Construction | Aluminum/SM45C Steel
Nickel-platinum | | Length | Total: 3.7' / 1.12 m
Balancing Arm: 1 to 1.5' / 30.5 to 45.7 cm
Main Arm: 2.7' / 82.3 cm | | Payload Capacity | 44 lb / 20 kg | | Vertical Travel | 3.4' / 1 m | | Friction Control | Pan/Tilt: Yes | | Counterbalance System | 1 x 13.8" / 2.5 x 35.0 cm bar fastened with nuts | | Tilt Lock | Yes | | Tilt Drag | Yes | | Pan Lock | Yes | | Tripod Attachment | 3/8"-16 thread
75 mm & 100 mm bowl compatible | | Head Attachment | 3/8"-16 screw
75 mm & 100 mm bowl compatible | | Leveling Indicators | Integrated bubble level | | Dimensions (L x W x H) | Bag: 38.6 x 7.1 x 8.3" / 98.0 x 18.0 x 21.1 cm | | Weight | 13.9 lb / 6.3 kg
Bag: 3.1 lb / 1.44 kg | | | | Package Weight | 19.0 lb | | Box Dimensions (LxWxH) | 40.3 x 9.3 x 7.6" |
Rating60% users recommend this product to others. And what about you?
This product has already been rated by 86 owners. Add your rating and experience with the product.
