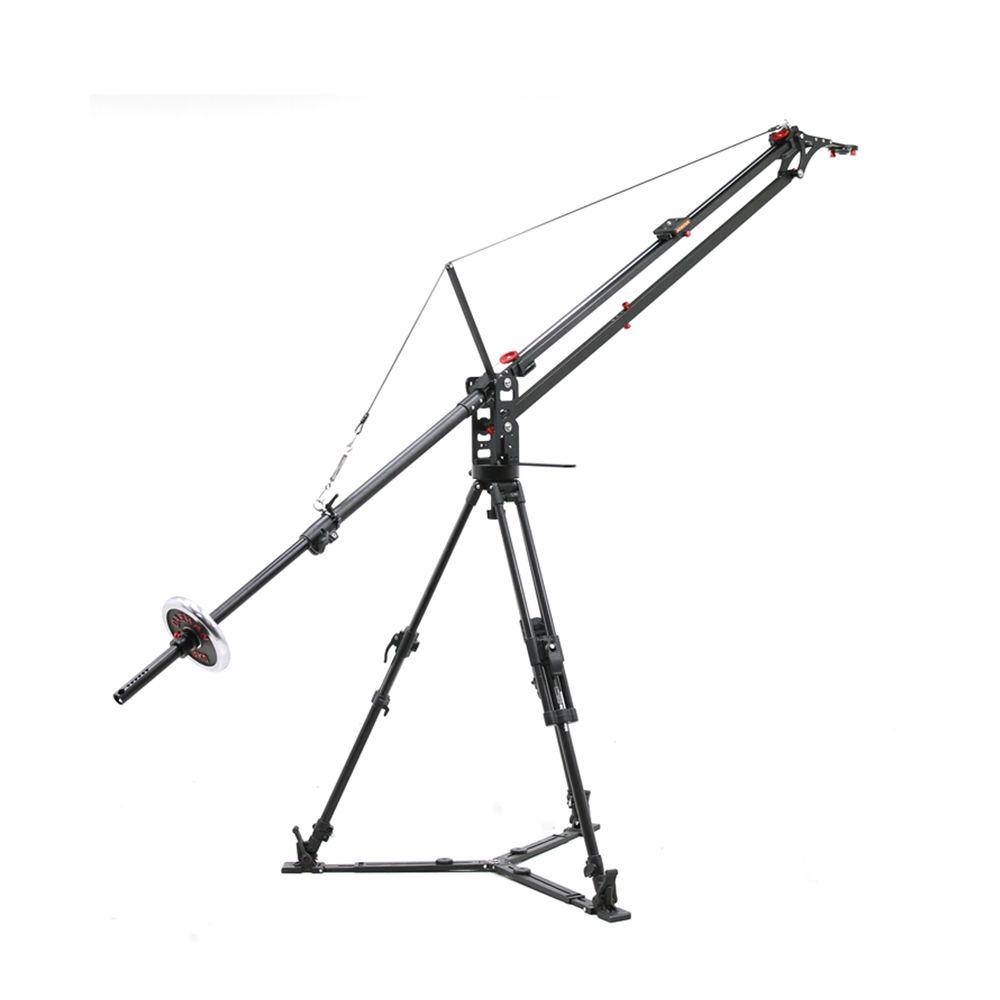

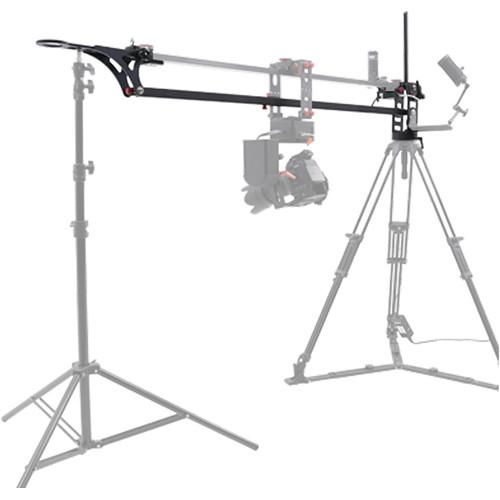

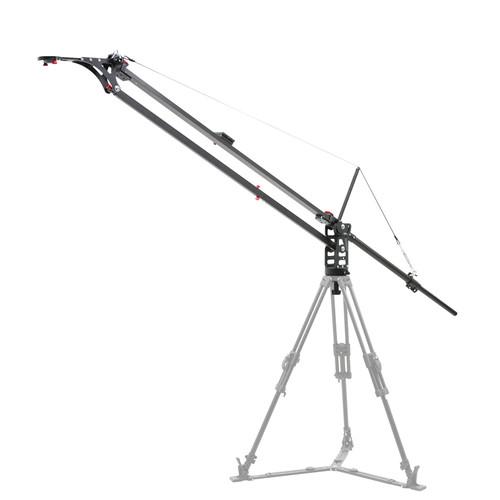

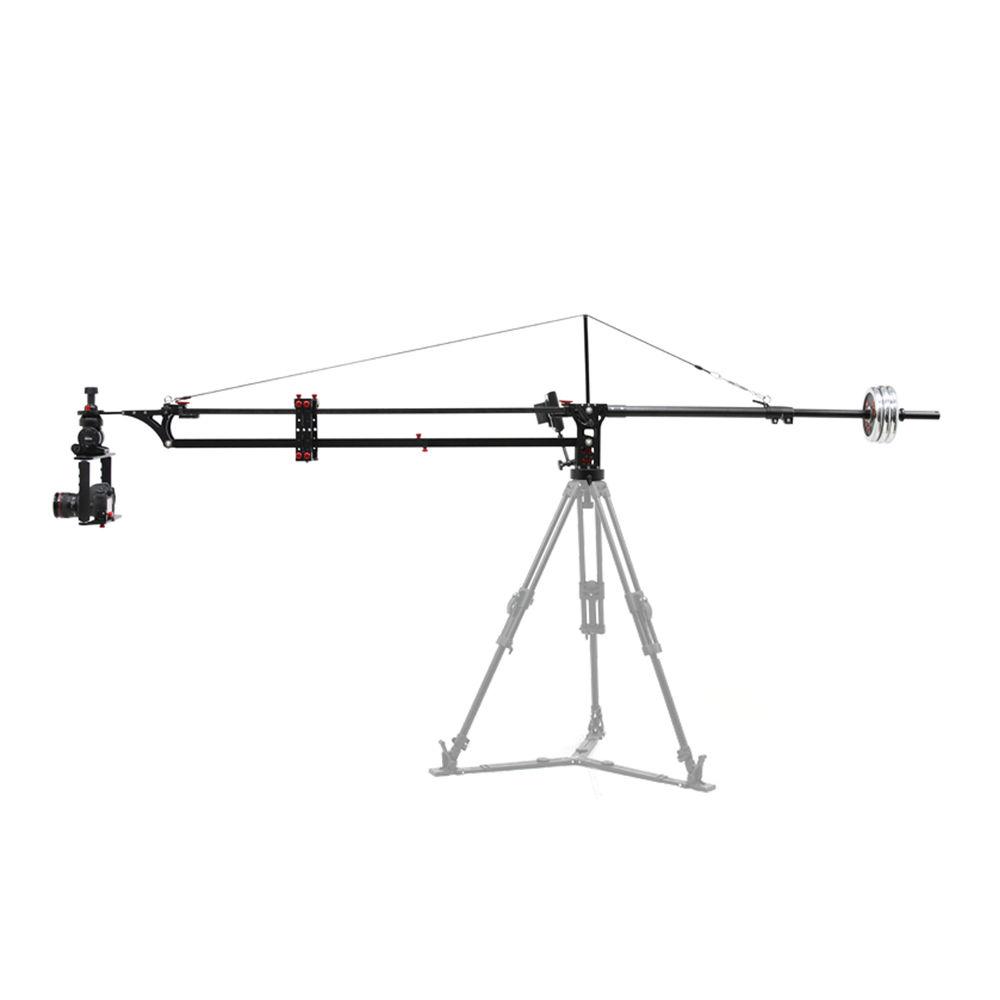

Product description This Konova Slider Jib combines a portable jib with the 47" K7 slider into an all-in-one system. Use it a single unit or remove the slider and use it individually. Adjustable slider feet are included that you can secure on. The slider is approximately the same length as the reach of the jib and perfectly fits and connects on top of the jib. Two carry cases are included, one for the jib and one for the slider.

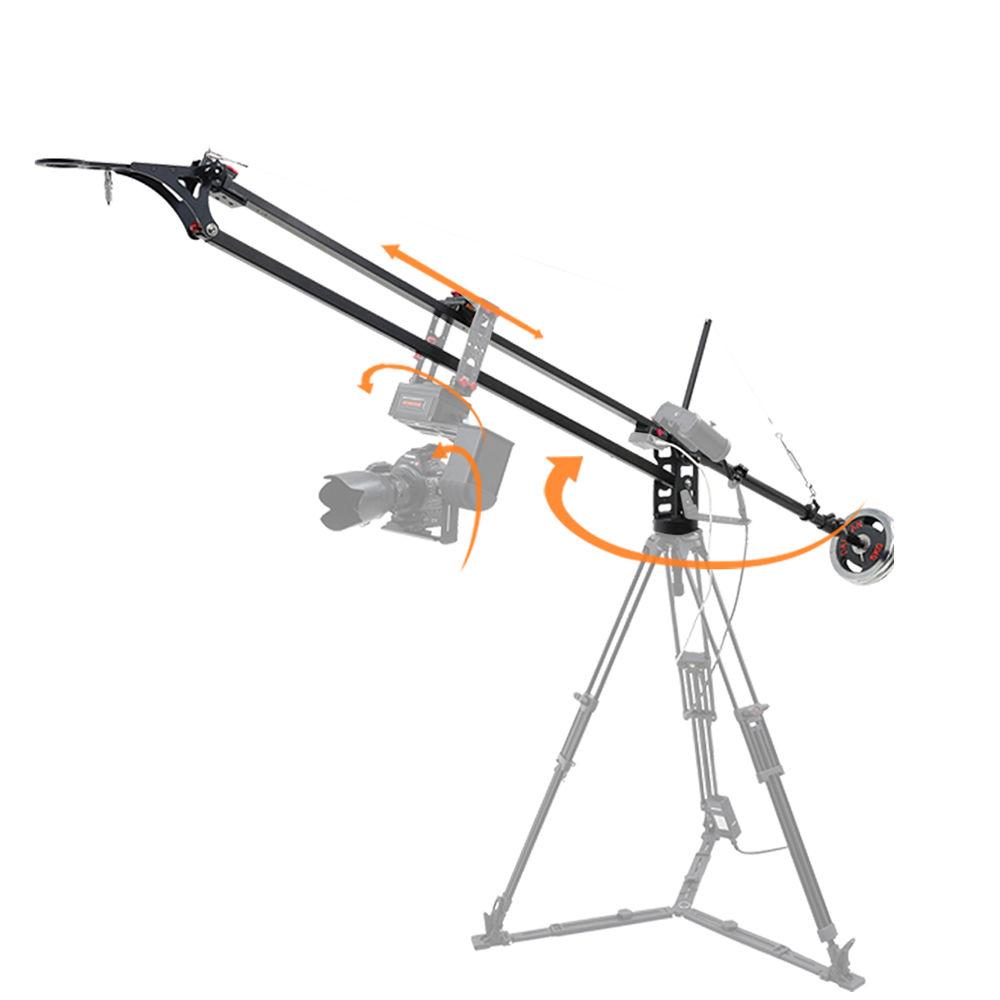

The jib features a 100mm tripod base and 75mm camera mount half-bowl, and has a payload of 11 lb (with the slider attached). It comes with a tension wire for additional stability and is friction-adjustable for smooth lift and rotation movement. It's portable and very easy to set up/disassemble in about 5 minutes by a single user.

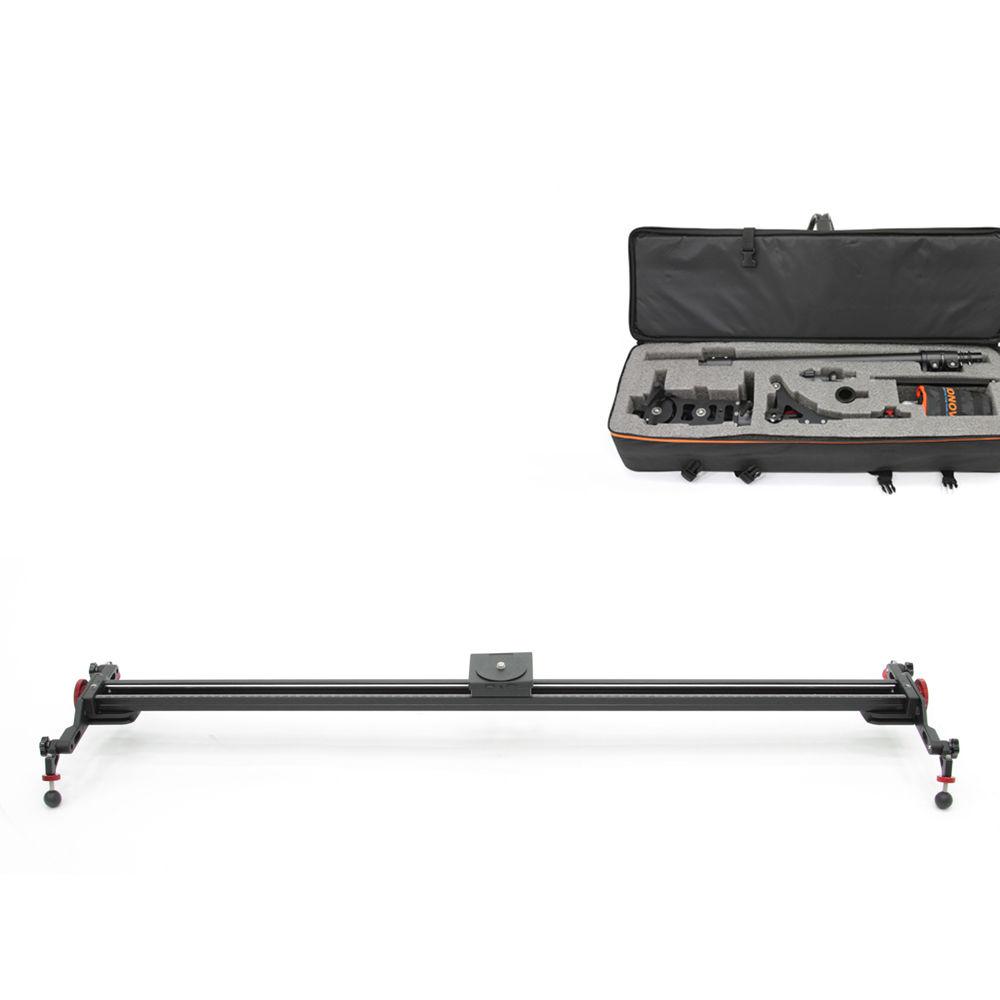

The slider features smooth ball-bearing rails and supports up to 77 lb loads.
The Slider Jib supports a variety of optional accessories, such as the Konova Slider Bracket for low-level tracking shots, and Konova Smart Head and motion controllers for remote pan and tilt. The Slider by itself also supports optional Konova accessories, such as a hand crank. - Key Features
-
- Portable jib and 47" K7 slider all-in-one system
- Ball-bearing slider can be removed and used separately
- 11 lb jib payload (in addition to slider weight)
- 77 lb slider payload
- 100mm tripod base
- 75mm camera mount half-bowl
- 360° panning
- Extendable weight pipe
- Tension wire for additional stability
- Friction-adjustable for smooth lift and rotation movement
- Easy to assemble/disassemble in about 5 minutes by a single user
- Supports various optional Konova accessories, such Smart Head and hand crank

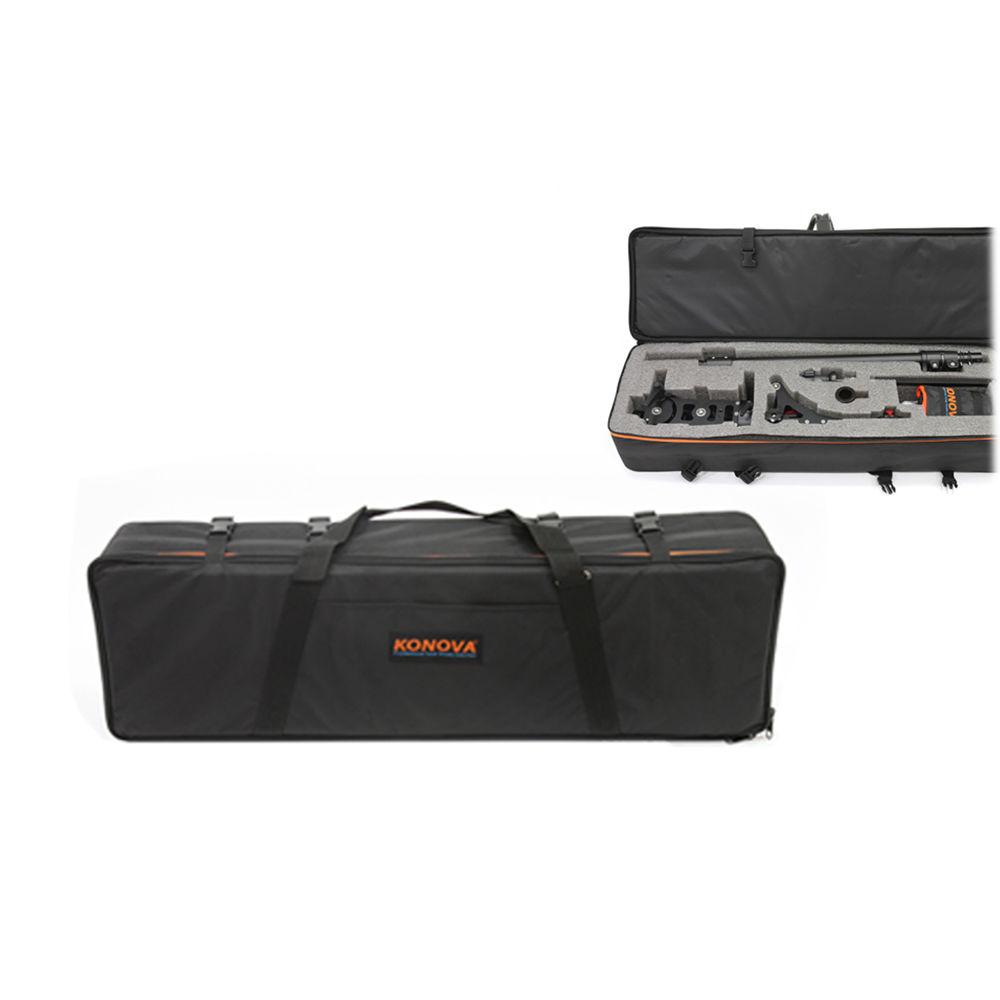

- Separate carry cases included for the jib and slider
In the Box Konova Slider Jib - Portable Jib and 47" K7 Slider Tension Wire Adjustable Slider Feet Jib Carry Case Slider Carry Case Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Konova Slider Jib - Portable Jib and 47" K7 Slider in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKonova KSJ 7120 Specs | | | Material | High-strength aluminum | | Base | 100 mm ball | | Weight Capacity | 11 lb (5 kg) (in addition to slider weight) | | Folded Length | Approx. 32" (82 cm) | | Maximum Height | Approx. 63" (1.6 m) | | Bubble Level | Yes | | | | Material | High-strength aluminum | | Length | 47" (1.2 m) | | Weight Capacity | 77 lb (35 kg)
Optimal Load: 6.6 - 61 lb (3 - 28 kg) (when used separately from jib) | | Mounting Threads | 1/4"-20 and 3/8"-16 threads at the base | | Bubble Level | Yes | | | | Package Weight | 36.0 lb | | Box Dimensions (LxWxH) | 53.0 x 14.5 x 13.0" |
