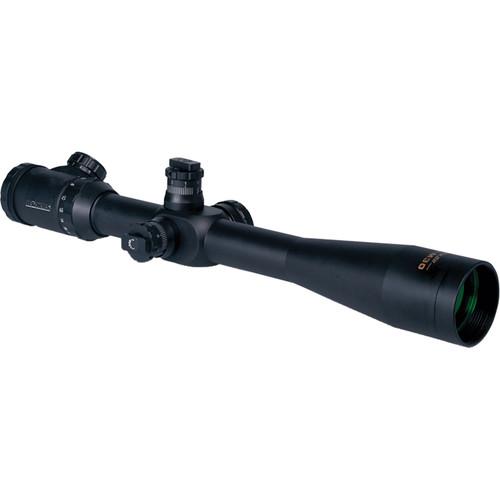

User Manual for Konus 10-40x52 M-30 Riflescope Click to enlarge the picture
Contents of the user manual for the Konus 10-40x52 M-30 Riflescope
- Product category: Riflescopes Konus
- Brand: Konus
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Konus Riflescopes
|
User manual for the Konus 10-40x52 M-30 Riflescope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Konus product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Konus user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Konus product will considerably shorten its lifespan!
|
Product description The 10-40x52 M-30 Riflescope with Red-Blue Mil-Dot Reticle from Konus combines a high zoom magnification, a large objective diameter, and a Mil-Dot reticle with dual illumination. The crosshair Mil-Dot reticle has red and blue illumination helps when shooting at dark targets and in low light conditions, like dawn or dusk. Located in the second focal plane, the etched reticle is parallax-free at 10 yards, and will not change in size while you zoom. In order to keep your aim parallax-free for longer ranges, set the parallax adjustment wheel for the desired range. Additionally, there is a level bubble at the bottom of the reticle to ensure there is no rifle canting when you shoot.
The optical system features clear and bright multi-coated optics, a 10-40x zoom, and 52mm objective lens for increased light gathering capacity. To help you compensate for projectile motion and wind drift, the scope has 50 MOA windage and elevation adjustments with 0.36 MOA per click impact point correction. The dials are lockable and have scales.
The M-30 also features a waterproof, fogproof, and shock-resistant housing with matte black finish. The 30mm main tube is made from a single piece to add durability to the construction. Also included with the scope are a CR2032 battery, two flip-up lens covers, and a lens cloth. - Optical Performance
-
- Zoom magnification: 10-40x
- Objective lens diameter: 52mm
- Fully multicoated optics provide higher brightness and contrast
- Angular field of view range is 1.8 - 046°
- Reticle
-
- Second focal plane
- Mil-Dot reticle has red and blue illumination with five brightness levels
- Level bubble at the bottom of the reticle helps prevent rifle canting
- Use and Handling
-
- 0.36 MOA per click impact point correction
- 50 MOA Windage and elevation adjustment
- Lockable focusing ring
- Eye relief: 3.4'
- Construction Details
-
- Main tube diameter: 30mm
- Single piece aluminum main tube
- Lockable and resettable windage and elevation turrets
- Nitrogen-filled fogproof
- Shock-resistant
- Waterproof
UPC: 698156072868 In the Box Konus 10-40x52 M-30 Riflescope (Illuminated Red-Blue Mil-Dot Reticle) - CR2032 Battery
- Flip-Up Lens Caps
- Lens Cloth
- Limited Lifetime Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Konus 10-40x52 M-30 Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKonus 7286 Specs | | | Magnification | 10 to 40x | | Objective Lens Diameter | 52 mm | | Field of View | 10x: 10' @ 100 yd / 3.3 m @ 100 m
40x: 2.4' @ 100 yd / 0.8 m @ 100 m | | Exit Pupil Diameter | 10x: 5.2 mm
40x: 1.4 mm | | Eye Relief | 3.4" / 88 mm | | | | Reticle Type | MIL Dot Reticle (Second Focal Plane) | | Illumination | Illuminated | | Illuminated Color | Blue, Red | | | | Impact Point Correction | 0.4 MOA per Click | | Windage Adjustment | 50 MOA | | Elevation Adjustment | 50 MOA | | Parallax Correction | Yes, 10 yd / 9.1 m to Infinity | | | | Water Resistance | Waterproof | | Fogproof | Yes, Nitrogen Filled | | | | Maintube Diameter | 30 mm | | Battery | 1 x CR2032 | | Dimensions | Length: 18.2" / 462 mm | | Weight | 32 oz / 908 g | | | | Package Weight | 3.1 lb | | Box Dimensions (LxWxH) | 23.5 x 4.2 x 3.4" |
