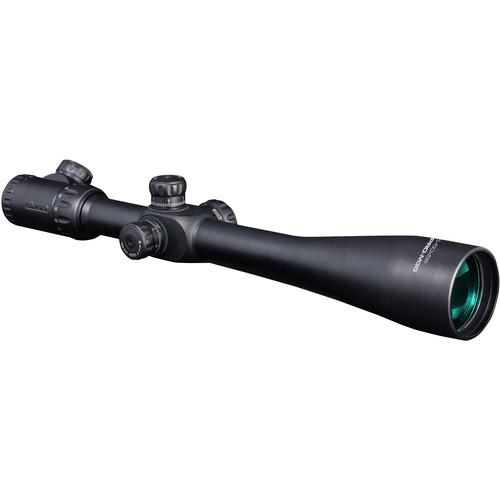

User Manual for Konus 12.5-50x56 KonusPro-M30 Riflescope Click to enlarge the picture
Contents of the user manual for the Konus 12.5-50x56 KonusPro-M30 Riflescope
- Product category: Riflescopes Konus
- Brand: Konus
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Konus Riflescopes
|
User manual for the Konus 12.5-50x56 KonusPro-M30 Riflescope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Konus product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Konus user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Konus product will considerably shorten its lifespan!
|
Product description The 12.5-50x56 KonusPro-M30 Riflescope from Konus combines a high zoom magnification, a large objective diameter, and a modified mil-dot ballistic reticle with dual illumination. The modified Mil-Dot reticle has a dual illumination that helps when shooting at dark targets and in low light, like dawn or dusk. Located on the second focal plane, the etched reticle is parallax-free at 10 yards, and will not change in size while you zoom. In order to keep your aim parallax-free for longer ranges, set the parallax adjustment wheel for the desired range. Additionally, there is a level bubble at the bottom of the reticle to ensure there is no rifle canting when you shoot.
The optical system features clear and bright multi-coated optics, a 12.5-50x zoom, and 56mm objective lens for increased light gathering capacity. To help you compensate for projectile motion and wind drift, the scope has a 32" windage and elevation range with 1/10 mil impact point correction. The dials are lockable and have scales.
The M-30 also features a waterproof, fogproof, and shock-resistant housing with matte black finish. The 30mm maintube is made from a single piece to add durability to the construction. Also included with the scope are a CR-2032 battery, two flip-up lens covers, and a lens cloth. - Optical Performance
-
- Zoom magnification: 12.5-50x
- 56mm objective lens diameter offers bright images in low-light conditions
- Fully multi-coated optics provide higher brightness and clarity
- Field of view range is 9.7-2.5'
- Reticle
-
- Modified mil-dot 550 ballistic reticle with dual illumination
- Level bubble at the bottom of the reticle helps prevent rifle canting
- Use and Handling
-
- 1/10 mil per click impact point correction
- 32" windage and elevation range
- Eye relief: 3'
- Construction Details
-
- Maintube diameter: 30mm
- Midsize parallax wheel
- Lockable and resettable turrets
- Lockable fast focus eyepiece
- Nitrogen-filled fogproof
- Flip-up covers included
- Shock-resistant
- Waterproof
In the Box Konus 12.5-50x56 KonusPro-M30 Riflescope (1/2 Modified Ballistic Mil-Dot Illuminated Reticle) - 2 x Flip-Up Lens Covers
- CR-2032 Battery
- Limited Lifetime Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Konus 12.5-50x56 KonusPro-M30 Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKonus 7289 Specs | | | Magnification | 12.5 to 50x | | Objective Lens Diameter | 56 mm | | Field of View | 12.5x: 9.7' @ 100 yd / 2.9 m @ 100 m
50x: 2.5' @ 100 yd / 0.7 m @ 100 m | | Exit Pupil Diameter | 12.5x: 4.5 mm
50x: 1.1 mm | | Eye Relief | 3" / 76.2 mm | | | | Reticle Type | Modified 1/2 MIL Dot Ballistic Reticle | | Illumination | Illuminated | | | | Impact Point Correction | 1/10 MIL per Click | | Parallax Correction | Yes, 10 yd / 9.1 m to Infinity | | | | Water Resistance | Waterproof | | Fogproof | Yes, Nitrogen Filled | | | | Maintube Diameter | 30 mm | | Battery | 1 x CR2032 | | Dimensions | Length: 17.6" / 44.7 cm | | Weight | 30.6 oz / 870 g |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 64 owners. Add your rating and experience with the product.
