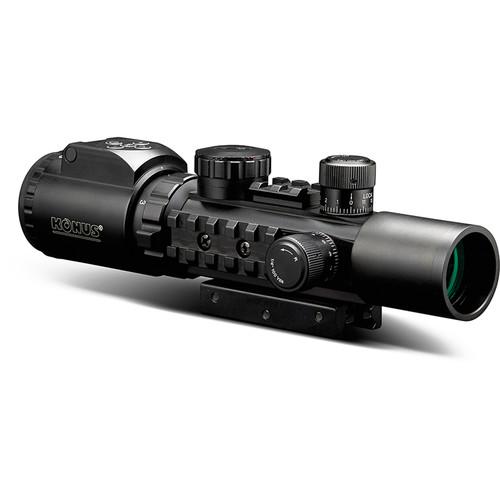

User Manual for Konus 2-6x28 KonusPro AS-34 Riflescope Click to enlarge the picture
Contents of the user manual for the Konus 2-6x28 KonusPro AS-34 Riflescope
- Product category: Riflescopes Konus
- Brand: Konus
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Konus Riflescopes
|
User manual for the Konus 2-6x28 KonusPro AS-34 Riflescope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Konus product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Konus user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Konus product will considerably shorten its lifespan!
|
Product description Enhance your tactical training using the Konus Optics 2-6x28 KonusPro AS-34 Riflescope. This optic is designed for close quarter combat and features three Picatinny/Weaver rails for attaching other accessories like lasers, cameras, and flashlights as well as secondary optics like holographic sights. To provide maximum image brightness and clarity in demanding situations, the lenses are fully multi-coated. Additional highlights of the optical system include a 2-6x zoom and a second focal plane mil-dot reticle with an illuminated red-blue crosshair. To accommodate variable lighting conditions and personal preferences, this reticle also offers adjustable brightness.
Designed to withstand tough conditions on the battlefield, the housing is rugged and durable. It is made of matte black anodized aluminum and offers a waterproof performance. To enable you to make fast and sure windage and elevation adjustments when timing is everything, the scope is outfitted with tactical-style, finger-operated windage and elevation turrets and an oversized reticle brightness knob. The scope can be attached to your firearm via a reversible mount that fits Weaver, Picatinny, and .22 rails. - Optical Performance
-
- 2-6x magnification
- Fully multi-coated optics
- 28mm objective lens
- 14 - 4.7mm exit pupil
- 4.8 - 4.1" eye relief
- Use and Handling
-
- 1/4 MOA impact point correction
- Windage and elevation adjustments
- Illuminated level bubble for preventing canting
- Construction Details
-
- Aluminum alloy
- 34mm maintube
- Locking, finger-operated turrets
- Three Picatinny/Weaver accessory rails
- Reversible mount fits Picatinny, Weaver, .22 rails
- Waterproof and fogproof
- Nitrogen purged
- Mil-Dot Reticle
-
- Mil-Dot reticle
- 2nd focal plane
- Red-blue illuminated crosshair
UPC: 698156071700 In the Box Konus 2-6x28 KonusPro AS-34 Riflescope (Mil-Dot Illuminated Reticle, Matte Black) - CR2032 Battery
- Limited Lifetime Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Konus 2-6x28 KonusPro AS-34 Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the Konus 2-6x28 KonusPro AS-34 Riflescope can be downloaded in PDF format at the link stated below.
Technical parametersKonus 7170 Specs | | | Magnification | 2 to 6x | | Objective Lens Diameter | 28 mm | | Field of View | 2x: 54' @ 100 yd / 18 m @ 100 m
6x: 22' @ 100 yd / 7.3 m @ 100 m | | Exit Pupil Diameter | 2x: 14 mm
6x: 4.7 mm | | Eye Relief | 4.1 to 4.8" / 104 to 122 mm | | | | Reticle Type | MIL Dot Reticle | | | | Impact Point Correction | 1/4 MOA per Click | | | | Water Resistance | Waterproof | | Fogproof | Yes | | | | Battery | 1 x CR2032 | | Dimensions | Length: 8.4" / 21.2 cm
Mount Length: 2.7" / 6.8 cm | | Weight | 19.8 oz / 560 g | | | | Package Weight | 1.805 lb | | Box Dimensions (LxWxH) | 10.8 x 4.0 x 2.85" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 09 owners. Add your rating and experience with the product.
