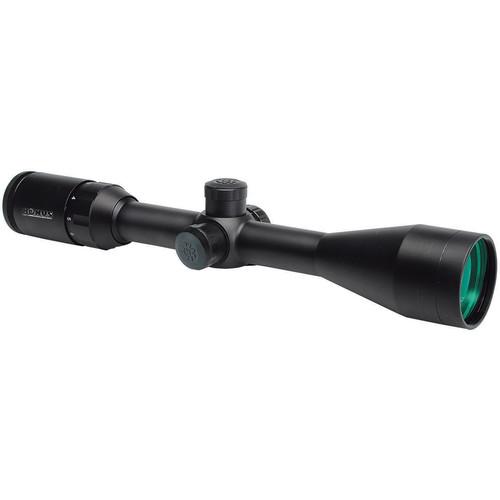

User Manual for Konus 3-10x44 Pro-275 Riflescope Click to enlarge the picture
Contents of the user manual for the Konus 3-10x44 Pro-275 Riflescope
- Product category: Riflescopes Konus
- Brand: Konus
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Konus Riflescopes
|
User manual for the Konus 3-10x44 Pro-275 Riflescope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Konus product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Konus user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Konus product will considerably shorten its lifespan!
|
Product description The 3-10x44 Pro-275 Riflescope with Dual-Illuminated Reticle from Konus is intended for muzzleloaders and will help you to take the guesswork out of hold over angles. The crosshair dot reticle has red and blue illumination and provides you with a system of reference lines for exact aiming at distances from 75 to 275 yards. The red and blue center dot helps when shooting at dark targets and in low light conditions, like dawn or dusk. The lateral hash marks allow you to precisely lead for moving targets and help to compensate for strong crosswinds. Located in the second focal plane, the etched reticle is parallax-free at 100 yards, and will not change in size while you zoom.
The optical system features clear and bright multi-coated optics, a 3-10x zooming capacity, and 44mm objective lens for enhanced light gathering capacity. To help you compensate for projectile motion and wind drift, the scope features 57 MOA windage and elevation adjustment with 1/4 MOA per click impact point correction.
The Pro-275 also features a waterproof, fogproof, and shock-resistant housing with matte black finish. The 1" main tube is made from a single piece to add durability to the construction. Optical Performance -
- Zoom magnification: 3-10x
- Objective lens diameter: 44mm
- Multicoated optics provide higher brightness and contrast
- Linear field of view range is 35 - 14' at 100 yd
Reticle -
- Second focal plane
- Crosshair reticle has center dot with red and blue illumination
- Lateral hash marks allow for precise leads for moving targets
Use and Handling -
- 1/4 MOA per click impact point correction
- 57 MOA Windage and elevation adjustment
- Eye relief: 3"
Construction Details -
- Main tube diameter: 1"
- Single piece aluminum main tube
- Nitrogen-filled fogproof
- Shock-resistant
- Waterproof
UPC: 698156072790 In the Box Konus 3-10x44 Pro-275 Riflescope (Illuminated Red & Blue Dot Reticle) CR2032 Battery 2 x Lens Caps Lens Cloth Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Konus 3-10x44 Pro-275 Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKonus 7279 Specs | | | Magnification | 3 to 10x | | Objective Lens Diameter | 44 mm | | Field of View | 3x: 35' @ 100 yd / 10.7 m @ 100 m
10x: 11' @ 100 yd / 3.3 m @ 100 m | | Exit Pupil Diameter | 3x: 14.7 mm
10x: 4.4 mm | | Eye Relief | 3" / 76 mm | | | | Reticle Type | Crosshair Center Dot Reticle (Second Focal Plane) | | Illuminated Color | Blue, Red | | | | Impact Point Correction | 1/4 MOA per Click | | Windage Adjustment | 57 MOA | | Elevation Adjustment | 57 MOA | | Parallax Correction | Yes, 100 yd / 91.4 m | | | | Water Resistance | Waterproof | | Fogproof | Yes, Nitrogen Filled | | | | Maintube Diameter | 1" | | Battery | 1 x CR2032 | | Dimensions | Length: 13" / 32.9 cm | | Weight | 17.6 oz / 498 g | | | | Package Weight | 1.75 lb | | Box Dimensions (LxWxH) | 14.5 x 3.8 x 3.0" |
