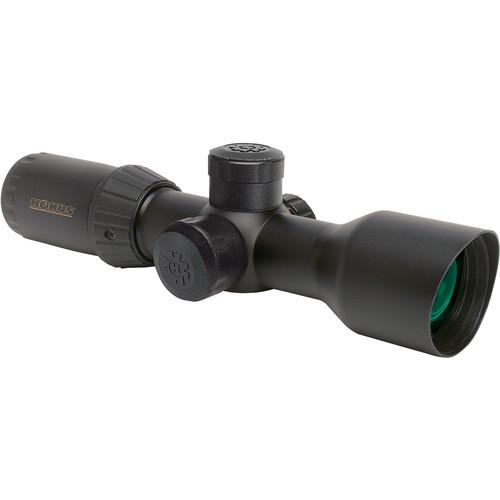

User Manual for Konus 3-12x44 T-30 Riflescope Click to enlarge the picture
Contents of the user manual for the Konus 3-12x44 T-30 Riflescope
- Product category: Riflescopes Konus
- Brand: Konus
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Konus Riflescopes
|
User manual for the Konus 3-12x44 T-30 Riflescope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Konus product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Konus user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Konus product will considerably shorten its lifespan!
|
Product description The 3-12x44 T-30 Riflescope from Konus Optics features a ballistic 550 reticle that provides you with a system of reference lines for aiming at distances out to 550 yards, and marks on the horizontal hair compensate for wind. This etched, 2nd focal plane reticle offers a German #4-inspired design with three fine posts, ultra-fine crosshair, and red or blue illumination. It is also parallax-free at 100 yards and will not change in size while you zoom. The optical system features clear and bright fully multi-coated optics, 3-12x zoom, and a 44mm objective lens for improved image brightness, even at dusk or dawn. To compensate for ballistics and wind, the riflescope has 100 MOA windage and elevation ranges with 1/4 MOA increments.
The T-30 also features a waterproof, fogproof, and shock-resistant housing with matte black finish. The 30mm maintube is machined from a single piece of aluminum to add durability to the construction, especially when using with heavy recoils. To reduce blinding from sunlight and glint from the front lens, the objective bell also incorporates an angled sunshade. Also included with the scope are a CR-2032 battery, two flip-up lens covers, and a lens cloth. - Ballistic 550 Reticle
-
- Located in the 2nd focal plane
- Optimized for targets at 550 yards
- Red and blue illumination
- Lateral hash marks for moving targets
- Optical Performance
-
- Zoom magnification: 3-12x
- Objective lens diameter: 44mm
- Fully multi-coated optics provide higher brightness and contrast
- Field of view range is 36.7-9.1' at 100 yards
- Use and Handling
-
- 1/4 MOA impact point correction
- 100 MOA windage and elevation adjustment
- Eye relief: 3.5'
- Construction Details
-
- Single-piece 30mm maintube
- Aluminum construction
- Built-in angled sunshade
- Flip-up lens caps included
- Nitrogen-filled, fogproof & waterproof
- Shock-resistant
UPC: 698156072912 In the Box Konus 3-12x44 T-30 Riflescope (Red-Blue Illuminated Ballistic 550 Reticle, Matte Black) - CR-2032 Battery
- Flip-Up Lens Caps
- Lens Cloth
- Limited Lifetime Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Konus 3-12x44 T-30 Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKonus 7291A Specs | | | Magnification | 3 to 12x | | Objective Lens Diameter | 44 mm | | Field of View | 3x: 36.7' @ 100 yd / 11.1 m @ 100 m
12x: 9.1' @ 100 yd / 2.7 m @ 100 m | | Exit Pupil Diameter | 3x: 3.7 mm
12x: 9.4 mm | | Eye Relief | 3.5" / 90 mm | | | | Reticle Type | Ballistic 550 Reticle (Second Focal Plane) | | | | Impact Point Correction | 1/4 MOA per Click | | Windage Adjustment | 100 MOA | | Elevation Adjustment | 100 MOA | | Parallax Correction | Yes, 100 yd / 91.4 m | | | | Water Resistance | Waterproof | | Fogproof | Yes, Nitrogen Filled | | | | Maintube Diameter | 30 mm | | Battery | 1 x CR2032 | | Dimensions | Length: 10.4" / 264.2 mm
Mount Length: 3.5" / 90 mm | | Weight | 21.1 oz / 598.2 g | | | | Package Weight | 1.8 lb | | Box Dimensions (LxWxH) | 11.7 x 3.9 x 3.0" |
