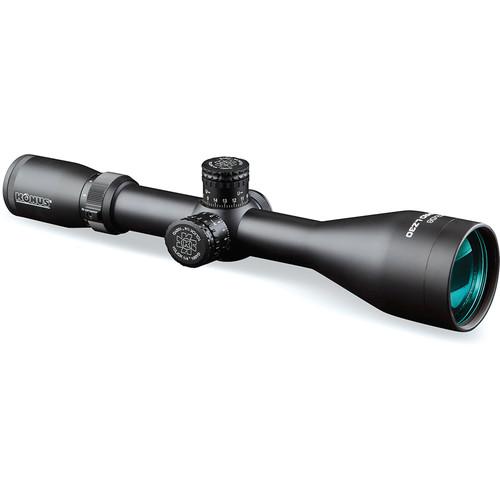

User Manual for Konus 3-12x56 KonusPro LZ30 Riflescope Click to enlarge the picture
Contents of the user manual for the Konus 3-12x56 KonusPro LZ30 Riflescope
- Product category: Riflescopes Konus
- Brand: Konus
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Konus Riflescopes
|
User manual for the Konus 3-12x56 KonusPro LZ30 Riflescope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Konus product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Konus user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Konus product will considerably shorten its lifespan!
|
Product description Experience hunting or distance shooting using the Konus Optics 3-12x56 KonusPro LZ30 Riflescope. Featuring fully multi-coated optics, a 3-12x zoom, and an extra-wide 56mm objective, this scope also boasts a strong and durable single-piece 30mm maintube. With the extra-wide objective lens, you will be able to roam the land even in the darkest conditions because it collects more light than the average objective lens. Other special highlights of this riflescope are its dual-locking, resettable turrets that deliver extra security in adjustments when dealing with repeated recoils. These tactical-style turrets are tall, graduated, and knurled and have clear white reference numbers printed on them. In the second focal plane of this riflescope lies an illuminated 30/30 reticle with four tapered posts and bright illuminated center crosshair. The crosshair is disconnected from the posts and can glow with red or blue light of adjustable brightness to match the external lighting conditions. Other notable details of the scope are its fast focus eyepiece, waterproof and fogproof performance, and impact resistance. - Optical Performance
-
- 3-12x magnification
- Fully multi-coated optics
- 56mm objective diameter
- 3.3" eye relief
- 18.6-4.6 mm exit pupil
- Use and Handling
-
- 1/4 MOA impact point correction
- 52 MOA windage and elevation ranges
- Construction Details
-
- 30mm single-piece maintube
- Aluminum construction
- Fast-focus eyepiece
- Finger-operated, graduated turrets
- Waterproof, fogproof
- Impact resistant
- 30/30 Illuminated Reticle
-
- 2nd focal plane
- Four tapered posts
- Illuminated crosshair in the middle
- Red-blue illumination
UPC: 698156071816 In the Box Konus 3-12x56 KonusPro LZ30 Riflescope (30/30 Illuminated Reticle, Matte Black) - CR2032 Battery
- Limited Lifetime Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Konus 3-12x56 KonusPro LZ30 Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKonus 7181 Specs | | | Magnification | 3 to 12x | | Objective Lens Diameter | 56 mm | | Field of View | 3x: 42.8' @ 100 yd / 13 m @ 100 m
12x: 10.7' @ 100 yd / 3.2 m @ 100 m | | Exit Pupil Diameter | 3x: 18.6 mm
12x: 4.6 mm | | Eye Relief | 3.3" / 83 mm | | | | Reticle Type | 30/30 Reticle (Second Focal Plane) | | | | Impact Point Correction | 0.2 MOA per Click | | Windage Adjustment | 52 MOA | | Elevation Adjustment | 52 MOA | | | | Water Resistance | Waterproof | | Fogproof | Yes | | | | Maintube Diameter | 30 mm | | Battery | 1 x CR2032 | | Dimensions | Length: 13.4" / 34 cm
Mount Length: 5.7" / 14.4 cm | | Weight | 25.4 oz / 720 g | | | | Package Weight | 2.48 lb | | Box Dimensions (LxWxH) | 16.3 x 4.0 x 3.6" |
