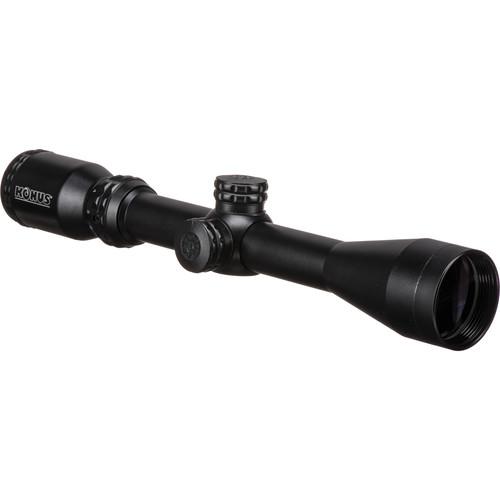

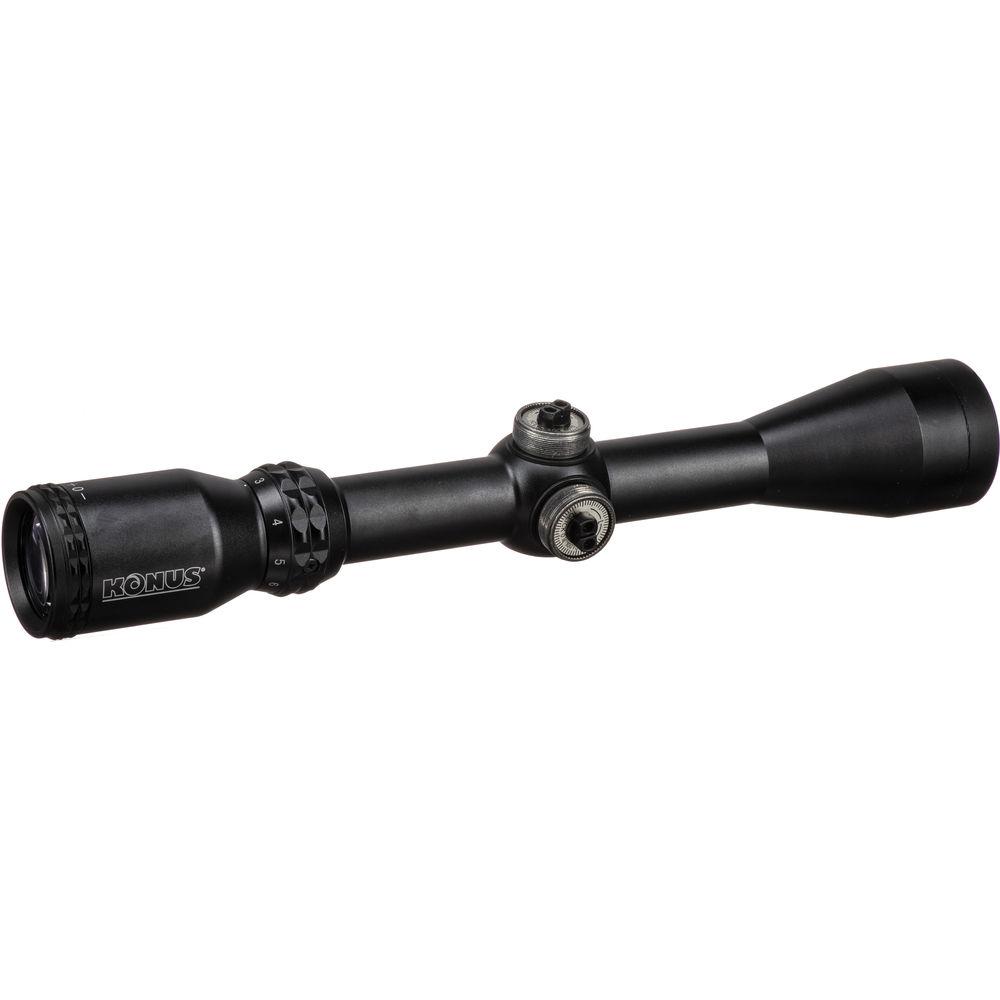

User Manual for Konus 3-9x40 Pro-275 Riflescope Click to enlarge the picture
Contents of the user manual for the Konus 3-9x40 Pro-275 Riflescope
- Product category: Riflescopes Konus
- Brand: Konus
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Konus Riflescopes
 |
User manual for the Konus 3-9x40 Pro-275 Riflescope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Konus product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Konus user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Konus product will considerably shorten its lifespan!
|
Product description The 3-9x40 Pro-275 Riflescope with Dual-Illuminated Reticle from Konus is intended for muzzleloaders and will help you to take the guesswork out of holdover angles. The 275 Muzzleload Ballistic Reticle provides you with a system of reference lines for exact aiming at distances from 75 to 275 yards. The lateral hash marks allow you to precisely lead moving targets and help to compensate for strong crosswinds. Located in the second focal plane, the etched reticle is parallax-free at 100 yards, and will not change in size while you zoom.
The optical system features clear and bright multicoated optics, a 3-9x zoom, and 40mm objective lens for enhanced light gathering capacity. To help you compensate for projectile motion and wind drift, the scope has 51 MOA windage and elevation adjustments with 1/4 MOA per click impact point correction.
The Pro-275 also features a waterproof, fogproof, and shock-resistant housing with matte black finish. The 1" main tube is made from a single piece to add durability to the construction. Optical Performance -
- Zoom magnification: 3-9x
- Objective lens diameter: 40mm
- Multicoated optics provide higher brightness and contrast
- Linear field of view range is 37 - 12.3' at 100 yd
275 Muzzleload Ballistic Reticle -
- Second focal plane
- Lateral hash marks allow for precise leads for moving targets
Use and Handling -
- 1/4 MOA per click impact point correction
- 51 MOA Windage and elevation adjustment
- Eye relief: 3'
Construction Details -
- Main tube diameter: 1"
- Single piece aluminum main tube
- Nitrogen-filled fogproof
- Shock-resistant
- Waterproof
UPC: 698156072783 In the Box Konus 3-9x40 Pro-275 Riflescope (275 Muzzleload Ballistic Reticle Reticle) - 2 x Lens Caps
- Lens Cloth
- Limited Lifetime Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Konus 3-9x40 Pro-275 Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKonus 7278 Specs | | | Magnification | 3 to 9x | | Objective Lens Diameter | 40 mm | | Field of View | 3x: 37' @ 100 yd / 12.3 m @ 100 m
9x: 12.3' @ 100 yd / 4.1 m @ 100 m | | Exit Pupil Diameter | 3x: 10 mm
9x: 4.4 mm | | Eye Relief | 3" / 76 mm | | | | Reticle Type | 275 Muzzleload Ballistic Reticle (Second Focal Plane) | | | | Impact Point Correction | 1/4 MOA per Click | | Windage Adjustment | 51 MOA | | Elevation Adjustment | 51 MOA | | Parallax Correction | Yes, 100 yd / 91.4 m | | | | Water Resistance | Waterproof | | Fogproof | Yes, Nitrogen Filled | | | | Maintube Diameter | 1" | | Battery | None | | Dimensions | Length: 12.2" / 310 mm | | Weight | 14.4 oz / 410 g | | | | Package Weight | 1.47 lb | | Box Dimensions (LxWxH) | 14.65 x 3.85 x 3.05" |
Rating60% users recommend this product to others. And what about you?
This product has already been rated by 79 owners. Add your rating and experience with the product.
Discussion
Ask our technicians if you have a problem with your settings,
or if anything is unclear in the user manual you have downloaded.
You can make use of our moderated discussion.
The discussion is public and helps other users of our website who may be encountering similar problems.
Post new comment to Konus 3-9x40 Pro-275 Riflescope
| Subject: Turret zero | | Date: 19.11.2022 12:20:50 | Name: Anthony M Sacco | | Can you zero the turrets after zeroing the scope, if so how | | Post reply |
