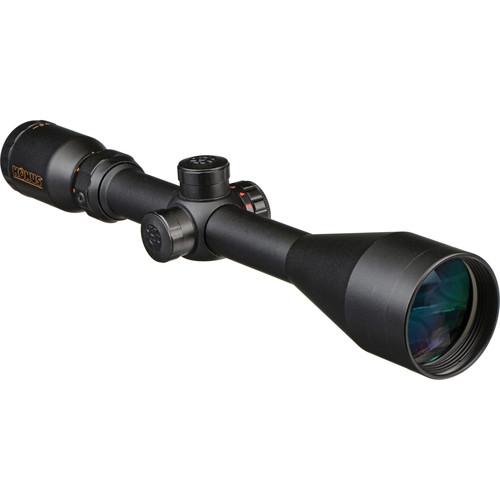

User Manual for Konus 3-9x50 KonusPro Riflescope Click to enlarge the picture
Contents of the user manual for the Konus 3-9x50 KonusPro Riflescope
- Product category: Riflescopes Konus
- Brand: Konus
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Konus Riflescopes
|
User manual for the Konus 3-9x50 KonusPro Riflescope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Konus product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Konus user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Konus product will considerably shorten its lifespan!
|
Product description Designed for big game hunting at long-distances, the Konus 3-9x50 KonusPro Riflescope features a large objective and anti-reflection fully multicoated optics to produce bright and clear images with enhanced low-light performance such as at dawn and dusk, or in heavily-canopied areas. The relatively low magnification helps to maintain image brightness and clarity, in addition to providing a wider field of view than higher power scopes.Its 30/30 duplex reticle has variable intensity illumination that can be selected for either red or blue, and runs on a single include CR2032 coin-cell battery. To get users on-target with more precision, the hand-adjustable windage and elevation turrets correct shot placement at 1/4 MOA per click with a total range of 52 MOA.Complimenting the optical performance is a lightweight and durable aluminum housing with a 1" one-piece main-tube and a matte-black anodized finish. The housing is nitrogen-filled for water and fogproof performance, and the whole scope is recoil-resistant for use on high caliber rifles. - Optical Performance
-
- 3-9x zoom magnification
- 50mm diameter objective lens
- Anti-reflection fully multicoated optics
- 34.5-11.4' field of view at 100 yards
- Reticle Details
-
- 30/30 duplex crosshair
- Selectable red or blue variable-intensity illumination
- Long thick outer posts with short thin center hairs
- Etched onto glass
- Runs on one included CR2032 battery
- Use and Handling
-
- 1/4 MOA per click impact point correction
- 52 MOA windage/elevation adjustment range
- Hand-adjustable turrets
- Parallax set at 100 yd
- 3" eye relief
- 16.7-5.6 exit pupil
- Construction Details
-
- 1" one-piece main-tube
- Lightweight aluminum alloy housing
- Scratch and corrosion-resistant anodized finish
- Nitrogen-filled, water and fogproof
- Recoil resistant
UPC: 698156072943 In the Box Konus 3-9x50 KonusPro Riflescope (Illuminated 30/30 Crosshair Reticle) CR2032 Battery 2 x Lens Caps Lens Cloth Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Konus 3-9x50 KonusPro Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKonus 7294 Specs | | | Magnification | 3 to 9x | | Objective Lens Diameter | 50 mm | | Field of View | 3x: 34.5' @ 100 yd / 11.5 m @ 100 m
9x: 11.4' @ 100 yd / 3.8 m @ 100 m | | Exit Pupil Diameter | 3x: 16.7 mm
9x: 5.6 mm | | Eye Relief | 3" / 76 mm | | | | Reticle Type | 30/30 Duplex Reticle | | Illumination | Illuminated | | | | Impact Point Correction | 1/4 MOA per Click | | Windage Adjustment | 52 MOA | | Elevation Adjustment | 52 MOA | | Parallax Correction | Yes, 100 yd / 91.4 m | | | | Water Resistance | Waterproof | | Fogproof | Yes, Nitrogen Filled | | | | Maintube Diameter | 1" | | Battery | 1 x CR2032 | | Dimensions | Length: 14" / 35.6 cm | | Weight | 17.6 oz / 499 g | | | | Package Weight | 1.69 lb | | Box Dimensions (LxWxH) | 15.9 x 3.8 x 3.15" |
