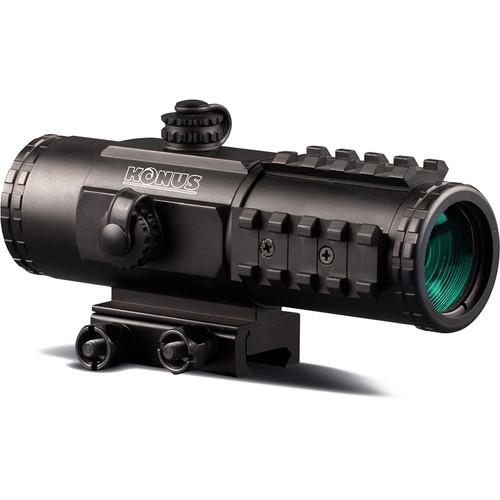

User Manual for Konus 3x30 SightPro-PTS2 Prism Sight Click to enlarge the picture
Contents of the user manual for the Konus 3x30 SightPro-PTS2 Prism Sight
- Product category: Red Dot/Holographic Sights Konus
- Brand: Konus
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Konus Red Dot/Holographic Sights
 |
User manual for the Konus 3x30 SightPro-PTS2 Prism Sight contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Konus product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Konus user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Konus product will considerably shorten its lifespan!
|

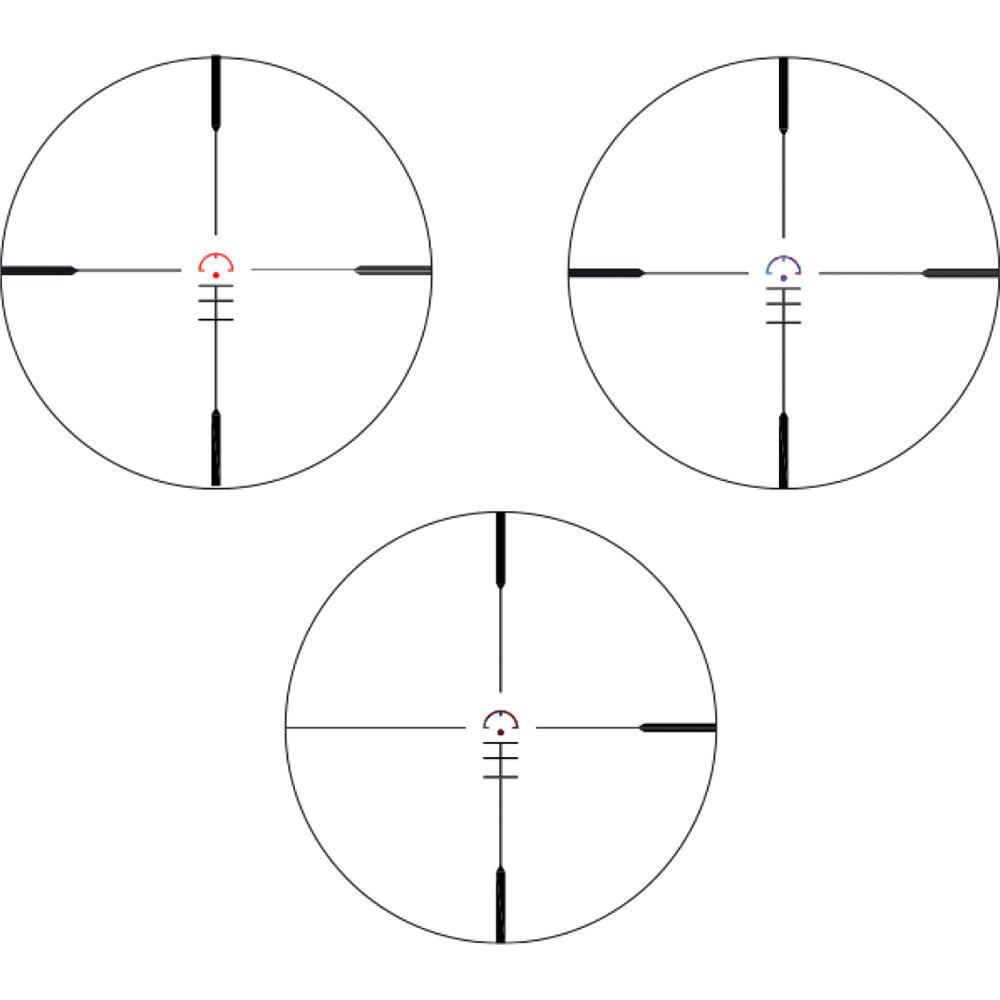

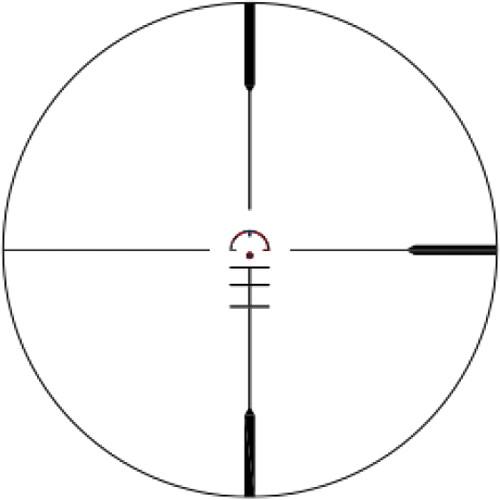

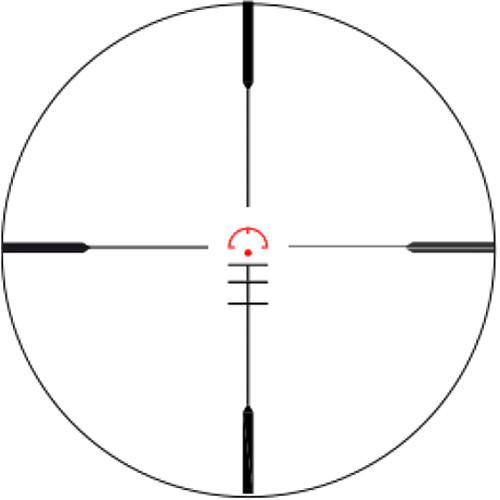

Product description The Konus 3x30 SightPro-PTS2 Prism Sight is designed for close quarters combat (CQC) training but can be used for other purposes. Its optical system offers a 3x magnification for notable close-ups, fully multi-coated optics for clear and bright images with low glare, and an illuminated reticle for improved precision. Its pattern offers users four tapered posts, a thin crosshair with ballistic stadia, and an illuminated horseshoe with an illuminated 2.8 MOA target dot. The reticle's illumination can be switched from red to blue and has adjustable brightness. For more extensive trajectory compensation, you can use capped windage and elevation turrets, which offer 1/3 MOA increments.
For seamless integration with your firearm, the aluminum housing has a Picatinny/Weaver rail mount. It is waterproof, fogproof, and offers three short Picatinny/Weaver rails for secondary sights or other accessories. - Optical Performance
-
- 3x magnification
- Fully multi-coated optics
- 30mm objective lens diameter
- Use and Handling
-
- 1/3 MOA impact point correction
- Windage and elevation
- Construction Details
-
- Aluminum construction
- Three Picatinny/Weaver accessory rails
- Flip-up lens covers
- Picatinny/Weaver rail mount
- Waterproof and fogproof
- Illuminated Reticle
-
- Four tapered posts
- Thin crosshair with ballistic stadia below the center
- Red-blue illuminated horseshoe and target dot
UPC: 698156072035 In the Box Konus 3x30 SightPro-PTS2 Prism Sight (Red-Blue Illuminated Reticle, Matte Black) - 2 x Flip-Up Lens Caps
- CR2032 Battery
- Limited Lifetime Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Konus 3x30 SightPro-PTS2 Prism Sight in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKonus PTS2 Specs | Magnification | 3x | | Objective Lens Diameter | 30mm | | Reticle | Red-blue reticle, 2.8 MOA | | Exit Pupil Diameter | 10.0 mm | | Mounting System | Picatinny/Weaver rail | | Impact Point Correction | 1/3 MOA | | Windage/Elevation Adjustment | Yes | | Weatherproofing | Waterproof and fogproof | | Battery | 1 x CR2032 battery | | Dimensions | 5.7" / 14.6 cm | | Weight | 16.9 oz / 480.0 g | | | | Package Weight | 1.445 lb | | Box Dimensions (LxWxH) | 10.0 x 6.2 x 3.4" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 07 owners. Add your rating and experience with the product.
