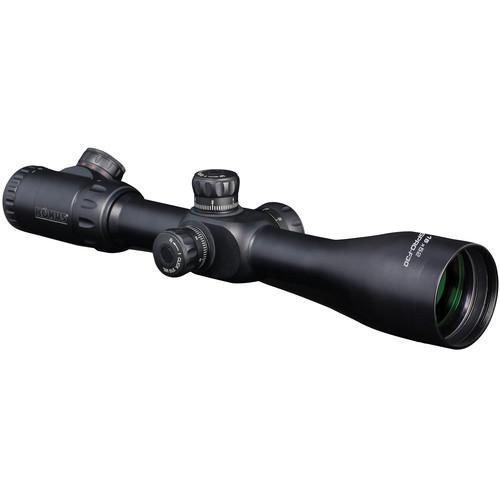

User Manual for Konus 4-16x52 KonusPro F-30 Riflescope Click to enlarge the picture
Contents of the user manual for the Konus 4-16x52 KonusPro F-30 Riflescope
- Product category: Riflescopes Konus
- Brand: Konus
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Konus Riflescopes
|
User manual for the Konus 4-16x52 KonusPro F-30 Riflescope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Konus product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Konus user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Konus product will considerably shorten its lifespan!
|
Product description Konus Optics designed the 4-16x52 KonusPro F-30 Riflescope for distance and precision shooters and hunters who prefer to perform their activities in low-light conditions. With the 1st focal plane 550 Ballistic Reticle, you will get unobstructed and clean views of your targets and ballistic hold out to 550 yards. It offers three short thin posts, a thin crosshair, stadia markings for ballistic drop compensation, lateral hash-marks for wind compensation, and a center circle with two illumination options. The optical system features clear and bright fully multi-coated optics, 4-16x zoom, and a wide 52mm objective lens that makes the most out of low-light conditions and allows you to get unambiguous target identifications even at dusk or dawn. To compensate for ballistics and high winds, the scope provides 67" at 100 yd windage and elevation range with a 1/4 MOA impact point correction.
The aluminum housing is engineered to provide you with all-weather and all-terrain capability because it is waterproof, fogproof, and shock-resistant. The 30mm maintube is machined from a single piece of aluminum to add durability for years of service. With the locking fast focus eyepiece you can always be sure that your focus setting will withstand recoils. The knurled zoom ring and turrets will ensure easy and comfortable non-slip adjustments. To protect your optics from debris and scratches during transport and to allow you to take a quick aim, this riflescope is supplied with flip-up lens covers. For blocking direct sunlight and reducing glare, also included is a sunshade. - Optical Performance
-
- Zoom magnification: 4-16x
- 52mm objective lens diameter offers bright images in low-light conditions
- Fully multi-coated optics provide higher brightness and clarity
- Field of view range is 23.1-6.5'
- 550 Ballistic Reticle
-
- 1st focal plane
- Three thin posts, and thin crosshair
- Dual-color illumination of the center circle has five brightness settings
- Lateral hash-marks help to compensate for wind
- Stadia markings are spaced at 100 yd increments
- Maximum ballistic compensation out to 550 yd
- Bottom level bubble for anti-canting
- Use and Handling
-
- 1/4 mil per click impact point correction
- 67" at 100 yd windage and elevation range
- Eye relief: 3.5'
- Exit pupil: 13 - 3.25mm
- Construction Details
-
- Maintube diameter: 30mm
- Midsize parallax wheel
- Illumination knob is offset 45° on the eyepiece
- Lockable and resettable finger-operated turrets
- Lockable fast focus eyepiece
- Flip-up covers included
- Sunshade included
- Nitrogen-filled fogproof
- Shock-resistant
- Waterproof
In the Box Konus 4-16x52 KonusPro F-30 Riflescope (550 Ballistic Illuminated Reticle) - 2 x Flip-Up Lens Covers
- Sunshade
- CR-2032 Battery
- Limited Lifetime Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Konus 4-16x52 KonusPro F-30 Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKonus 7299 Specs | | | Magnification | 4 to 16x | | Objective Lens Diameter | 52 mm | | Field of View | 4x: 23.1' @ 100 yd / 7.1 m @ 100 m
16x: 6.5' @ 100 yd / 1.9 m @ 100 m | | Exit Pupil Diameter | 4x: 13 mm
16x: 3.25 mm | | Eye Relief | 3.5" / 90 mm | | | | Reticle Type | 550 Ballistic Reticle (First Focal Plane) | | | | Impact Point Correction | 1/4 MOA per Click | | Windage Adjustment | 70 MOA | | | | Water Resistance | Waterproof | | Fogproof | Yes, Nitrogen Filled | | | | Maintube Diameter | 30 mm | | Battery | 1 x CR2032 | | Dimensions | Length: 14.3" / 36.3 cm | | Weight | 27.5 oz / 780 g |
