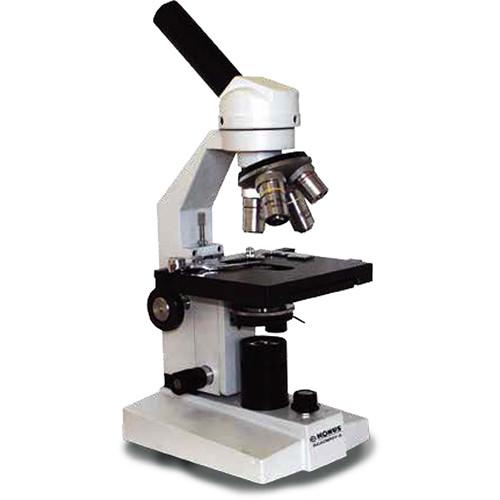

User Manual for Konus Academy-2 Biological Monocular Microscope Click to enlarge the picture
Contents of the user manual for the Konus Academy-2 Biological Monocular Microscope
- Product category: Microscopes Konus
- Brand: Konus
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Konus Microscopes
|
User manual for the Konus Academy-2 Biological Monocular Microscope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Konus product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Konus user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Konus product will considerably shorten its lifespan!
|
Product description Konus Optics' Academy-2 Biological Monocular Microscope offers users a scientific microscope experience by providing four DIN achromatic objectives, a widefield eyepiece, a stable metal frame with fine and coarse focusing, and a movable stage with a sample bracket. The optical system has a 1000mm focal length and delivers a maximum 1000x magnification. You will see crisp images with low color distortion, thanks to the achromatic optics. To add proper illumination to your images, the scope has a bottom 0.5W white LED lamp, an Abbe condenser with a double lens, and an iris diaphragm. To enable you to emphasize certain details of your samples you are also provided with four color filters, in orange, white, light blue, and green. For precise positioning of your specimens under the objective, the scope offers fine and coarse focusing wheels and a movable square stage with two coaxial Vernier controls. The stage has a metal bracket to secure your slides. Another definite highlight of this microscope is its ability to be operated as both corded or cordless device using the included accessories: a 120V AC adapter or three rechargeable AAA batteries with a battery charger. - Optical Performance
-
- Inclined monocular viewing
- 40x, 100x, 400x, and 1000x magnification
- 4x, 10x, 40x, and 100x DIN achromatic objectives
- 10x WF eyepiece
- Clear field Abbe condenser with double lens
- Four filters: orange, white, light blue, and green
- Fine and coarse focusing
- 1000mm focal length
- 0.5W LED illumination
- Iris diaphragm
- Use and Handling
-
- Cordless operation using the three included AAA batteries
- Corded operation using the included power adapter
- Stage
-
- Movable stage with specimen bracket
- Coaxial Vernier controls
- Filter holder
- Construction Details
-
- Metal frame
- Wide base
- Arched back can serve as a handle
- Rotating nosepiece turret
In the Box Konus Academy-2 Biological Monocular Microscope (120V, Gray) - 3 x Rechargeable AAA Batteries
- Battery Charger
- 120V AC Adapter
- Dust Cover
- Limited 2-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Konus Academy-2 Biological Monocular Microscope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKonus Academy-2 Specs | Microscope Type | Compound | | Head | Inclined Monocular | | Nosepiece | 4-Position Nosepiece | | | | Optical Magnification | 40x, 100x, 400x, 1000x | | Objective | 4x
10x
40x
100x | | Eyepiece | 10x Wide Field | | Focusing | Coarse, Fine | | | | Illumination Type | LED (.5 W) | | Dimmer | Yes | | | | Battery | 3 x AAA | | Power | 120 VAC, 60 Hz | | Material | Metal | | Dimensions | L: 13.0 x W: 6.5 x H: 15.0" / L: 33.0 x W: 16.5 x H: 38.1 cm | | Weight | 9 lb / 4.1 kg |
