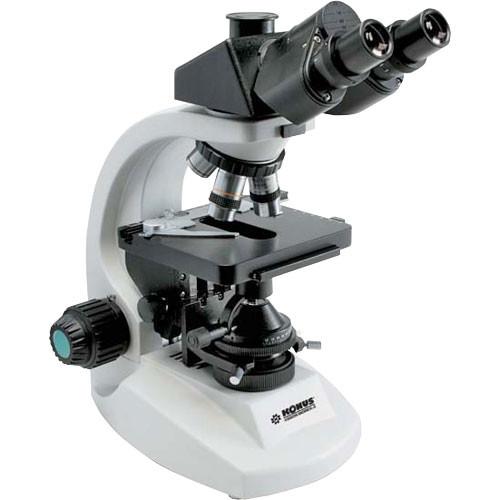

User Manual for Konus Biorex 3 Microscope Click to enlarge the picture
Contents of the user manual for the Konus Biorex 3 Microscope
- Product category: Microscopes Konus
- Brand: Konus
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Konus Microscopes
|
User manual for the Konus Biorex 3 Microscope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Konus product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Konus user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Konus product will considerably shorten its lifespan!
|
Product description The Konus Biorex 3 Microscope offers students and laboratory users a highly functional, well-constructed 1000x trinocular microscope at an attractive price. It has a 360° revolving binocular head set at a 45° angle to the base, with interpupillary adjustment as well. The view can easily be shared amongst users very quickly, without losing focus or center point. It is supplied with 10x eyepieces and a quartet of achromatic objectives (4x, 10x, 40x, and 100x) for 1000x maximum magnification. As a trinocular version of the Biorex series, this model has a 3rd optical path in addition to the normal binocular viewing, and this path is typically used for photomicrography or for displaying the image live to a screen for teaching purposes. The Biorex 3's double focusing speeds and large geared stage make finding and observing your specimen simple. The Biorex 3 has an extensive system of accessories, such as photo adapters, viewing filters, and a 60x objective or 15x eyepieces. A filter holder and a blue filter are standard equipment. Konus makes the Biorex 3 functional in any voltage regulation worldwide, and the instruction booklet provides descriptions in multiple languages. - High-quality hard coated optics
- 45° Angled binocular viewing with 360° revolving base
- Separate 3rd optical path for general photomicrography
- Simultaneous viewing and display to computer/projector/television screen possible
- Achromatic 4x, 10x, 40x, & 100x objectives
- 10x-power, 18mm field diameter eyepieces
- Large (132mm x 140mm) mechanical stage with geared low position coaxial control
- Filter holder and blue filter included (other filters available optionally)
- Dual coarse/fine movement focusing
- 20W Halogen illumination with brightness adjustment
- 1.25 NA Abbe condenser with iris diaphragm
- Universal voltage capacity works worldwide
UPC: 698156056059 In the Box Konus Biorex 3 Microscope Halogen Bulb for Konus Infinity & Biorex Microscopes zqudcssyzwycfbywxsrrbusqdxuvfftbub Filter Holder Blue Filter Dust Cover Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Konus Biorex 3 Microscope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKonus Biorex 3 Specs | Microscope Type | Trinocular | | Eyepiece | 10x (DIN standard) | | Objective(s) | 4x, 10x, 40x, & 100x | | Focuser | Dual-axis geared rack & pinion | | Light Source | 20W halogen lamp with brightness control | | Light Control | Achromatic condenser with iris diaphragm | | Specimen Stage | 132 x 140mm with geared movement | | Dimensions | Not Specified by Manufacturer | | Weight | Not Specified by Manufacturer | | | | Package Weight | 18.2 lb | | Box Dimensions (LxWxH) | 17.6 x 14.4 x 9.1" |
