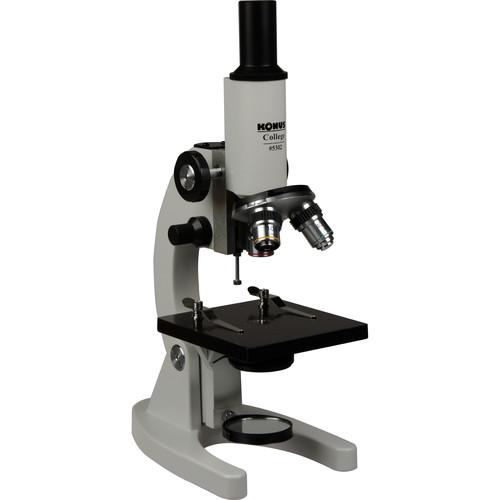

User Manual for Konus College 600X Biological Monocular Microscope Click to enlarge the picture
Contents of the user manual for the Konus College 600X Biological Monocular Microscope
- Product category: Microscopes Konus
- Brand: Konus
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Konus Microscopes
|
User manual for the Konus College 600X Biological Monocular Microscope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Konus product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Konus user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Konus product will considerably shorten its lifespan!
|
Product description The Konus College 600X Biological Monocular Microscope is a professionally designed student microscope that includes a 15x wide field eyepiece and three interchangeable achromatic objectives (4x, 10x, 40x). It incorporate a rack and pinion focusing system with micrometrical and macro metrical adjustment, and illumination is provided by a Concave sub-stage mirror and illumination control is provided by a light condenser lens, with iris diaphragm and filter-holder. - Includes 15x wide-field eyepiece.
- Straight hollow tube design with a focal length 160mm making it useable for microphotography.
- Three position turret nosepiece with three achromatic objective lenses (4x, 10x, 40x).
- Wide 120x110mm stage with slide clips.
- Double focus adjustments, with macro metric and micrometric for fine regulation and lens protective focus lock.
- Illumination provided by 46mm concave mirror.
- Light condenser lens with iris diaphragm and filter holder regulate incoming light.
- Solid, stable metal stand can be inclined to 90 degrees for more comfortable observation.
In the Box Konus College 600X Biological Monocular Microscope 15x Wide-field Eyepiece 4x Objective Lens 10x Objective Lens 40x Objective Lens Filter Holder Dust Cover Multilingual User Guide Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Konus College 600X Biological Monocular Microscope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKonus College 600x Specs | Microscope Type | Compound | | Head | Straight Monocular | | Nosepiece | 3-Position Nosepiece | | | | Objective | 4x, 10x, 40x | | Eyepiece | 15x Wide Field | | Focusing | Coarse, Fine | | | | Illumination Type | Bottom: Mirror | | | | Dimensions | L: 4.3 x W: 4.7" / L: 110.0 x W: 120.0 mm (Specimen Stage) | | Weight | Not Specified by Manufacturer | | | | Package Weight | 5.035 lb | | Box Dimensions (LxWxH) | 14.7 x 10.15 x 7.85" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 99 owners. Add your rating and experience with the product.
