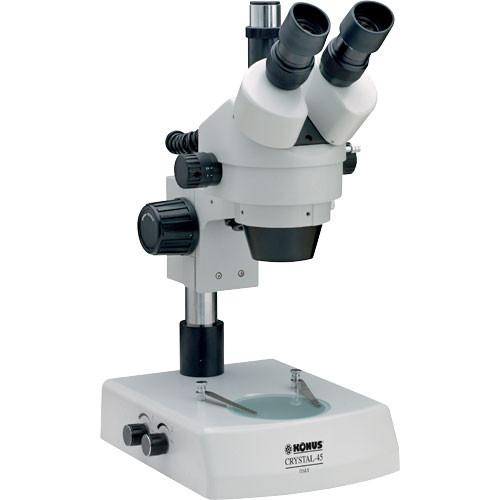

User Manual for Konus Crystal-45 7-45x Zoom Stereoscopic Trinocular Microscope Click to enlarge the picture
Contents of the user manual for the Konus Crystal-45 7-45x Zoom Stereoscopic Trinocular
- Product category: Microscopes Konus
- Brand: Konus
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Konus Microscopes
|
User manual for the Konus Crystal-45 7-45x Zoom Stereoscopic Trinocular contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Konus product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Konus user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Konus product will considerably shorten its lifespan!
|
Product description Konus Optics' Crystal-45 7-45x Zoom Stereoscopic Trinocular Microscope is a 120V stereoscopic microscope with a total magnification of 7x-45x. The two 10x EWF eyepieces offer 3-dimensional viewing with a superior depth of field. The achromatic objective lens system offers an achromatic and parfocal operation, which results in distortion-free imaging and the ability to change zoom without refocusing. While the 45°-inclined stereo binocular head offers comfortable viewing, its vertical 3rd imaging optical port allows simultaneous image and video capturing. A user-friendly design complements a range of features that make this microscope a welcome addition to labs and classrooms: a platform stand with a wide work surface, two metal clips for securing your samples, bottom florescent illumination, and a 15W top halogen lamp. Each of the illumination options has a dedicated brightness control knob located on the base.
The viewing head accommodates specimen heights up to 3.9" and is capable of 360° rotation for sharing the experience among colleagues and students without moving the microscope. An adjustable 51-75mm interpupillary distance, individually adjustable diopter correction, and two dedicated brightness controls provide the flexibility needed to create a customized viewing experience. - Optical System & Illumination
-
- 10x, 20 mm eyepieces
- 0.7 - 4.5x objective lens
- 7x - 45x total magnification
- 45°-inclined binocular viewing
- Head rotates 360° for easy sharing
- Stereoscopic design provides 3-dimentional perception
- 3rd vertical optical path for digital imaging devices
- Achromatic and parfocal optical design
- Interpupillary adjustment: 51 - 75mm
- Both eyepieces have diopter adjustments
- Top illuminator: 15W halogen lamps
- Bottom illuminator: fluorescent lamp
- Stage, Focusing, and Construction
-
- Cast metal frame with pillar stand
- Adjustable working distance: 3.9-1"
- Fine and coarse focusing adjustments
- Stationary round base offers bottom illumination
- Two dedicated brightness control knobs on the base
- Two metal clips for securing specimens
- Rubberized eyecups
UPC: 698156054260 In the Box Konus Crystal-45 7-45x Zoom Stereoscopic Trinocular Microscope (120V) - Halogen Bulb
- 2 x Eyecups
- Power Cord
- Dust Cover
- Limited 2-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Konus Crystal-45 7-45x Zoom Stereoscopic Trinocular Microscope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKonus Crystal-Pro Specs | Microscope Type | Stereo viewing
Third imaging optical path | | Objective Lens | 0.7 - 4.5x, achromatic, parfocal | | Eyepiece | 10x, 20 mm, EWF | | Magnification | 7 - 45x | | Working Distance | 3.9 - 1" / 100 - 26 mm | | Interpupillary Adjustment | 51 - 75 mm | | Focuser | Coarse and fine | | Specimen Stage | Yes, stationary | | Illumination | Top: 15 W/12 V halogen lamp
Bottom: fluorescent lamp | | Power Requirement | 120 V | | Dimensions | Base: 10.2 x 7.9 x 2.4" / 26 x 20 x 6 cm
Height: 19" / 48.3 cm
Post: 9.8 x 1.18" / 25 x 3 cm
Microscope Head: not provided by manufacturer | | Weight | 11.5 lb / 5.2 kg | | | | Package Weight | 17.6 lb | | Box Dimensions (LxWxH) | 19.8 x 14.8 x 10.6" |
