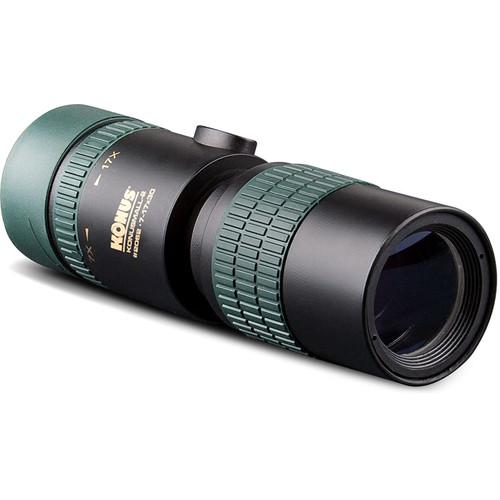

User Manual for Konus KonuSmall-2 7-17x30 Monocular Click to enlarge the picture
Contents of the user manual for the Konus KonuSmall-2 7-17x30 Monocular
- Product category: Monoculars Konus
- Brand: Konus
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Konus Monoculars
|
User manual for the Konus KonuSmall-2 7-17x30 Monocular contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Konus product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Konus user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Konus product will considerably shorten its lifespan!
|
Product description Perfect to keep in your pack, pocket, purse, or glove box, the Konus KonuSmall-2 7-17x30 Monocular lives up to its name, sporting a compact and lightweight design to deliver magnified views without weighing you down.Outfitted with a broad zoom range that provides low to medium magnifications and anti-reflection multi-coatings to boost brightness and contrast while helping to limit light loss and eye fatigue, the monocular lets you take in sweeping views at low power while enabling you to dial up the magnification for detailed observations at longer distances. A dual focusing system provides fast coarse and precise fine focusing, and a convenient twist-up eyecup makes for comfortable use with or without eyewear. For those long observation sessions, or to limit hand shake and vibration, the KonuSmall has a standard 1/4"-20 threaded tripod mount to make attaching to window mounts, quick-release plates, or photo/video/field tripods fast and easy. - Optical Performance
-
- Low 7x to moderate 17x power zoom range lets you enjoy a wide field of view and provides the ability to increase magnification for detailed observations
- 30mm objective ensures a lightweight and slim form factor for easier handling and carrying
- Anti-reflection multi-coated optics improve light transmission, color rendition, and clarity
- 264' field of view at 1000 yards on 7x; 149' at 17x
- Use and Handling
-
- Dual focusing mechanism enables fast coarse and precise fine focusing for tack-sharp images
- Twist-up eyecup for comfortable use with or without eyewear
- Tripod mountable with standard 1/4"-20 threaded socket
- 4.3-1.8mm exit pupil
- Construction Details
-
- Slip-resistant zoom collar, focusing ring, and eyecup for easy use
- Includes strap and carrying case
- Lightweight: 5.5 ounces
- Compact: 5" long
UPC: 698156020623 In the Box Konus KonuSmall-2 7-17x30 Monocular Strap Carrying Case Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Konus KonuSmall-2 7-17x30 Monocular in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKonus 2062 Specs | Prism Type | Roof | | Magnification | 7 - 17x | | Objective Lens Diameter | 30mm | | Angle of View | 5.0 - 2.8°, actual | | Field of View | 264.1 - 149.2' @ 1000 yards / 87.9 - 49.6 m @ 1000 m | | Minimum Focus Distance | Not specified by manufacturer | | Exit Pupil Diameter | 4.3 - 1.8 mm | | Eye Relief | Not specified by manufacturer | | Tripod Mount | Yes | | Length | 5.0" / 12.8 cm | | Weight | 5.5 oz / 156.0 g | | | | Package Weight | 0.49 lb | | Box Dimensions (LxWxH) | 5.95 x 2.4 x 2.3" |
Rating50% users recommend this product to others. And what about you?
This product has already been rated by 10 owners. Add your rating and experience with the product.
Discussion
Ask our technicians if you have a problem with your settings,
or if anything is unclear in the user manual you have downloaded.
You can make use of our moderated discussion.
The discussion is public and helps other users of our website who may be encountering similar problems.
Post new comment to Konus KonuSmall-2 7-17x30 Monocular
| Subject: konus monocular blurry | | Date: 10.06.2022 01:40:25 | Name: Marie Rambaud | | Maybe I'm missing something but have bought the konus small 2 7-17x monocular. All it seems to do is make what I'm zooming in on, clear but further away. Better view with naked eye. Otherwise it's so blurry I can't see a thing. Have tried adjusting settings various ways. If I can't get it to work will be returning unfortunately. | | Post reply |
