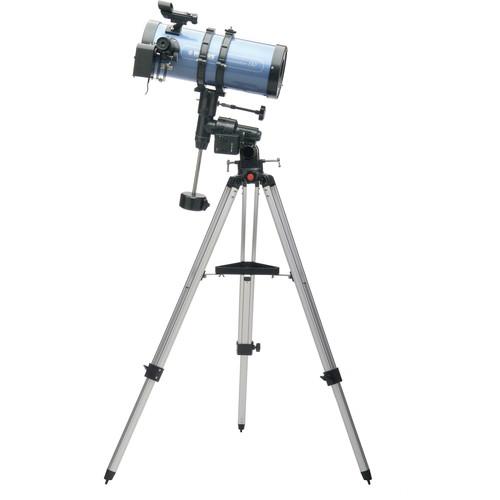

User Manual for Konus Konusmotor-130 5" f 7.7 Reflector Telescope with RA Motor Click to enlarge the picture
Contents of the user manual for the Konus Konusmotor-130 5" f 7.7 Reflector
- Product category: Reflectors Konus
- Brand: Konus
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Konus Reflectors
|
User manual for the Konus Konusmotor-130 5" f 7.7 Reflector contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Konus product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Konus user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Konus product will considerably shorten its lifespan!
|
Product description The Konusmotor-130 5" f/7.7 Telescope with RA Motor from Konus is an ideal intermediate scope for making observations of the Moon and planets as well as brighter deep sky objects. The 5" primary mirror and anti-reflection multicoated optics ensure images are bright and clear. This German equatorial mount is a step-up from a beginner version with the addition of a Right Ascension tracking motor that counteracts the Earth's rotation and keeps your subjects centered for longer observation sessions. Using the motor to track, instead of the more common manual cable not only ensures steady and smooth movement, but it also greatly reduces vibrations. The manual slow-motion declination cable allows for adjustments if necessary. To further reduce vibrations Konus outfits the focuser with a motor that can achieve a smooth fine focus that manual focusing often cannot.Assembled as a complete observation platform, the scope includes an adjustable-height aluminum tripod, a red dot finderscope for faster alignment and sighting, and two eyepieces. The 10mm eyepiece produces 100x power, and the 17mm produces 59x. A filter is also included for users to safely make detailed observations of the Moon. To transport and carry the OTA and tripod are two bags with zipper closures. - Optical Performance
-
- 5" aperture
- f/7.7 focal ratio
- 1000mm focal length
- Anti-reflection multicoated optics
- Mount
-
- German equatorial
- Right Ascension tracking motor, runs on one 9V battery
- Manual Declination slow motion cable
- Counterweight bar with adjustable counterweight
- Cradle ring assembly to adjust OTA position relative to mount for optimal viewing and balance
- Two-section aluminum tripod, adjustable from 26-42"
- Accessories
-
- 1.25" motorized focuser, runs on two AA batteries
- 10mm eyepiece yields 100x power
- 17mm eyepiece yields 59x power
- Red-dot finderscope
- Moon filter for safe observation of the moon
- Two soft carrying cases for the OTA and tripod/mount
- Smartphone holder to attach device to OTA
UPC: 698156117866 In the Box Konus Konusmotor-130 5" f/7.7 Reflector Telescope with RA Motor Moon Filter 10mm Eyepiece 17mm Eyepiece Focuser Motor RA Motor Aluminum Tripod OTA Carrying Bag Tripod Carrying Bag Moon/Sky Map Smartphone Adapter 9V Battery 2 x AA Batteries Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Konus Konusmotor-130 5" f 7.7 Reflector Telescope with RA Motor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKonus 1786 V2 Specs | Optical Design | Reflector | | Aperture | 5.2" / 130 mm | | Focal Length | 1000 mm | | Focal Ratio | f/7.7 | | Eyepiece Barrel Diameter | 1.25" | | Diagonal | n/a | | Finderscope | Red dot | | Tripod | Two-section Aluminum
Adjustable: 26.4 - 42.1" / 67 - 107 cm | | Mount Type | German Equatorial with Right Ascension motor | | Power Source | RA motor: 1 x 9v battery
Focuser motor: 2 x AA batteries | | Optical Tube Dimensions | Not specified by manufacturer | | Weight | Not specified by manufacturer | | | | Package Weight | 33.2 lb | | Box Dimensions (LxWxH) | 29.0 x 19.0 x 10.0" |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 18 owners. Add your rating and experience with the product.
