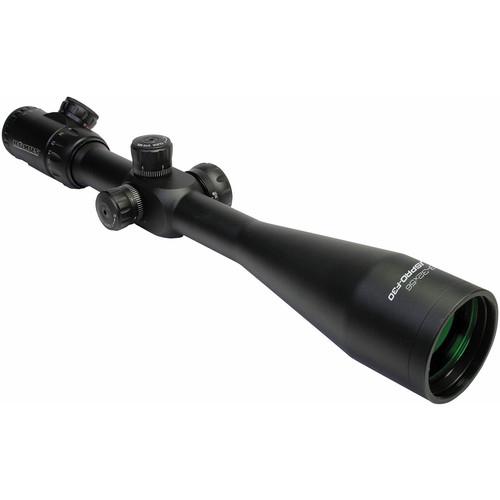

User Manual for Konus KonusPro F-30 8-32x56 Riflescope Click to enlarge the picture
Contents of the user manual for the Konus KonusPro F-30 8-32x56 Riflescope
- Product category: Riflescopes Konus
- Brand: Konus
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Konus Riflescopes
|
User manual for the Konus KonusPro F-30 8-32x56 Riflescope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Konus product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Konus user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Konus product will considerably shorten its lifespan!
|
Product description Designed specifically to address the needs of low-light, long range, and precision shooting, the KonusPro F-30 8-32x56 Riflescope from Konus Optical features the largest 56mm objective aperture, wide zooming range, and a red-blue illuminated Modified Mil-Dot Reticle. The optics are fully multicoated to provide maximum possible transmission of light, improve contrast and detail, and reduce glare. To reduce glare from the sun, you can attach to the objective bell the included 4" sunshade. To help you compensate for wind drift and ballistic bullet drop, the scope offers 60 MOA windage and elevation adjustment ranges with 1/10 mil per click increments. Located in the first focal plane, the etched reticle will maintain the exact spacing of the reticle features.
The scope is also equipped with a unique Modified Mil-Dot Reticle with red or blue adjustable illumination for precision target acquisition and a green phosphorescent anti-canting level bubble for ensuring a tilt-free position, critical for long range shooting. The reticle features a thin center cross-hair with major and minor marks. The major marks are spaced 1 mil apart and are 1/5-mil-long. The illuminated center consists of a circle that is a 1/4 mil in diameter and has four thin 1/2-mil-long posts. On the periphery, there are four very wide posts. The illumination is powered by one included CR-2032 battery and has five brightness levels.
The matte black housing is durable, waterproof, and shock-resistant. It features a single-piece 30mm main tube, locking resettable turrets, and a locking zoom eyepiece. To prevent fogging-up of optics on the inside, when you are moving through environments with changing temperatures, the housing is filled with nitrogen gas and sealed. Like all knobs and adjustments on this riflescope, the illumination control knob is knurled for slip-free operation, but it is attached to the eyepiece at a 45° angle for easier and more comfortable reach. Also included are flip-up lens covers and a lens cleaning cloth. - Optical Performance
-
- Fully multicoated
- 8-32x magnification
- 56mm objective
- 2.3-0.6° angle of view
- 3.5" eye relief
- Red-Blue Modified Mil Dot Reticle
-
- 1st focal plane keeps reticle features proportional to targets
- Red or blue illuminated 1/4-mil-wide enter circle and four thin 1/2-mil-long posts
- 1/2-mil-long major marks are 1 mil apart
- Five brightness settings
- Parallax-free from 10 yards to infinity
- Green phosphorescent anti-canting bubble ensures tilt-free position
- Use and Handling
-
- 1/10 mil impact point correction
- 60 MOA windage and elevation adjustment
- Construction Details
-
- 30mm single-piece main tube
- Locking resettable turrets with knurled knobs
- Locking fast-focus eyepiece
- 45° offset illumination switch
- 4" Sunshade included
- Nitrogen-filled for fogproof performance
- Shock-resistant
- Waterproof
UPC: 698156072981 In the Box Konus KonusPro F-30 8-32x56 Riflescope (Red-Blue Modified Mil Dot) - Lens Cleaning Cloth
- 2 x Flip-up Lens Covers
- CR-2032 Battery
- 4" Sunshade
- Limited Lifetime Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Konus KonusPro F-30 8-32x56 Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKonus 7298 Specs | | | Magnification | 8 to 32x | | Objective Lens Diameter | 56 mm | | Field of View | 8x: 12.1' @ 100 yd / 4 m @ 100 m
32x: 3.4' @ 100 yd / 1.1 m @ 100 m | | Exit Pupil Diameter | 8x: 7 mm
32x: 1.7 mm | | Eye Relief | 3.5" / 89 mm | | | | Reticle Type | Modified MIL Dot Reticle (First Focal Plane) | | Illuminated Color | Blue, Red | | | | Impact Point Correction | 1/10 MIL per Click | | Windage Adjustment | 60 MOA | | Elevation Adjustment | 60 MOA | | Parallax Correction | Yes, 10 yd / 9.1 m to Infinity | | | | Maintube Diameter | 30 mm | | Battery | 1 x CR2032 | | Dimensions | Length: 17.5" / 444 mm | | Weight | 31.4 oz / 890 g | | | | Package Weight | 3.15 lb | | Box Dimensions (LxWxH) | 23.2 x 4.3 x 3.4" |
