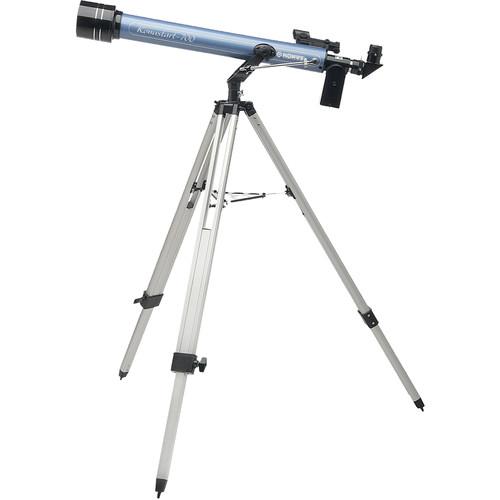

User Manual for Konus Konustart-700 60mm f 11.7 Refractor Telescope with Motorized Focuser Click to enlarge the picture
Contents of the user manual for the Konus Konustart-700 60mm f 11.7 Refractor
- Product category: Refractors Konus
- Brand: Konus
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Konus Refractors
|
User manual for the Konus Konustart-700 60mm f 11.7 Refractor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Konus product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Konus user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Konus product will considerably shorten its lifespan!
|
Product description Konus designed their Konustart-700 60mm f/11.7 Refractor Telescope to give beginner astronomers a complete astronomical platform for looking at the planets and to make detailed observations of the Moon, while providing them with the tools to use the scope as a powerful spotter for terrestrial viewing. Its 60mm objective and 700mm focal length make this a highly portable and easy-to-handle scope, while the adjustable aluminum tripod provides a stable platform for users of various heights. To resolve the clearest images possible, the focuser is equipped with a motor to achieve a fine focus not typically possible manually. Two eyepieces are provided that produce 88x and 35x, and when used with the 2x Barlow lens the magnification of each eyepiece is doubled to add to the scope's versatility. For terrestrial viewing, Konus includes a 1.5x erect-image 90° diagonal which not only corrects the image horizontally and vertically, but provides a more comfortable viewing position while boosting the eyepiece magnification slightly without affecting its eye relief. - Optical Performance
-
- 2.4" (60mm) aperture
- f/11.7 focal ratio
- 700mm focal length
- Refractor-style optical path
- 1.25" rack-and-pinion focuser
- Mount
-
Mount:- Manual alt-azimuth yoke-style mount
- Locking altitude bar
Tripod:- Two-section aluminum
- Adjustable height from 26-46"
- Center tray holds eyepieces and filters while adding stability
- Spiked feet provide a sure footing in soft or uneven ground
- Included Accessories
-
- Focus motor:
- Enables precision focusing with reduced vibrations
- Runs on two AA batteries
- Eyepieces:
- 1.25" diameter barrel
- Accept most 1.25" astronomical filters
- 8mm eyepiece yields 88x power
- 20mm eyepiece yields 35x power
- Filter:
- Fits 1.25" eyepieces and accessories
- Reduces harsh light from the Moon for safe observation, especially when full
- Barlow lens:
- 2x magnification effectively doubles the magnification of any eyepiece
- Diagonal:
- 90° angle places head in a comfortable viewing position for astronomical viewing when OTA is pointed at or near the zenith, or for terrestrial viewing
- 1.25" snout and eyepiece holder
- Integrated 1.5x magnification slightly increases magnification of any eyepiece used in it without affecting eye relief
- Erect-image corrects views horizontally and vertically for terrestrial viewing
- Finder:
- Red-dot style
- Unmagnified with a wide field of view to make alignment fast and star-hopping navigation easier
- Carrying case:
- Designed to hold the Optical tube assembly, tripod, mount, and accessories
UPC: 698156017364 In the Box Konus Konustart-700 60mm f/11.7 Refractor Telescope with Motorized Focuser Focuser Motor 8mm Eyepiece 20mm Eyepiece Moon Filter 1.5x Erect-Image Diagonal 2x Barlow Lens Red-Dot Finderscope Moon/Sky Map Aluminum Tripod Carrying Case Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Konus Konustart-700 60mm f 11.7 Refractor Telescope with Motorized Focuser in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKonus 1736 V2 Specs | | | Optical Design | Refractor | | Aperture | 60 mm / 2.4" | | Focal Length | 700 mm | | Focal Ratio | f/11.7 | | Focuser | Rack-and-Pinion | | Eyepiece Barrel Diameter | 1.25" | | Diagonal | 90
