Konus KonuStart-700B 60mm f 11.6 Refractor

Search your instruction manual in PDF to download

User Manual for Konus KonuStart-700B 60mm f 11.6 Refractor Telescope

Click to enlarge the picture
Konus KonuStart-700B 60mm f 11.6 Refractor Telescope Contents of the user manual for the Konus KonuStart-700B 60mm f 11.6 Refractor
  • Product category: Refractors Konus
  • Brand: Konus
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Konus Refractors

Konus KonuStart-700B 60mm f 11.6 Refractor Telescope Konus KonuStart-700B 60mm f 11.6 Refractor Telescope Konus KonuStart-700B 60mm f 11.6 Refractor Telescope
User manual for the Konus KonuStart-700B 60mm f 11.6 Refractor contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Konus product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Konus user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Konus product will considerably shorten its lifespan!



Product description

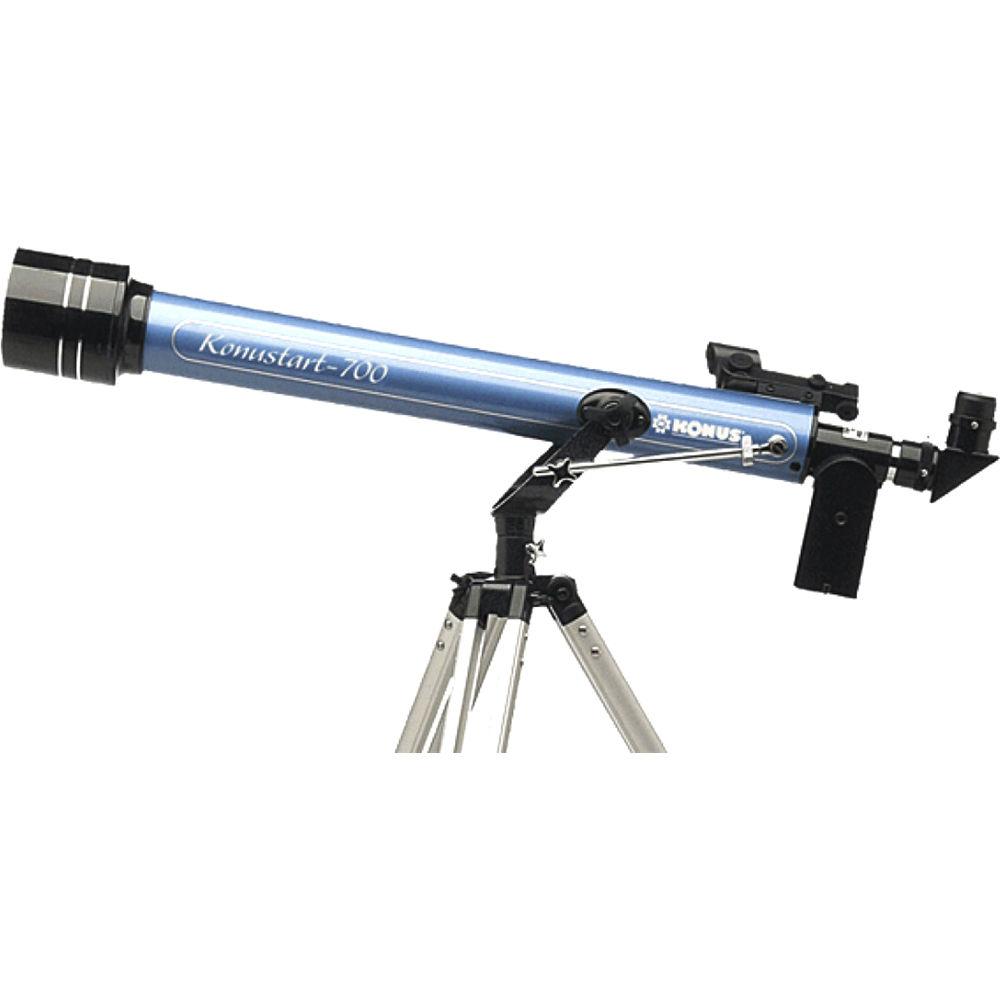

As the name suggests, the Konus KonuStart-700B 60mm f/11.6 Refractor Telescope is designed to inspire beginner astronomers with a versatile scope that can be used for celestial or Earth-bound observations. The moderate aperture and focal length enable it to achieve comfortable magnifications, and gather enough light to enjoy meteor showers, to resolve details on the lunar surface, or to see larger and brighter planets like Saturn, Venus, and Mars. Two eyepieces provide low and high magnifications to tailor to any situation; and a smartphone adapter allow the astronomer to capture photos or video through the eyepieces with most mobile devices. To use the KonusStart as a conventional spotting scope, simply install the 1.5x erect-image diagonal to correct the view horizontally and vertically, while slightly increasing the magnification on any eyepiece used with it. For safe transport and storage, the telescope comes with a carrying case designed to hold the scope, tripod, and all the included accessories.
    Optical Tube Assembly
    • 60mm aperture is ideal for lunar and planetary viewing
    • f/12 focal ratio
    • 700mm focal length produces generous magnifications while keeping telescope easy to handle
    • Single-speed rack-and-pinion focuser
    • 1.25" drawtube accepts most eyepieces and accessories

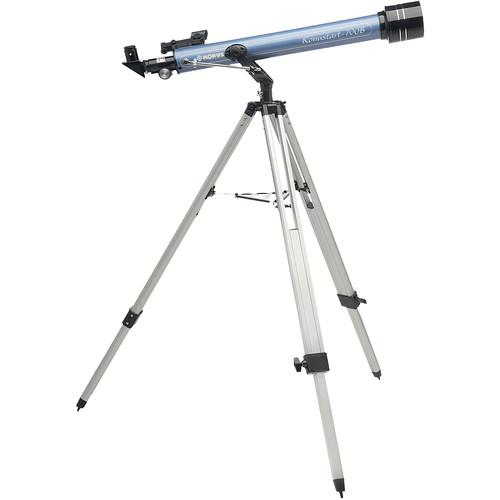

    Mount and Tripod
  • Mount:
    • Yoke-style manual alt-azimuth mount
    • Locking altitude bar
    Tripod:
    • Lightweight and durable aluminum legs
    • Adjustable-height from 27-46"
    • Spiked feet for improved stability
    • Center tray adds stability and vibration reduction, while providing a place for eyepieces and accessories
    Included Accessories
  • Eyepieces:
    • 20mm eyepiece yields low 35x power
    • 8mm eyepiece yields high 88x power
    • 1.25" barrel diameter

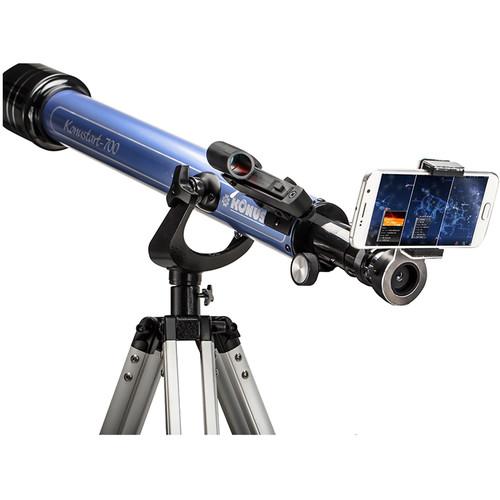

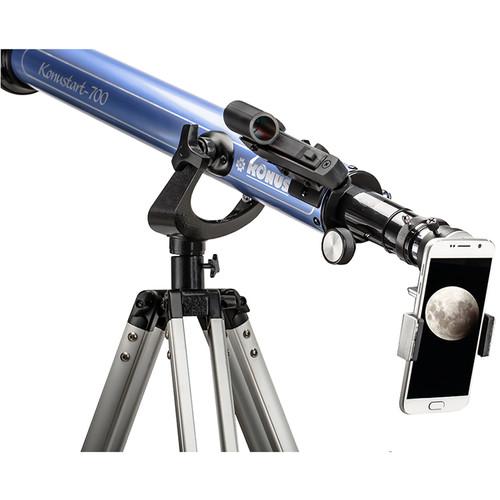

    Digiscoping Adapter:
    • Fits most smartphones
    • Mount allows it to swing out of the way for visual use without having to completely remove adapter
    • Capture and share photos and videos through an eyepiece
Diagonal:
  • Integrated 1.5x Barlow-type lens slightly increases magnification to see better details
  • Internal erecting prism corrects view for terrestrial use
  • 90° angle places the user's head in a comfortable viewing position, especially when telescope is aimed directly overhead, or when using scope for Earth-based objects
Finder:
  • Red center aiming dot will not block small or dim objects
  • Wide field of view for easier alignment and faster star-hopping navigation
  • Includes mounting bracket
Case:
  • Provides protection during transport and storage
  • Holds telescope, mount, tripod, and accessories
In the Box Konus KonuStart-700B 60mm f/11.6 Refractor Telescope
  • 8mm Eyepiece
  • 20mm Eyepiece
  • 1.5x Erecting Diagonal
  • Red-Dot Finder with Bracket
  • Smartphone Adapter
  • Alt-Az Mount
  • Tripod with Tray
  • Carrying Case
  • Limited 2-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Konus KonuStart-700B 60mm f 11.6 Refractor Telescope in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Konus KonuStart 700B Specs

    Optical Design Refractor
    Aperture 60 mm
    Focal Length 700mm
    Focal Ratio f/11.6
    Eyepiece Barrel Diameter 1.25"
    Diagonal 90°, 1.5x erecting
    Finderscope Red dot
    Tripod Aluminum
    Adjustable Height: 27.0 - 46.0" / 69.0 - 116.0 cm
    Mount Type Manual alt-azimuth
    Power Source None
    Optical Tube Dimensions Not specified by manufacturer
    Weight Not specified by manufacturer
