User Manual for Konus KONUSTART-900B 60mm f 15 EQ Refractor Telescope Click to enlarge the picture
Contents of the user manual for the Konus KONUSTART-900B 60mm f 15 EQ
- Product category: Refractors Konus
- Brand: Konus
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Konus Refractors
 |
User manual for the Konus KONUSTART-900B 60mm f 15 EQ contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Konus product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Konus user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Konus product will considerably shorten its lifespan!
|

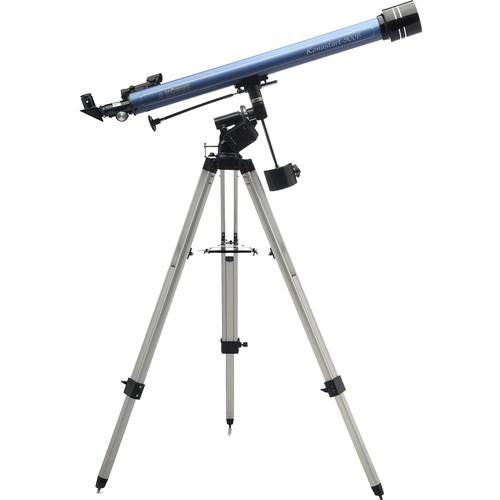

Product description Designed for intermediate users, the Konus KONUSTART-900B 60mm f/15 EQ Refractor Telescope is designed to provide new astronomers with a complete setup for viewing the moon and planets, and brighter deep-sky objects like star clusters and galaxies.Two eyepieces provide 45x and 112x magnifications with a 2x Barlow lens that doubles the magnification of each eyepiece for a wider range of observing possibilities. Additional accessories such as a smartphone digiscoping adapter, a star diagonal, and 1.5x erecting eyepiece add to the scope's versatility and allow it to pull double-duty as a traditional spotting scope.Its manual German equatorial mount has Right Ascension (RA) and Declination indicators for celestial navigation, and a two-speed RA motor will automatically track objects as they move across the night sky when the mount is properly polar aligned. Slow-motion cables enable you to manually track your object with accuracy and reduced vibrations. An adjustable-height aluminum tripod provides a stable platform for sky watching - Optical Performance
-
- 60mm aperture is ideal for viewing the moon and planets, as well as terrestrial subjects
- Long 900mm focal length enables high magnifications
- f/15 focal ratio
- Refractor-style optical design produces crisp and clear views
- Anti-reflection fully coated optics improves light transmission, color rendition, sharpness, and contrast
- 1.25" drawtube is compatible with the widest variety of eyepieces and accessories
- Sturdy rack-and-pinion focuser with electronic motor for precision focusing ability with reduced vibration
- Mount and Tripod
- Mount:
- Manual German equatorial
- Right Ascension and Declination setting circles enable classic celestial navigation
- Two-speed right ascension motor tracks objects as they move across the night sky when the mount is properly polar aligned, with little or no vibrations
- Flexible controllers allow for precise control with reduced vibrations
- RA motor and focuser run on one included 9V battery
- Includes 2-pound counterweight to properly balance the optical system
Tripod:- Lightweight and durable aluminum legs
- Two-stage adjustable height allows for easy use by most people
- Tray to hold accessories such as eyepieces, filters, and lights
- Included Optical Accessories
- Eyepieces:
- 1.25" barrel diameter accepts more astronomical filters
- 20mm eyepiece produces 45x magnification
- 8mm eyepiece produces 112x magnification

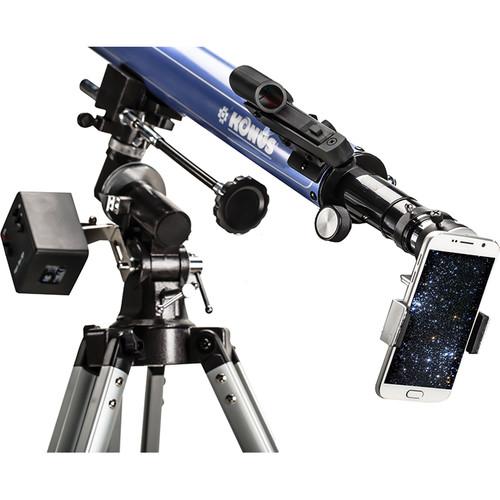

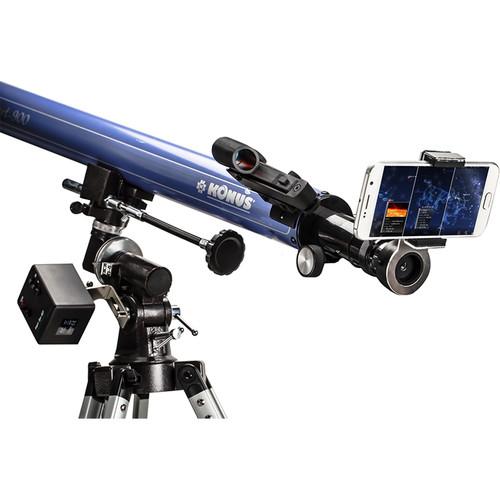

Smartphone adapter:- Capture and share photos and video through any eyepiece
- Fully adjustable in two axes to accept most smartphones
- Swings out of the way to look through the eyepiece, and swings back into place to take picture
Filter:- Moon filter brings the moon's light down to safe levels
- Improves contrast when viewing phases from half to full
- Screws into standard 1.25" eyepieces
- Recommended for use past 1/4 phases to prevent damage to the user's eye, especially at high power
Barlow Lens:- 2x magnification
- Doubles the power of any eyepiece used in it, without affecting the eye relief, so high-power eyepieces are more comfortable to use
- 1.25" holder and nosepiece
Diagonal:- 90° angle provides a more comfortable viewing position when the scope is pointed high overhead
- Star mirror design corrects view horizontally, but not vertically
Erecting tube:- Slight 1.5x power adds a boost of magnification to any eyepiece used with it
- Straight-through design
- 1.25" holder and nosepiece
- Corrects view horizontally and vertically for easy use as a spotting scope
- Other Included Accessories
- Finder:
- Unmagnified view provides a wide field of view to make alignment fast and star-hopping navigation easy
- Projects a red aiming dot into the center of the window to make centering objects in the eyepiece easy without obscuring small objects
- Adjustable intensity enables the dot to be seen without affecting night-adjusted vision
- Includes mounting bracket
Maps:- Star chart helps navigate the night sky
- Moon map shows highlights and features of the visible lunar surface
Carrying case:- Soft carrying case hold entire telescope system
- Shoulder strap for easy transportation
In the Box Konus KONUSTART-900B 60mm f/15 EQ Refractor Telescope Moon Filter 20mm Eyepiece 8mm Eyepiece 2x Barlow Lens 90° Erect-Image Diagonal Red-Dot Finder with Bracket Manual Equatorial Mount Electric Focuser Motor Right Ascension Motor Assembly 2-Pound Counterweight 2 x Control Cables for Mount Adjustable-Height Aluminum Tripod Moon and Sky Map 9V Battery Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Konus KONUSTART-900B 60mm f 15 EQ Refractor Telescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKonus KonuStart 900B Specs | | | Optical Design | Refractor | | Aperture | 60 mm / 2.4" | | Focal Length | 900 mm | | Focal Ratio | f/15 | | Focuser | Single-Speed Rack-and-Pinion | | Eyepiece Barrel Diameter | 1.25" | | Diagonal | 90
