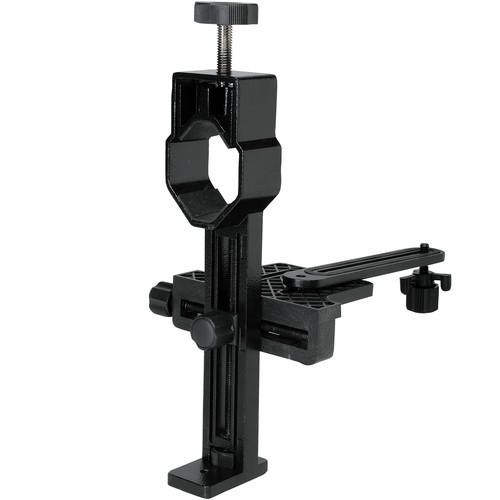

User Manual for Konus Universal Digiscoping Adapter for Point-and-Shoot Cameras and Smartphones Click to enlarge the picture
Contents of the user manual for the Konus Universal Digiscoping Adapter for Point-and-Shoot
- Product category: Digiscoping Adapters Konus
- Brand: Konus
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Konus Digiscoping Adapters
|
User manual for the Konus Universal Digiscoping Adapter for Point-and-Shoot contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Konus product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Konus user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Konus product will considerably shorten its lifespan!
|
Product description A Guide to Birding with Spotting Scopes Read More This Konus 1301 Universal Digiscoping Adapter is a system that consists of three main components: a camera platform, a camera platform extension, and a smartphone holder. Those three components can be variously configured to allow a point-and-shoot camera or a smartphone to use a telescope or spotting scope as a telephoto lens.
Featuring an adjustable clamp, the camera platform can be attached to a telescope or spotting scope eyepiece with a diameter of 1.15" up to 1.73" (44mm). A point-and-shoot camera with 1/4"-20 mounting threads can then be screwed onto the camera platform's mounting bolt, which can be moved a total of 1.5" forwards or backwards. Additionally, a connected camera can be adjusted a total of 4.5" upwards or downwards. This combination of horizontal and vertical movement, along with two selectable slots for the camera platform's mounting bolt, allows a connected camera's lens to be aimed into a spotting or telescope's eyepiece. For cameras that require up to 5.1" of additional distance from an eyepiece to effectively digiscope, a camera platform extension is included that can be screwed onto the camera platform's mounting bolt, and has its own 1/4"-20 camera mount.
A smartphone holder is also included for digiscoping with wireless handheld devices. Two 1/4"-20 mounting bolts allow it to attach to the camera platform, the combination of which can accommodate a smartphone up to 2.3" to 3.9" high, and at least to 4.0" wide when measured in a horizontal orientation. -
- Allows a point-and-shoot camera or a smartphone to use a telescope or spotting scope as a telephoto lens
- Can be attached to a telescope or spotting scope eyepiece with a diameter of 1.15" to 1.73"
- Accommodates point-and-shoot cameras with 1/4"-20 mounting threads
- Horizontal and vertical movements, along with two selectable slots for the mounting bolt allows a connected camera's lens to be aimed into a spotting or telescope's eyepiece
- Camera platform extension with mounting bolt for cameras that require up to 5.1" of additional distance from eyepiece to effectively digiscope
- Included smartphone holder for digiscoping with wireless handheld devices up to 2.3" to 3.9" high, and at least to 4.0" wide when measured in a horizontal orientation
UPC: 698156013014 In the Box Konus Universal Digiscoping Adapter for Point-and-Shoot Cameras and Smartphones Adapter Extension Smartphone Holder 4 x 1/4"-20 Mounting Bolt Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Konus Universal Digiscoping Adapter for Point-and-Shoot Cameras and Smartphones in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKonus 1301 Specs | Material | Plastic | | Dimensions | Camera Platform (H x W): 9.0 x 3.8" (22.9 x 9.7 cm)
Camera Platform Extension (L): 5.5" (14.0 cm)
Smartphone Holder (H x W): 4.9 x 3.2" (12.4 x 8.0 cm) | | Weight | Camera Platform: 1.5 lb (0.7 kg)
Camera Platform Extension: 0.5 lb (0.2 kg)
Smartphone Holder: 1.0 lb (0.5 kg) | | | | Package Weight | 1.4 lb | | Box Dimensions (LxWxH) | 9.1 x 4.9 x 4.6" |
