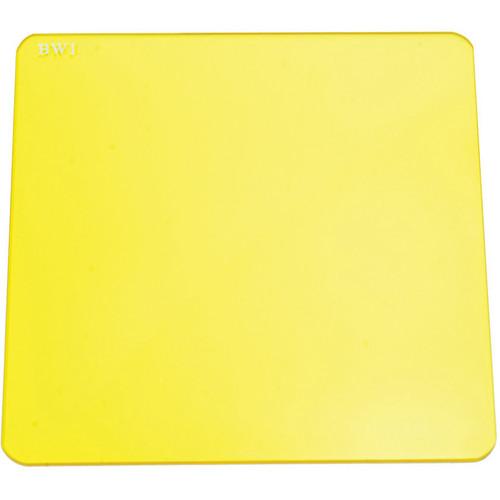

Product description The Kood Z-Pro Series Yellow 8 Filter is compatible with a Kood Z-Pro Series or Cokin Z-Pro Series Filter Holder. It can be used to increase image contrast when photographing using a film camera system with black-and-white film installed.
This filter's effect corresponds to that of a Wratten 8 filter. Wavelengths of visible light that are apparent as violet and blue colors to the human eye are suppressed, while visible light associated with green, yellow, orange, and red colors are able to more easily pass though the Kood Z-Pro Series Yellow 8 Filter and into the lens it is mounted in front of. When photographing with this filter along with black-and-white film, violet to blue-colored subjects within a scene are reproduced in darker shades of grey than without a filter. Simultaneously, green, yellow, orange, and red subjects are rendered in lighter shades of grey than if a filter was not used.
When applied to black-and-white photography, the increased contrast provided by the Kood Z-Pro Series Yellow 8 Filter can result in darker skies with more effectively defined clouds. Shades of green among foliage can be better differentiated, while tans are lightened, and the appearance of skin blemishes reduced. Additionally, this filter can also minimize the presence of haze caused by the bluish cast of daylight. - Increases image contrast when photographing using a film camera system with black-and-white film installed
- Produces darker shades of grey from violet to blue-colored subjects and lighter shades of grey from green, yellow, orange, or red subjects than without a filter
- When applied to black-and-white photography, can result in darker skies with more defined clouds, better differentiated green foliage, lightened tans, reduced skin blemishes, and minimizes the presence of haze caused by the bluish cast of daylight
- 0.3 density and 2x filter factor create up to a one-stop reduction of light
- Constructed from optical resin (CR39) for clarity and durability
In the Box Kood Z-Pro Series Yellow 8 Filter Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Kood Z-Pro Series Yellow 8 Filter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKood FZY Specs | Type | Black-and-white contrast | | Size | 3.9 x 3.9 x 0.1" (100.0 x 100.0 x 2.0 mm) | | Density | 0.3 | | Filter Factor | 2 (1 stop) | | Grade | Equivalent to Wratten 8 | | Effect | Increases contrast when shooting with black-and-white film | | Construction | Optical resin CR39 | | | | Package Weight | 0.1 lb | | Box Dimensions (LxWxH) | 5.7 x 4.4 x 0.2" |
