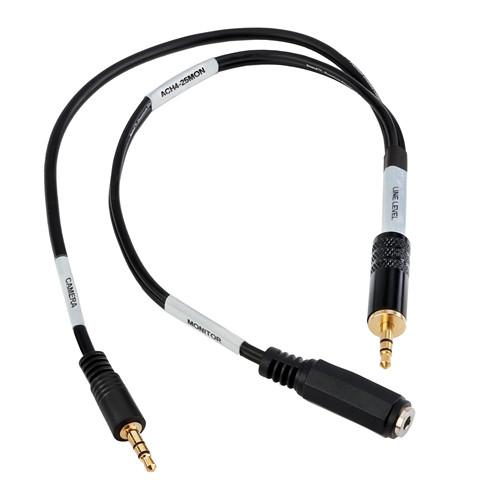

User Manual for Kopul ACH4-25MON Line-to-Mic Attenuator Cable Click to enlarge the picture
Contents of the user manual for the Kopul ACH4-25MON Line-to-Mic Attenuator Cable
- Product category: Portable Recorder Accessories Kopul
- Brand: Kopul
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Kopul Portable Recorder Accessories
|
User manual for the Kopul ACH4-25MON Line-to-Mic Attenuator Cable contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Kopul product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Kopul user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Kopul product will considerably shorten its lifespan!
|
Product description The Kopul ACH4-25MON Line-to-Mic Attenuator Cable is designed to connect your digital recorder (e.g. Zoom H4n, Zoom H6, etc.) output to the mic level input of your DSLR camera with 25dB of attenuation to step down the hot line level audio to microphone level. It features a 1/8" headphone tap that allows you to monitor the signal to your camera and is shielded to reduce RF noise and provide interference-free operation.
The cable provides 25dB of attenuation to assure the output from your digital recorder is at an appropriate level for your camera's mic input. This backup recording can act as a fail-safe for your audio, as well as a reference track for easy syncing in post-production. The cable is 1-foot in length and features straight 1/8" connectors. - DSLR Compatibility
- The ACH4-25MON is compatible with DSLR cameras that feature a 1/8" unbalanced mic level input including:
Canon: - EOS Rebel T2i(550D)/T3i(600D)/T4i(650D)/T5i(700D)/SL1(100D)
- EOS 60D/70D/7D/6D
- EOS 5D MK ll/MK lll
- EOS 1DX/1DC/1D MK lV
Nikon: - D5100/D5200
- D7000/D7100
- D300S
- D600/D610
- D800/D800E
- D3S
- D4
Pentax: - K-5 ll/K-5 llS
UPC: 847628568006 In the Box Kopul ACH4-25MON Line-to-Mic Attenuator Cable Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Kopul ACH4-25MON Line-to-Mic Attenuator Cable in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKopul ACH4-25MON Specs | Cable Length | 1' (30.5 cm) | | Attenuation | 25 dB | | Connector 1 | 1/8" (3.5 mm) straight TRS | | Connector 2 | 1/8" (3.5 mm) straight TRS | | Headphone Connector | 1/8" (3.5 mm) | | Compatibility | Canon: EOS Rebel T2i(550D)/T3i(600D)/T4i(650D)/T5i(700D)/SL1(100D) EOS 60D/70D/7D/6D EOS 5D MK ll/MK lll EOS 1DX/1DC/1D MK lV
Nikon: D5100/D5200 D7000/D7100 D300S D600/D610 D800/D800E D3S D4
Pentax: K-5 ll/K-5 llS | | | | Package Weight | 0.1 lb | | Box Dimensions (LxWxH) | 6.0 x 3.9 x 0.5" |
