User Manual for Kopul CBT-8 - 8-in-1 Cable Tester Click to enlarge the picture
Contents of the user manual for the Kopul CBT-8 - 8-in-1 Cable Tester
- Product category: Cable Testers & Tone Generators Kopul
- Brand: Kopul
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Kopul Cable Testers & Tone Generators
 |
User manual for the Kopul CBT-8 - 8-in-1 Cable Tester contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Kopul product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Kopul user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Kopul product will considerably shorten its lifespan!
|

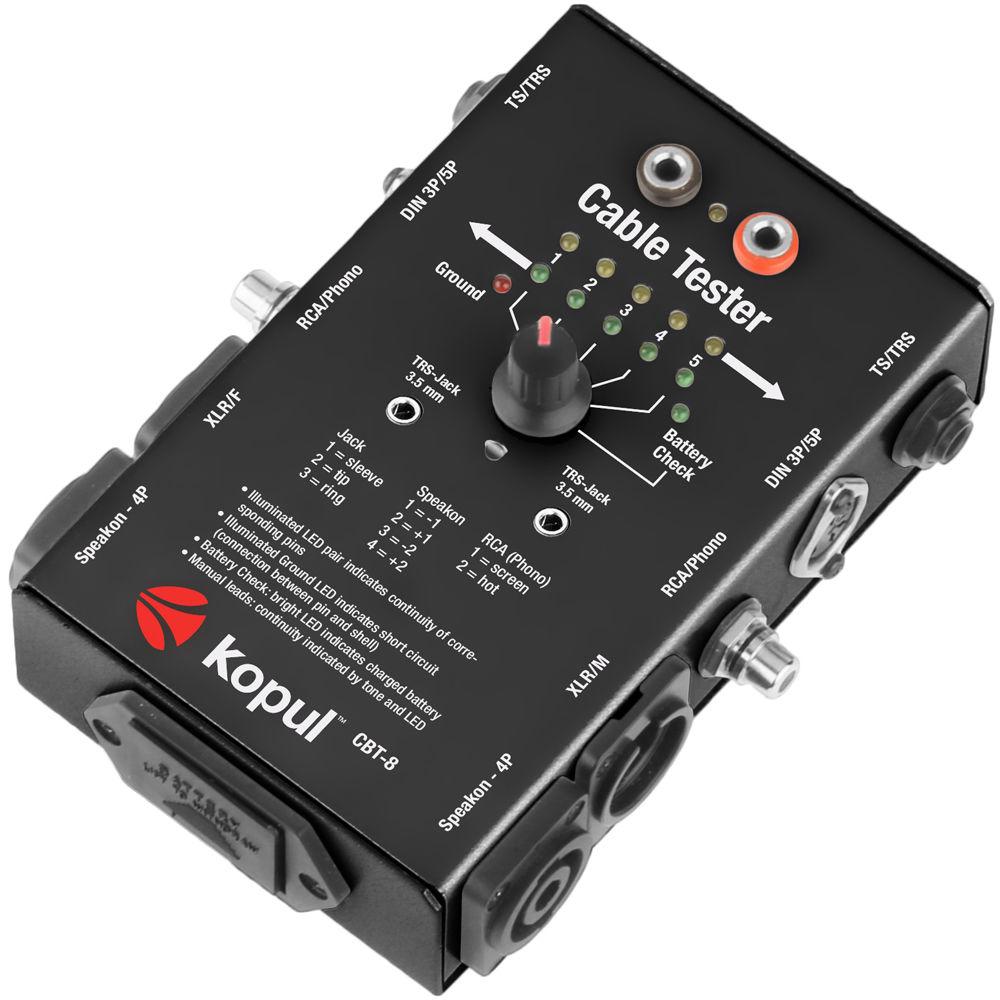

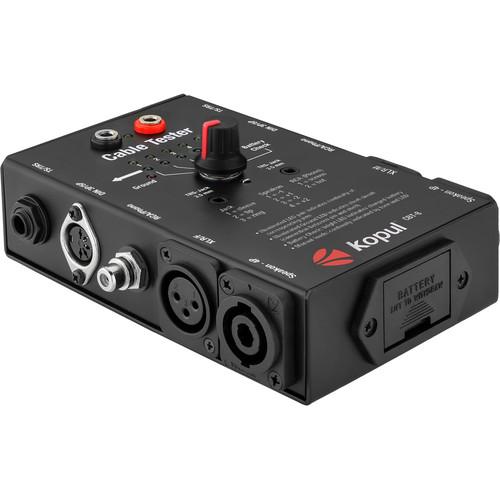

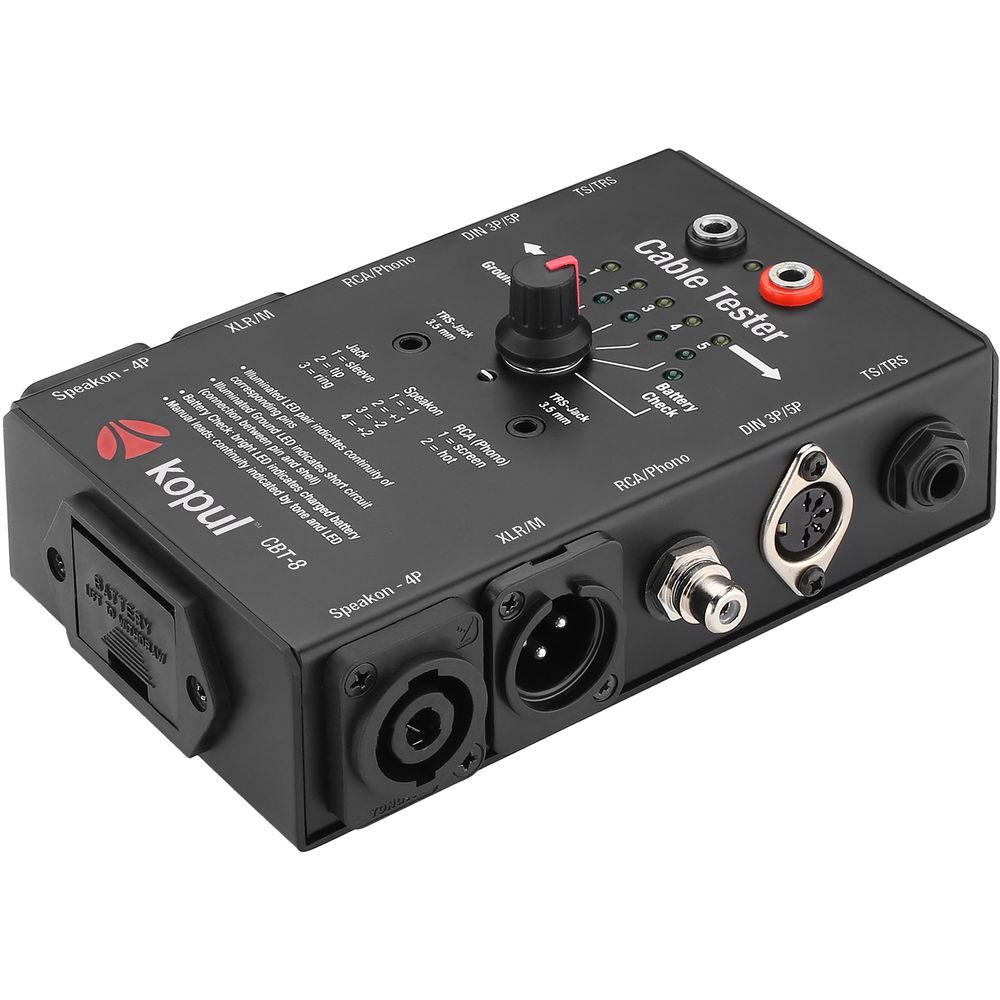

Product description The Kopul CBT-8 is a professional-quality cable tester that allows users to test the continuity of a wide variety of cables with a single device. It quickly identifies connectivity and ground problems in some of the most frequently-used cables, and makes troubleshooting audio and studio setups fast and effortless.

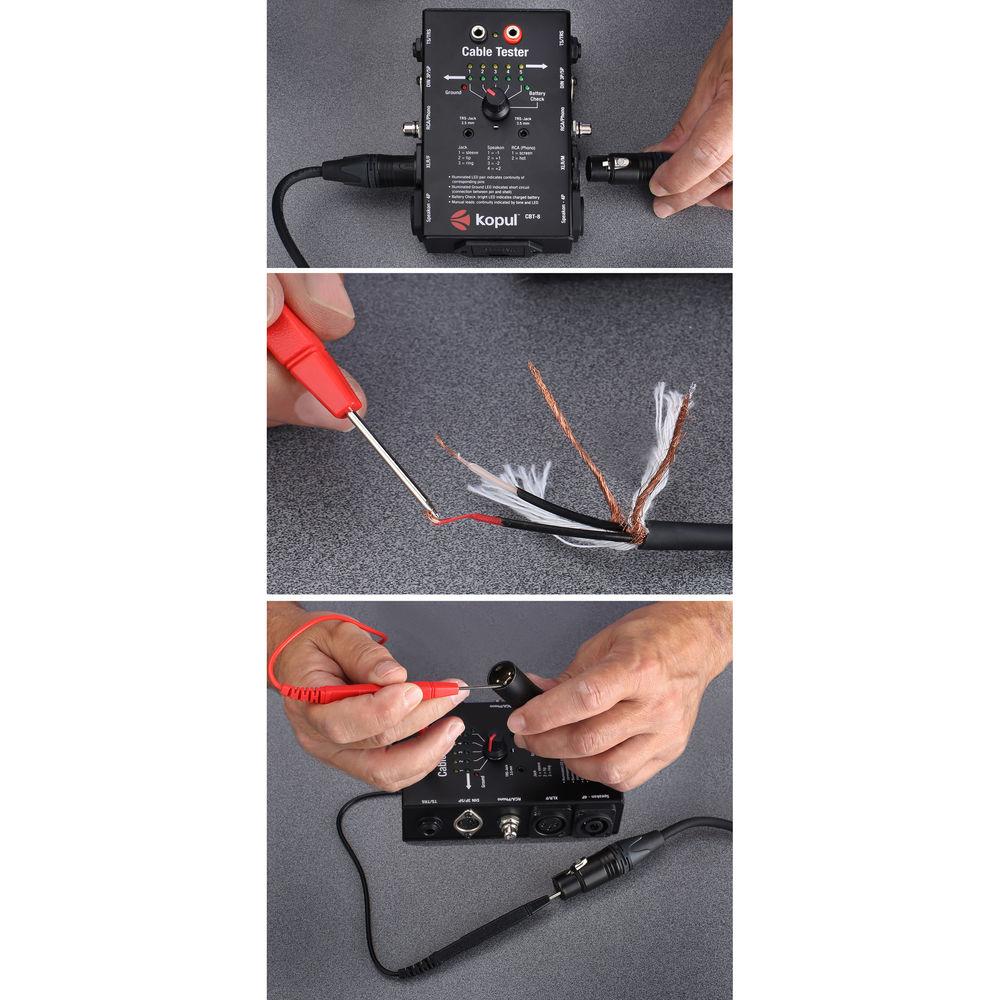

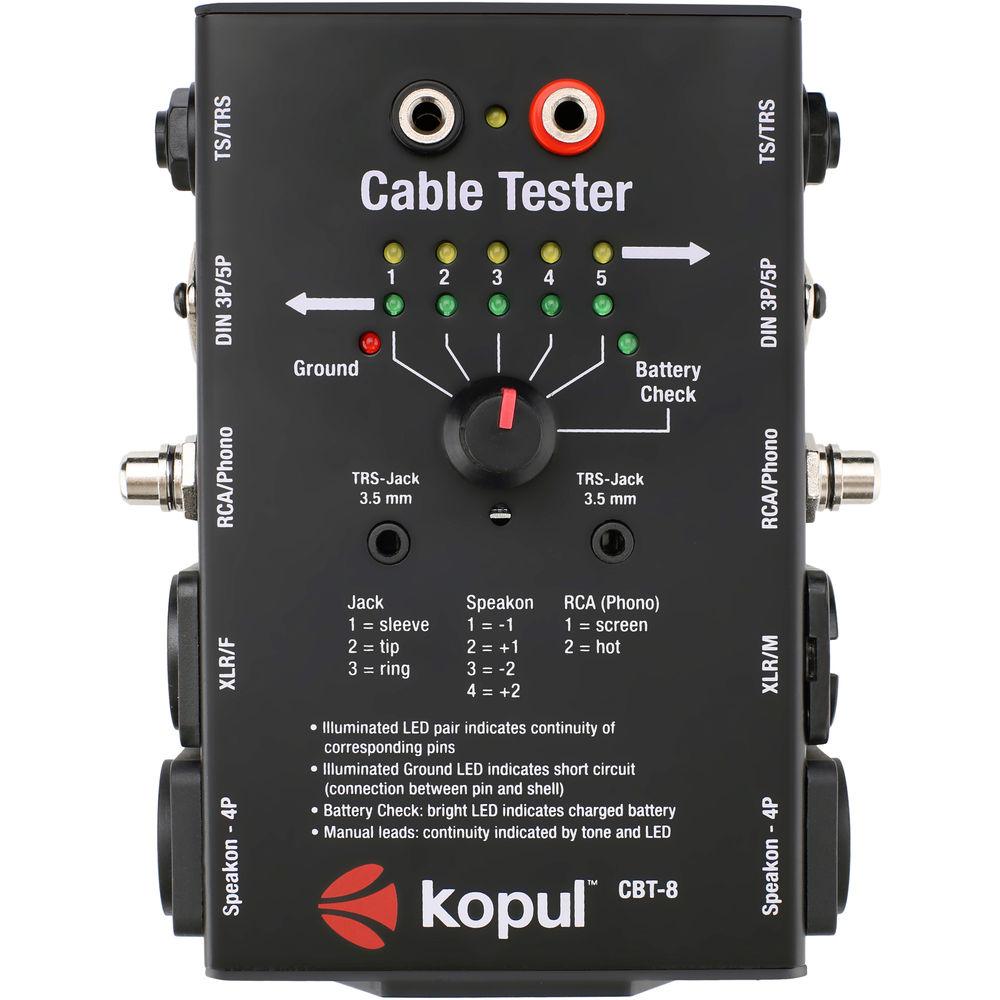

An six-way knob provides easy selection of the pins to be tested, LED indicators illuminate to show that each pin on the cable is properly connected. The CBT-8 can test cables with any combination of speakON XLR, RCA, 3-pin and 5-pin DIN, TS/TRS, and 3.5mm mini plugs. Two removable leads are included for testing any kind of wire or cable with jacks that are not included on this model. They also allow for testing connections when building or repairing cables .
The CBT-8 is ideal for home, project, and professional studio use. Constructed with a rugged all-metal case, the CBT-8 is a road-ready addition to the gig bag of musicians, engineers, and mobile DJs alike. - Tests Cable Continuity
- Provides easy and simple continuity testing for cables with any combination of speakON, XLR, RCA, 3-pin DIN, 5-pin DIN, TS/TRS, and 3.5 mm mini plugs
- Checks Each Pin Separately
- Rotary knob selects each pin on the cable to confirm connectivity and continuity
- Status LEDs

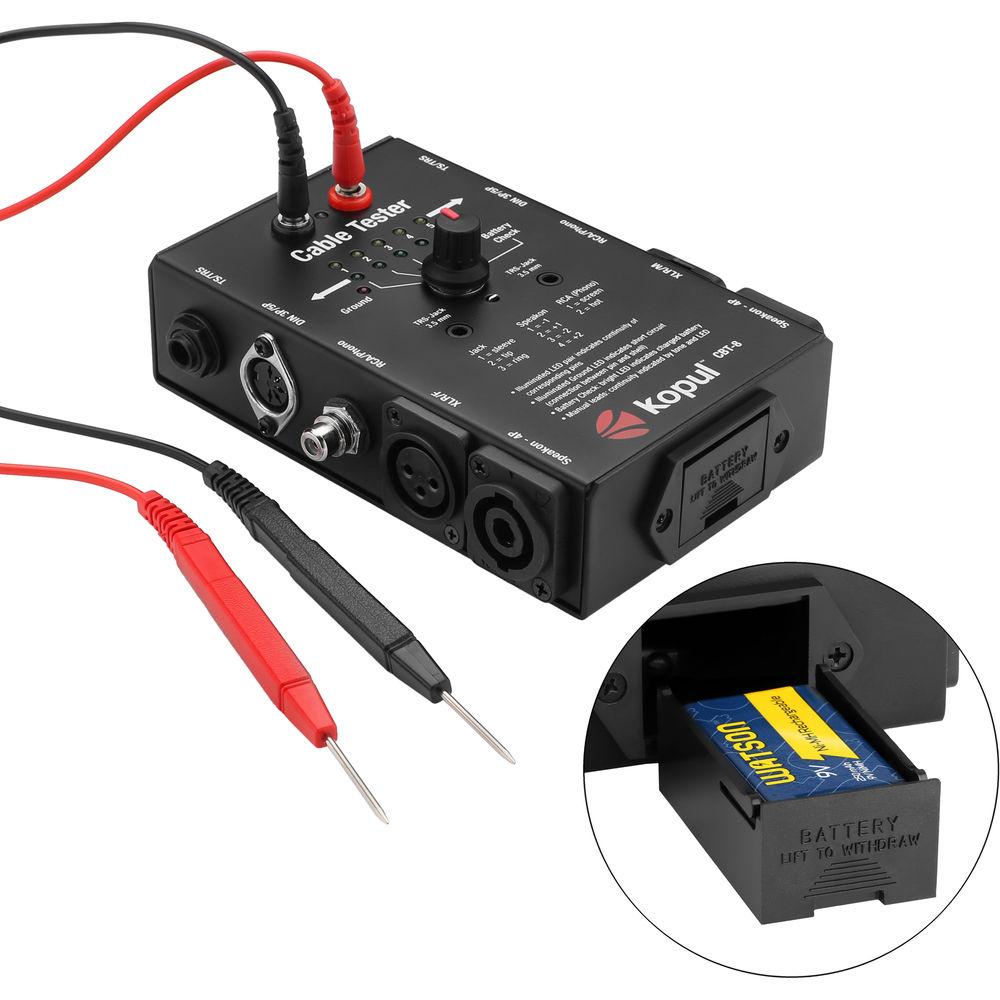

- A battery check LED warns when the battery needs to be charged or replaced. The ground status check LED lights when a ground loop (short-circuit) is detected

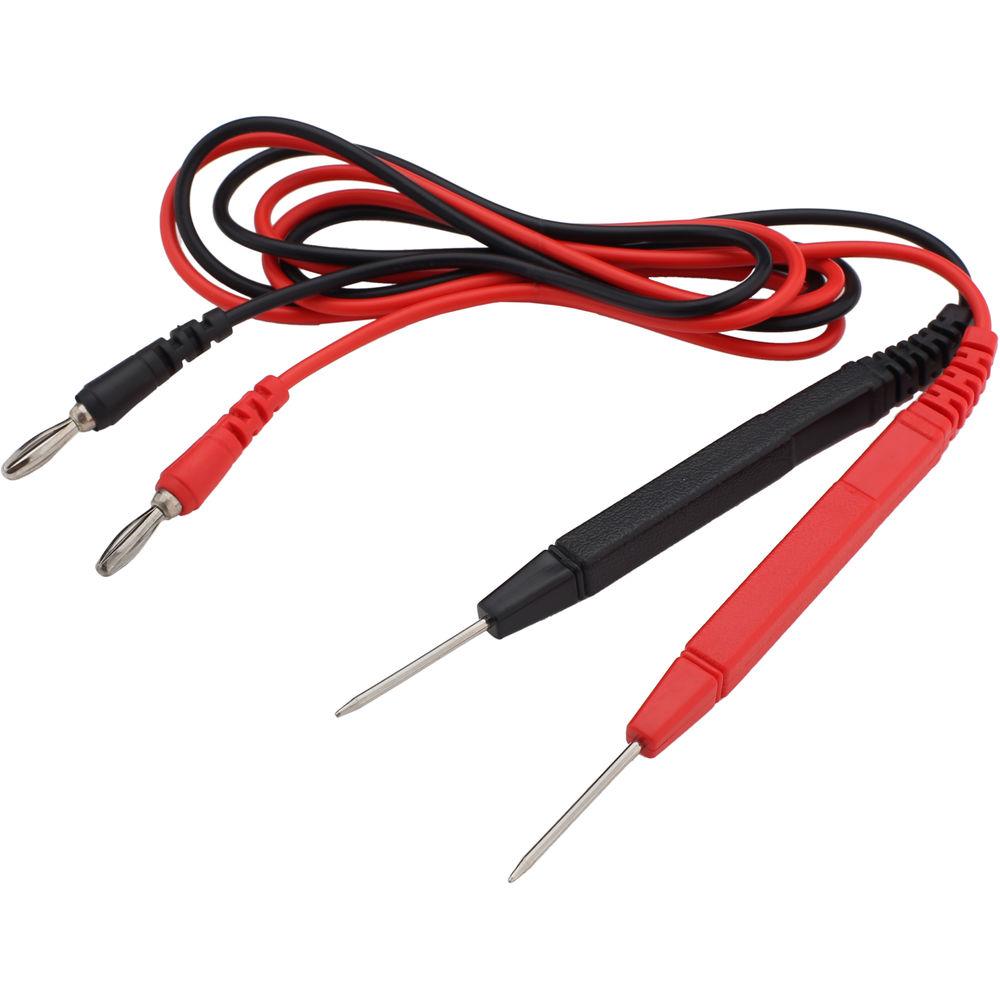

- Removable Leads
- Two removable leads are included to verify continuity of additional connectors and are useful when constructing or repairing cables

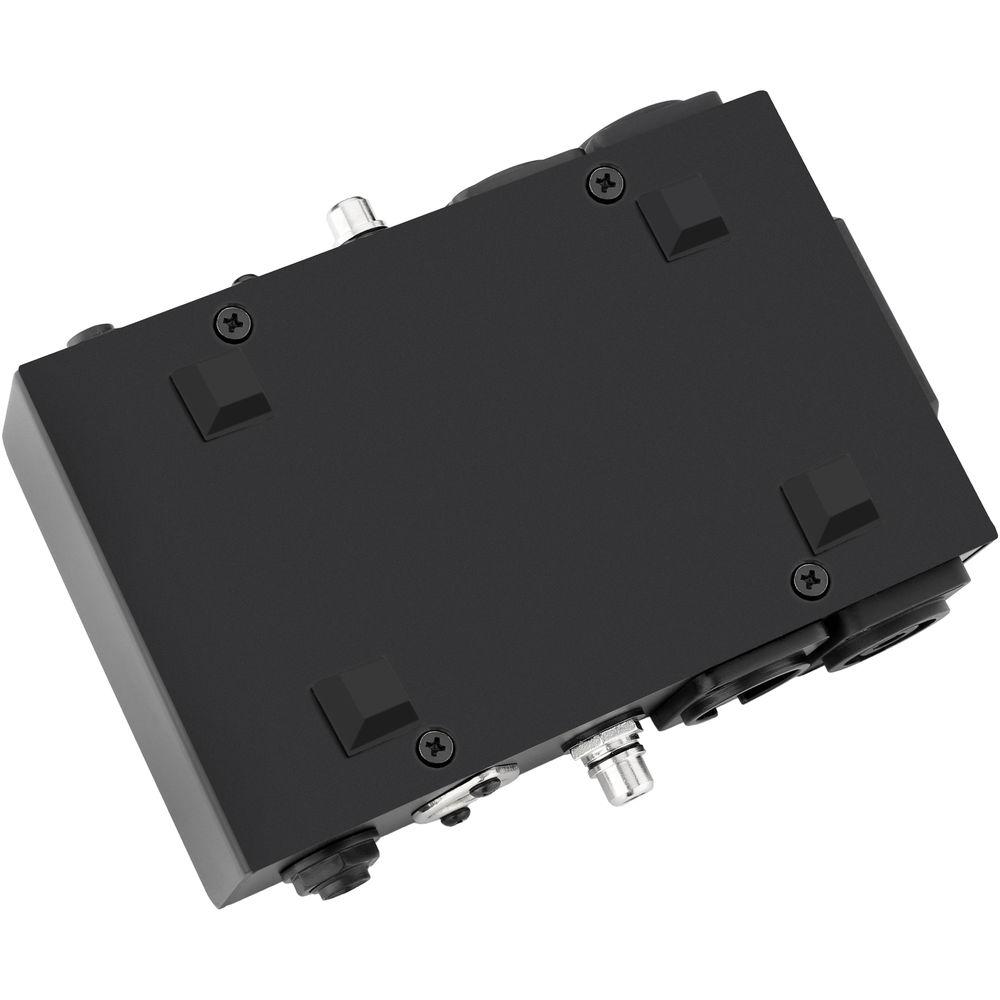

- Durable Build Quality
- Heavy-duty, all-metal construction assures extended use in studio and on the road
UPC: 847628587465 In the Box Kopul CBT-8 - 8-in-1 Cable Tester Removable Leads Limited 1-Year Warranty User Manual PDF 685.3kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Kopul CBT-8 - 8-in-1 Cable Tester in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKopul CBT-8 Specs | Material | All-metal construction | | Connectors | speakON 4 pin
XLR M/F
RCA (phono)
DIN - 3 pin/5 pin
TS/TRS
3.5 mm mini plug
Banana plugs | | Power | 1x 9 V battery (not included) | | Dimensions | 1.4 × 3.5 × 5.5" (3.5 × 8.9 × 14 cm) | | Weight | 1.4 lb (0.6 kg) | | | | Package Weight | 1.75 lb | | Box Dimensions (LxWxH) | 8.8 x 5.7 x 3.2" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 08 owners. Add your rating and experience with the product.
