Product description

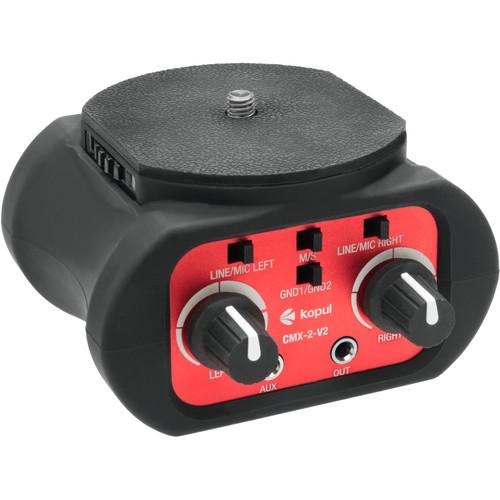

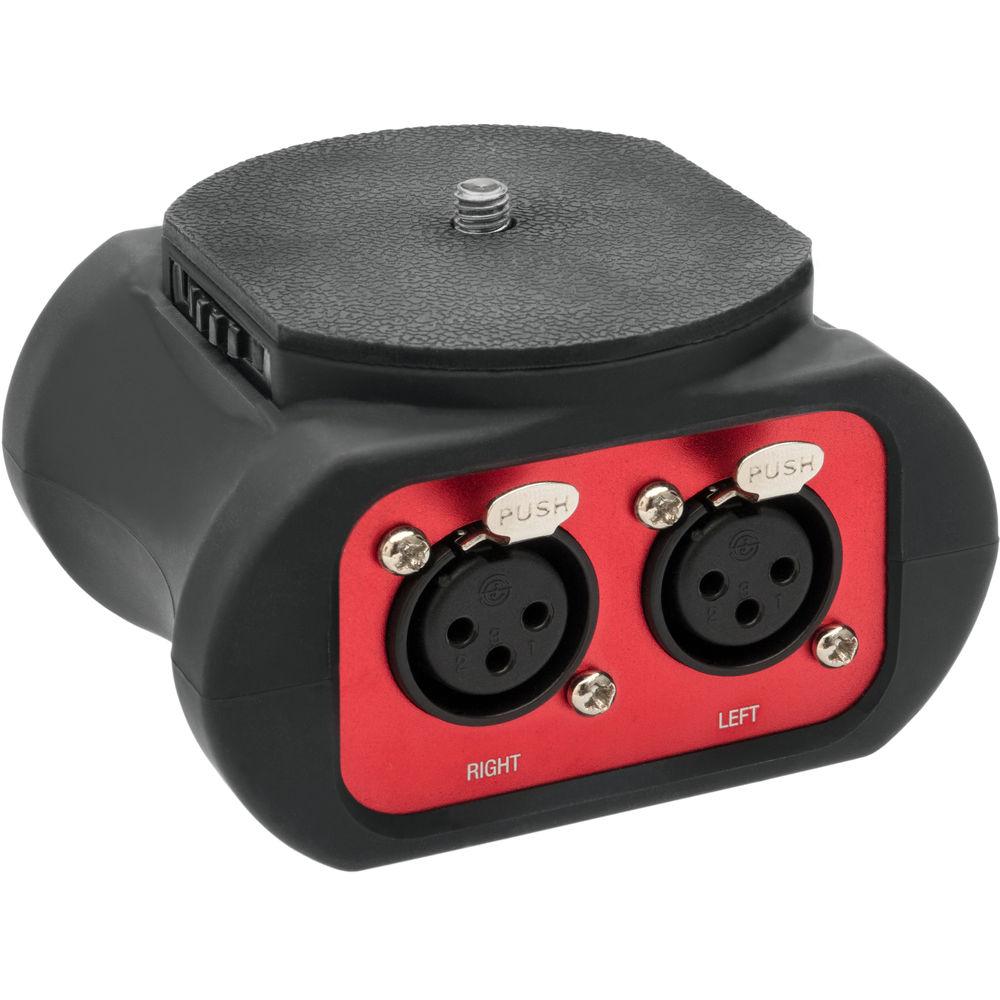

XLR Inputs with Switchable Mic/Line Level
• • Two balanced XLR inputs with mic/line switches are ideal for connecting a wide variety of professional mic- and line-level sources such as microphones or audio mixers
  • Capture high-quality sound, superior to onboard mics built into your camera or camcorder
  • Sound is in perfect sync with your picture since the audio is recorded directly to the camera

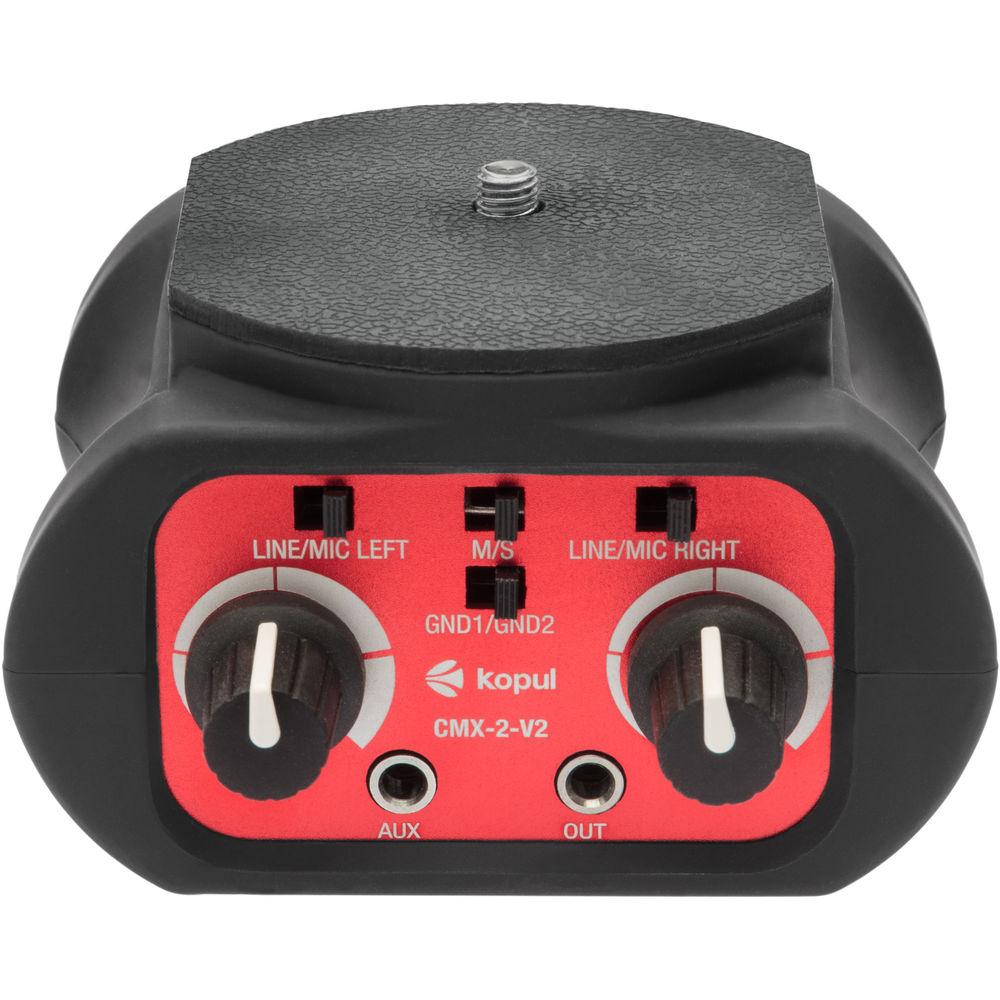

Trim Knobs
• • Stepped, rubber trim knobs allow you to adjust and balance the input signals and ensure optimum recording levels

Mono and Stereo Modes
• • Mono/stereo switch sends audio signals to two discrete channels when in mono mode or combines the signals in stereo mode

3.5mm Stereo Aux Input
• • Auxiliary 3.5mm jack provides a stereo input for devices like smartphones, tablets, mixer, or MP3 player

3.5mm Mic-Level Stereo Output

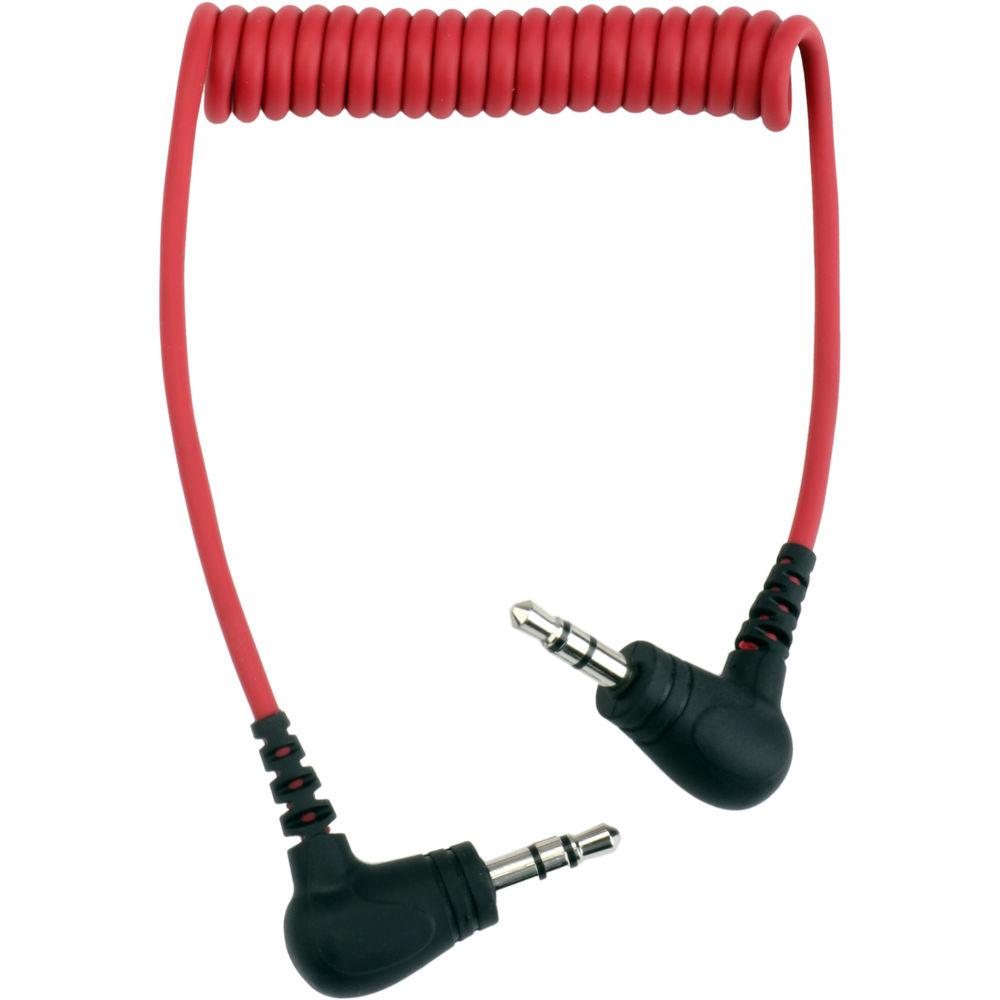

• • Use the included coiled cable to connect the output of the unit to the 3.5mm stereo mic input of any DSLR or camcorder

Ground Switch
• • Helps eliminate unwanted hum and buzz caused by ground loops in your signal chain
  • Two-position switch

Passive Design
• • Passive electronics means that the unit does not add noise or coloration to your audio signal
  • No power required

Rugged Construction
• • The rugged chassis can withstand the rigors of travel and field use

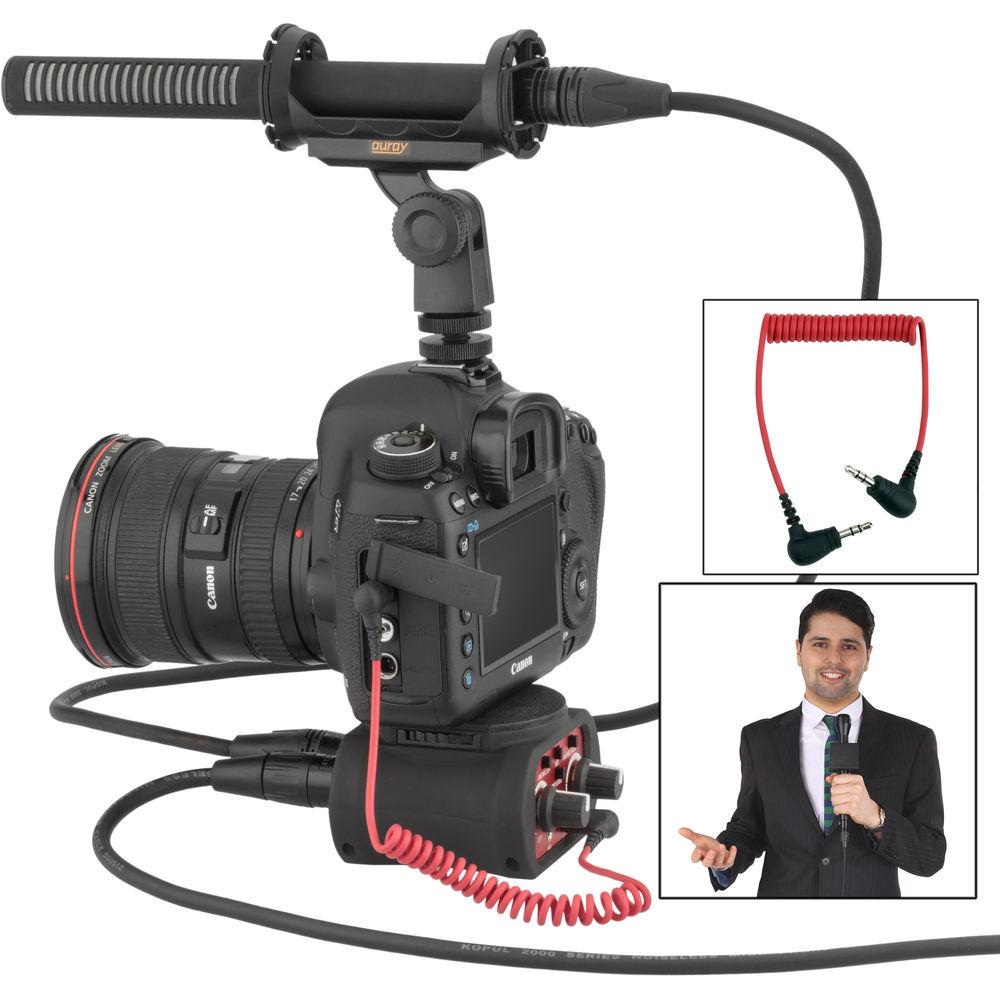

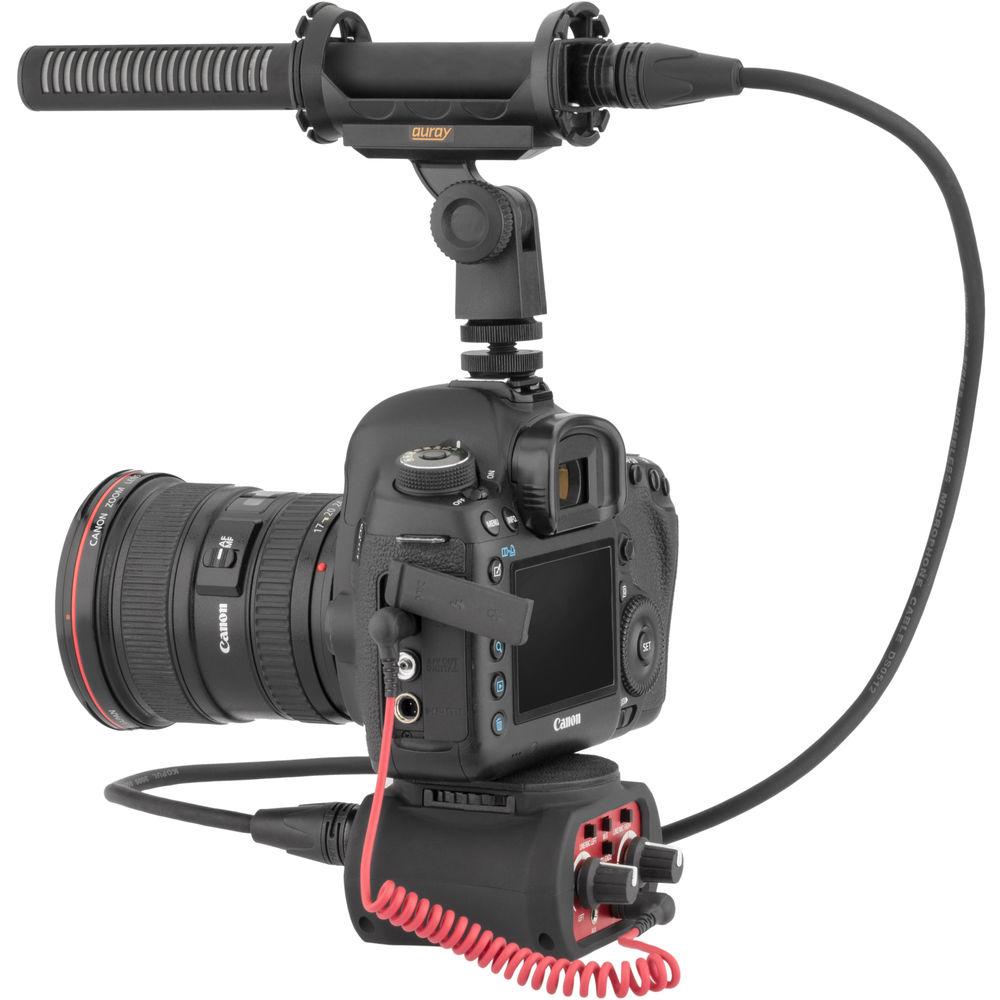

Camera- and Tripod-Mountable

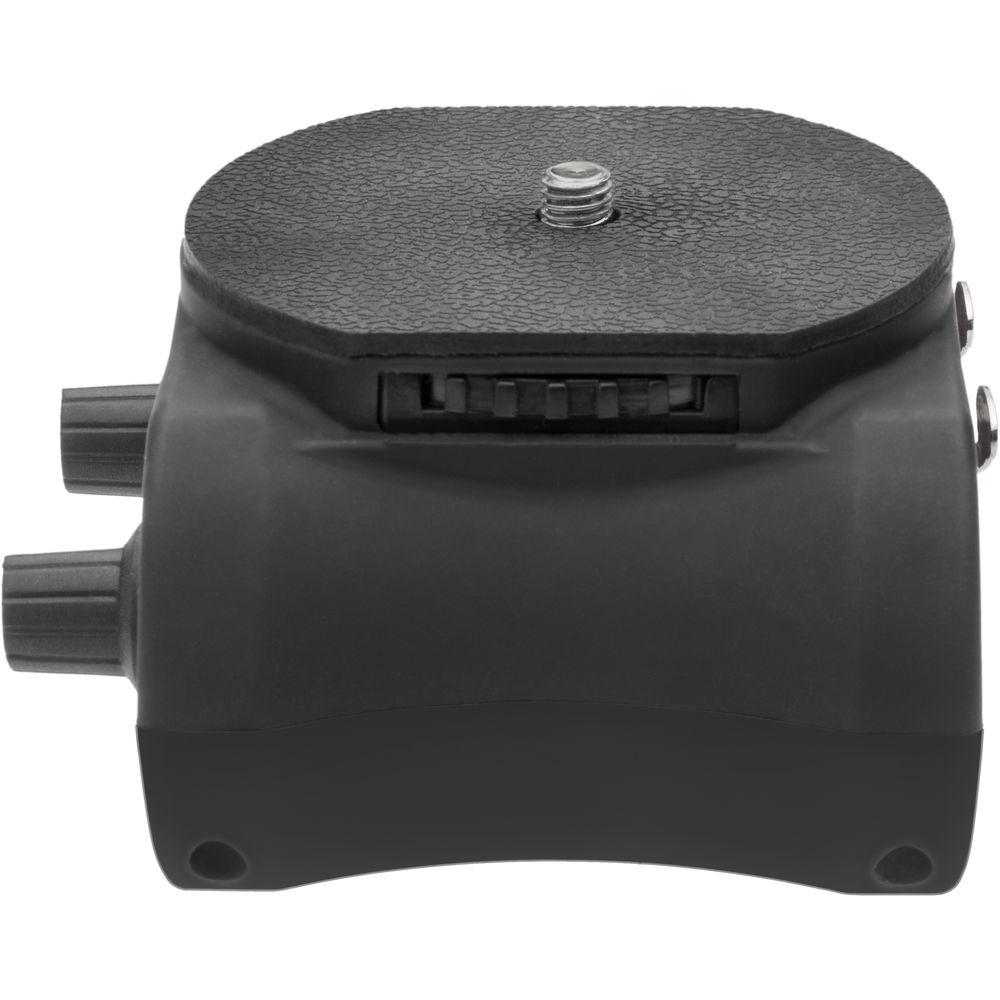

• • 1/4"-20 threaded post to easily attach the unit to the base of a camera or camcorder

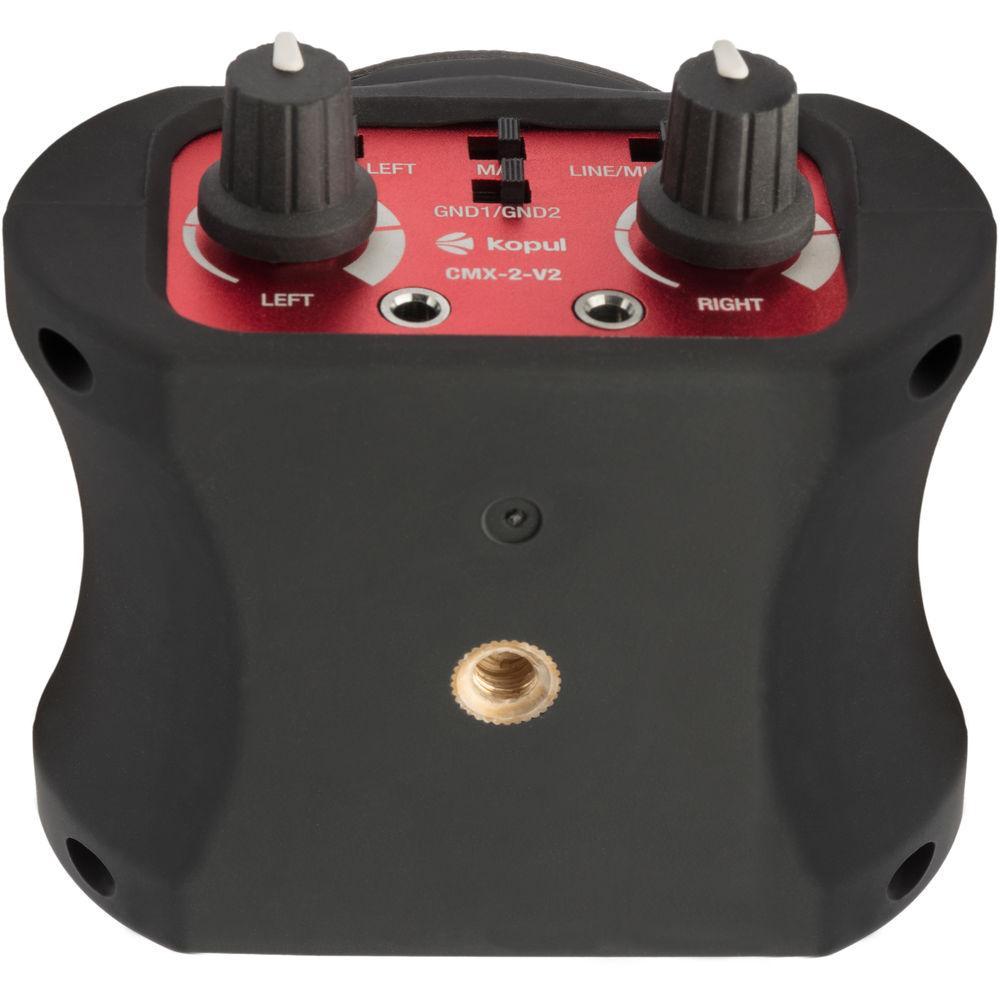

  • 1/4"-20 threaded socket at the base of the unit for mounting on a tripod

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

Kopul CMX-2-V2 Specs

Input Level	Mic (XLR): -20 dB Line (XLR): 0 dB Aux (1/8" / 3.5 mm): -20 dB
Output Level	-20.5 dB, mic level
Frequency Response	30 Hz to 20 kHz
Connectors	2 x 3-pin XLR female inputs 1 x 1/8" / 3.5 mm stereo aux input 1 x 1/8" / 3.5 mm stereo output
Controls	Line/mic left-channel switch Line/mic right-channel switch Mono/stereo switch Ground 1/Ground 2 switch 2 x trim control knobs
Power Supply	Passive, no battery required
Mounting Options	1/4"-20 mounting socket 1/4"-20 camera mount
Certifications	CE, FCC, RoHS
