User Manual for Kopul HDSP-2014-4K 1x4 HDMI Splitter Click to enlarge the picture
Contents of the user manual for the Kopul HDSP-2014-4K 1x4 HDMI Splitter
- Product category: Distribution Amplifiers (DA's) Kopul
- Brand: Kopul
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Kopul Distribution Amplifiers (DA's)
 |
User manual for the Kopul HDSP-2014-4K 1x4 HDMI Splitter contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Kopul product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Kopul user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Kopul product will considerably shorten its lifespan!
|

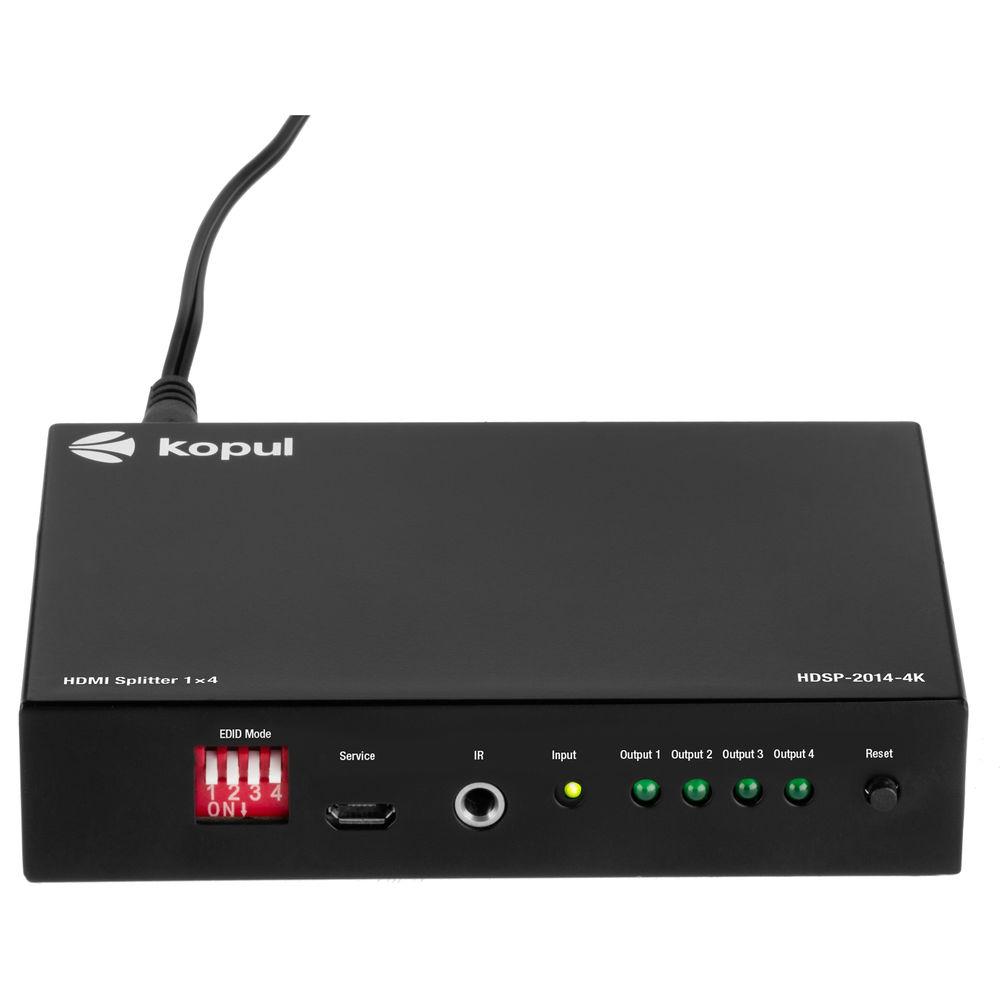

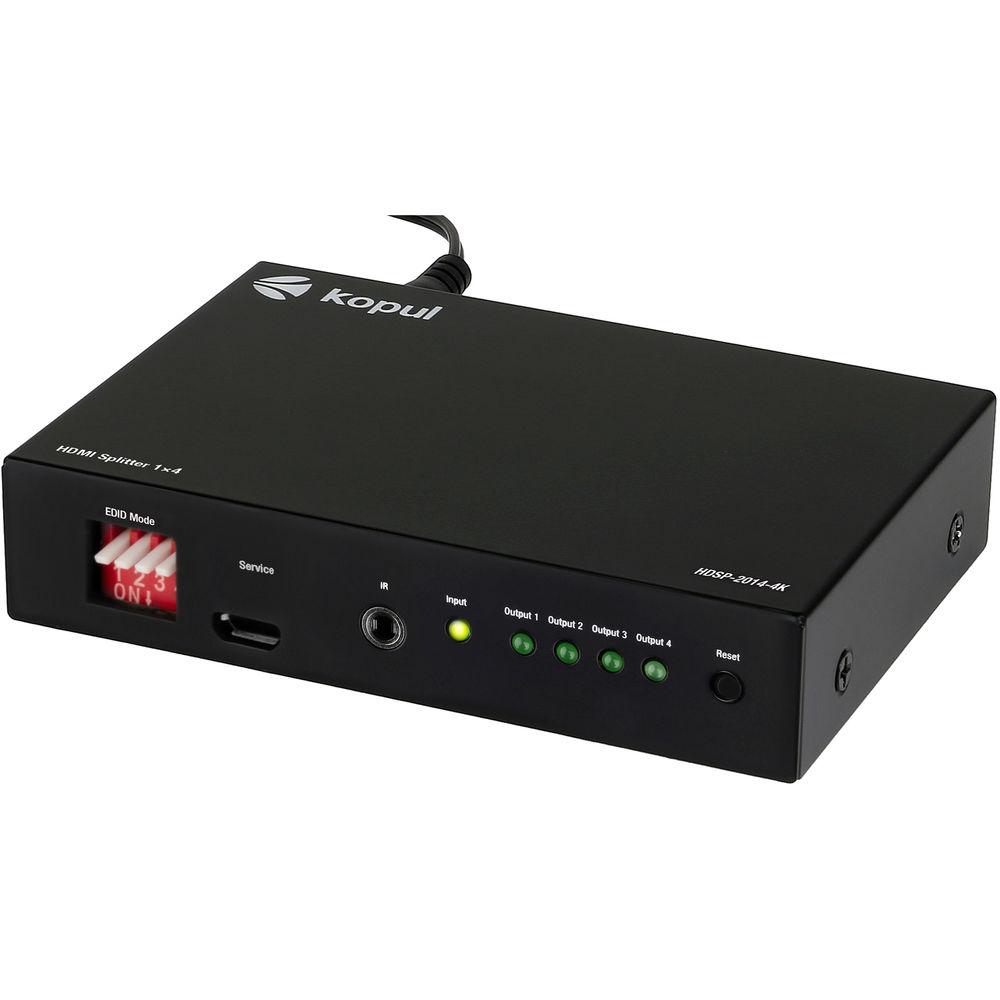

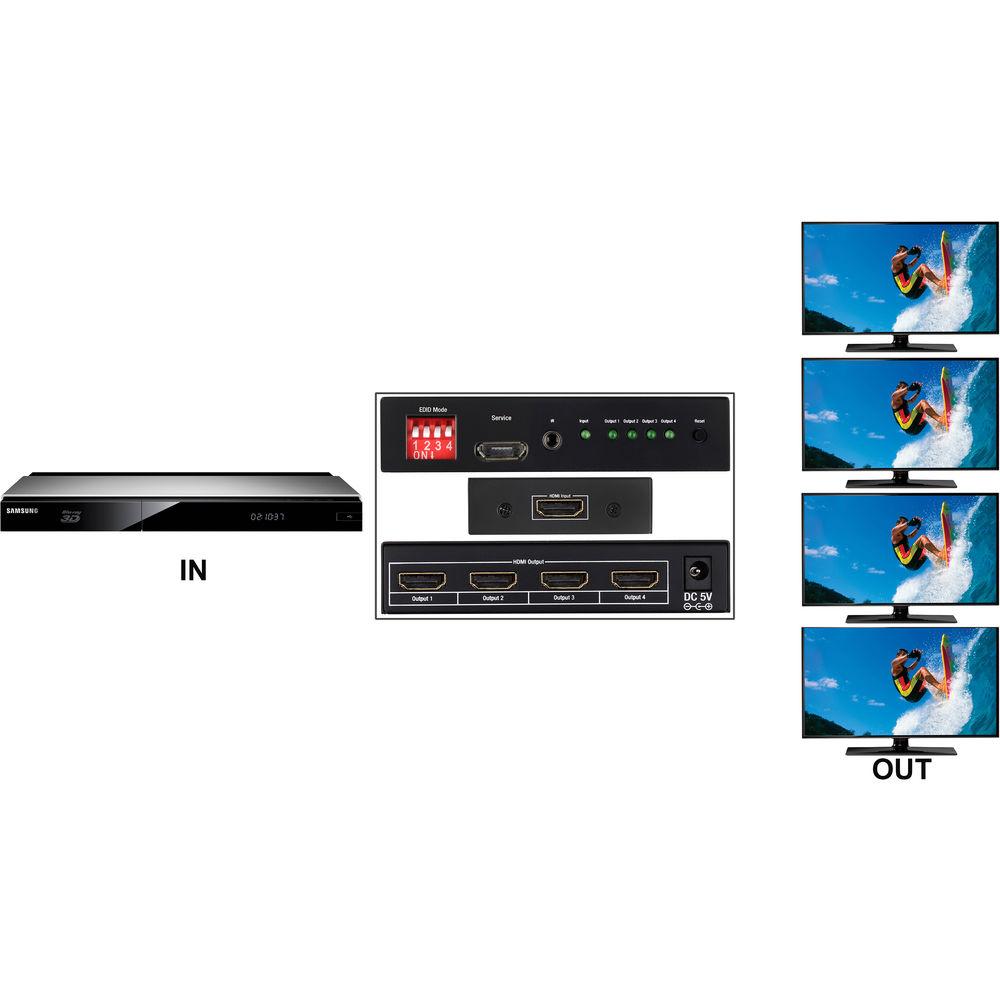

Product description Send a single video source to four displays with the Kopul HDSP-2014-4K 1x4 HDMI Splitter. Leveraging the HDMI v1.4 protocol, high-resolution video formats up to DCI 4K are supported, as are HD and 3D formats. Manually set your EDID with the DIP switch controls, ensuring that the incoming video signal will translate properly to your preferred displays with minimal handshake time. Once you have it set up, just plug in your cables and you're ready to go. The sturdy metal construction will hold up to professional use in A/V installations or home use. - Audio Format Support
- High-quality audio formats such as LPCM, Dolby AC-3, DTS 7.1, and DSD audio are supported.
- Audio Return Channel
- Audio return channel simplifies wiring to devices such as sound bars or receivers, and eliminates the need for separate audio connections.

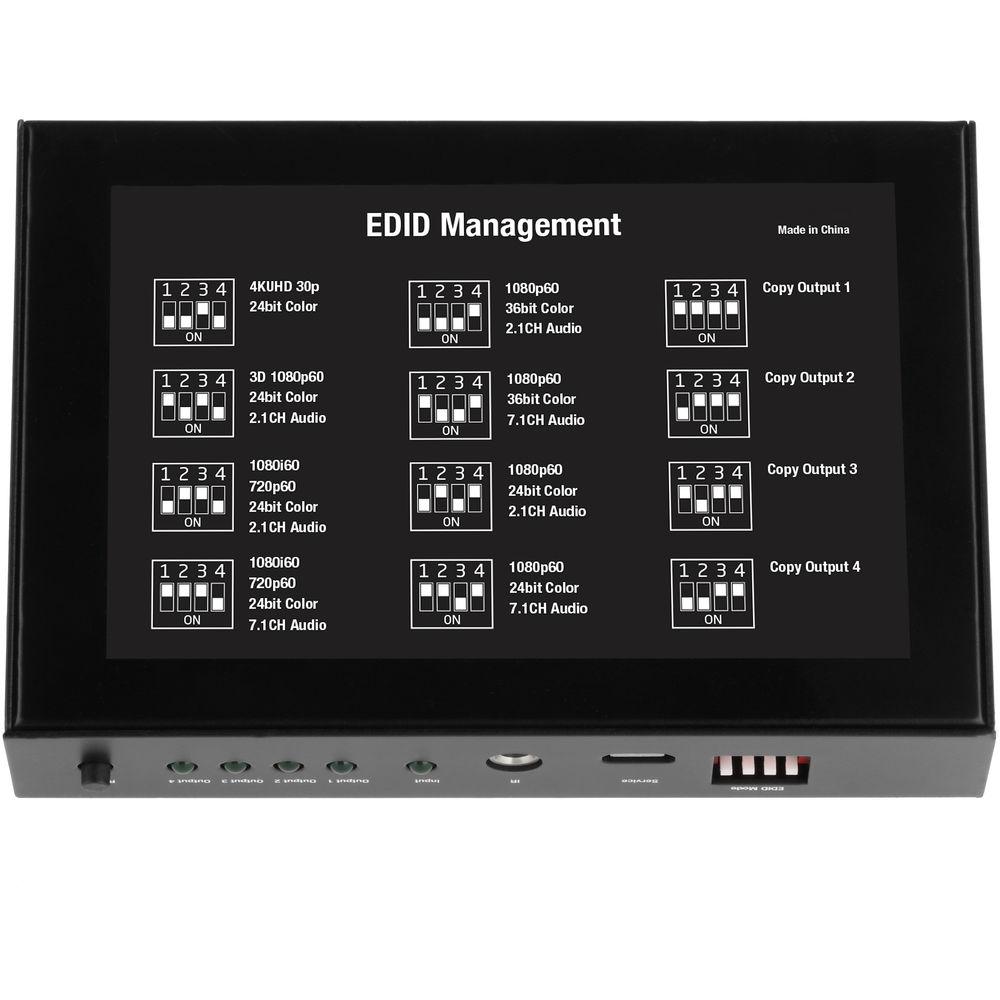

- Built-In EDID Control
- EDID controls allow the splitter to send compatible signals when your setup includes displays with different sizes, resolutions, and formats.
- Metal Housing
- Designed for professional installations, the durable, heavy-duty metal housing will stand up to repeated and extended use in trade shows, presentations, and lecture halls, but is also appropriate for home use.
- LED Indicators
- The LEDs on the front panel illuminate, indicating that the corresponding connections are live.

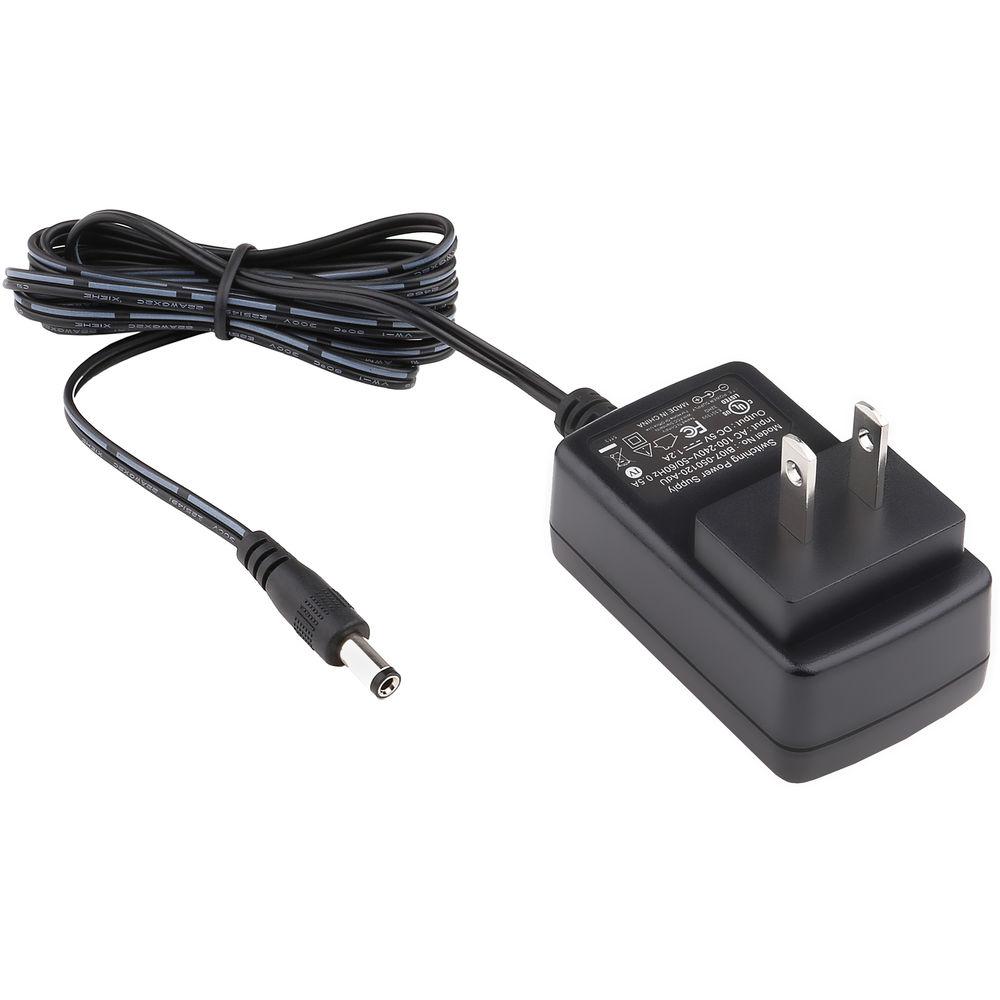

UPC: 847628597112 In the Box Kopul HDSP-2014-4K 1x4 HDMI Splitter Power Supply Limited 1-Year Warranty User Manual PDF 849.9kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Kopul HDSP-2014-4K 1x4 HDMI Splitter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

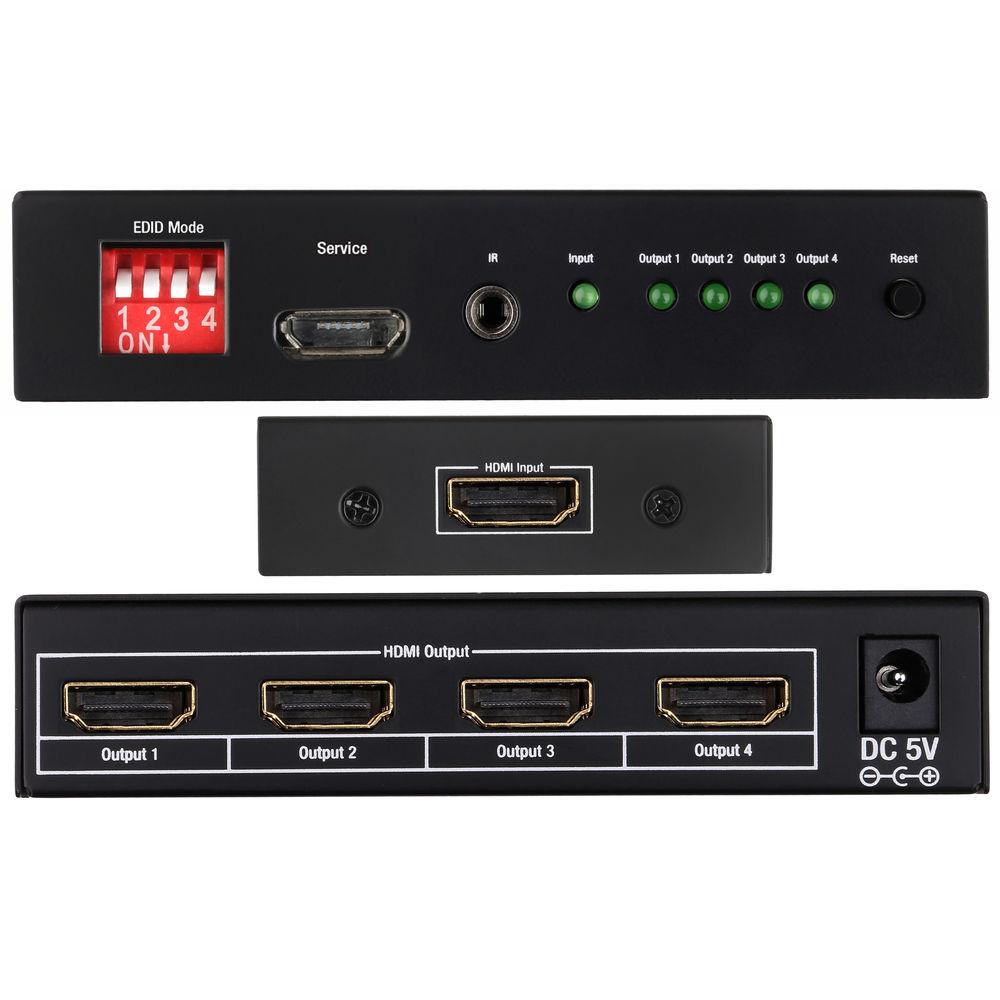

Technical parametersKopul HDSP-2014-4K Specs | Inputs | 1 x HDMI Type A, v1.4 | | Outputs | 4 x HDMI Type A, v1.4 | | Resolution Support | 4096 x 2160 (DCI 4K)
3840 x 2160 (UHD 4K)
1080p
1080i
720p
576p
480p
NTSC
PAL | | HDCP | 1.3 | | Color Depth | Up to 36-bit Deep Color (12 bits per color channel) | | Audio Formats | LPCM, Dolby AC3, DTS 7.1-channel, DSD | | Video Data Transfer Rate | 6.75 Gbps | | Environmental | Operating Temperature: 23 to 95°F / -5 to 35°C
Operating Humidity: 5 to 90%, non-condensing | | Power Supply | 5 VDC, 1.2 A | | Power Consumption | 2 W | | Dimensions | 4.4 x 0.9 x 3.0" / 11.1 x 2.4 x 7.5 cm | | Weight | 0.6 lb / 250 g | | | | Package Weight | 0.9 lb | | Box Dimensions (LxWxH) | 8.2 x 5.8 x 2.2" |
