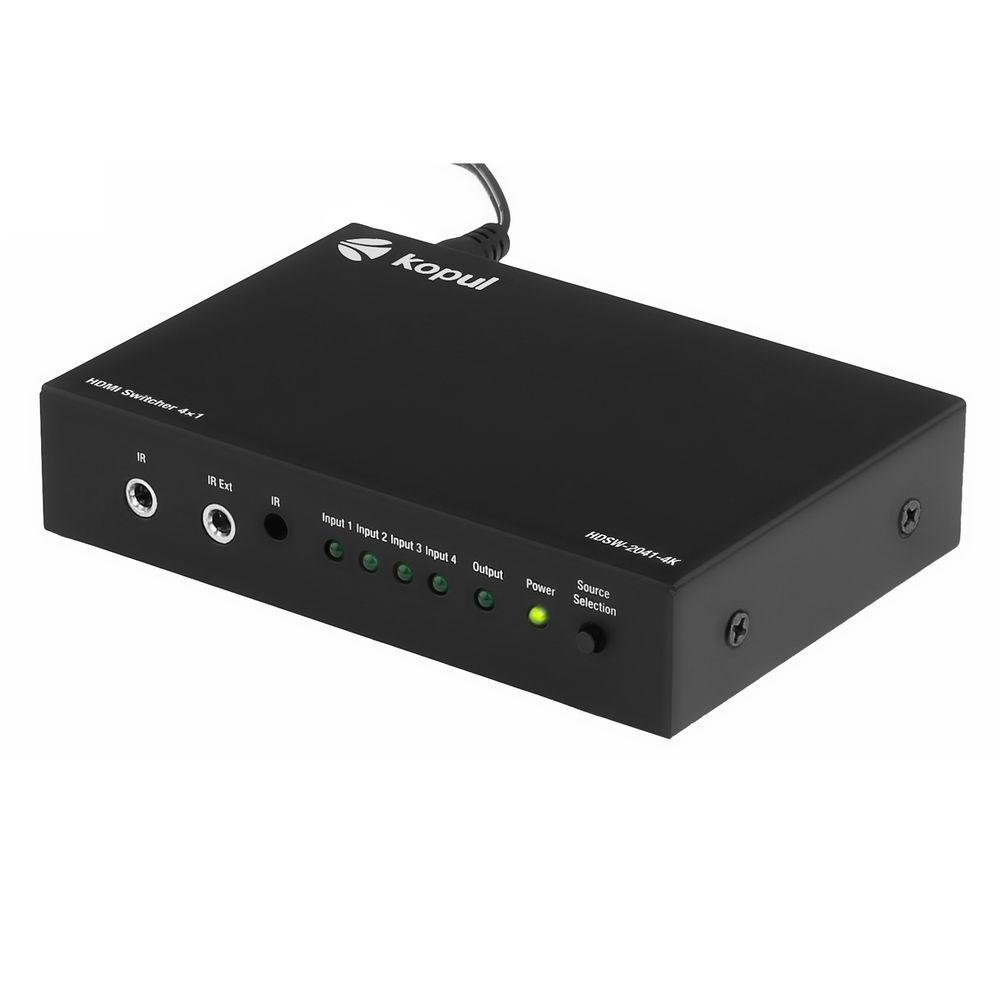

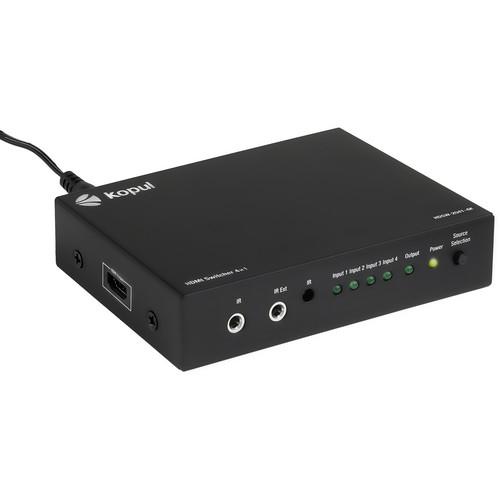

User Manual for Kopul HDSW-2041-4K 4x1 HDMI Switcher Click to enlarge the picture
Contents of the user manual for the Kopul HDSW-2041-4K 4x1 HDMI Switcher
- Product category: Routers & Switchers Kopul
- Brand: Kopul
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Kopul Routers & Switchers
 |
User manual for the Kopul HDSW-2041-4K 4x1 HDMI Switcher contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Kopul product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Kopul user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Kopul product will considerably shorten its lifespan!
|

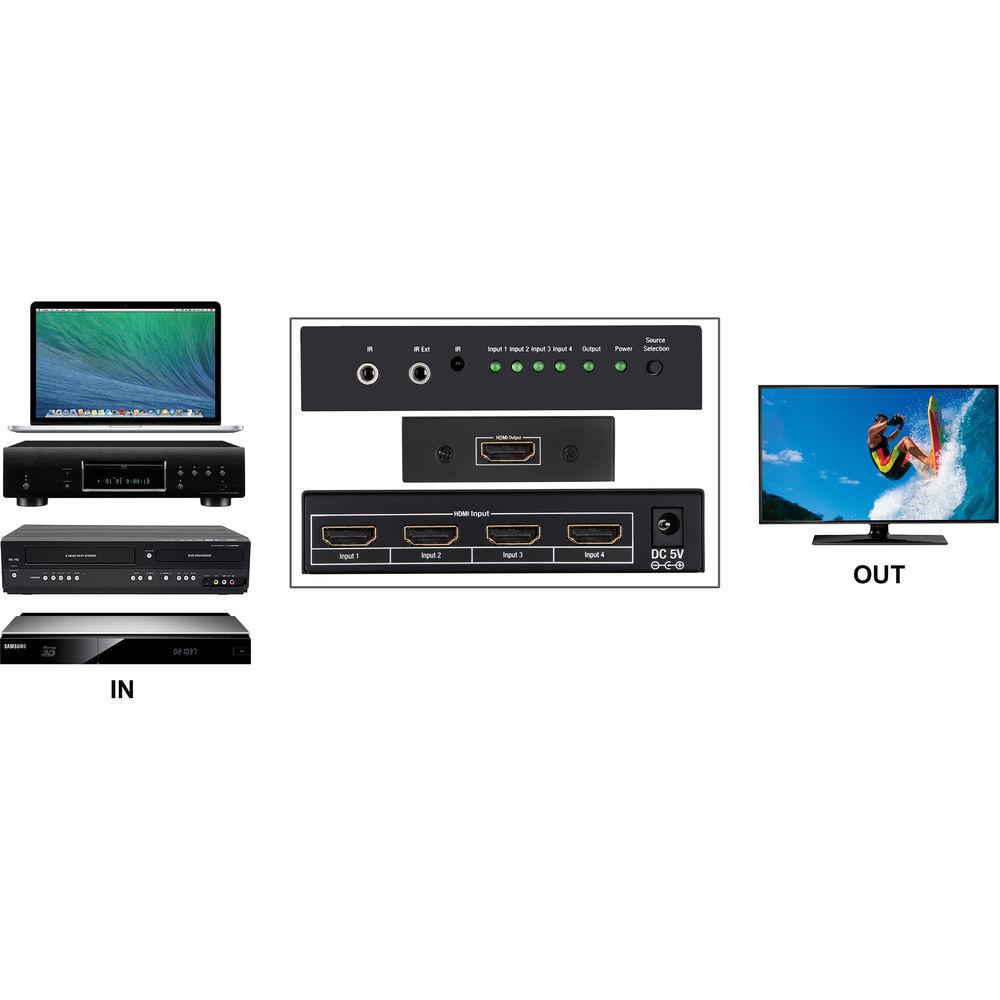

Product description Switch between up to four HDMI video sources to feed a single display with the Kopul HDSW-2041-4K 4x1 HDMI Switcher. Each HDMI v1.4 input supports DCI and UHD 4K resolutions, as well as HD and 3D video. Multichannel audio, including LPCM, AC3, DSD, and DTS formats, is supported for surround sound applications in home theater. HDCP 1.4 compliance will pass protected content from Blu-ray discs and streaming services through to the screen. Once you have all your sources and your screen plugged in, use the front panel switch to cycle through the available inputs. A wireless IR remote control is included for selecting inputs from a distance. - Audio Format Support
- Audio formats such as LPCM, Dolby AC-3, DTS 7.1, and DSD are supported so you can maintain the high quality of your audio source through the switcher.
- Audio Return Channel
- The HDSW-2041-4K supports audio channel return to simplify wiring to devices such as sound bars or receivers, without the need for separate S/PDIF audio cables running to each device.
- IR Remote Control

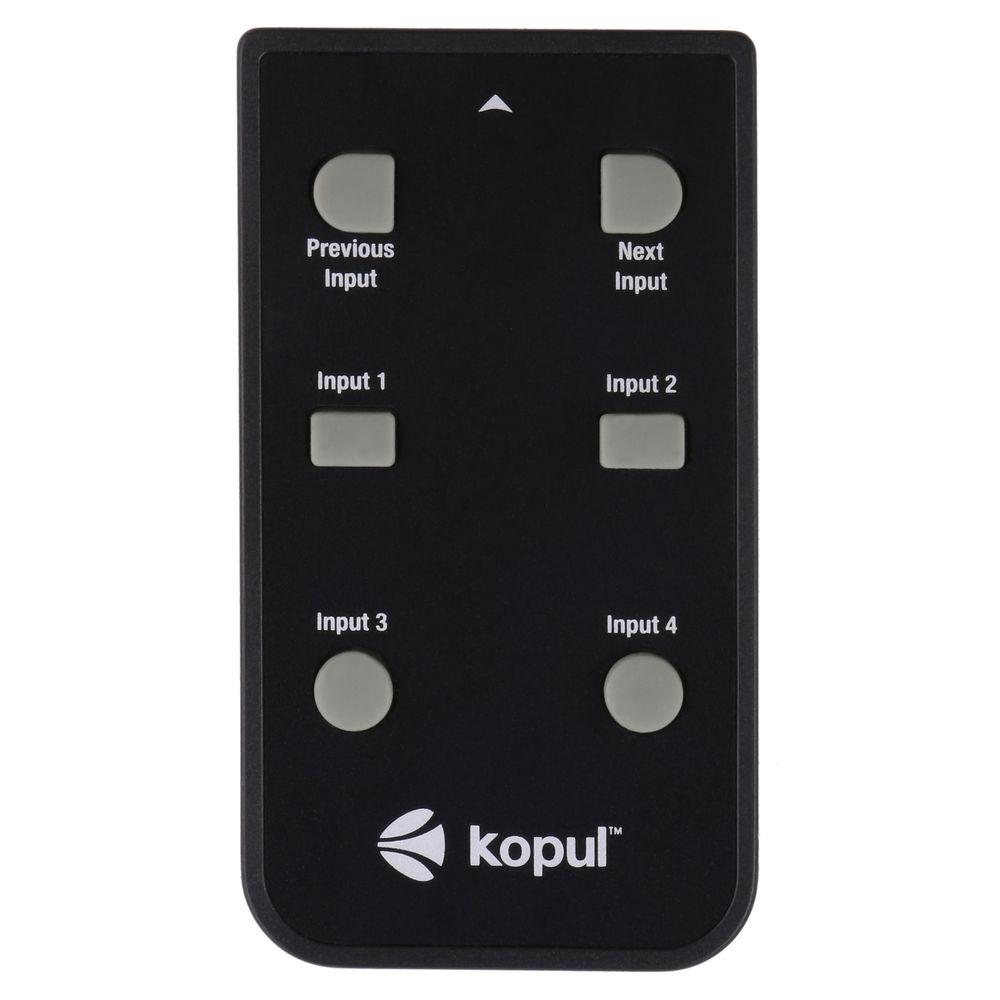

- Use the included wireless IR remote control to quickly switch between inputs without having to access the switcher unit itself.
- Supports Cable Runs up to 65'
- Cables up to 65' long are supported on both the input and output ends. This gives you flexibility in placing the switcher strategically. You can even put the switcher and the screens in separate rooms.
- Durable Metal Housing
- Designed for professional installations, the durable, heavy-duty metal housing will withstand the rigors of demanding professional environments. It's also appropriate for home use.
- LED Indicators

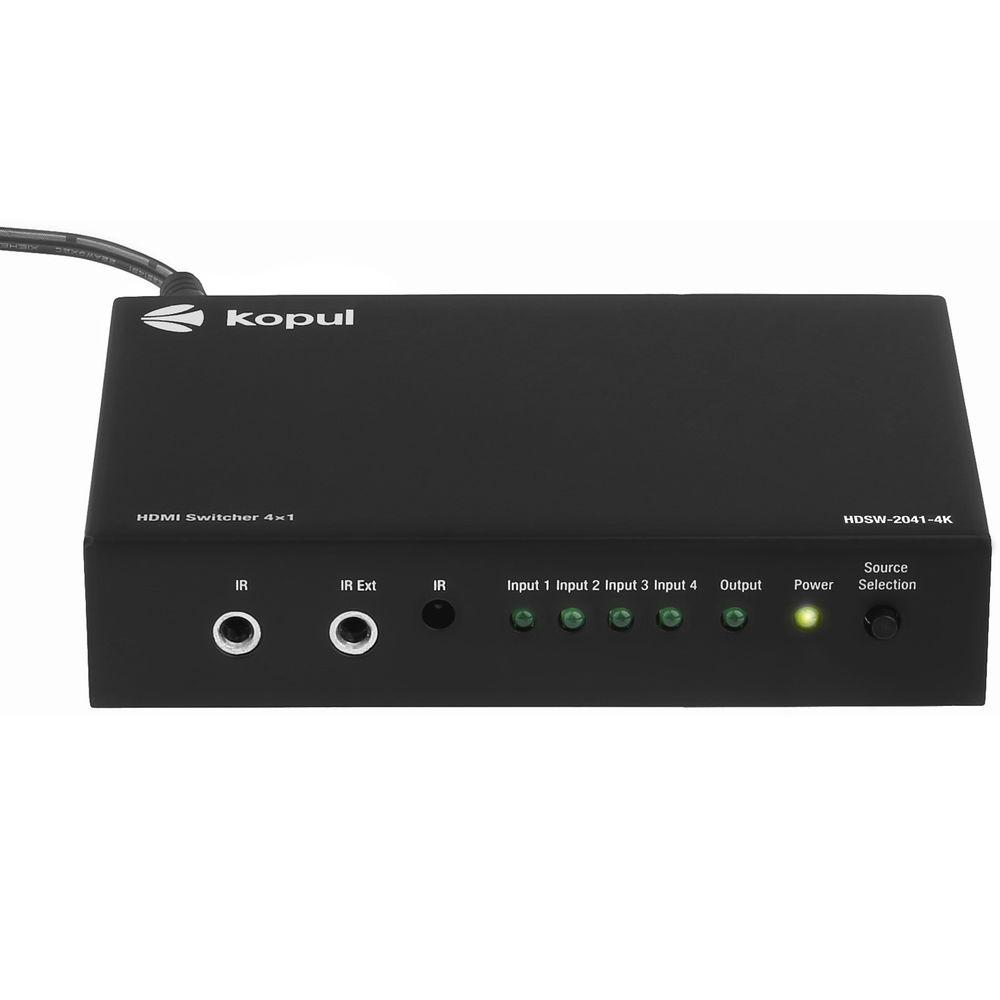

- The LED indicators on the front panel illuminate and provide visual confirmation when an HDMI device is connected or when each input is active.
UPC: 847628597129 In the Box Kopul HDSW-2041-4K 4x1 HDMI Switcher IR Remote Control Battery for Remote Control Power Supply Limited 1-Year Warranty User Manual PDF 681kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Kopul HDSW-2041-4K 4x1 HDMI Switcher in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

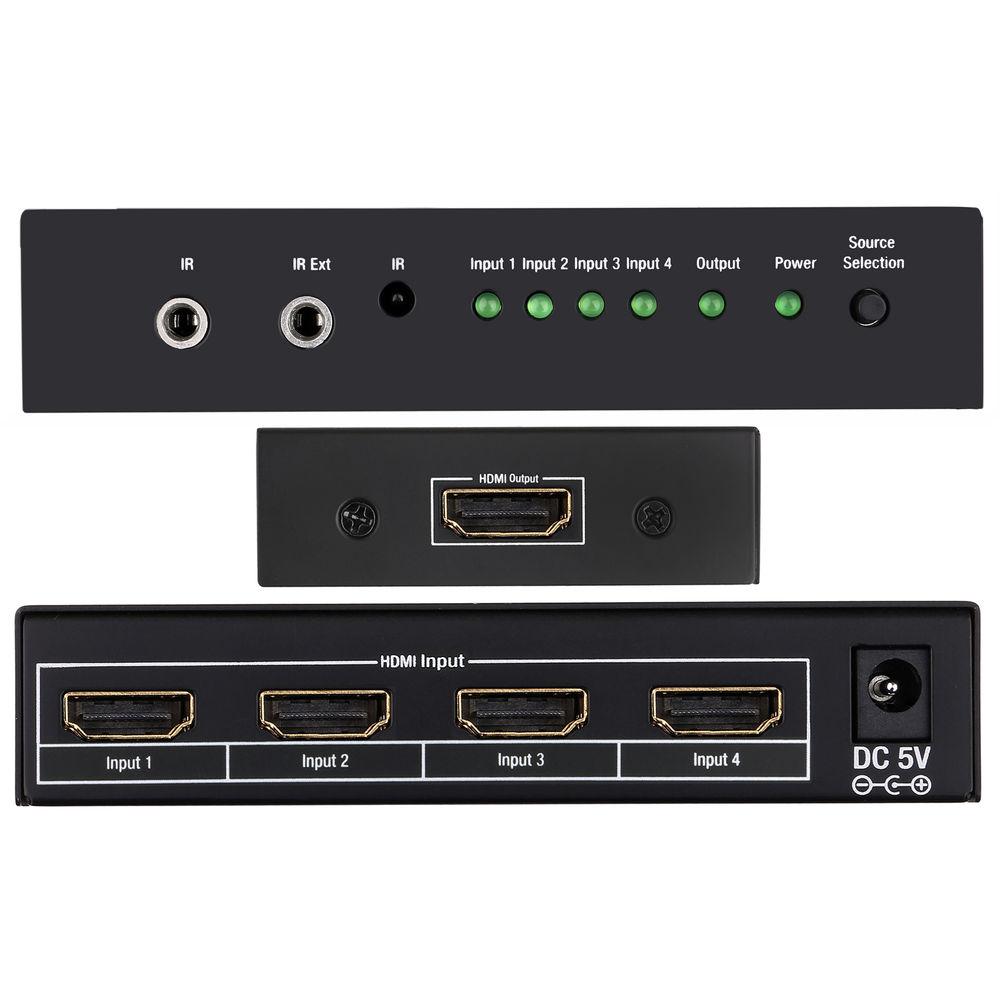

Technical parametersKopul HDSW-2041-4K Specs | Inputs | 4 x HDMI Type A, v1.4
1 x 3.5mm IR | | Outputs | 1 x HDMI Type A, v1.4
1 x 3.5mm IR | | HDCP | 1.4 | | Resolution Support | 4096 x 2160 (DCI 4K)
3840 x 2160 (UHD 4K)
1080p
1080i
720p
576p
480p
NTSC
PAL | | Color Depth | Supports 36-bit Deep Color (12 bits per color channel) | | Audio Formats Supported | LCPM, Dolby AC3, DTS 7.1, DSD | | Video Data Transfer Rate | 6.75 Gbps | | Power Supply | Input: 100 to 240 VAC, 50/60 Hz, 0.5 A
Output: 5 VDC, 1.2 A | | Environmental | Operating Temperature: 23 to 95°F / -5 to 35°C
Operating Humidity: 5 to 90% RH, non-condensing | | Dimensions | 4.4 x 0.9 x 3.0" / 11.1 x 2.4 x 7.5 cm | | Weight | 0.5 lb / 227 g | | | | Package Weight | 0.95 lb | | Box Dimensions (LxWxH) | 8.2 x 5.9 x 2.3" |
