User Manual for Kopul High-Performance Passive Direct Box Click to enlarge the picture
Contents of the user manual for the Kopul High-Performance Passive Direct Box
- Product category: Direct Boxes Kopul
- Brand: Kopul
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Kopul Direct Boxes
 |
User manual for the Kopul High-Performance Passive Direct Box contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Kopul product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Kopul user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Kopul product will considerably shorten its lifespan!
|

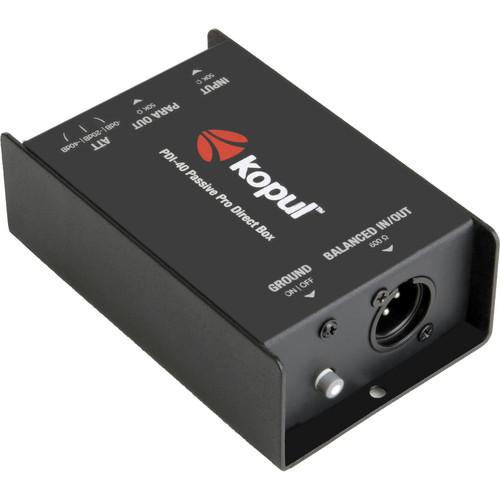

Product description The Kopul PDI-40 High-Performance Passive Direct Box lets you connect an unbalanced, high-impedance signal to a balanced, low-impedance input. It is most often used for plugging a keyboard, electric guitar, or electric bass guitar directly into a mixing console's microphone-level input. The PDI-40 can also be used in DJ applications for converting unbalanced +10 dB DJ mixer signals to balanced, line-level signals. This allows you to connect your DJ mixer to a mixing console and cuts down on noise that can be picked up in longer cable runs.

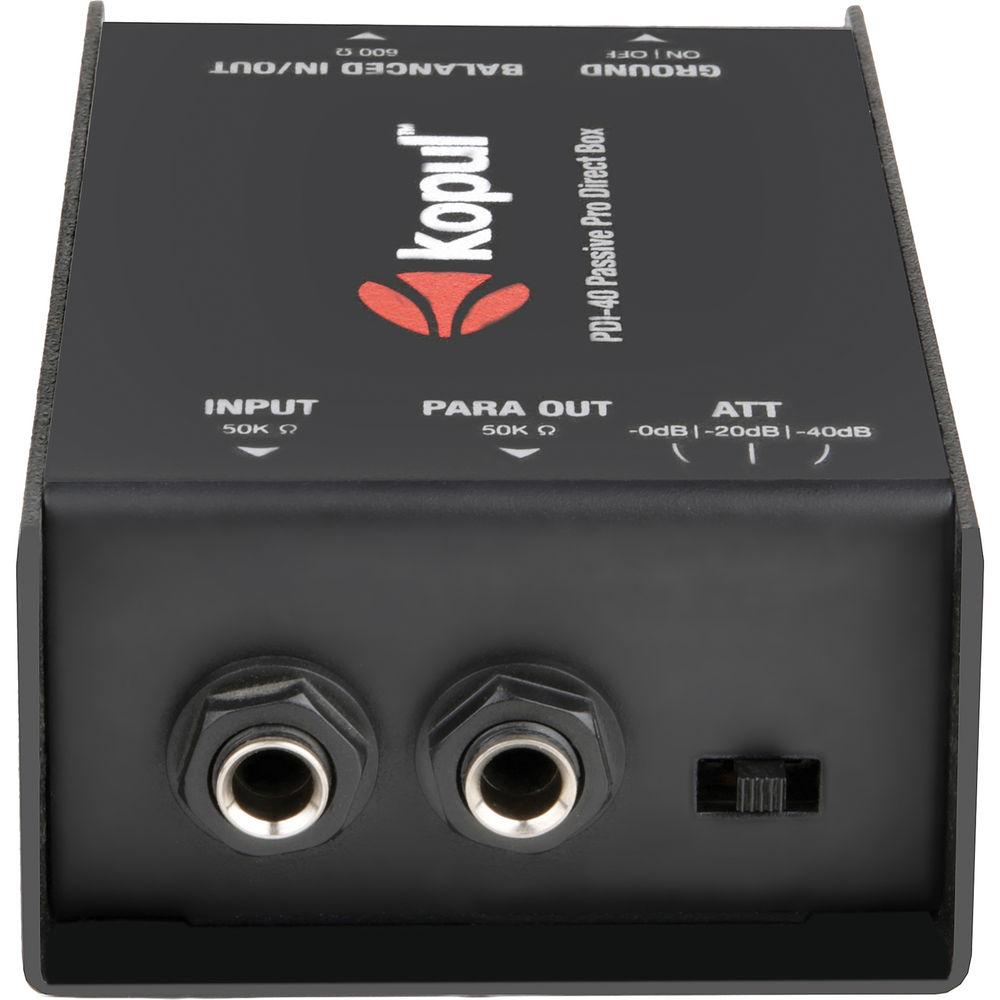

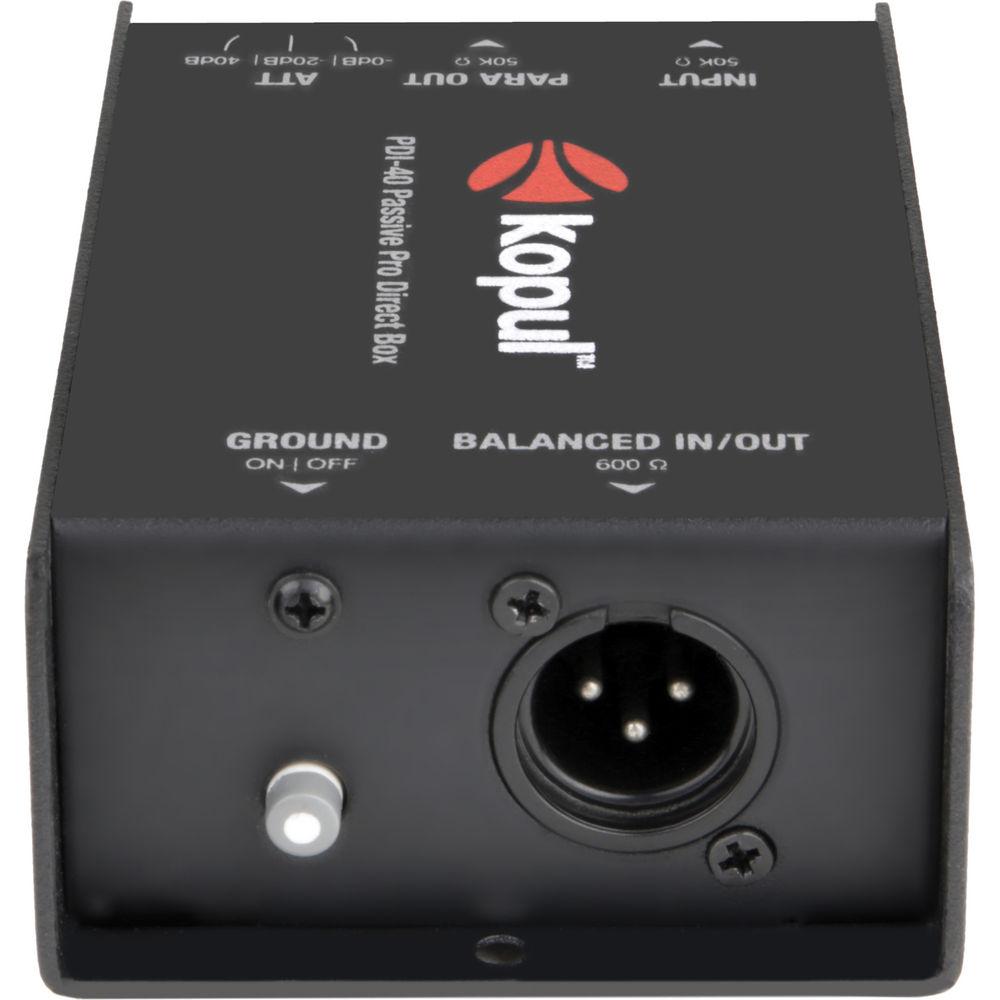

For live performance and recording applications, the PDI-40 features a parallel output for connecting your instrument to an amplifier, while simultaneously sending signal to the mixer. There is also an attenuation switch to lower the signal input by -20 or -40 dB, and a ground-lift button to minimize hum and noise caused by ground loops. UPC: 847628574670 In the Box Kopul High-Performance Passive Direct Box Limited 1-Year Warranty PDI-40 User Manual PDF 1.9mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Kopul High-Performance Passive Direct Box in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKopul PDI-40 Specs | Input | 1/4" | | Output | Parallel out: 1/4"
Balanced out: XLR | | Attenuation Switch | 0, -20, -40 dB | | Dimensions | 4.7 × 3.0 × 1.7" (12.0 × 7.6 × 4.2 cm) | | Weight | 15 oz (425 g) | | | | Package Weight | 1.0 lb | | Box Dimensions (LxWxH) | 6.1 x 3.3 x 2.0" |
Rating98% users recommend this product to others. And what about you?
This product has already been rated by 65 owners. Add your rating and experience with the product.
