User Manual for Kopul XRSM 3-Pin XLR Female to 3.5mm RA Stereo Mini-Plug Cable Click to enlarge the picture
Contents of the user manual for the Kopul XRSM 3-Pin XLR Female to
- Product category: Mini to XLR Cables Kopul
- Brand: Kopul
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Kopul Mini to XLR Cables
|
User manual for the Kopul XRSM 3-Pin XLR Female to contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Kopul product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Kopul user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Kopul product will considerably shorten its lifespan!
|

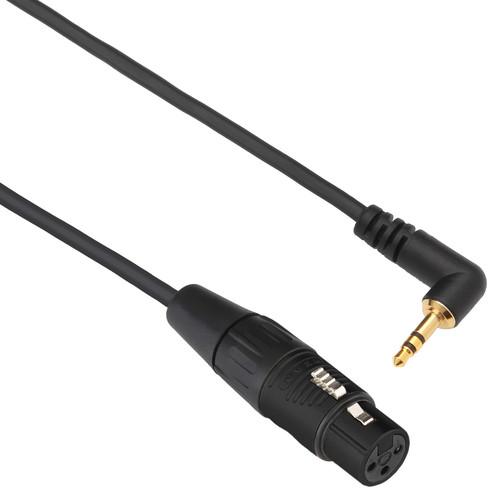

Product description The 25' XRSM 3-Pin XLR Female to 3.5mm RA Stereo Mini-Plug from Kopul is a studio-quality cable that can be used for converting a mono-microphone or a line-level signal to a 3.5mm stereo signal for devices such as camcorders, DSLR cameras, recorders, and more. It can be utilized with dynamic mics and self-powered XLR condenser microphones.The XRSM cable is engineered to provide protection against EMI, RFI, and static noise, offering a gold-plated 3.5mm (1/8") right-angle stereo mini-plug connector with molded strain relief, as well as a 3-pin XLR-F connector with a chuck-style strain relief by REAN. The XRSM cable is built with 24-gauge OFC (oxygen-free copper) conductors, spiral shielding, and has PE insulation, which produces a quiet cable with good conductivity ensuring a clean transfer of the audio signals. - XLR to Mini-Plug Connection
- XLR female to stereo male mini-plug cable is ideal for connecting professional-quality microphones to the stereo mini-plug inputs on DSLR cameras, camcorders, or audio recorders
- Shielding
- The copper spiral shielding provides more than 90% coverage and offers superb rejection of radio frequency (RF) and electromagnetic (EM) interference
- Conductivity
- 24-gauge oxygen-free copper (OFC) conductors and polyethylene insulation offer excellent conductivity for a good transfer of audio signal
- Connectors
- Studio-quality gold-plated 1/8" (3.5mm) right-angle stereo mini-plug connector and a female XLR connector provide clear signal transfer
- Strain Relief
- The REAN XLR connector with chuck-style strain relief and the molded strain relief of the mini-plug connector create a durable cable
UPC: 847628596726 In the Box Kopul XRSM 3-Pin XLR Female to 3.5mm RA Stereo Mini-Plug Cable (25') Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Kopul XRSM 3-Pin XLR Female to 3.5mm RA Stereo Mini-Plug Cable in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKopul XRSM-25B Specs | Cable Type | XLR-F to 1/8" / 3.5 mm stereo right-angle mini male | | Cable Gauge | 24 AWG | | Connector 1 | 3-pin XLR female | | Connector 2 | 1/8" / 3.5 mm right-angle stereo mini-plug | | Shielding | Copper spiral shielding with > 90% coverage | | Conductor | Oxygen-free copper | | Temperature Rating | 176° F / 80° C | | Voltage | 30 V | | Dielectric (Insulation) | FPE (foam polyethylene) 0.035" / 0.9 mm OD | | Outer Diameter | 0.2" / 4.3 mm | | Length | 25' / 7.6 m | | | | Package Weight | 0.62 lb | | Box Dimensions (LxWxH) | 12.5 x 12.4 x 9.4" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 04 owners. Add your rating and experience with the product.
