Product description - Choosing Your First Hardware Synthesizer for Under $1000

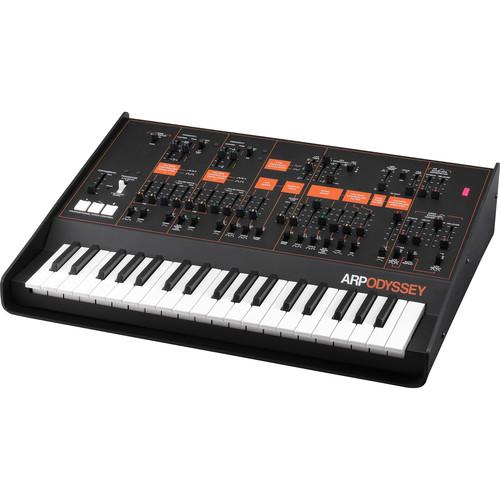

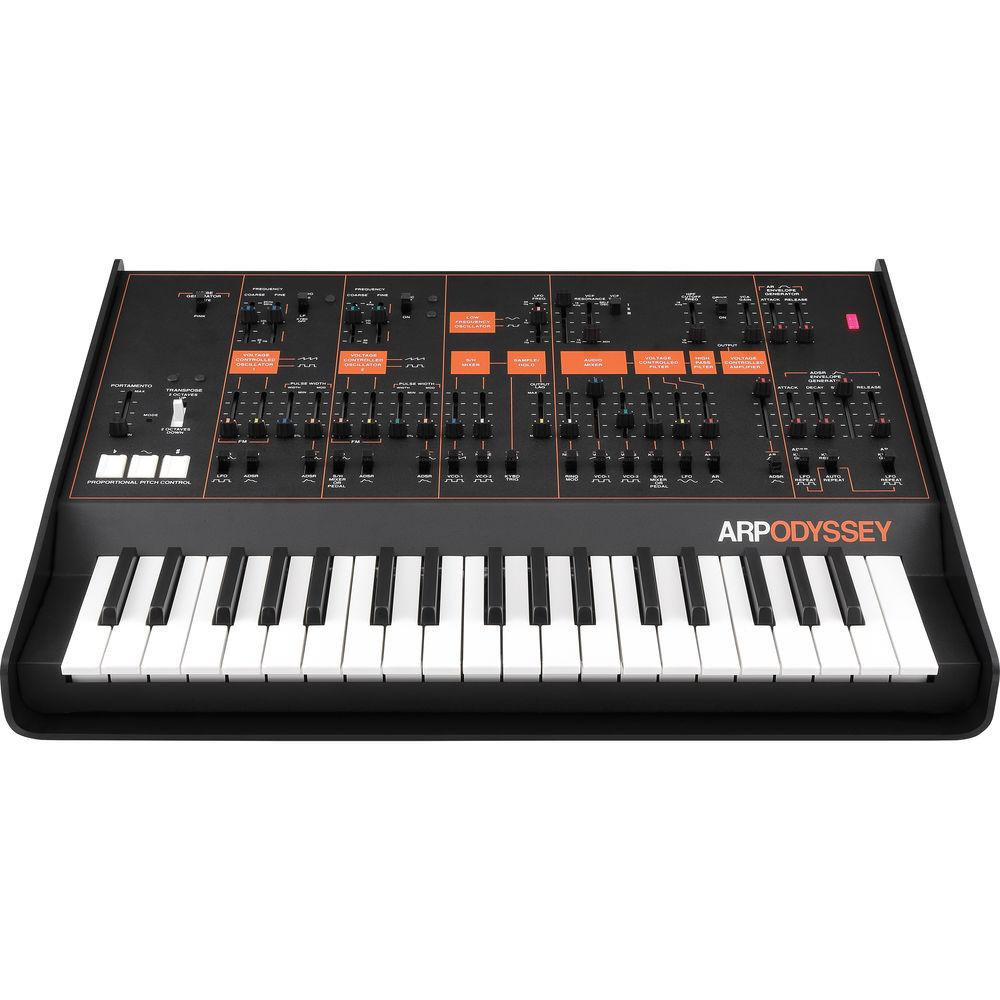

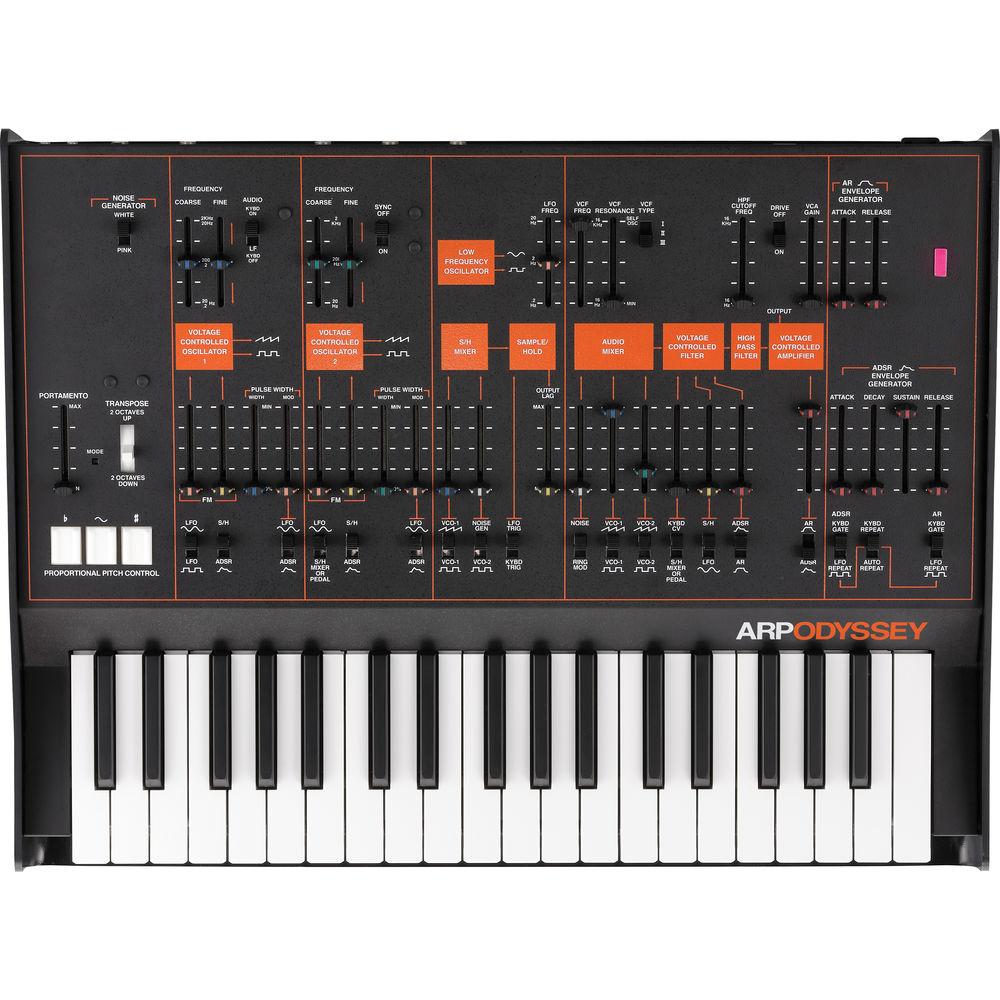

The ARP Odyssey from Korg is the re-creation of the classic analog synthesizer originally produced in the 1970s and highly regarded for its sharp penetrating sound and rich range of tonal variations. This re-creation is 86% of the original size and features the original circuitry with some updated features including MIDI and USB.The synth offers a 37-note slim-key keyboard with monophonic or duophonic operation. The oscillator section includes two VCOs with sawtooth, square, and pulse waveforms. Additionally, all three revisions of the filter are immediately accessible via switch and further broaden the tonal palette. Type I (rev. 1) is a 12 dB/Oct circuit, while Type II and III (Rev. 2 & 3) are 24 dB/Oct, and each type adds distinct flavors and colors to the sound. Both of the portamento circuits (Rev.1 & 2/3) are available as well, while a drive circuit has been added to the VCA, producing distortion and generating a rough and raw sound. All of the sliders have been updated and are smoother than the original, making the synth uncompromisingly playable.A variety of functions and modulation possibilities are provided by oscillator sync, pulse width modulation, sample & hold, a high-pass filter, two types of envelope generators, an LFO, and pitch bend via the proportional pitch controls (PPC). The ARP Odyssey ships with a power adapter, a 1/4" cable, a 1/8" cable, and an impact-resistant case. -
- 86% scale of original Odyssey
- 37-note keyboard
- Monophonic or duophonic operation
- 2x VCO featuring Sawtooth, Square, and Pulse waveforms
- VCF switchable between rev. I, II, and III
- VCA with overdrive
- ADSR envelope generator
- AR envelope generator
- LFO
- Noise generator
- Portamento
- Ring modulator
- Sample & hold
- External audio input
- USB MIDI
- CV/Gate I/O
- Extended body protects keys
- Phone and mini-phone cables included
- Impact-resistant case included
In the Box Korg ARP Odyssey Analog Synthesizer AC Adapter 1/4" / 6.3 mm Cable 1/8" / 3.5 mm Cable Impact-Resistant Case Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Korg ARP Odyssey Analog Synthesizer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKorg ARP Odyssey Specs | Keyboard | 37-note (slim-key, no velocity sensitivity, no aftertouch) | | Polyphony | Maximum Polyphony: 2 voices for duophonic; normally monophonic | | Controllers | Transpose Positions: 2 octaves down, normal, 2 octaves up
Proportional Pitch Control
Pitch Down Pad (b): about -2 / 3 octave
Modulation Pad (-)
Pitch Up Pad (#): about +2 / 3 octave | | Noise Generator | Noise Spectrum Types: White and pink | | Portamento | Maximum Speed: About 0.01 ms/oct
Minimum Speed: About 1.5 seconds/oct | | VCO | Voltage-Controlled Oscillator
Waveforms: Sawtooth, square, pulse (dynamic pulse)
Frequency Range:
VCO-1 in Low Frequency Mode: 0.2 to 20 Hz
VCO-1 and VCO-2 (Audio Range): About 20 Hz to 20 kHz
Warm Up Drift: 1/30 semitone from turn on max
Pulse Width: 50 to 5%
Pulse Width Modulation:
ADSR: +45%
LFO: +15%
Voltage Controlled Response: 1 V/oct
Maximum Frequency Shifts:
LFO Sine Wave: +1/2 oct.
LFO Square Wave: +1.5 oct.
ADSR: +9 oct.
S/H: +2 oct.
(*VCO-1 is low note priority, VCO-2 is high note priority) | | VCF | Voltage Controlled Filter
Types: Low pass (I: 12 dB/oct., II III: 24 dB/oct.)
Frequency Range: 16 Hz to 16 kHz
Maximum Usable Q: 30
Resonance: 1/2 - self oscillate
Voltage Controlled Response:
C3 key (left edge) 0 V
C6 key (right edge) 3 V | | VCA | Voltage Controlled Amplifier
Dynamic Range: 80 dB | | Ring Modulator | Type: Digital
Input Signal: VCO-1, VCO-2 (square wave) | | Sample & Hold | Command Sources: Keyboard or LFO trigger
Sampled Signals:
VCO-1 sawtooth wave and square wave
VCO-2 square wave and pink noise | | Envelope Generators | ADSR Envelope Generator
Attack Time: 5 msec. to 5 sec.
Decay Time: 10 msec. to 8 sec.
Sustain Level: 0 to 100% or Peak
Release Time: 15 ms to 10 seconds
AR Envelope Generator
Attack Time: 5 ms to 5 seconds
Release Time: 10 ms to 8 seconds | | Control Input | Control Input Jacks

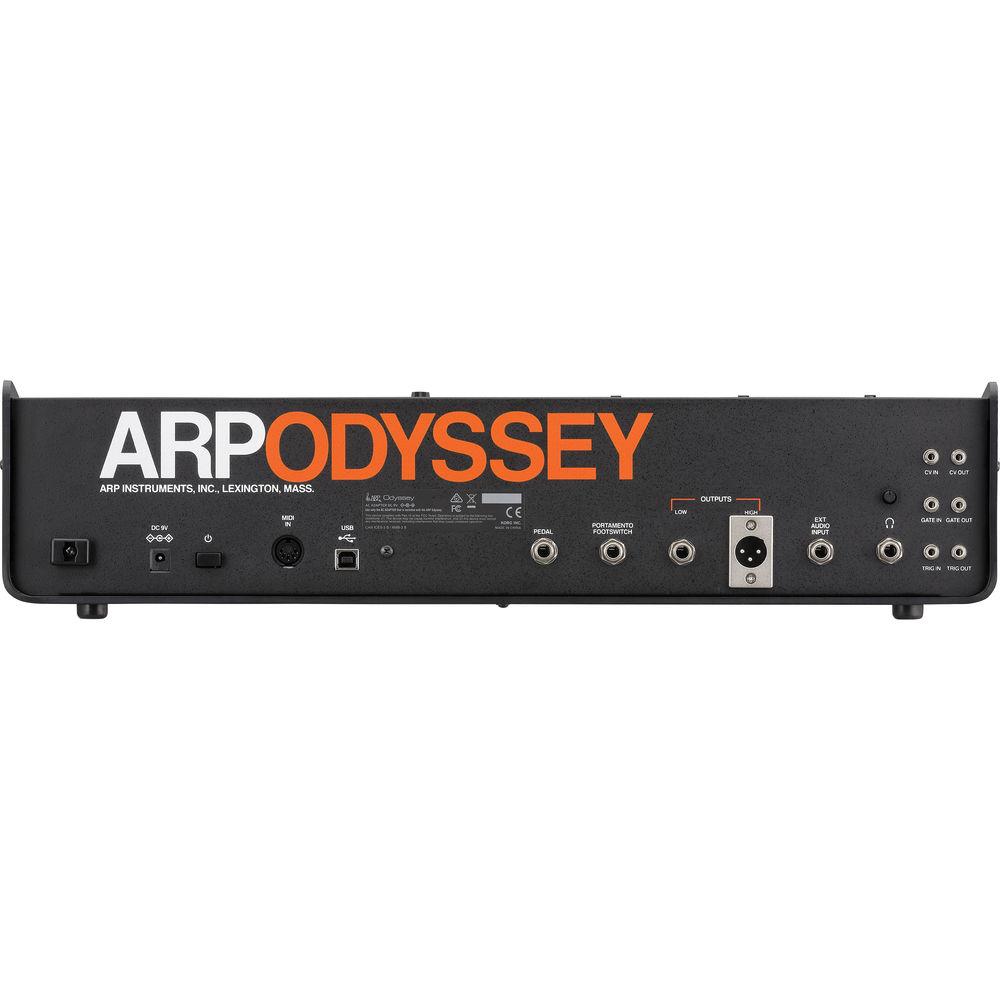

Pedal: 1/4" / 6.3 mm monaural phone jack
Portamento Foot Switch: 1/4" / 6.3 mm monaural phone jack | | Audio Output | Low
Connector: 1/4" / 6.3 mm monaural phone jack
Maximum Output Level: -20 dBu @ 10 kOhms load
Output Impedance: 10 kOhms
High
Connector: XLR connector
Maximum Output Level: +4 dBu @ 1 kOhm load
Output Impedance: 330 ohms
Headphones
Connector: 1/4" / 6.3 mm stereo phone jack
Maximum Output Level: 50 mW + 50 mW @ 33 ohms load
Output Impedance: 10 ohms
(Controllable by volume knob) | | External Analog Audio Input | Connector: 1/4" / 6.3 mm monaural phone jack
Maximum Input Level: -10 dBu
Input Impedance: 22 kOhms | | MIDI | In | | USB | Type B | | CV In/Out Controls | Keyboard CV (In/Out): 1 V/octave
Connector: 1/8" / 3.5 mm monaural phone jack | | Gate | Gate In: +3 V (minimum)
Gate Out: +10 V, key down; 0 V all keys up
Connector: 1/8" / 3.5 mm monaural phone jack | | TRIG Connector | Trig In: +3 V pulse min., 10 μsec duration minimum
Trig Out: +10 V pulse on key depression, 10 μsec duration
Connector: 1/8" / 3.5 mm monaural phone jack | | Power | Power Supply: AC adapter jack (9 VDC)
Power Consumption: 6.5 W | | Dimensions (W x D x H) | 19.8 x 15.0 x 4.7" / 50.2 x 38.0 x 12.0 cm | | Weight | 11.0 lb / 5.0 kg | | | | Package Weight | 22.25 lb | | Box Dimensions (LxWxH) | 28.5 x 20.5 x 9.25" |
