User Manual for Korg ARP Odyssey FSQ Rev3 Full-Sized Analog Synthesizer with SQ-1 Step Sequencer Click to enlarge the picture
Contents of the user manual for the Korg ARP Odyssey FSQ Rev3 Full-Sized
- Product category: Synthesizer Keyboards Korg
- Brand: Korg
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Korg Synthesizer Keyboards
 |
User manual for the Korg ARP Odyssey FSQ Rev3 Full-Sized contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Korg product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Korg user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Korg product will considerably shorten its lifespan!
|

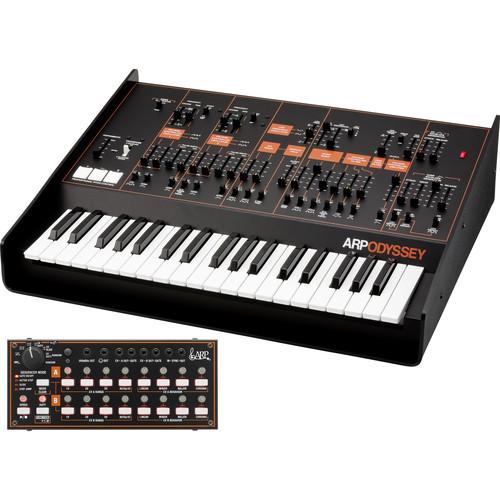

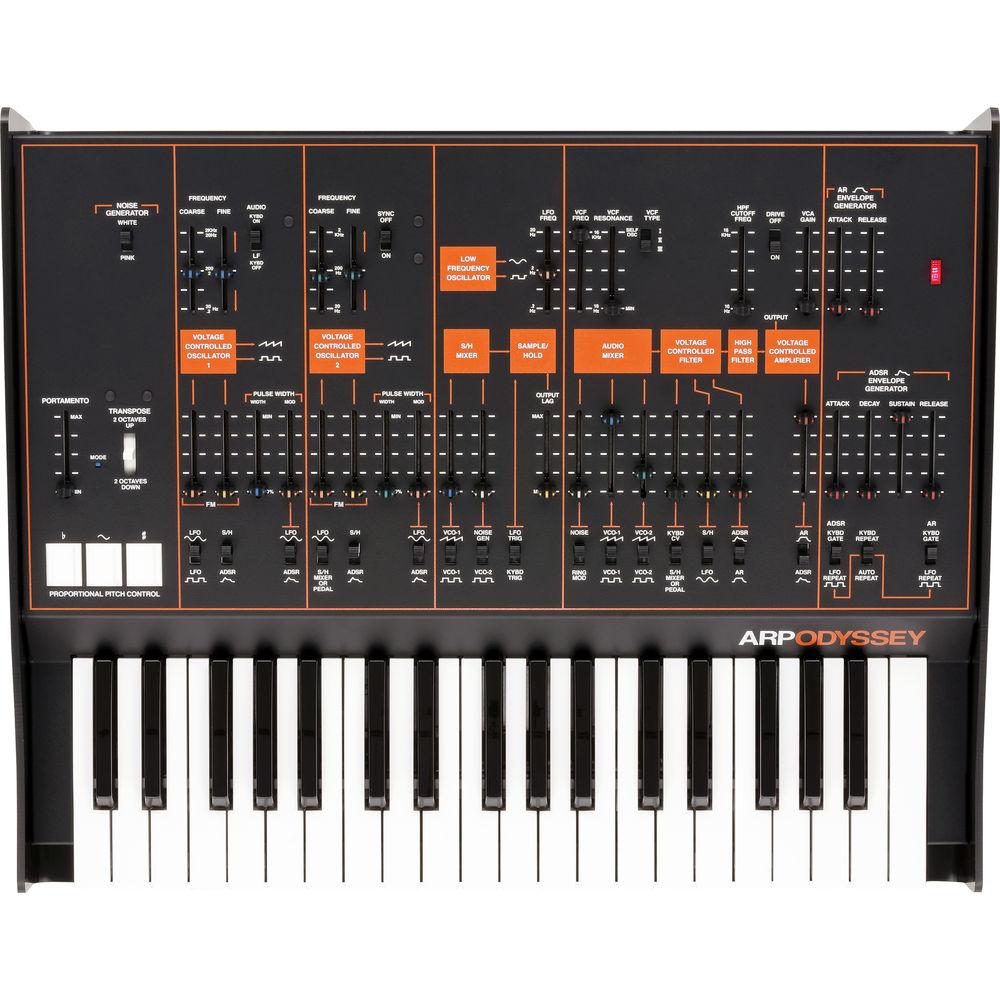

Product description The black and orange Korg ARP Odyssey FSQ Rev3 with SQ-1 Step Sequencer is the re-creation of the classic analog synthesizer originally produced in the 1970s and highly regarded for its sharp, penetrating sound and rich range of tonal variations. This full-sized recreation features the original circuitry with some updated features including MIDI and USB.The synth offers a 37-note full-sized keyboard with monophonic or duophonic operation. The oscillator section includes two VCOs with sawtooth, square, and pulse waveforms. Additionally, all three revisions of the filter are immediately accessible via switch and further broaden the tonal palette. Type I (Rev. 1) is a 12 dB/Oct circuit, while Type II and III (Rev. 2 & 3) are 24 dB/Oct, and each type adds distinct flavors and colors to the sound. Both portamento circuits (Rev.1 & 2/3) are available as well, while a drive circuit has been added to the VCA, producing distortion and generating a rough and raw sound. All sliders have been updated and are smoother than the original, making the synth uncompromisingly playable. A variety of functions and modulation possibilities are provided by oscillator sync, pulse width modulation, sample & hold, a high-pass filter, two types of envelope generators, an LFO, and pitch bend via the proportional pitch controls (PPC).The SQ-1 Step Sequencer is inspired by the original SQ-10 step sequencer, which provides two CV/GATE out channels as well as MIDI OUT, USB MIDI, and more. The unit offers two channels (A and B) of an 8-step sequencer that can operate consecutively or in a variety of other modes. You can run A and B following each other to function as a 16-step sequencer, ignore the order to make the steps play randomly, or use A and B to control different parameters as they run in parallel. The variety of selectable modes enables everything from simple sequences to complex changes. The Korg ARP Odyssey FSQ Rev3 includes the SQ-1 step sequencer, a power adapter, a 1/4" cable, and an 1/8" cable. - Arp Odyssey FS
-
- Faithful recreation of the original, full-sized Arp Odyssey
- 37-note full-sized keyboard
- Monophonic or duophonic operation
- Two VCOs featuring Sawtooth, Square, and Pulse waveforms
- VCF switchable between rev. I, II, and III
- VCA with overdrive
- ADSR envelope generator
- AR envelope generator
- LFO
- Noise generator
- Portamento
- Ring modulator
- Sample & hold
- External audio input
- USB MIDI
- CV/Gate I/O
- Extended body protects keys
- Phone and mini-phone cables included

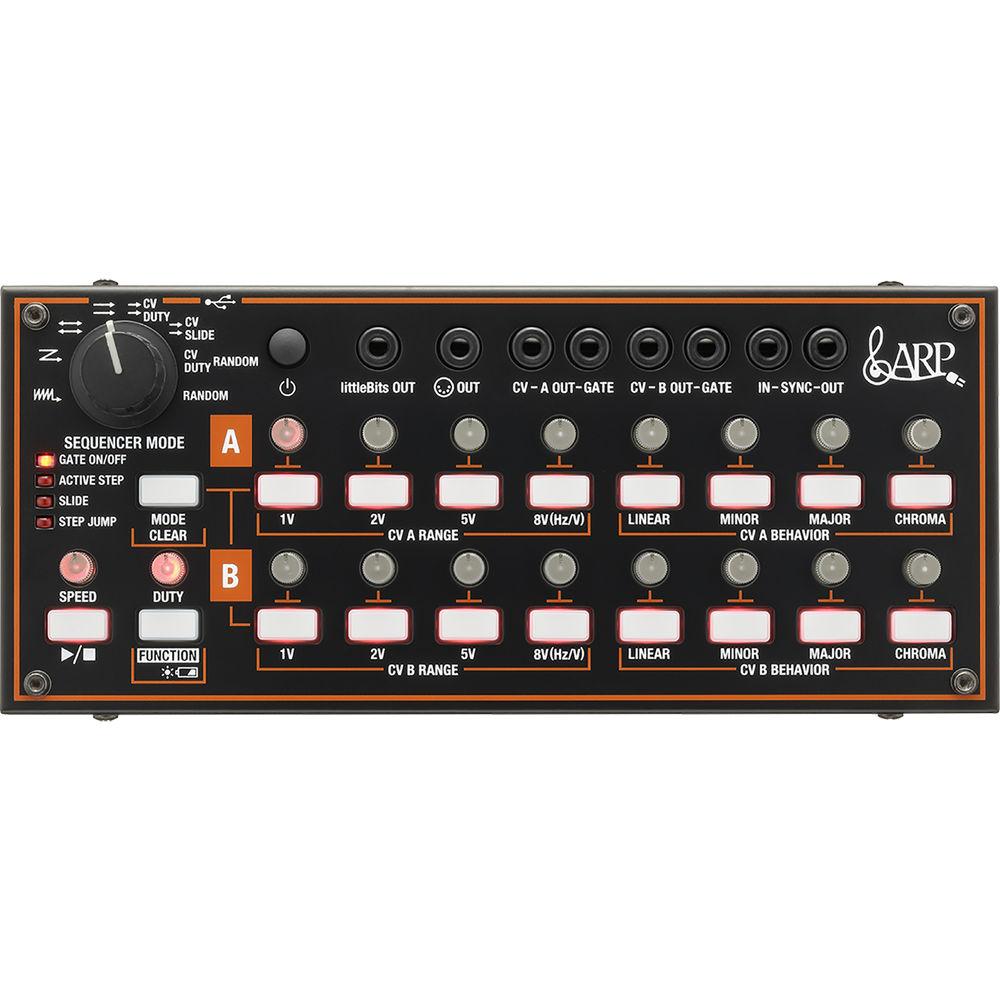

- SQ-1 Step Sequencer
-
- Connectors
- Provides two CV/GATE OUT channels, a standard MIDI OUT, USB MIDI, littleBits out (to connect to littleBits synth kit), as well as SYNC IN/OUT channel to connect to the Volca series or a Monotribe
- Versatile Sequencer Modes
- Provides two channels (A and B) of an 8-step sequencer that can operate consecutively or be used in a variety of other modes such as in 16-step sequencer mode, ignoring the order to play randomly, or with different control parameters for A and B run in parallel
- Volca Style Step Buttons
- Features a 2 x 8 step button grid that allows you to turn notes on/off or use the MODE button to switch their function for powerful performance possibilities
- Active Step
- Skip steps mid-way through a sequence
- Step Jump
- Instantly play just the step that you press to produce irregular rhythms or effects that are reminiscent of short loops
- Slide
- Produces an effect in which steps are connected smoothly
In the Box Korg ARP Odyssey FSQ Rev3 Full-Sized Analog Synthesizer with SQ-1 Step Sequencer (Black and Orange) AC Adapter Power Cord 1/4" / 6.3 mm Cable 1/8" / 3.5 mm Cable SQ-1 Step Sequencer Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Korg ARP Odyssey FSQ Rev3 Full-Sized Analog Synthesizer with SQ-1 Step Sequencer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

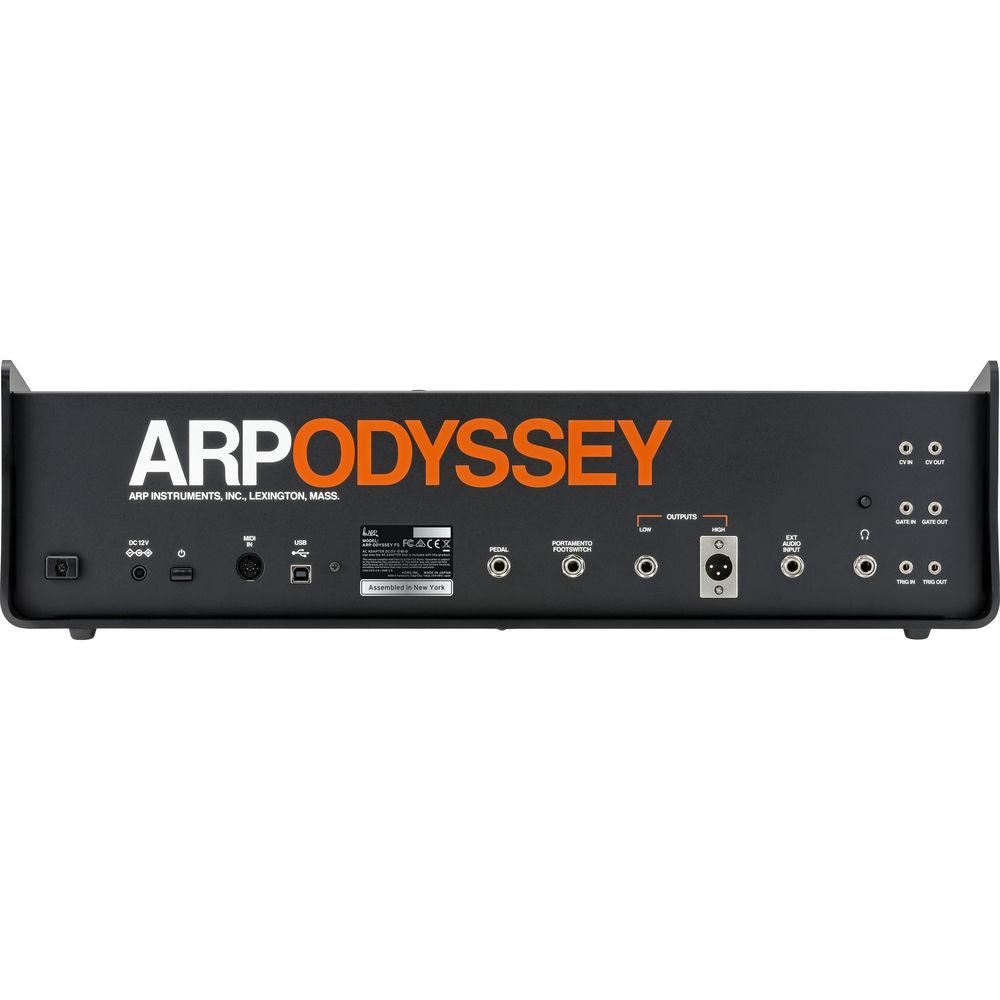

Technical parametersKorg Odyssey Specs | | | Keyboard | 37-note (Standard, full-sized keys, no velocity sensitivity, no aftertouch) | | Polyphony | Maximum Polyphony: 2 voices for duophonic; normally monophonic | | Controllers | Transpose Positions: 2 octaves down, normal, 2 octaves up
Proportional Pitch Control
Pitch Down Pad (b): about -2 / 3 octave
Modulation Pad (-)
Pitch Up Pad (#): about +2 / 3 octave | | Noise Generator | Noise Spectrum Types: White and pink | | Portamento | Maximum Speed: About 0.01 ms/oct
Minimum Speed: About 1.5 seconds/oct | | VCO | Voltage-Controlled Oscillator
Waveforms: Sawtooth, square, pulse (dynamic pulse)
Frequency Range:
VCO-1 in Low Frequency Mode: 0.2 to 20 Hz
VCO-1 and VCO-2 (Audio Range): About 20 Hz to 20 kHz
Warm Up Drift: 1/30 semitone from turn on max
Pulse Width: 50 to 5%
Pulse Width Modulation:
ADSR: +45%
LFO: +15%
Voltage Controlled Response: 1 V/oct
Maximum Frequency Shifts:
LFO Sine Wave: +1/2 oct.
LFO Square Wave: +1.5 oct.
ADSR: +9 oct.
S/H: +2 oct.
(*VCO-1 is low note priority, VCO-2 is high note priority) | | VCF | Voltage Controlled Filter
Types: Low pass (I: 12 dB/oct., II III: 24 dB/oct.)
Frequency Range: 16 Hz to 16 kHz
Maximum Usable Q: 30
Resonance: 1/2 - self oscillate
Voltage Controlled Response:
C3 key (left edge) 0 V
C6 key (right edge) 3 V | | VCA | Voltage Controlled Amplifier
Dynamic Range: 80 dB | | Ring Modulator | Type: Digital
Input Signal: VCO-1, VCO-2 (square wave) | | Sample & Hold | Command Sources: Keyboard or LFO trigger
Sampled Signals:
VCO-1 sawtooth wave and square wave
VCO-2 square wave and pink noise | | Envelope Generators | ADSR Envelope Generator
Attack Time: 5 msec. to 5 sec.
Decay Time: 10 msec. to 8 sec.
Sustain Level: 0 to 100% or Peak
Release Time: 15 ms to 10 seconds
AR Envelope Generator
Attack Time: 5 ms to 5 seconds
Release Time: 10 ms to 8 seconds | | Control Input | Control Input Jacks
Pedal: 1/4" / 6.3 mm monaural phone jack
Portamento Foot Switch: 1/4" / 6.3 mm monaural phone jack | | Audio Output | Low
Connector: 1/4" / 6.3 mm monaural phone jack
Maximum Output Level: -20 dBu @ 10 kOhms load
Output Impedance: 10 kOhms
High
Connector: XLR connector
Maximum Output Level: +4 dBu @ 1 kOhm load
Output Impedance: 330 ohms
Headphones
Connector: 1/4" / 6.3 mm stereo phone jack
Maximum Output Level: 50 mW + 50 mW @ 33 ohms load
Output Impedance: 10 ohms
(Controllable by volume knob) | | External Analog Audio Input | Connector: 1/4" / 6.3 mm monaural phone jack
Maximum Input Level: -10 dBu
Input Impedance: 22 kOhms | | MIDI | In | | USB | Type B | | CV In/Out Controls | Keyboard CV (In/Out): 1 V/octave
Connector: 1/8" / 3.5 mm monaural phone jack | | Gate | Gate In: +3 V (minimum)
Gate Out: +10 V, key down; 0 V all keys up
Connector: 1/8" / 3.5 mm monaural phone jack | | TRIG Connector | Trig In: +3 V pulse min., 10 μsec duration minimum
Trig Out: +10 V pulse on key depression, 10 μsec duration
Connector: 1/8" / 3.5 mm monaural phone jack | | Power | Power Supply: AC adapter jack (12 VDC)
Power Consumption: 7.1 W | | Dimensions (W x D x H) | 23.0 x 18.3 x 6.4" / 585 x 466 x 163 mm | | Weight | 16.1 lb / 7.3 kg | | | | Modes | Sequencer Modes
Alternate
Order
Parallel Turn
Parallel Order
CV/Duty
CV/Slide
CV/Duty Random
Random
Step Modes
Gate On/Off
Active Step
Slide
Step Jump | | Resolution | Quarter notes
Eighth notes
Sixteenth notes
| | CV In/Out Controls | Out Pitch: Linear, Minor, Major, Chromatic
Out Voltage: 1 V, 2 V, 5 V (Oct), 8 V (HZ/V) | | Gate | Output Polarity: +(positive polarity), -(negative polarity) | | Sync | In/Out Polarity: +(rise), -(fall) | | Connectors |
LittleBits out jack (mini monoaural phone jack)
OUT (MIDI OUT) jack (mini stereo phone jack)
CV-A OUT-Gate jack (mini monaural phone jack, CV OUT: Output level 1 V, 2 V, 5 V, 8 (Hz/V), GATE OUT: output level 10 V)
CV-B OUT-GATE jack (mini monaural phone jack, CV OUT: Output Level 1 V, 2 V, 5 V, 8 (Hz/V), GATE OUT: Output level 10 V
IN-SYNC-OUT jack (mini monaural phone jack, SYNC IN: Max input level 20 V, SYNC OUT: Output level 5 V)
USB jack (type B, USB MIDI)
| | Power Supply | 2 x AA batteries (alkaline recommended) or USB power | | Battery Life | Approximately 5 hours (when using alkaline batteries) | | Dimensions (W x D x H) | 7.6 x 3.3 x 2.5" / 9.3 x 8.4 x 6.3 cm | | Weight | 1.4 lb / 0.6 kg |
