User Manual for Korg B1 - Digital Piano Click to enlarge the picture
Contents of the user manual for the Korg B1 - Digital Piano
- Product category: Digital Pianos Korg
- Brand: Korg
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Korg Digital Pianos
 |
User manual for the Korg B1 - Digital Piano contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Korg product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Korg user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Korg product will considerably shorten its lifespan!
|

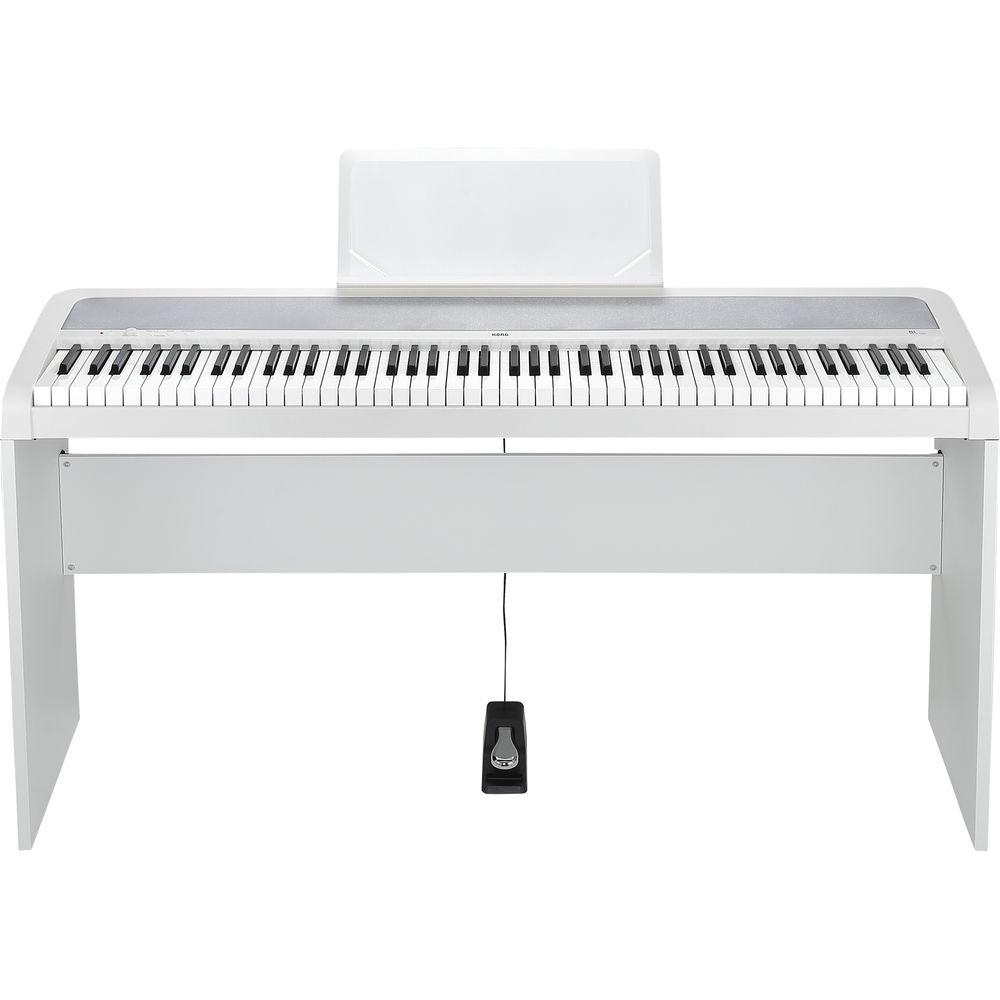

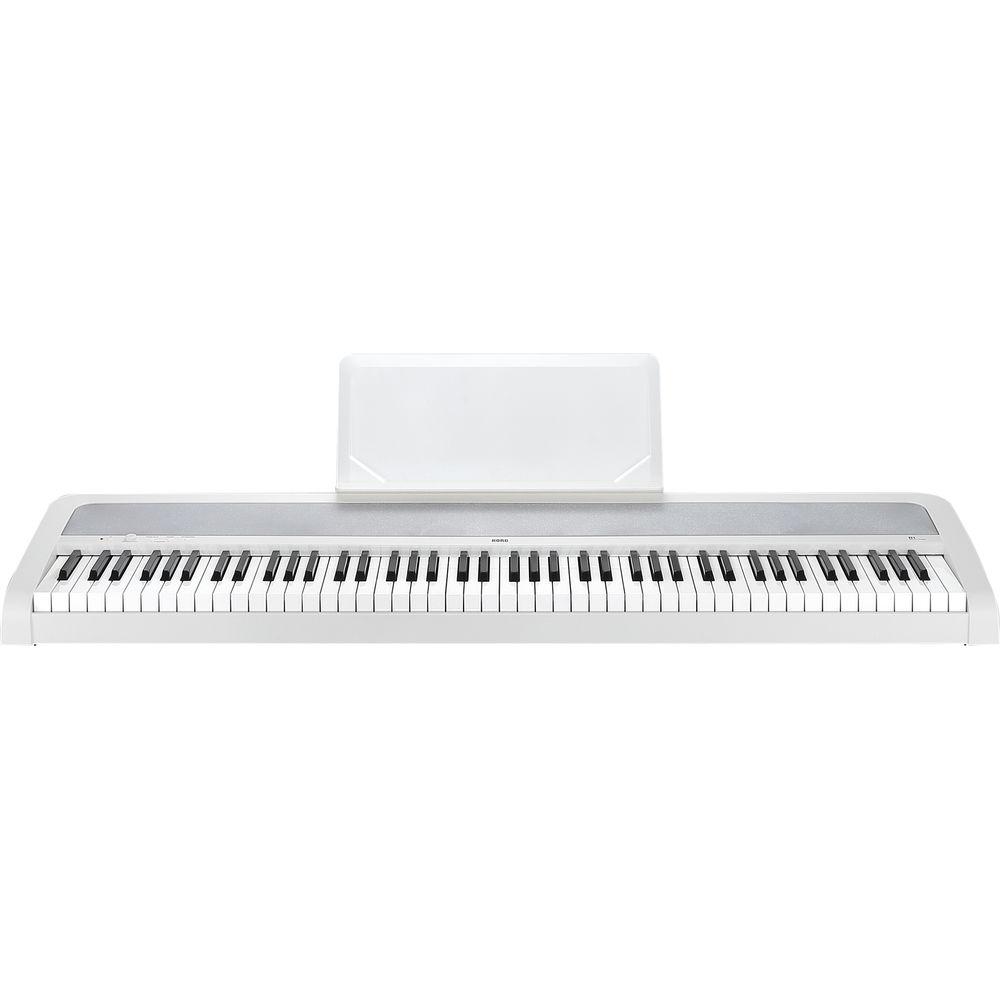

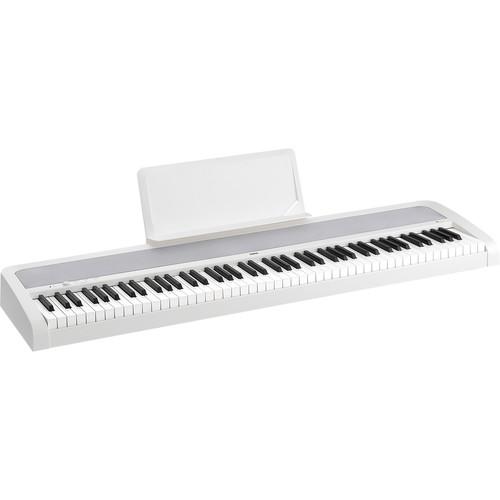

Product description The white B1 from Korg is a slim, digital piano delivering the key features most important to any pianist - an authentic keyboard touch using the Natural Weighted Hammer Action (NH) keyboard, good sound, and ease of use. The accurately weighted keyboard provides a heavier touch in the lower registers, transitioning to a lighter touch in the upper regions. Also included are three levels of key-touch control, allowing the keyboard response to be matched to nearly any playing style.
Eight different sounds are available, including three pianos with damper resonance, two electric pianos, a harpsichord, and two organs. Reverb effects add depth, and a chorus effect provides a spacious feel to the sounds. To achieve the deep, rich tones of an acoustic piano, the digital piano relies on the company's servo-assisted MFB (Motion Feedback) technology, a pair of full-range speakers, plus a passive radiator. MFB controls the movement of the speaker cone, allowing for the reproduction of low frequencies with minimal distortion. A headphone jack allows for private practice.
Ideal for the beginner to intermediate pianist, for lessons or practice, the B1 includes a partner mode that allows the keyboard to be split into two side-by-side keyboards, each pitched in the same range. This way the student and teacher (or parent and child) can play the same passages at the same time, providing the perfect way to learn a difficult lesson. In a classroom setting, two students can share a single instrument. An improved music rest features a page-retention pocket that keeps music pages and folios from turning unexpectedly during performance. - 88 Natural Weighted Hammer (NH) keys
- Eight digitally sampled sounds
- Built-in stereo sound system with MFB Servo technology
- Onboard reverb and chorus effects
- Metal damper pedal provided
- Partner Mode ideal for lessons and instruction
- Music rest holds scores securely
- Optional matching stand, bench, and triple-pedal unit available
In the Box Korg B1 - Digital Piano (White) External Power Supply Damper Pedal Music Stand Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Korg B1 - Digital Piano in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKorg B1 Specs | Keyboard | 88-key (A0-C8), Natural Weighted Hammer-Action (NH) keyboard
Light-, normal- or heavy-touch selection
Transpose: -6 to +5 semitones (all keys)
Pitch Range: 427.5 to 452 Hz (0.05 Hz steps) | | Sound Generation | Stereo PCM | | Polyphony | 120 voices maximum | | Presets | 3 x Acoustic Piano
2 x Electric Piano
1 x Harpsichord
2 x Organ | | Demo Songs | 8 | | Effects | Reverb and chorus | | Metronome | Tempo Range: 40 to 120 BPM
Time Signature: 2/4, 3/4, 4/4, 5/4, 6/4, none
Volume control | | Pedals | Sustain pedal (included)
Supports optional PU-2 3-pedal unit | | Connections | 1 x 1/8" (3.5 mm) TRS stereo mini Headphone/Line Out
1 x 1/4" TRS Pedal Connector | | Amplifier | 2 x 9 W | | Speakers | 2 x Oval 4 x 2" (100 x 50 mm) | | Power Requirements | 120V, 60 Hz for included DC 12 V power adapter
3 W power consumption | | Dimensions (WxDxH) | 51.7 x 13.2 x 4.6" (1312 x 336 x 117 mm) | | Weight | 26 lb (11.8 kg) without music stand | | | | Package Weight | 34.4 lb | | Box Dimensions (LxWxH) | 57.2 x 17.0 x 8.4" |
