User Manual for Korg C1 Air Digital Piano with Bluetooth Click to enlarge the picture
Contents of the user manual for the Korg C1 Air Digital Piano with
- Product category: Digital Pianos Korg
- Brand: Korg
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Korg Digital Pianos
 |
User manual for the Korg C1 Air Digital Piano with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Korg product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Korg user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Korg product will considerably shorten its lifespan!
|

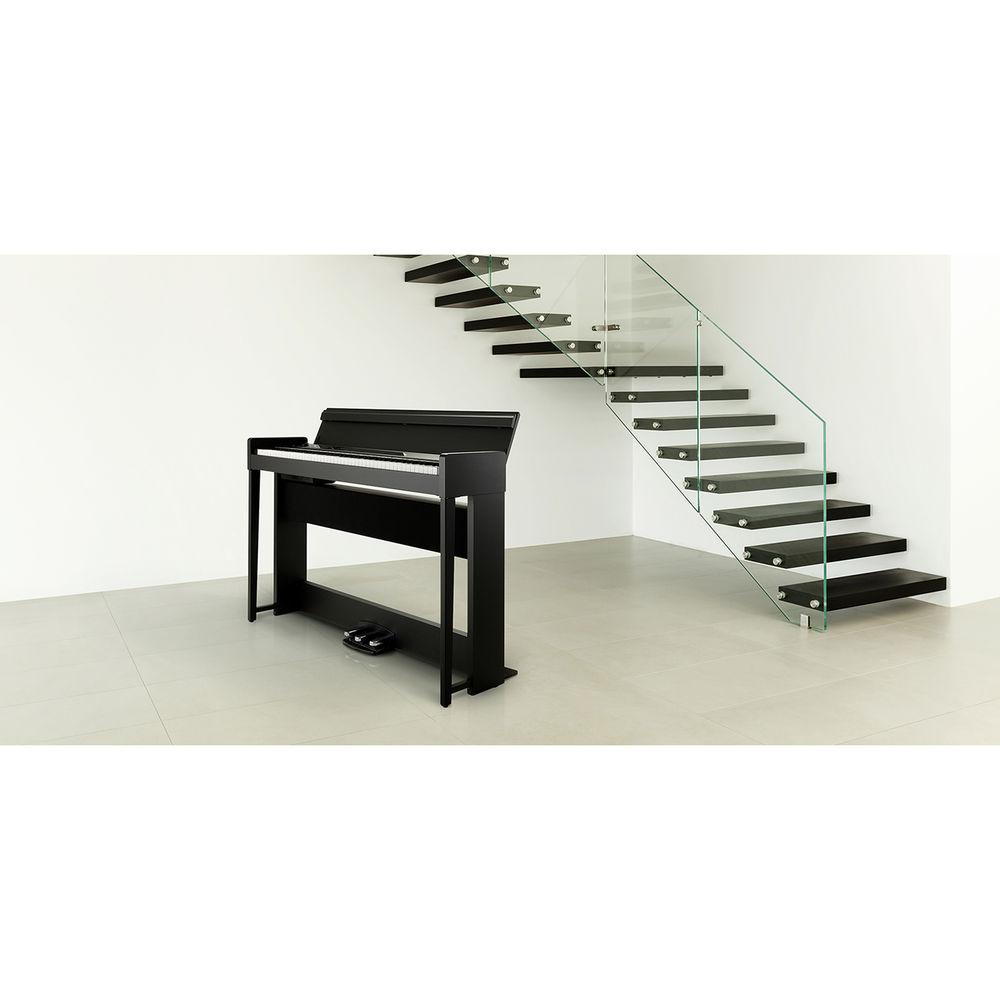

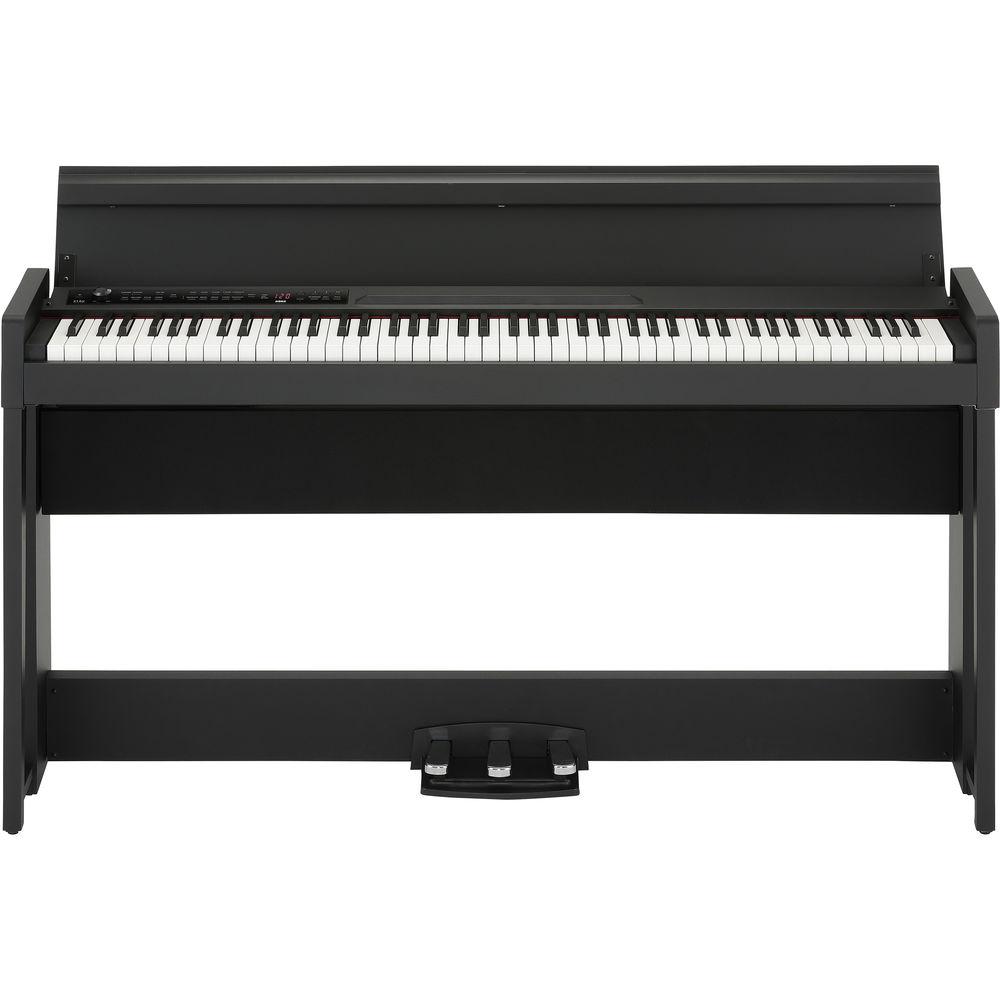

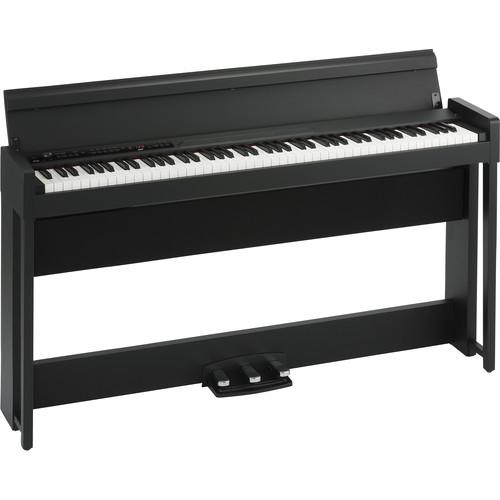

Product description The black Korg C1 Air 88-key digital piano provides discerning pianists and students alike with the authentic sound and playing experience of two carefully selected and sampled concert grand pianos. Housed in a compact cabinet designed to enhance the decor of your room, it offers an exciting alternative to playing an acoustic instrument in your home, or in locations where one cannot be used.The C1 Air brings you a German grand piano with rich and powerful tones that are ideal for classical music, and a Japanese grand piano with a dynamic sound well suited for jazz and pop styles. Both pianos realistically recreate damper resonance and key-off simulation to provide an even greater feeling of realism as you play. In addition, there are 30 high-quality instruments such as electric pianos, organs, strings, bass, and more. All sounds can be enhanced using the brilliance, reverb, and chorus effects.At the heart of the C1 Air playing experience is the RH3 real weighted hammer-action keyboard, which divides the hammers into four different weights to accurately simulate the feel of a grand piano. Key-touch control enables you to choose from five levels of sensitivity (light, normal, heavy, stable, fixed) and adjust how your playing dynamics affect the sound of the piano. To help spark creativity, the keyboard layout can be changed to split mode, allowing you to play piano with your right hand and bass with your left. Alternatively, the layer mode allows you to play two sounds together, such as piano with strings.The C1 Air is equipped with a full-range speaker system which delivers a piano sound that has depth and clarity. You can pair a Bluetooth device such as a smartphone and enjoy playing along with your stored music or streamed audio. To help students develop a proper playing technique, the instrument offers several practicing options such as a metronome, 40 built-in piano songs that students can play along with and learn, and an A-B repeat function to practice more complex sections. The Partner mode enables you to divide the keyboard into two identical sections, ideal for a teacher and pupil to play duets and practice together during lessons.Other features include a two-track recorder to help you analyze or archive your performances, two headphone outputs to avoid disturbing others, a three-pedal unit, and an integrated stand. To ensure proper manufacturing quality, the C1 Air is designed and crafted in Japan by a small team of expert workers. - Two Concert Grand Pianos
-
- German grand piano characterized by richness and power with brilliant highs and rounded bass, ideal for classical music
- Japanese grand piano with dynamic sound, ideal for jazz and pop music
- Grand pianos were selected by professional pianists, regulated, and tuned by master technicians, and sampled by Korg engineers
- Authentic Acoustic Piano Experience
-
- 88-key real weighted hammer-action 3 (RH3) keyboard accurately simulates the playing experience of a grand piano
- RH3 keyboard divides the hammers into four different weights, with a heavier feel in the low register and a lighter feel in the high register, as experienced on concert grand pianos
- Keyboard is precisely responsive, even when notes are repeated quickly
- Key-touch control with a choice of five levels of sensitivity (light, normal, heavy, stable, fixed) lets you select how your playing dynamics affect the sound of the piano
- Damper resonance realistically recreates the effect produced by the sympathetic resonance of the strings in an acoustic piano when the damper pedal is held down
- Key-off simulation recreates the sounds produced when the player’s fingers lift off the keys

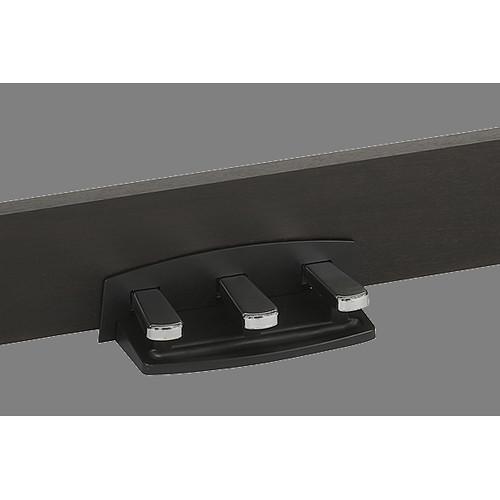

- Includes the three pedals found on a grand piano: damper, soft, and sostenuto
- Damper and soft pedals feature half-pedaling for even more detailed expression
- Quality Instrument Made in Japan
-
- The entire process of making the C1, from keyboard to assembling the complete instrument, is carried out in Japan by a group of skilled workers
- Instrument is made in small lots, resulting in professional quality and minimal waste
- Ergonomic, Linear Design
-
- Design features linear legs which accentuate the overall styling of the instrument
- At only 13.7" in depth, the C1 can be placed virtually anywhere
- Key cover uses a soft-landing mechanism to ensure that it closes gently
- Realistic Instrument Sounds with Effects
-
- 30 expressive sounds including electric pianos, organs, clavinet, vibraphone, acoustic guitar, strings, and bass
- Effects include brilliance, reverb, and chorus

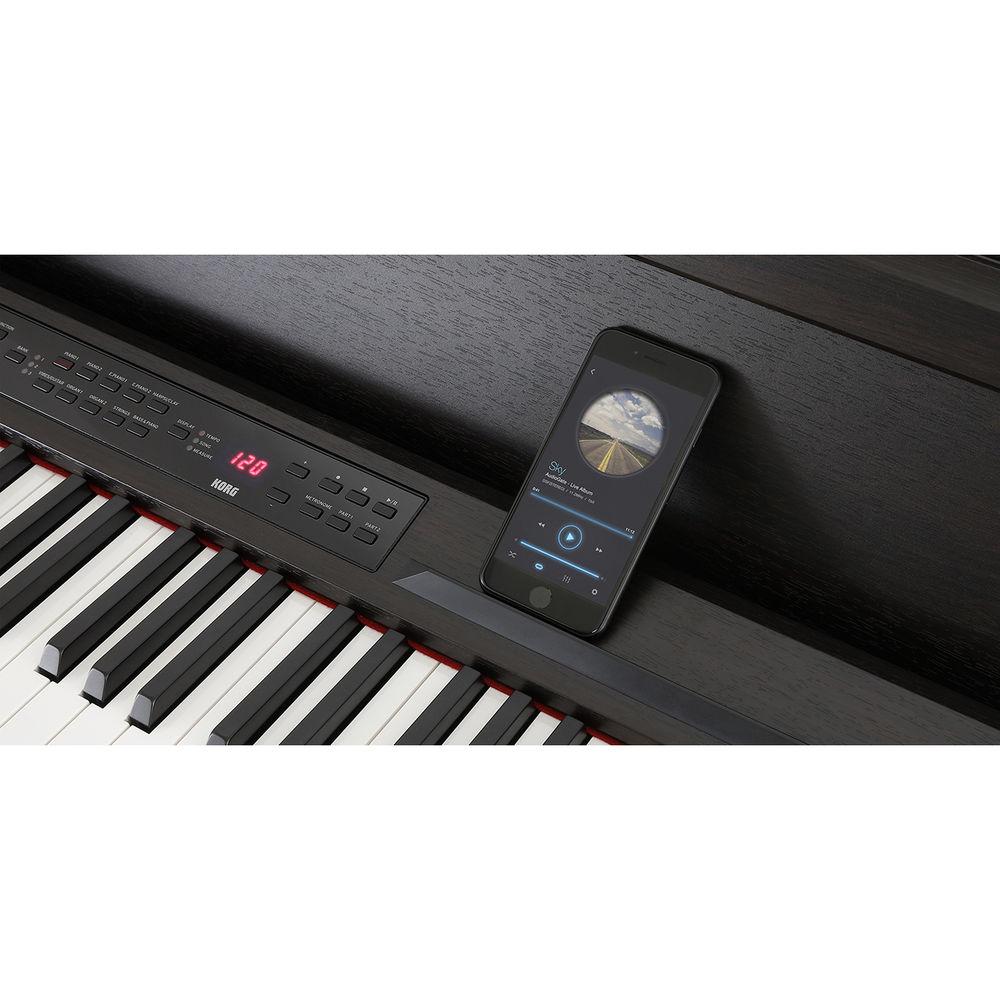

- Bluetooth Audio Support
-
- Pair a Bluetooth device such as a smartphone and enjoy playing the piano along with your stored music or streamed audio
- When not playing the piano, use the C1 Air as a Bluetooth speaker system
- Speaker System
-
- Speaker system designed to deliver realistic piano sounds with depth and clarity
- 2 x 25W built-in speakers
- Stereo Sound Optimizer
-
- Optimizer gives presence to the piano sound when playing using headphones
- Allows you to play longer with greater comfort
- Two-Track Song Recorder
-
- Two-track digital recording is instantly available to help you analyze or archive your performances
- Record each hand separately, or record an additional track onto a previously recorded song
- Playback tempo can be adjusted, and up to 99 user songs can be saved
- Customizable Keyboard Layout
-
- Split keyboard allows you to play piano with your right hand and bass with your left, particularly useful for jazz performance styles
- Easily layer two sounds together—such as piano and strings—for a piano and orchestra combination
- Practicing Features
-
- 40 built-in piano songs help you learn by playing along with them
- Play back the right-hand and left-hand parts separately
- Use A-B repeat to practice more complex sections
- Control tempo
- Partner mode enables you to divide the keyboard into two identical sections, ideal for a teacher and pupil to play duets, or to copy and practice during lessons
- Built-in metronome
- General
-
- Line out for connecting to the input of an external amplifier, powered speaker, audio interface, or recorder
- MIDI I/O
- Two stereo headphone outputs
- 120 voices of polyphony
- Includes 10 demo songs
In the Box Korg C1 Air Digital Piano with Bluetooth (Black) Stand with Speaker Three-Pedal Unit AC Adapter Power Cord Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Korg C1 Air Digital Piano with Bluetooth in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKorg C1 Air Specs | | | Keyboard | 88 Piano Keys, Hammer Action with Aftertouch | | Touch Response | 5 Levels of Sensitivity | | Expression Controls | None | | | | Number of Sound Presets | 30 x Sounds | | Number of Song Presets | 50 x Demo | | Effects | Brilliance, Chorus, Reverb | | Maximum Polyphony | 120 Notes | | Performance Functions | Temperament Adjustment, Transpose, Tuning Adjustment | | | | MIDI Note Memory and Resolution | 14,000 Notes Total | | | | I/O | 2 x 1/8" (3.5 mm) TRS Headphone Output
1 x 1/8" (3.5 mm) TRS Stereo Output | | Pedal Support | 1 x 1/4" TRS Damper/Soft/Sustain 3-Pedal unit included, Damper and Soft support half-pedaling | | Bluetooth | Yes (Audio) | | | | Amplifiers | 2 x 25 W | | Round Speakers | 2 x 3.94" / 10.01 cm | | | | AC/DC Power Adapter | 24 VDC (Included) | | Power Consumption | 18 W | | | | Display | Monochrome LED | | Included Accessories | Bench and Stand | | Dimensions | 53.0 x 13.7 x 36.5" / 1346.2 x 348.0 x 927.1 mm (with Lid Open) | | Weight | 77.1 lb / 35.0 kg (with Stand) | | | | Package Weight | 88.95 lb | | Box Dimensions (LxWxH) | 56.5 x 18.0 x 14.0" |
