User Manual for Korg DS-DAC-10R 1-Bit USB Digital-to-Audio Converter Click to enlarge the picture
Contents of the user manual for the Korg DS-DAC-10R 1-Bit USB Digital-to-Audio Converter
- Product category: AD/DA Converters Korg
- Brand: Korg
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Korg AD/DA Converters
 |
User manual for the Korg DS-DAC-10R 1-Bit USB Digital-to-Audio Converter contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Korg product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Korg user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Korg product will considerably shorten its lifespan!
|

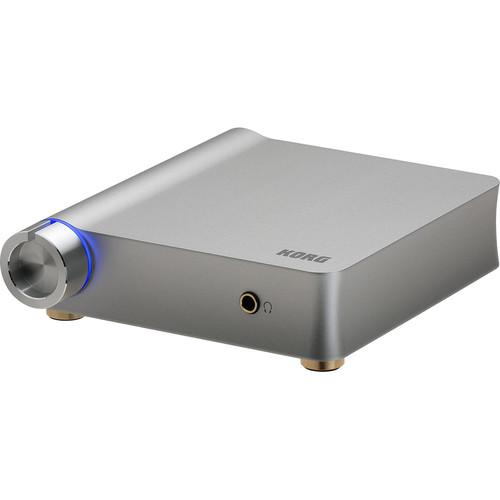

Product description Allowing you to convert your treasured vinyl/cassette collection into high-resolution PCM or DSD files, the DS-DAC-10R from KORG is a 1-bit USB digital-to-audio converter offering many of the same under-the-hood components as the MS-2000S 1-Bit Studio Recorder—though at a more convenient size.

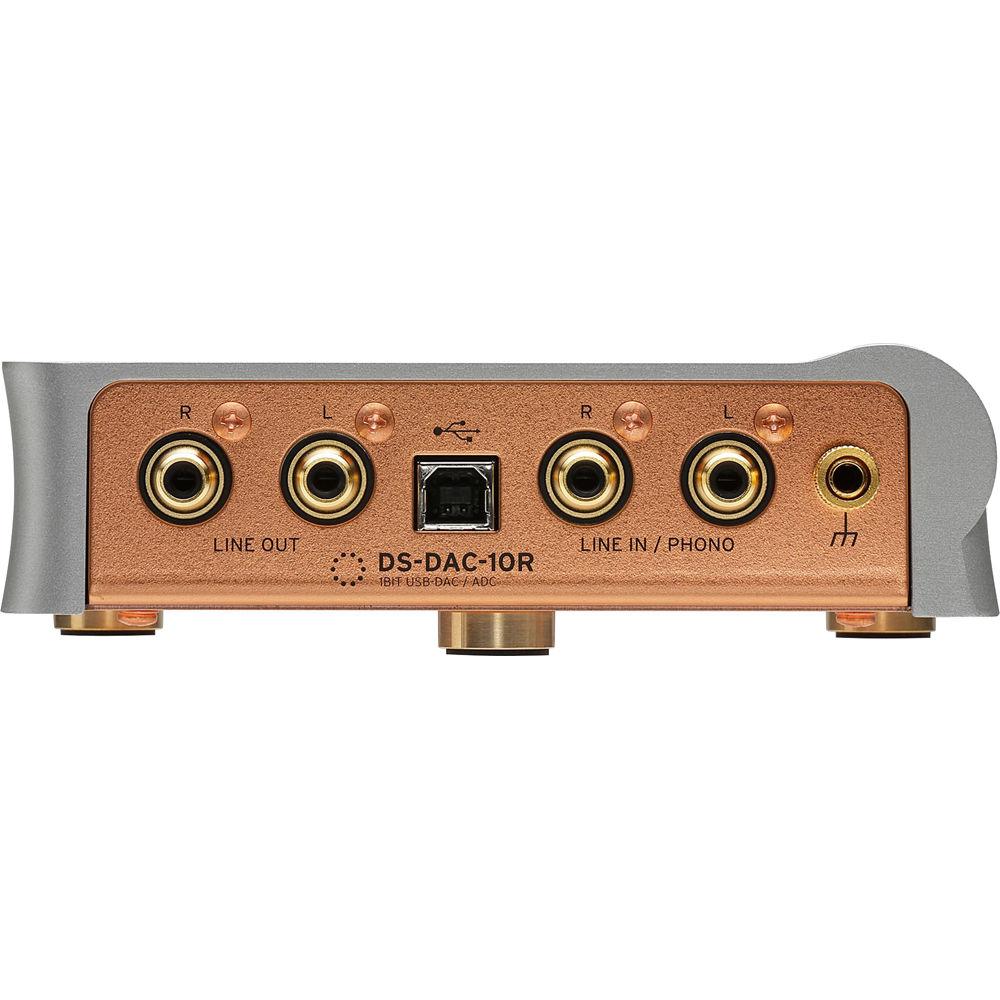

Its analog capabilities include line outputs, line inputs, and phono inputs, which make this unit suitable for capturing the playback systems of yesteryear, vinyl and cassette especially. In PCM mode, all the usual sample rates apply, from 44.1 kHz to 192 kHz, in 16-bit and 24-bit depths. However, in DSD, not only can you facilitate audio playback at 2.8224 MHz and 5.6448 MHz—you can also record at these high resolutions in a variety of applications, from digitally rendering your cassette deck or vinyl collection (there is even a grounding terminal to accommodate record players) to bypassing high-resolution audio releases in favor of creating them yourself.
Designed to integrate consumer-grade analog in high-definition fashion with your existing digital-audio system, the unit includes a six-curve DSD phono equalizer for mitigating/restoring the tonal anomalies of vinyl, which can be applied either during the recording process or upon playback. High-resolution audio playback via iPhone is also possible with iAudioGate, available for download on Korg's website. In the Box Korg DS-DAC-10R 1-Bit USB Digital-to-Audio Converter USB Cable Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Korg DS-DAC-10R 1-Bit USB Digital-to-Audio Converter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKorg DS-DAC-10R Specs | Audio Interface | Number of Channels: 2
Input Format (USB): - DSD: 2.8224 MHz / 5.6448 MHz, 1-bit
- PCM: 44.1 kHz / 48 kHz / 88.2 kHz / 96 kHz / 176.4 kHz / 192 kHz, 16-bit / 24-bit
Host Interface: USB 2.0 (high speed)
Audio Driver: ASIO 2.1, WDM, core audio | | Frequency Response | 10 Hz to 20 kHz, ±1 dB (fs=44.1 / 48 kHz)
10 Hz to 40 kHz, ±1 dB | | S/N | 105dB (TYP) 20 Hz to 20 kHz, IHF-A | | THD & Noise | 0.005% (TYP) 20 Hz to 20 kHz | | Line Output (Line 1, Line 2) | Connector: RCA pin jack
Load Impedance: > 10 kOhms

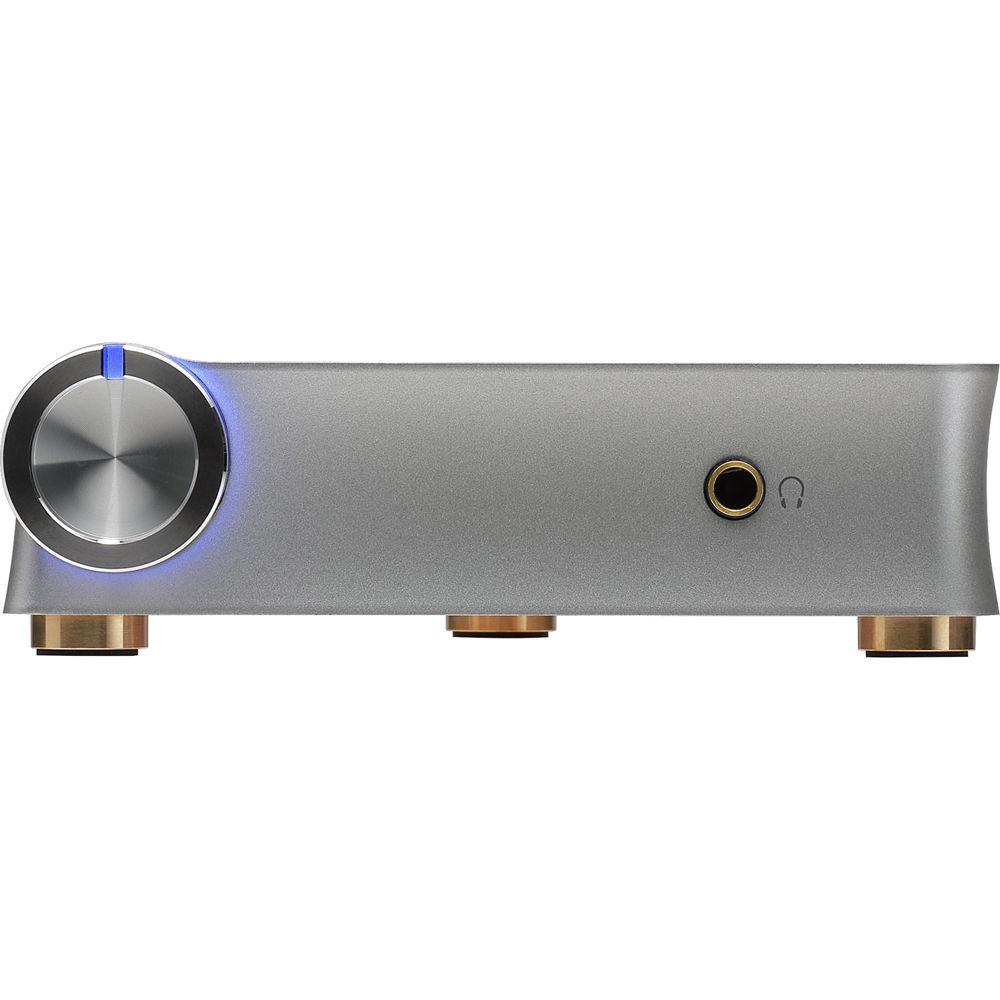

Nominal Level: -6 dBV | | Phones/Line Out | Connector: 1/4" stereo phone jack
Load Impedance: > 16 ohms
Maximum Level: 70 mW + 70 mW @ 32 ohms | | Line In (Phono) | Connector: RCA pin jack
Load Impedance:- Line In: 47 kOhms
- Phono: 50 kOhms
Nominal Level:- Line In: -6 dBv
- Phono: 5 mV RMS
Maximum Level:- Line In: +6 dBv
- Phono: 100 mV RMS
| | USB | Connector: Type B | | Indicators | Power, sample rate, rec status | | Power | USB bus power (5 V, max: 500 mA) | | Power Consumption | Max 2.5 W | | Software System Requirements | For AudioGate:
Mac: OS X 10.8 - 10.11
Windows: Microsoft Windows 7, 8.1, and 10 (32- and 64-bit) | | Dimensions (W x D x H) | 6.10 x 7.29 x 1.93" / 155 x 185 x 49mm (including protrusions) | | Weight | 2.7 lb / 1.2 kg | | | | Package Weight | 3.2 lb | | Box Dimensions (LxWxH) | 9.2 x 7.6 x 2.7" |
Rating60% users recommend this product to others. And what about you?
This product has already been rated by 09 owners. Add your rating and experience with the product.
