Korg Kaossilator Pro Dynamic Phrase Synthesizer

Search your instruction manual in PDF to download

User Manual for Korg Kaossilator Pro Dynamic Phrase Synthesizer Loop Recorder

Click to enlarge the picture
Korg Kaossilator Pro Dynamic Phrase Synthesizer Loop Recorder Contents of the user manual for the Korg Kaossilator Pro Dynamic Phrase Synthesizer
  • Product category: Synthesizer Modules Korg
  • Brand: Korg
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Korg Synthesizer Modules

Korg Kaossilator Pro Dynamic Phrase Synthesizer Loop Recorder Korg Kaossilator Pro Dynamic Phrase Synthesizer Loop Recorder Korg Kaossilator Pro Dynamic Phrase Synthesizer Loop Recorder
User manual for the Korg Kaossilator Pro Dynamic Phrase Synthesizer contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Korg product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Korg user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Korg product will considerably shorten its lifespan!



Product description

  • Korg Kaossilator Pro+: Supercharged Kaoss!
  • Korg Kaossilator Pro + (House)

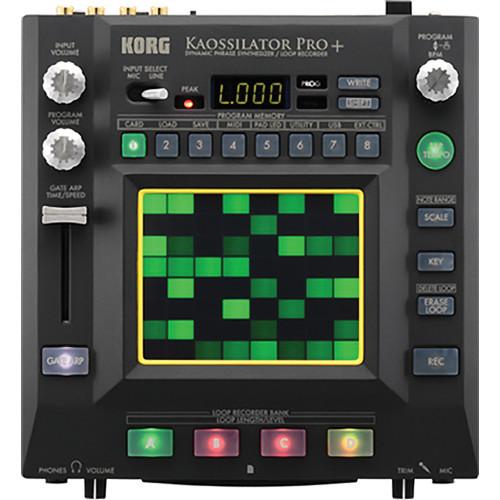

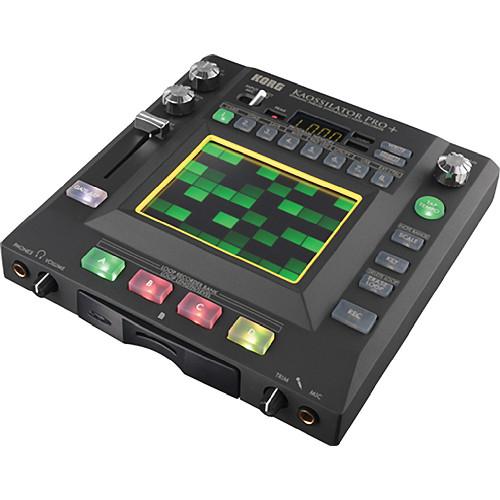

The Kaossilator Pro+ from Korg is a performance interface that features an XY touch pad and four loop record buttons that can be set up for loop recording of four measures (16 beats) each. The controller allows the user to play musical melodies and phrases by simply stroking, tapping, or rubbing the touchpad. Horizontal motions on the touchpad control the pitch, while vertical motions control the tone, including filter cutoff, feedback, or modulation depth. Each of the four loop banks can be muted or un-muted, its volume adjusted, and its loop length changed, and the four banks can be combined for virtually infinite performance possibilities.

The intuitive design of the touchpad is particularly appealing to non-keyboard players, although performances can be created on the controller that could not be produced on a conventional keyboard instrument. Key and Scale features ensure that notes being played will match the song being performed. The Key setting specifies the root along with a choice of thirty-five scales encompassing chromatic, major pentatonic, and minor blues, as well as others such as Spanish, Ryukyu, and Raga. By using both the Key and Scale settings perfect solos can be played without a single wrong note. The Note Range allows for specifying the range of playable pitches.

A total of 250 sound programs (including drum programs) cover a wide range of styles including hip-hop, chiptune, house, dubstep, new disco, electro, reggaeton, and drum 'n' bass. Built-in gate arpeggiator patterns can automatically generate phrases and beats by simply moving a finger across the touchpad, while using the slider changes the gate time and gate speed in real time. The pad LEDs light up along the path of the finger, useful when playing on a dimly lit stage. MIDI In/Out jacks and a USB port make it easy to control external MIDI devices.

Loop data and user settings such as programs can be stored on an optional SD/SDHC card. A downloadable Kaossilator Pro+ Editor provides librarian functionality for any loop data as well as functioning as a MIDI assignment editor. Finally, data is interchangeable between the Kaossilator Pro+ and the Kaossilator 2, sharing BPM and other settings.
  • Freely playable synthesizer
  • Simply touch the touchpad to play notes and manipulate sounds in real-time
  • 250 sound programs (including drum programs) cover a wide range of styles
  • Loop Recording function allows intuitive performance and recording, with four infinitely stackable loop banks available
  • Scale/Key settings make it easy for anyone to perform with no wrong notes
  • Note Range function allows for specifying the horizontal pitch range of the touchpad
  • Gate Arpeggiator function provides easy control of phrases with the slider
  • Line inputs and a microphone input allow for recording external audio sources to add audio from any external device, or a vocal to any loop phrase
  • Pad LEDs ensure excellent visibility even in the dark
  • USB MIDI allows use as a powerful MIDI controller

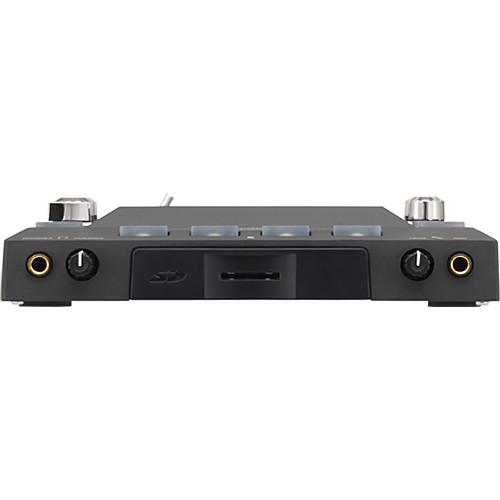

  • Store recorded loop data and even externally made WAV files on an SD/SDHC card
  • Dedicated editor software for centralized management of sample data and settings
In the Box Korg Kaossilator Pro+ Dynamic Phrase Synthesizer/Loop Recorder
  • External Power Supply
  • Protective Sheet for Touch Pad
  • One (1) Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Korg Kaossilator Pro Dynamic Phrase Synthesizer Loop Recorder in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Korg Kaossilator Pro+ Specs

    Converters 24-bit/48 kHz
    Program Memory 250 (included 15 effect programs)
    Sounds 40 x Lead
    15 x Acoustic
    40 x Bass
    40 x Chord
    30 x SE
    30 x Drum
    40 x Drum Pattern
    15 x Vocoder
    Scales 35
    Tuning +/-12 Key Setting
    Controllers 1 x Touch Pad
    Gate Arp Time/Speed Slider
    Audio Input 2 x RCA phono
    1 x 1/4" TS phone Microphone
    Audio Output 2 x RCA phono
    1 x 1/4" TRS phone Headphone

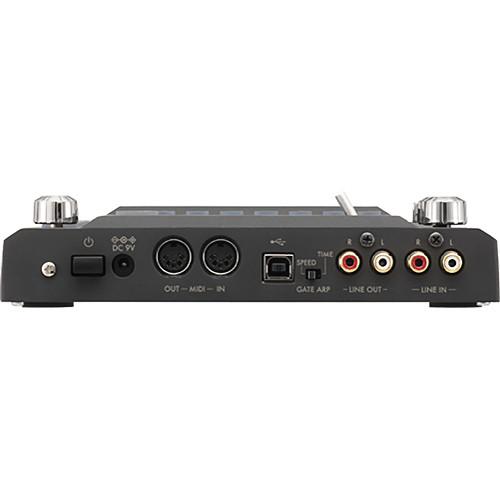

    Other Connectors 1 x USB Type B
    2 x 5-pin DIN MIDI I/O
    Display 4-digit LED
    Storage SD Card: 16 MB to 2 GB
    SDHC Card: 32 GB
    Power Requirements 9V DC via included power adapter
    System Requirements Mac
    Intel Mac with USB ports
    OS X 10.5 or later
    PC
    Computer with USB port
    Windows XP SP3 or later, Vista SP2 or later (32-/64-bit), Windows 7 SP1 or later (32-/64-bit), Windows 8 (32-/64-bit)
    Dimensions (WxDxH) 8.3 x 8.9 x 1.9" (210 x 226 x 49* mm) *includes knobs height
    Weight 2.9 lb (1.3 kg)
    Package Weight 4.25 lb
    Box Dimensions (LxWxH) 14.1 x 9.4 x 3.0"
