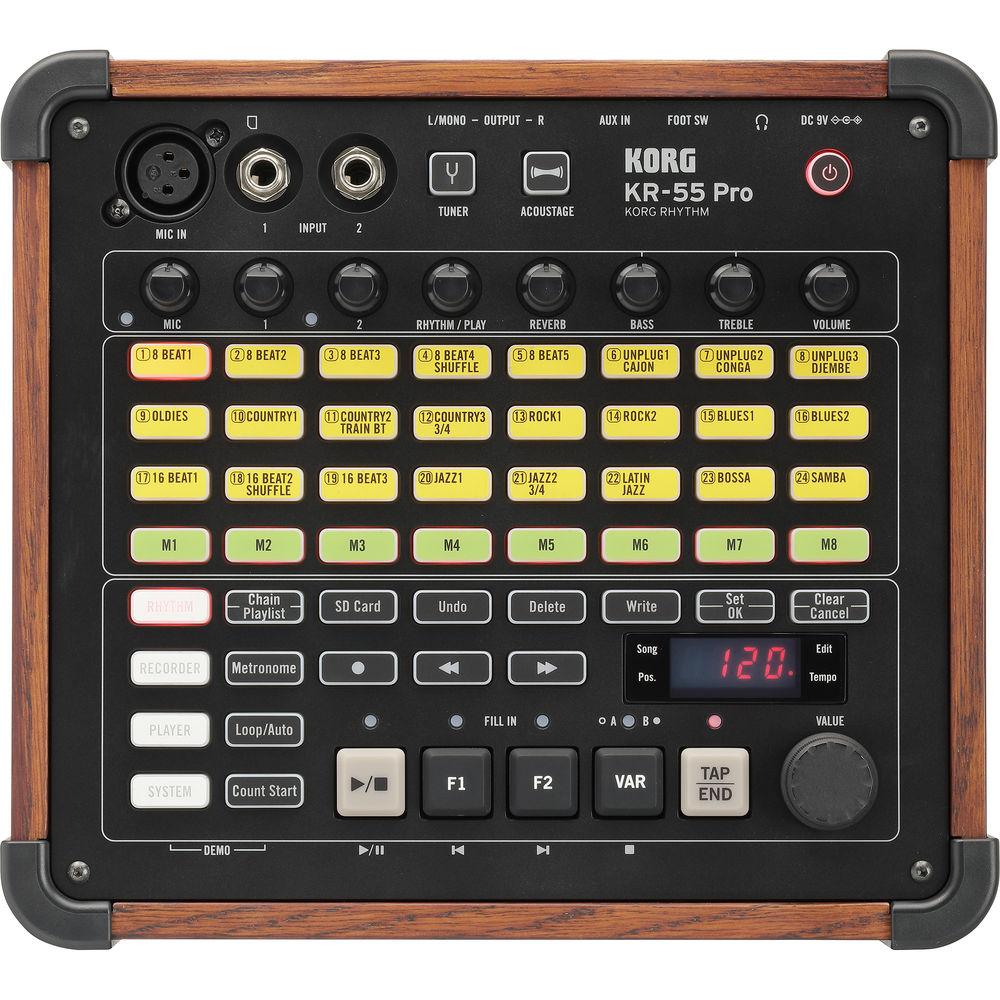

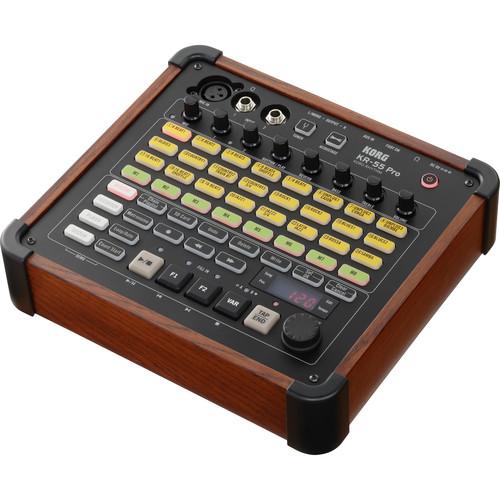

Product description The Korg KR-55 Pro is a multi-function rhythm generator, recorder, and player that harnesses the power of Korg's "Real Groove Technology" to create high-quality drum tracks for singer/songwriters and duos. It provides a variety of input jacks, mixer functionality, effects, and equalization, as well as a versatile multi-track recorder that can record/play to/from an SD card. With an intuitive interface, the KR-55 Pro is easy to program and can be controlled by an optional foot pedal for real-time control. The unit is completely mobile and can be powered by the included 9 VDC adapter or batteries (6 x AA) making it a versatile piece great for anything from desktop recording to street performances, and useful in a variety of situations including live events in small spaces.
There are 24 built-in drum/percussion styles that were recorded live using Korg’s proprietary “Real Groove Technology.” Each rhythm style provides two variations, each with a a basic pattern and two fill-ins. By chaining patterns together, a rhythm structure for an entire song can be achieved and played back automatically or manually.
The mixer section includes one XLR mic input, two guitar/bass inputs, and a stereo auxiliary input, allowing for multi-channel mixing with an on-board, high-quality reverb. The onboard SD recorder allows you to play along with a rhythm style and record the combined results. What's more, multi-track recording capabilities allow for the production of more sophisticated tracks.
The KR-55 Pro also features a variety of utility features including a built-in tuner with a large display for good visibility in low-light conditions. You can also tune while listening to a guitar, bass, or piano guide tone, and the convenient onboard metronome assists in practicing. The unit features "Acoustage" proprietary virtual surround technology that generates a wide stereo effect that appears to originate from locations that are broadly separated between left and right. -
- 24 built-in drum/percussion styles that were recorded live using Korg’s proprietary “Real Groove Technology”
- Each rhythm style includes two variations with three patterns: basic, fill-in 1, and fill-in 2
- Use the chain function to create a rhythm structure for an entire song, and play it automatically

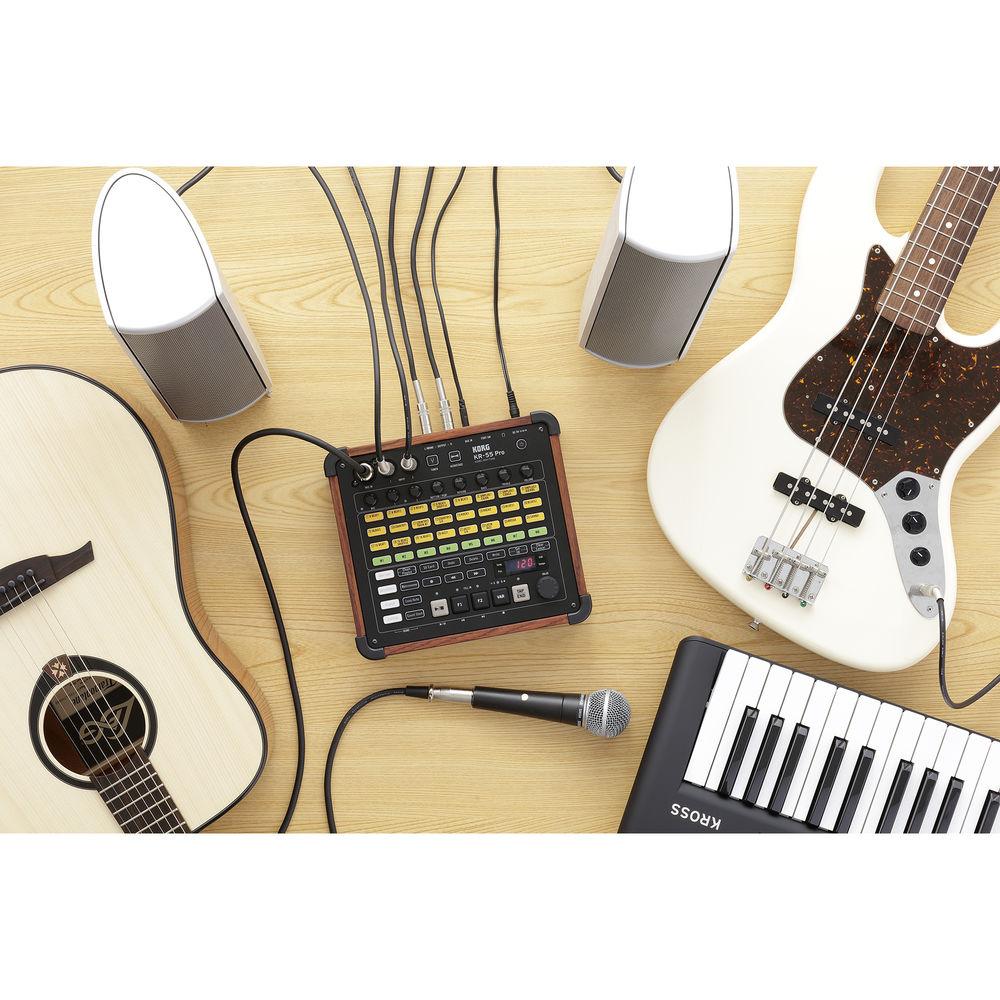

- A rich array of input jacks includes one XLR mic input, two guitar/bass inputs, and a stereo AUX input, allowing multi-channel mixing
- A high-quality reverb effect and equalizer are provided, giving you the freedom to shape your sound
- You can perform along with a rhythm style and record the combined result as an audio file on an SD card
- Multi-track recording is supported, allowing you to produce more sophisticated tracks
- The tuner function features a large meter for good visibility, and you can also tune while hearing a guide tone
- Acoustage technology delivers a spacious sound

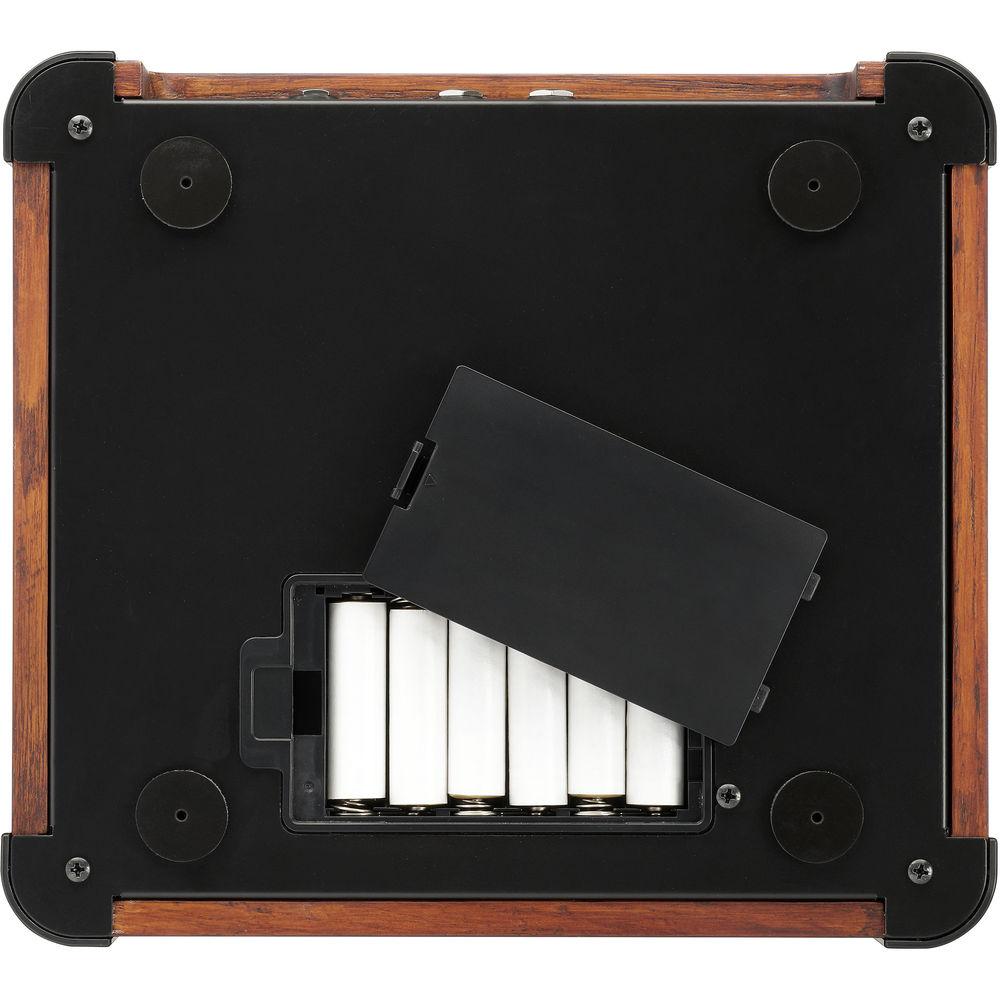

- The unit can be powered on six AA batteries, allowing up to seven hours of use
- A separately sold foot switch lets you control the unit with your foot
In the Box Korg KR-55 Pro Multi-Function Rhythm Machine Power Supply Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Korg KR-55 Pro Multi-Function Rhythm Machine in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKorg KR55PRO Specs | Rhythm Function | Rhythm Styles: 24 rhythm styles, two variations for each rhythm style, each variation has three patterns (basic, fill-in 1, fill-in 2)
Tempo: 48–240 bpm
Chain Function: 30 banks (up to 999 measures can be registered in each) | | Recorder | Recording Format: PCM audio WAV format (file name extension .wav), 44.1 kHz, 16-bit
Recording Time: Depends on the SD card used; approximately 100 minutes per 1 GB
Maximum Continuous Recording Time: 3 hours
Number of Songs: Maximum 50
Number of Multi-Track Recordings: Depends on the remaining free capacity of the SD card
Undo/Redo: Once | | Player | Playback Formats: PCM audio WAV format (file name extension .wav) 44.1 kHz, 16-bit, stereo
Maximum Data Size (Time): Depends on the memory card used; approximately 100 minutes per 1 GB (for WAV data)
Maximum Number of Data Files (Number of Folders): Up to 99 songs (per folder); a total of eight folders M1–M8 inside the player folder can be used
Playlist Function: 10 banks (up to 24 songs can be registered in each) | | Effects | Effects: Reverb effect
Equalizer: Bass, treble
Acoustage: Wide stereo effect | | Tuner Function | Scale: 12-note equal temperament (chromatic)
Calibration: 435 to 445 Hz

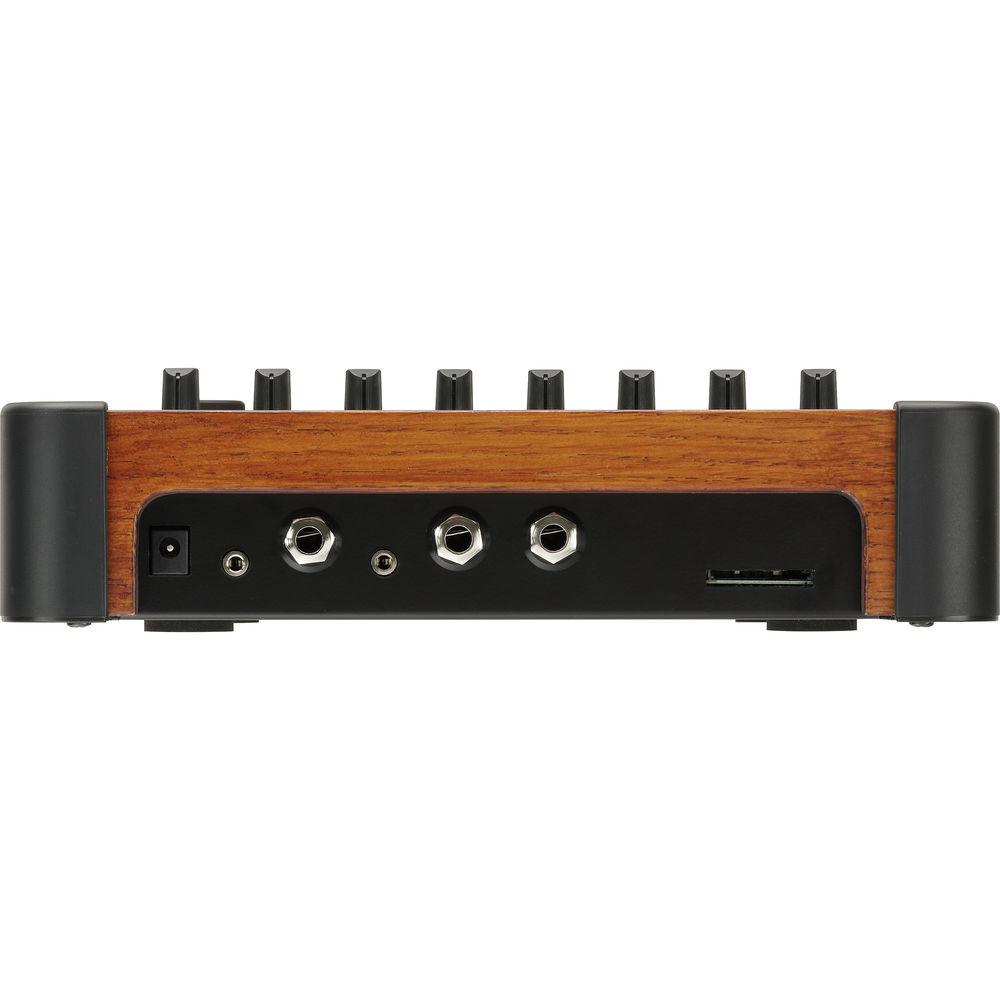

Tuning Guide Tone: Guitar, bass, and piano | | Display | LED: 7-segment four digit | | SD Card | Usable Cards: SDHC (UHS-I) 4 to 32 GB recommendation | | Input | Mic Input
Connector: XLR (balanced)
Input Impedance: 4.7 kOhms
Nominal Level: -43 dBV
Input 1 / 2 (Guitar / Bass)
Connectors: 2 x 1/4" / 6.3 mm (unbalanced)
Input Impedance: 1 MOhm
Nominal Level: -26 dBV
Aux Input
Connector: 1/8" / 3.5 mm stereo (unbalanced)
Input Impedance: 10 kOhms
Nominal Level: -17 dBV
Foot SW: 1/4" / 6.3 mm stereo
Usable Foot Switch: Vox VFS5 (optional) | | Output | Output L/Mono+R: 2 x 1/4" / 6.3 mm mono (unbalanced)
Headphone: 1/8" / 3.5 mm stereo mini
Maximum Level: 0 dBV, 30 mW, 32 Ohms | | Battery | Type: 6 x AA (alkaline or nickel-metal hydride are supported)
Battery Life: approximately 7 hours | | Power | Power Supply: 9 VDC
Current Consumption: 330 mA | | Dimension (W x D x H) | 9.6 x 8.7 x 2.7" / 244 x 220 x 68 mm | | Weight | 3.1 lb / 1.4 kg (excluding batteries) |
