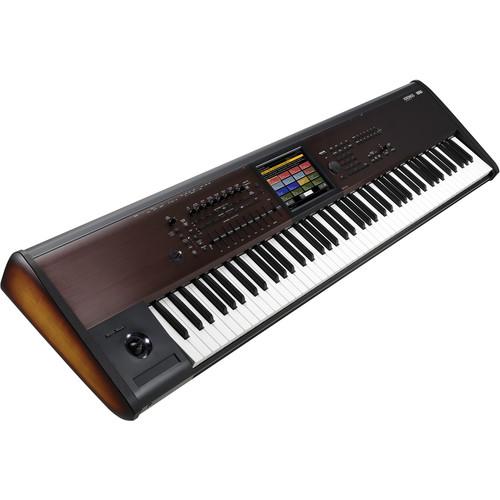

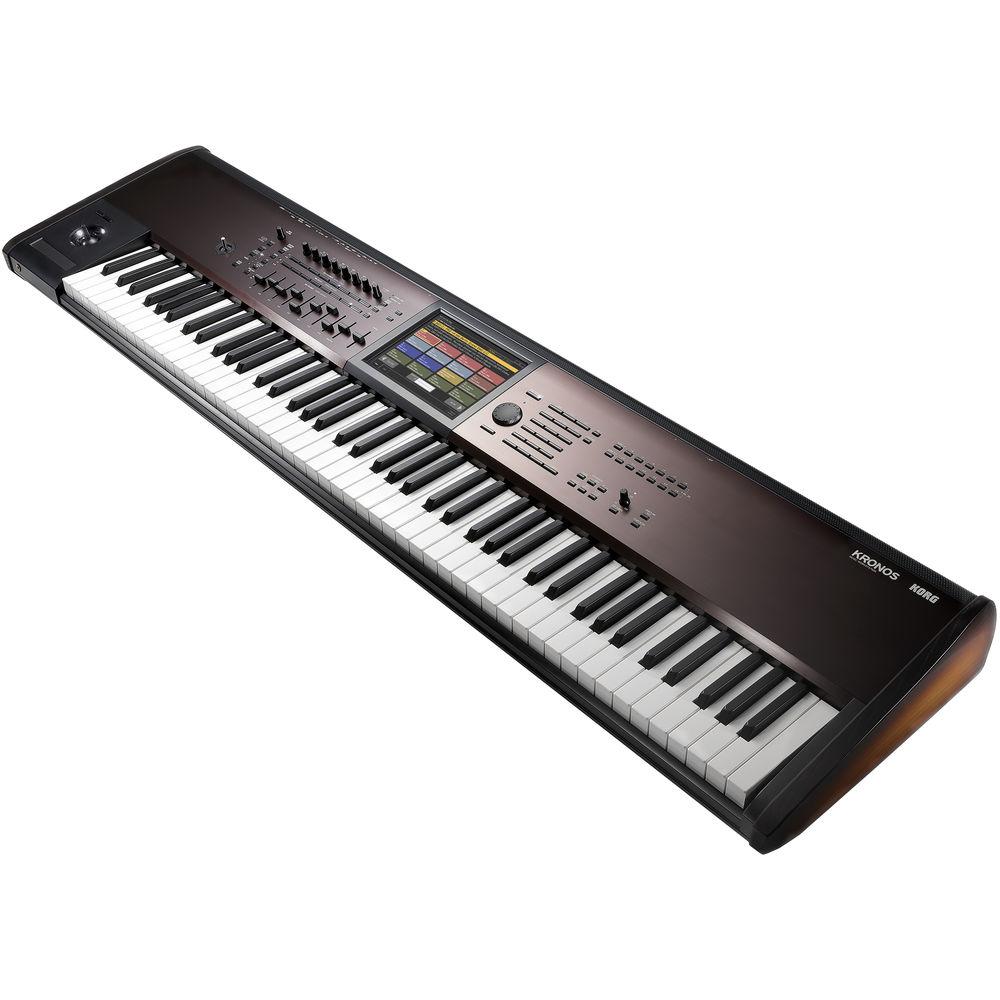

Product description The KRONOS 88 LS Music Workstation from KORG is a full-sized keyboard that has been designed with a light-touch keyboard for effortless playability. It can be used in several environments by musicians, sound designers, and engineers for live stage, theater, recording studio, and rehearsal applications.The mechanism of the keyboard has been redesigned so that the velocity is easier to control than on existing light-touch keyboards. The box-shaped keys share their look with KORG's premium RH3-action keyboard but deliver a lighter, faster-playing feel, like that of a synth keyboard.The KRONOS 88 LS weighs under 40 pounds, making transport and setup more convenient. In addition to the dynamic keyboard, the KRONOS LS features v3.1 software, which offers Quick Layer and Quick Split functions right at your fingertips. Additional OS refinements ensure stability and provide a stress-free performance environment. - Light-Touch Keyboard for Faster Playing

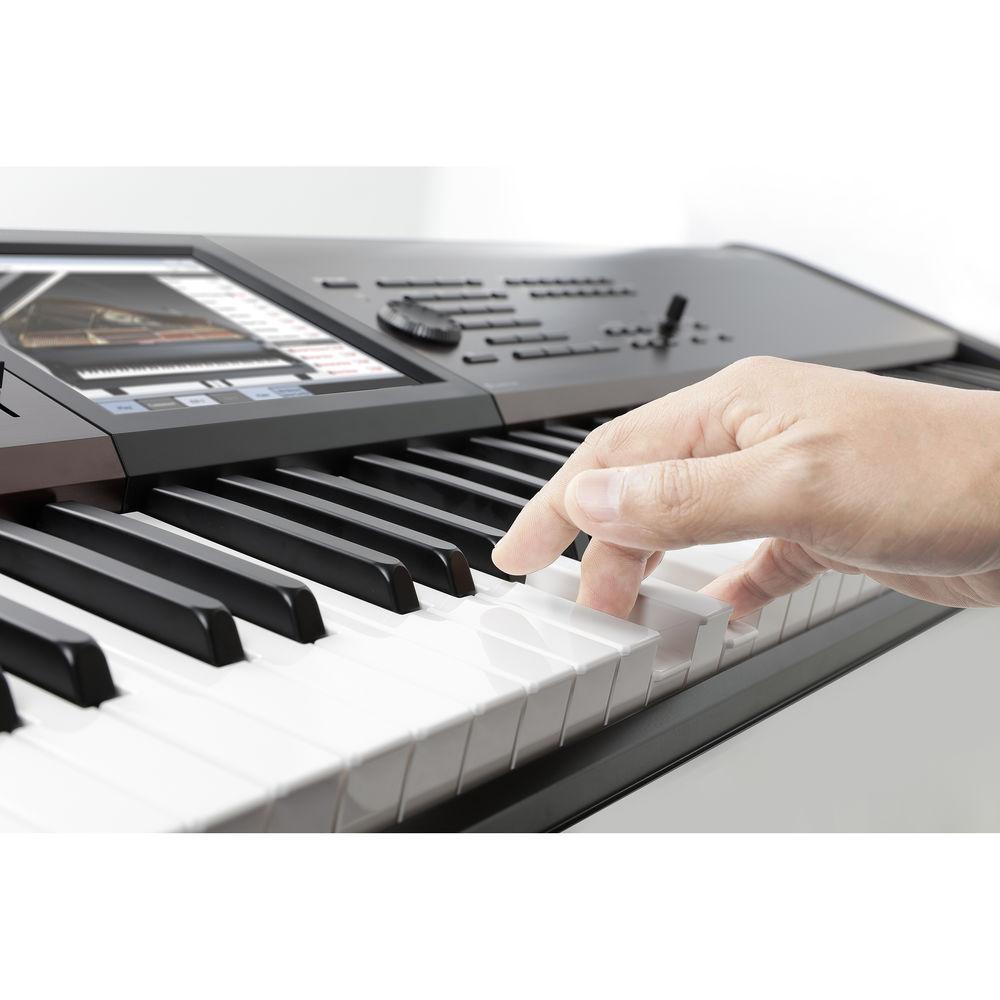

- The revamped light-touch keys makes it easy to play anything from rapid organ licks to synth phrases to glissandi. The keyboard mechanism has been redesigned so the velocity is easier to control than on existing light-touch keyboards. Since the keyboard is semi-weighted, it's suitable for playing piano and electric piano in any style.
- Lighter for Increased Portability
- The LS keyboard is semi-weighted and lighter than the KRONOS 2 88's RH3 keyboard. With a weight of just under 40 lb; this makes transport and setup much easier.
- OS v3.1 Includes Quick Layer/Split Functions
- Featuring OS v3.1, the KRONOS LS features quick layer and quick split functions right at your fingertips. Create layers such as piano and strings, or splits such as electric piano and bass. Several additional OS refinements have also been made to ensure stability and a stress-free performance environment.
- A Fresh Look to Complement The New Feel

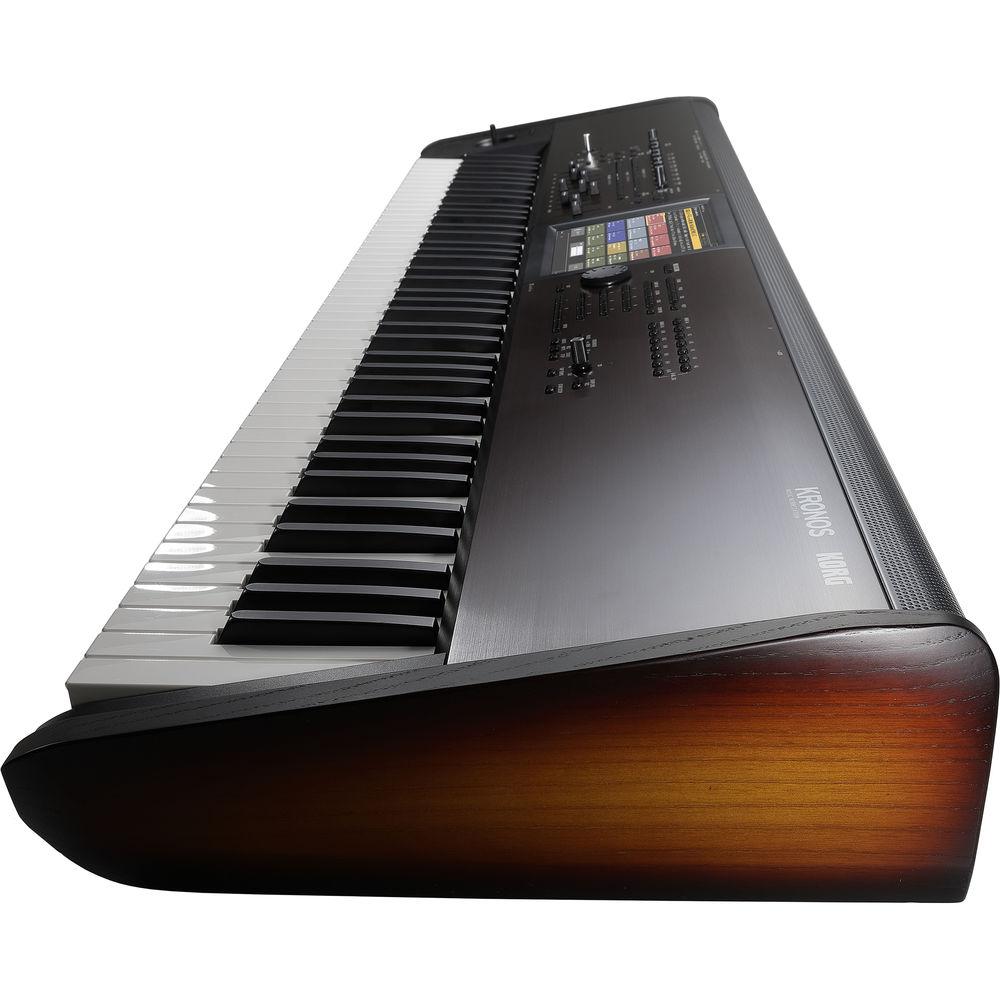

- With its dark umber aluminum body and sunburst wood side panels, KRONOS LS is designed to to look as good as it feels.
In the Box Korg KRONOS 88 LS Music Workstation AC Power Cable Quick Start Guide 3 x Accessory DVD Disk Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Korg KRONOS 88 LS Music Workstation in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKorg 88 Specs | | | System | Kronos System ver. 3.1 | | Keyboard | LS semi-weighted, velocity-sensitive, no aftertouch | | | | Synthesis Types | 9
HD-1 High-Definition synthesizer (PCM)
AL-1 Analog Synthesizer (analog modeling)
CX-3 Tonewheel Organ (tonewheel organ modeling)
STR-1 Plucked String (physical modeling)
MS-20EX Component Modeling technology (analog modeling)
PolysixEX Component Modeling Technology (analog modeling)
MOD-7 Waveshaping VPM Synthesizer (VPM synthesis)
SGX-2 Premium Piano (acoustic piano)
EP-1 MDS Electric Piano (electric piano) | | Maximum Polyphony | HD-1: 140 voices
AL-1: 80 voices
CX-3: 200 voices
STR-1 40 voices
MS-20EX: 40 voices
PolysixEX: 180 voices
MOD-7: 52 voices
SGX-2: 100 voices
EP-1: 104 voices | | PCM Memory | Preset: 314 MB (ROM: 1505 multisamples, 1388 drum samples) | | Build-in Expansion PCM Libraries | EXs1 ROM Expansion
EXs2 Concert Grand Piano
EXs3 Brass & Woodwinds
EXs4 Vintage Keyboards
EXs5 ROM Expansion 2
EXs6 SGX-1 German D Piano
EXs7 SGX-1 Japanese C Piano
EXs8 Rock Ambience Drums
EXs9 Jazz Ambience Drums
EXs17 SGX-2 Berlin D Piano
EXs18 KORG EXs Collections | | Program Capacity | RAM: Approximately 2 GB | | Wave Sequences | Preloaded: 187 wave sequences
User Memory: 598 wave sequences | | HD-1 Program | Advanced Vector Synthesis:
Control oscillator volumes and synthesis & effects parameters via the Vector joystick and the tempo-synchronized vector envelope
Structure:
Single: Only OSC1
Double: OSC1 and OSC2
Double mode lets you layer two completely separate synth voices, each with its own velocity-switched oscillator, dual filter, EGs, LFOs, etc
Drums: One drum kit, Double Drums: Two drum kits
Oscillator:
Virtual Memory Technology (VMT) plays large samples directly from the internal SSD
8 velocity zones per oscillator, with switching, crossfades and layering. Each zone can play mono or stereo multisamples or wave sequences
Filters:
Two multi-mode filters per voices (low-pass, high-pass, band-pass, and band- reject), Four-mode filter routings (single, serial, parallel, and 24 dB mode)
Driver:
Per voice non-linear driver and low boost circuit
EQ:
Three bands, with sweepable mid
Modulation:
Three envelope generators, two LFOs per voice, common LFO, four key-tracking generators, AMS (Alternate Modulation Source), two AMS mixers | | EXi Program Common | Advanced Vector Synthesis:
Control oscillator volumes and synthesis & effects parameters via the Vector joystick and the tempo-synchronized Vector envelope
Modulation:
Common Step Sequencer, AMS (Alternate Modulation Source), Common LFO, 2 key-tracking generators
EQ:
Three bands, with sweepable mid | | AL-1 Program | Oscillators:
Ultra-low-aliasing oscillators
OSC1, OSC2, Sub-oscillator, and noise generator; ring modulation, FM and Sync
Audio input:
External audio can be processed through the ring modulator, filter, driver, amp, and EQ
Filters:
2 x multi-mode filter (low-pass, high-pass, band-pass, and band-reject) with four types of filter routings (single, serial, parallel, and 24 dB mode), MultiFilter mode (only Filter-A; modulatable mix of low pass, high pass, band pass, and dry input, for creating a wide variety of unique filter types and effects)
Driver:
Per-voice, non-linear driver and low boost circuit
Modulation:
Five envelope generators, four per-voice LFOs, two key track generators, two AMS mixers,
Per-voice step sequencer. | | CX-3 Program | Tonewheel organ modeling:
Phase-synchronous tonewheels (clean and vintage modes), percussion, key click, wheel brake
EX mode:
Four additional, user-specified drawbars, and expanded percussion
Internal effects:
Rotary speaker, vibrato/chorus, amp modeling with overdrive, 3-band EQ
Drawbar control:
Controlled via nine front-panel sliders (via Tone Adjust)
Split:
Upper, lower
Modulation:
Two AMS mixers | | STR-1 Program | Physically modeled string:
Includes physically modeled damping, decay, dispersion, nonlinearity, harmonics, dual pickups,and more. Most string parameters can be controlled in real time
String excitation:
Three independent excitation sources can be used simultaneously—Pluck, Noise, and PCM
16 preset "pluck" types, with modulatable width and randomization
Noise generator with saturation and dedicated lowpass filter
PCM oscillator:
KORG's ultra-low-aliasing technology, as introduced in the HD-1
4 velocity zones per oscillator
Uses any mono multisamples including ROM, EXs, user sample bank, or Sampling mode. Supports virtual memory
PCM can either be used as an excitation signal, or layered with the output of the string.
Excitation Filter:
Dedicated 2-pole multimode filter for shaping the string excitation.
Filter can be enabled/disabled separately for each excitation source.
Low Pass, High Pass, Band Pass, and Band Reject modes.
Audio Input and Feedback:
Run real-time audio through the string, including feedback through effects.
Modeled feedback includes modulateable instrument-to-amp distance and orientation.
Filters:
Dual multi-mode filters per voice; Single, Serial, Parallel (with split stereo output), and 24 dB (4-pole) configurations. Low Pass, High Pass, and Band Reject modes.
Multi Filter mode (Filter A only):
Modulatable mix of Low Pass, High Pass, Band Pass, and dry input, for creating a wide variety of unique filter types and effects.
Modulation:
5 envelopes, 4 per-voice LFOs, 2 Key Track generators, String Tracking generators, 4 AMS mixers. | | MS-20EX Program | Oscillators:
Ultra-low-aliasing oscillators
VCO1, VCO2, Ring Mod, Pink and White Noise Generator
Audio Input:
Run real-time audio through the synthesis engine and ESP (External Signal Processor)
Filters:
12 dB/octave High Pass and Low Pass self-resonant filters
ESP section:
24 dB/octave Low-Cut and High-Cut filters, available per voiceESP (External Signal Processor) Use incoming audio as a trigger and/or CV source
Modulation:
Original DAR and HADSR EGs 1 & 2, original MG (with MIDI sync), Sample-and-Hold, MVCA
KRONOS modulation: 4 x additional multi-stage Envelopes, 4 x additional per-voice LFOs, and 4 x AMS Mixers
Patch Panel
Patchable audio and modulation, at audio rates
Patch Points:
Keyboard:
Keyboard CV Out, Keyboard Trigger Out, VCO1+VCO2 CV In, VCO2 CV In
VCO:
VCO1 + VCO2 External Frequency Control In, VCO1 Out, VCO2 Out
VCF:
External Signal In, External HP Filter Cutoff Frequency Control In, External LP Filter CutoffFrequency Control In, HPF Out, LPF In, LPF Out
VCO+VCF:
Total External Modulation In
VCA:
External Initial Gain Control In, VCA In
EG:
EG1 Envelope Signal Normal Out, EG1 Envelope Signal Reverse Out, EG1+EG2 Trigger In, EG1Trigger In, EG2 Envelope Signal Reverse Out
MG:
Triangle Out, Rectangle Out
Noise Generator:
Pink Noise Out, White Noise Out
Sample and Hold:
Clock Trigger In, Sample Signal In, S/H Out
Modulation VCA:
Control Voltage In, Signal In, Signal OutManual Controller
Control Wheel Out, Momentary Switch
ESP:
Signal In, AMP Out, BPF In, BPF Out, F-V CV Out, Envelope Out, Trigger Out
Others:
EXi Audio In, Mixer 1 In, Mixer 1 Out, Mixer 2 In, Mixer 2 Out
| | PolysixEX Program | Oscillators:
VCO:
Saw, Pulse, PWM
Sub Oscillator:
Off, one octave below, 2 octaves below
Filter:
24 dB (4-Pole) Low-Pass self-resonant filter
Effects:
Integrated Polysix Chorus, Phase, and Ensemble
Arpeggiator:
Integrated MIDI-synced arpeggiator with adjustable Range, Mode, and Latch
Polysix Modulation:
Original ADSR EG and MG (with MIDI sync)
KRONOS Modulation:
2 additional multi-stage Envelopes, 2 additional per-voice LFOs, and 4 AMS Mixers | | MOD-7 Program | Waveshaping VPM Synthesizer:
Combines Variable Phase Modulation (VPM), waveshaping ring modulation, PCM sample playback, and subtractive synthesis, able to convert-load SYX files
Oscillators:
6 x VPM/Waveshaper/Ring Modulation Oscillators
Phase and modulatable pitch per oscillator
101 Waveshaper tables plus modulatable Drive and Offset
Use as oscillators, or as Waveshapers or Ring Modulators for other signals
PCM Oscillator:
KORG's ultra-low-aliasing technology, as introduced in the HD-1
4 x velocity zones per oscillator
Uses any mono Multisamples, including ROM, EXs, User Sample Bank, or Sampling Mode. Supports Virtual Memory
PCM can be used as an FM modulator and/or layered with the VPM Oscillators
Noise generator with saturation and dedicated low pass filter
Audio Input:
Run real-time audio through the VPM Oscillators and filters
Filters:
Dual multi-mode filters per voice (Low Pass, High Pass, Band Pass, and Band Reject modes)
Two types of filter routing: Parallel and 24-dB
Multi Filter mode (Filter A only):
Modulatable mix of Low Pass, High Pass, Band Pass, and dry input, for creating a wide variety ofunique filter types and effects
Patch Panel:
Supports both algorithm (78 types) selection and free patching
Three 2-in, 1-out mixers for scaling and merging audio, fully modulatable, with phase inversion
Main 6-input stereo mixer, with modulatable pan and volume, plus phase inversion
Modulation:
10 Envelopes, 4 per-voice LFOs, 9 Key Tracking generators, Per-voice Step Sequencer, 4 standardAMS Mixers plus 4 simple AMS Mixers | | SGX-2 Program | Premium Piano:
Virtual Memory Technology (VMT) plays large samples directly from the internal SSD
Chromatically sampled at up to 12 velocity levels, no looping
Damper resonance and mechanical noise
Modeled String Resonance
Una Corda sample support
PCM:
EXs6 - SGX-1 German D Piano, EXs7 - SGX-1 Japanese C Piano, and optional EXs12: SGX-1 Austrian DPiano (8 velocity levels, no Una Corda samples); EXs17 - Berlin D Piano (12 velocity levels, includesUna Corda samples)
Piano Type:
64 or more
Oscillator Control:
Damper Resonance, Damper Noise, Mechanical Noise, Note Release, String Resonance | | | | Disk Mode | Load, save, utility, audio CD burning, audio CD playback, data filer function (save/load MIDI SystemExclusive data), CD-R/RW (UDF format read/write), ISO9660 Level 1 | | Controllers | Vector joystick, joystick, ribbon controller, switches 1 & 2
Control Surface: Control Assign Switches: Assigns the Control Surface to Timber/Track, Audio,External, Realtime Knobs/KARMA, Tone Adjust/EQMixer Knobs Switch: Assigns the Mixer Knobs to either Channel Strip orIndividual Pan, Reset Control Switch, Solo Switch, Knobs 1-8, Switches 1-8(Upper Row), Switches 1-8 (Lower Row), Sliders 1-8, Master SliderKARMA Control: On/Off, Latch, Module Control
KARMA Controller Section: Switches = ON/OFF, LATCH, MODULE CONTROL
DRUM TRACK Controller Section: Switches = On/Off | | Display | TouchView graphical user interface, 8" TFT, SVGA (800 x 600 dots), adjustable brightness | | Frequency Response | 20 Hz to 22 kHz,
Rating60% users recommend this product to others. And what about you?
This product has already been rated by 49 owners. Add your rating and experience with the product.
Discussion
Ask our technicians if you have a problem with your settings,
or if anything is unclear in the user manual you have downloaded.
You can make use of our moderated discussion.
The discussion is public and helps other users of our website who may be encountering similar problems.
The discussion is empty - enter the first post
Post a new topic / query / comment:
|
|
|
| Request for user manual |
You can’t find the operation manual you are looking for? Let us know and we will try to add the missing manual:
I’m looking for a manual / Request for manual
Current requests for instruction manuals:
Milano Carbon Fiber Tripod with B1 Head...
c.PLASMA X LARGE SIN/SION user manual-pdf
centrotherm PECVD platform c.PLASMA...
Streamlight Macrostream...
AOC curved gaming monitor...
User manual for Bowens ML500 Flash head ...
|
| Discussion |
Latest contributions to the discussion:
SQ 7 PDF
Name: Yash Deshmukh
Allen & Heath SQ-7 48-Channel 36-Bus
I want to download PDF ...
Business Card Studio 10
Name: Yvon
Summitsoft Business Card Studio Pro
Business Card Studio 10 will not print. Window 11
My printer will print anything else....
REQUESTING FOR QUOTE
Name: ALBERT GABRIEL
Auray X-Style Piano Bench & Double
RFQ 919
S/ N DESCRIPTION UNIT QTY
1 KEYBOARD
YAMAHA MODEL
PSR-S750 61-KEY
DIGITAL
WORKSTATION PCS 1
2 AURAY DOUBLE-X
KEYBOARD
STAND WITH
PULL LOCK MFR
#KSPL-2X PCS 1
3 YAMAHA YBA-611
ARTISTE SERIES
KEYBOARD BAG
FOR 61-KEY
PORTABLE
KEYBOARDS PCS 1
4 AURAY FP-P1...
Leatherman Micra
Name: Rebecca Burgess
Leatherman Micra Tool with Box
Please send me a user's manual for Leatherman Micra...
total cost of Casio CTK 3500 61 key manual
Name: Eric Sensiba
Casio CTK-3500 61-Key Keyboard with Touch
What is the total cost for a Casio CTK 3500 61 key Electronic keyboard manual including taxes and shipping t85739?...
|
|
