User Manual for Korg Kross 2 61-Key Synthesizer Workstation Click to enlarge the picture
Contents of the user manual for the Korg Kross 2 61-Key Synthesizer Workstation
- Product category: Synthesizer Keyboards Korg
- Brand: Korg
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Korg Synthesizer Keyboards
 |
User manual for the Korg Kross 2 61-Key Synthesizer Workstation contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Korg product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Korg user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Korg product will considerably shorten its lifespan!
|
Product description The super matte black Korg Kross 2 is a mobile synthesizer workstation with a 61-key, velocity-sensitive keyboard. Combining a synth, sequencer, sampler, recorder, and audio interface in one compact and lightweight unit, it provides musicians and composers alike with the tools for writing and recording original music, or for performing as a "one-man band" or in a group. The Kross 2 offers 1000+ preset sounds, 120 voices of polyphony, 134 effects, and 128MB of built-in expansion PCM memory for optional sound libraries as they become available (available separately). The workstation is equipped with a sampling function that provides 16 playable pads for triggering samples or full audio tracks.For production applications, the Kross 2 comes with a 16-track MIDI sequencer, a step sequencer, an arpeggiator, and a drum track. A stereo audio recorder enables you to record your performance or overdub an external input source—such as vocals—directly to an SD card (available separately).The workstation features a user-friendly layout with real-time controls that let you easily access desired sounds and functions on the fly. You can quickly store and recall your favorite programs and combinations, and layers/splits are simple to set up thanks to a dedicated button.In addition to USB MIDI interface functionality, the USB audio interface enables you to connect the Kross 2 to your Mac or Windows computer and enjoy DAW recording. You can also use the instrument for playing in conjunction with your iPad or iPhone. The keyboard is powered by either six AA batteries or with the included AC adapter. Portable Design for the Gigging Musician -
- Lightweight (at 8.38 lb) and compact portable workstation
- 61-key, velocity-sensitive keyboard
- Up to seven hours of battery-powered operation from six AA batteries
- Super matte black color with a durable rubberized finish

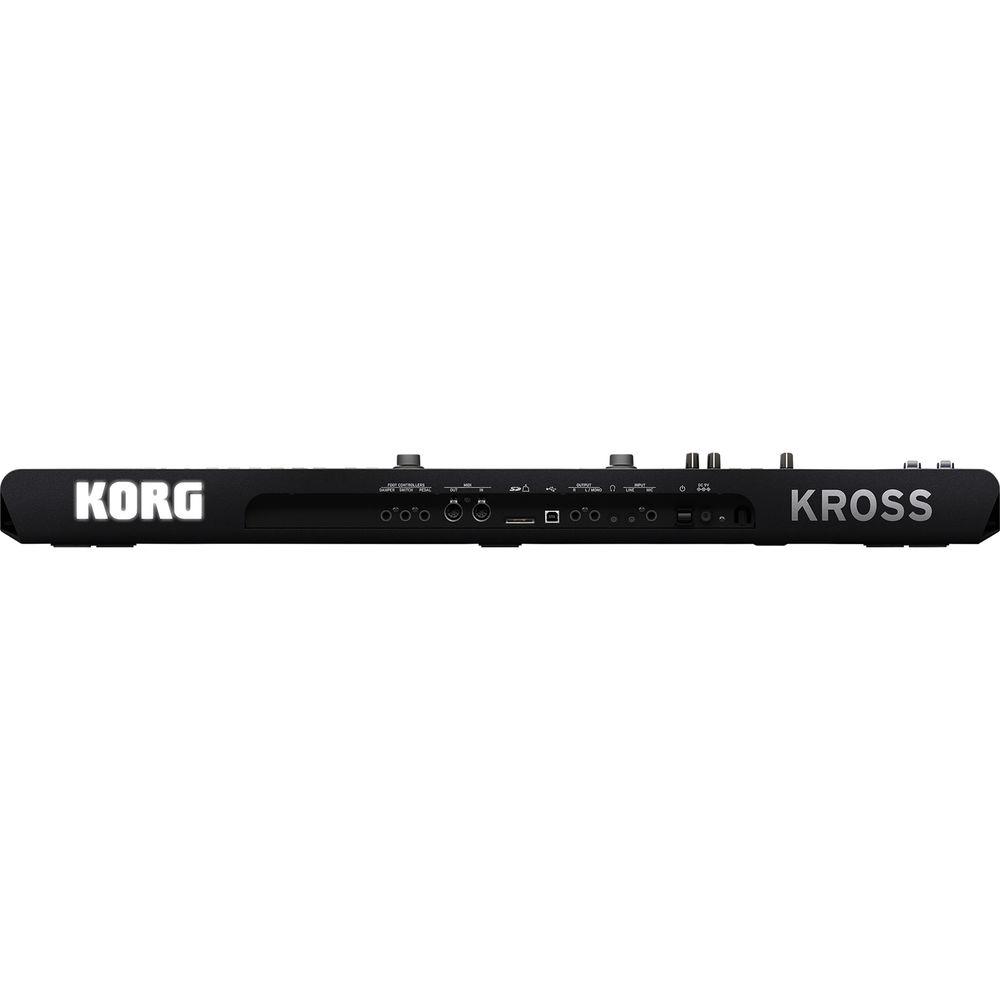

- Rear-panel Korg logo is fully illuminated
Rich Selection of Presets - 1000+ Preset Sounds
-
- Wide selection of sound programs covers your needs from live performance to studio production
- 1075 internal sound programs
- Multi-layered pianos, electric pianos, thick strings, and more
- Drum kits, including EDM grooves
- 120-voice polyphony
- Built-In Expansion PCM Memory
-
- 128MB of built-in expansion PCM memory
- Expandable with optional libraries as they become available (available separately)
- EDS-i Sound Engine with Effects
-
- High-quality EDS-i Enhanced Definition Synthesis-integrated sound engine
- 134 effects, including delay, reverb, amp modeling, vintage effect units, vocoder, and more
- Use a total of seven effect units simultaneously, with five inserts and two masters
Sampling Function and Pad Sampler -
- Sampling function provides 16 playable pads
- Record the input from the Line In jack and assign it to any pad as a stereo sample of up to 14 seconds
- Up to four pads can be triggered simultaneously
- Edit sample waveforms using functions such as Start/End loop point settings or Normalize
- Resample within Kross 2 to perform extensive sampling without requiring any additional equipment
- Long audio files from an SD card can also be assigned to the pads
User-Friendly Layout - Real-Time Control Section
-
- Directly control the main parameters without having to navigate through a menu hierarchy
- Provides real-time control of the sounds, effects, and simple editing functions
- Use the knobs to quickly control the vocoder settings, or adjust the tempo of the arpeggiator and sequencer
- Favorites Function
-
- Register frequently used programs and combinations, and recall them at a single touch
- 128 favorite locations
- Ideal for live players who need quick access to a specific set of sounds on stage
- Quick Layer/Split
-
- Layer two sounds or assign separate sounds to the left and right regions of the keyboard
- Dedicated Layer/Split button
- Category Dial
-
- Helps you quickly find the sounds you're looking for among the large selection of presets
- Choose the general type of sound, such as piano or organ, and then make your selection quickly and efficiently
Audio Player/Recorder -
- Built-in stereo audio recorder lets you record your Kross 2 performance, or overdub an external input source such as vocals
- Pad Audio Play function enables you to assign recorded sounds or audio files imported from an external source, to each of the 16 pads for playback
- Strike a pad to play back the backing of an entire song while you perform on the keyboard
- Use the pads to trigger sound effects or background music
- Allows extended recording and playback that is limited only by the capacity of the SD card
Sequencer - 16-Track MIDI Sequencer
-
- Sequencer records your keyboard performance and controller movements as MIDI data
- Allows you to record your pad sampler performance
- Ideal for recording musical ideas or sketching songs
- Step Sequencer
-
- Use the 16 pads to intuitively and quickly create original rhythm patterns with up to 64 steps
- Drum Track
-
- Choose from 772 preset drum patterns in a wide variety of styles
- Add rhythm to your performance simply by pressing a button
- Arpeggiator
-
- Helps spark your imagination and generate song ideas
- Simply hold down keys to create rhythmic chords, bass phrases, or guitar strumming
Microphone Input/Line Input/Vocoder -
- Mic input with 1/4" TS phone jack lets you plug a dynamic mic directly in the keyboard
- Eliminates the need for a separate mixer when performing live
- Built-in vocoder function—easily perform vocoder sounds with quick access via the real-time control section
- Line input with 1/8" stereo mini jack, for connecting your audio player or for sampling
USB Audio/MIDI Interface -
- Connect the Kross 2 to your Mac or Windows computer and enjoy DAW recording
- The Korg Module (available separately) sound module app can be used as an external sound module played from the Kross 2
- Perform along with the backing of tracks you created using the Korg Gadget DAW app (available separately)
- Dedicated Kross2 Editor and Plug-In Editor (free downloads, available separately) let you edit while viewing numerous parameters at a glance on your computer, or allow you to use the Kross 2 as a software synthesizer from within your DAW
In the Box Korg Kross 2 61-Key Synthesizer Workstation (Super Matte Black) AC Adapter Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Korg Kross 2 61-Key Synthesizer Workstation in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKorg Kross 2 Specs | | | Kross 2-61 | 61 x keys (velocity-sensitive, no aftertouch)
Normally C2 to C7 (adjustable in the range C1 to C6 and C3 to C8) | | | | Technology | EDS (Enhanced Definition Synthesis - integrated) | | | | Maximum Polyphony | 120 x voices (120 x oscillators), single mode
60 x voices (60 x oscillators), single mode
Actual maximum polyphony varies depending on oscillator settings such as stereo multisamples and velocity crossfading | | Preset PCM Memory | Approximately 128 MB (at 48 kHz / 16-bit linear PCM data equivalent)
496 x multisamples (including seven stereo)
1014 x drum samples (including 49 stereo) | | Expansion PCM Memory | Approximately 128 MB (when converted to 48 kHz / 16-bit linear PCM)
Used when loading option PCM | | Program | Oscillator
OSC1 (single), OSC1+2 (double)
Stereo multisamples support 4 velocity zones per oscillator, with switching, crossfades, and layers
Filters
4 x types of filter routing (single, serial, parallel, 24 dB)
2 x multi-mode filters per voice (low-pass, high-pass, band-pass, band reject)
Modulation
For Each Voice: 2 x envelope generators (Filter & Amp), 2 x LFOs, 2 x key-tracking generators (Filter & Amp), 2 x AMS mixers
Pitch EG, common LFO, two common-key tracking generators
User Programs
1280 (768 preloaded)
Preset Programs
265 (256 GM2 programs + 9 GM2 drum programs) | | Combination | Timbres
Up to 16 timbres, switchable via key zone or velocity zone
Layer and crossfade supported
Tone Adjust function allows program settings to be offset
Master Keyboard Functionality
Allows you to control external MIDI devices
User Combinations
896 (384 preloaded) | | Drum Kits | Stereo and mono drum samples
4-way velocity switches with crossfades and adjustable crossfade shapes (Linear, Power, Layer)
User Drum Kits
58 (42 preloaded) | | | | Patch Memories | 128 (16 favorites
