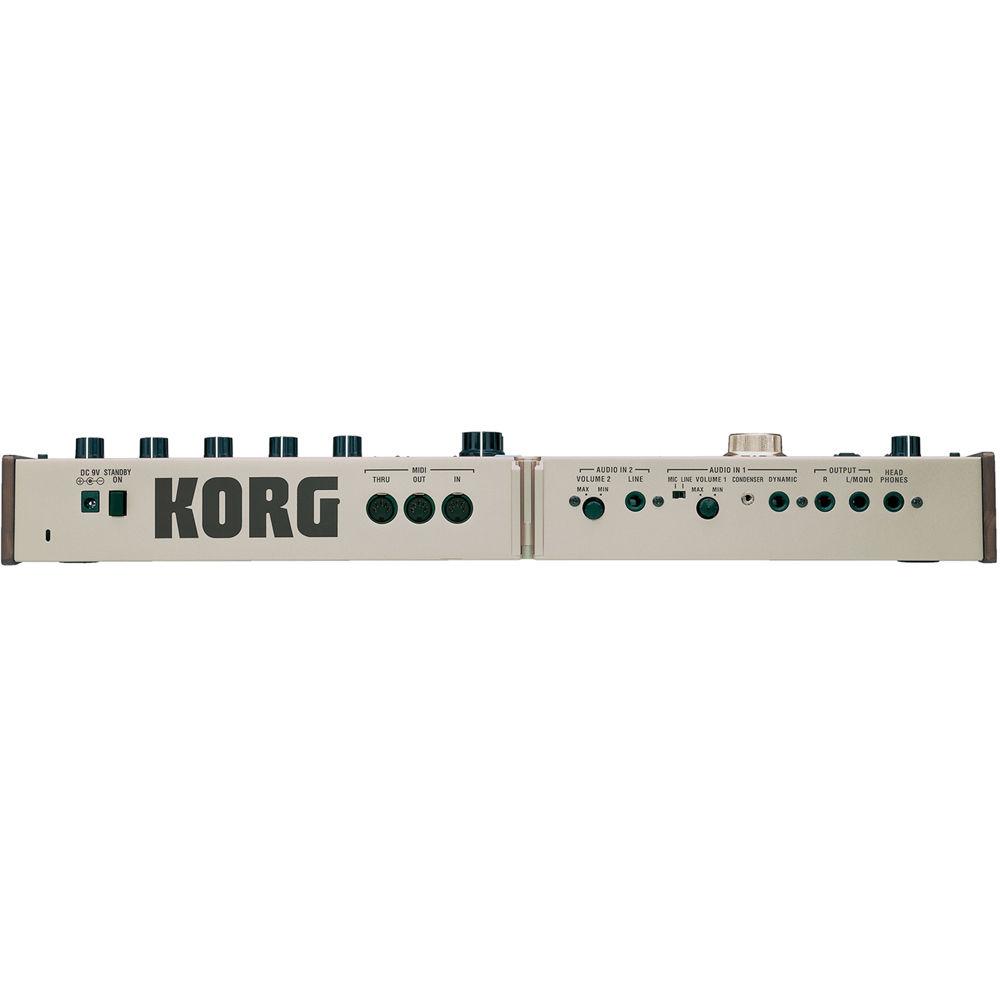

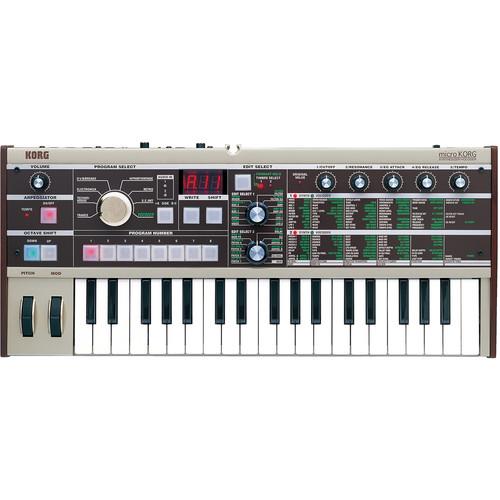

User Manual for Korg microKORG 37-Key Synthesizer and Vocoder Click to enlarge the picture
Contents of the user manual for the Korg microKORG 37-Key Synthesizer and Vocoder
- Product category: Synthesizer Keyboards Korg
- Brand: Korg
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Korg Synthesizer Keyboards
 |
User manual for the Korg microKORG 37-Key Synthesizer and Vocoder contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Korg product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Korg user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Korg product will considerably shorten its lifespan!
|
Product description Vocode like Crazy with the Korg microKORG S Synthesizer/Vocoder Read More eudswzcecbvzdqwxqcsrbvqdfffwufbbrv The microKORG from Korg is a lightweight, portable synthesizer and MIDI controller keyboard, with 37 velocity sensitive miniature keys, serving the DJ and Techno markets. The small but intense footprint of the keyboard, and the provision for AA battery power, contribute to this keyboard's usefulness as a mobile, laptop composing and production tool. The LED illuminated selection buttons and display make live performance, in dark venues, significantly easier.The microKORG is an analog modeling synthesizer with a large selection of waveforms, including a choice selection imported from one of Korg's classic digital synths, providing a unique, hybrid sound palette to choose from. The sound sources of this instrument include 2 Oscillator and Noise Generators, a multi-mode filter, 2 LFO's and 2 Envelope Generators, all of which may be interconnected by 4 Virtual Patch matrixes.The microKORG is a viable master controller, with a large selection of assignable buttons and knobs. The pitch and modulation wheels, along with the 5 parameter control knobs, are real-time controllers, a welcome stage or studio performance feature.The microKORG's built-ins include a Vocoder with a condenser microphone, an Arpeggiator, and a selection of modulation and delay effects, along with an equalizer. The flexible input structure and routing scheme of the keyboard allow for use of the microKORG as a sound processor of external microphone or line audio, with lots of unusual sonic possibilities. All of the built-ins are programmable, and the Vocoder features 16 dedicated programs, meant to demonstrate and exploit it's advanced power.The microKORG is an innovative product that is packed with useful creative tools and features, and surprisingly affordable. Note: The included power adapter is intended for 120VAC USA outlets. An appropriate adapter and/or step down transformer needs to be obtained separately for international use. - 37-key synthesizer and MIDI controller keyboard with Vocoder and Arpeggiator
- Analog modeling synthesis with 135 waveforms and multi-band vocoding with 16 dedicated programs
- AC or 6 "AA" battery power for location and laptop composing and recording
- 8-channel programmable Vocoder with adjustable level, pan and Arpeggiator or MIDI clock synchronization;
- Formant frequency shifting and formant freeze function for gender-bending and keyboard mapping
- Condenser mic and +5 Volt microphone input for vocoder
- Built-in Flanging, Phasing and Chorusing modulation effects, separate Delay group and Equalizer
- Switchable mini and 1/4" mic/line inputs for dynamic microphones or line level CD or instrument audio effects or vocoder processing
- Assignable controller knobs and buttons
- Assignable Modulation and Pitch wheels
- Modulation and Pitch Wheels and 5 parameter control knobs all with real-time controller functionality
- Programmable Arpeggiator with 6 types of arpegggio motion, 4 Octave range and Step Arpeggiator function editing
- MIDI clock sync for Arpeggiator
UPC: 603384024770 In the Box Korg microKORG 37-Key Synthesizer and Vocoder 1 x Condenser Microphone 1 x AC Adapter (DC9V) Limited 1-Year Warranty User Manual PDF 7.7mbeudswzcecbvzdqwxqcsrbvqdfffwufbbrv Table of Contents
|
Upload User Manual
Have you got an user manual for the Korg microKORG 37-Key Synthesizer and Vocoder in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKorg microKORG Specs | Keyboard | 37 Mini-Keys, Velocity Sensitive | | Polyphony | 4 Voice | | Multitimbral | 2 Part | | Synthesis Method | Analog Modeling Synthesis System | | Presets | 128 Programs | | User Memory | 128 Programs | | Effects | Modulation Effects:
1 x Flanger/Chorus
1 x Phaser
1 x Ensemble
Delays:
1 x Stereo
1 x Cross
1 x L/R
Equalizer | | Sequencer | Arpeggiator | | Controllers | 1 x Modulation Wheel
1 x Pitch Wheel
5 x Assignable Parameter Control Knobs
2 x Edit Select/Assignable Control Knobs
8 x Program Select/Assignable Buttons
2 x Mic/Line Switches | | Expansion Slots | No | | Sample RAM | No | | Outputs | 2 x 1/4" TS Jacks(Left/MONO, Right), Unbalanced
1 x 1/4" TRS Stereo Headphone
MIDI Out
MIDI Thru | | Inputs | Audio In 1 Condenser: 1 x +5 Volt Mini Phone
Audio In 1 Dynamic: 1 x 1/4" TS Phone, Unbalanced
Audio In 2 Line: 1 x 1/4" TS Phone, Unbalanced
MIDI In | | Headphone Output | Yes, 1/4" TRS Stereo Phone | | SCSI | No | | Internal Storage | No | | External Storage | MIDI System Exclusive | | Display | 3-Digit x 1 Line, 8-Segment LED | | Dimensions (WxDxH) | 20.63 x 9.13 x 2.76" (524 x 232 x 70mm) | | Weight | 4.85 lb (2.2 kg) | | Specialties | Condenser Mic and Vocoder
Master MIDI Controller Keyboard Capability
AA Battery or AC Powered | | | | Package Weight | 8.0 lb | | Box Dimensions (LxWxH) | 26.0 x 12.0 x 5.5" |
