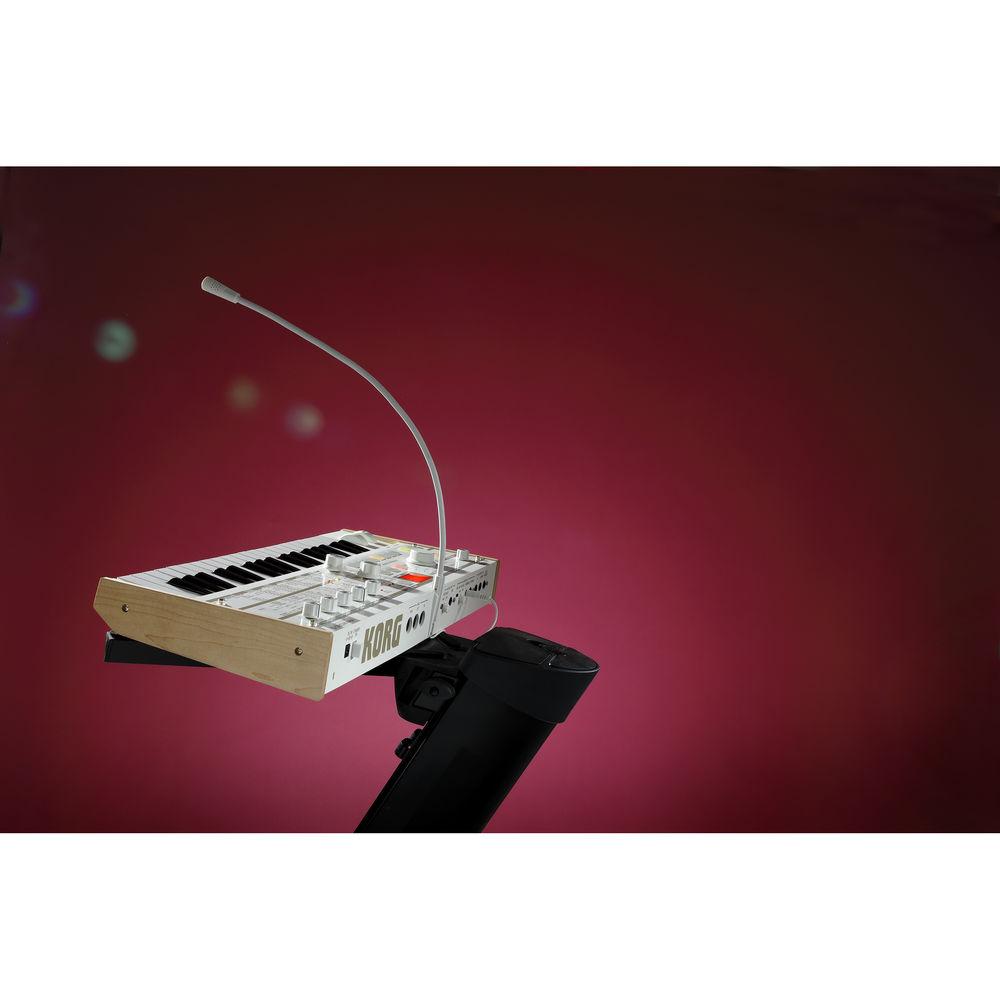

User Manual for Korg microKORG S Synthesizer Vocoder Click to enlarge the picture
Contents of the user manual for the Korg microKORG S Synthesizer Vocoder
- Product category: Synthesizer Keyboards Korg
- Brand: Korg
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Korg Synthesizer Keyboards
 |
User manual for the Korg microKORG S Synthesizer Vocoder contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Korg product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Korg user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Korg product will considerably shorten its lifespan!
|

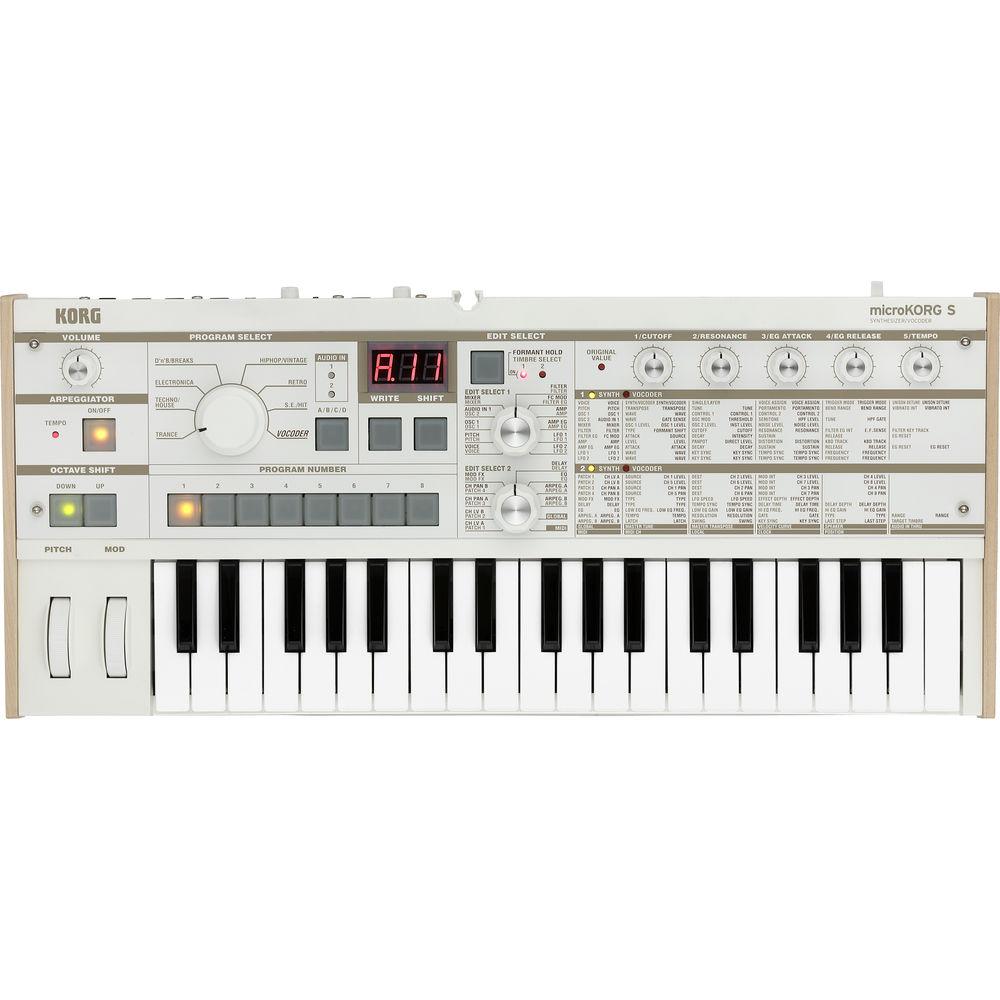

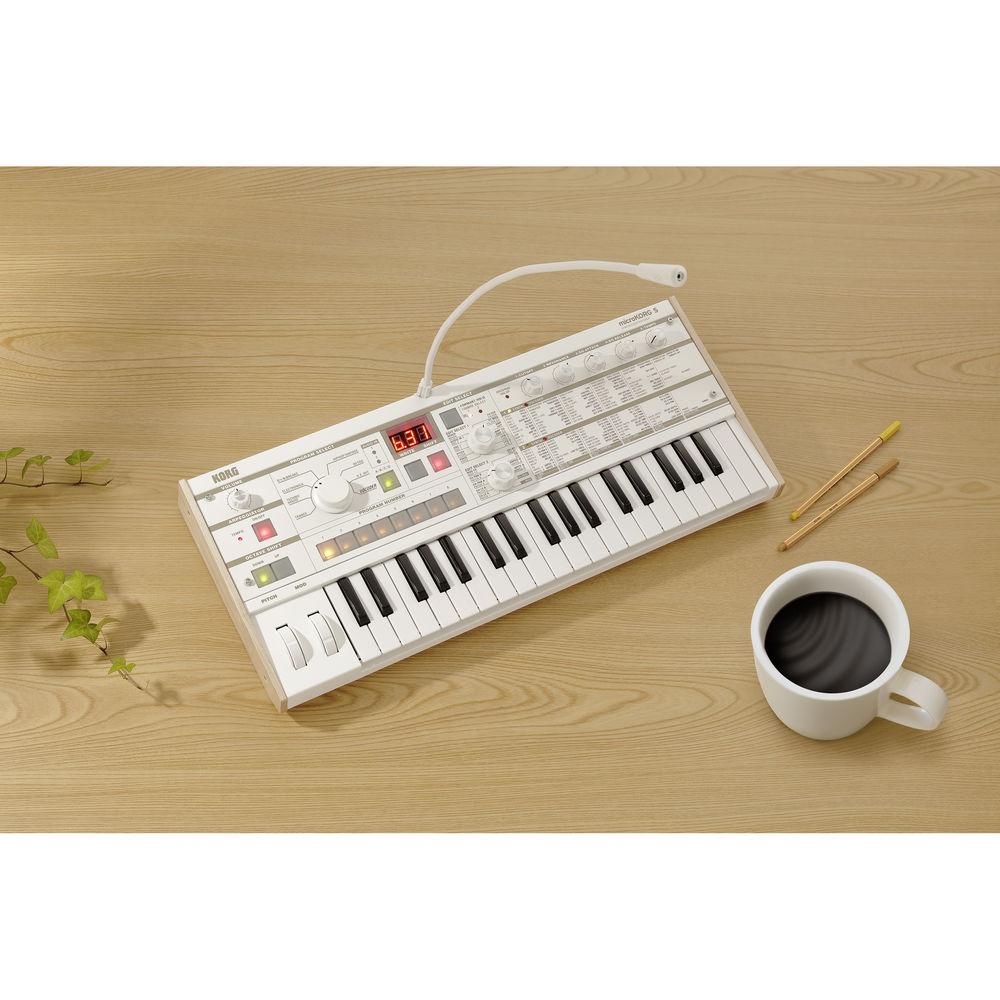

Product description Vocode like Crazy with the Korg microKORG S Synthesizer/Vocoder Read More The MicroKORG S from Korg is a synthesizer/vocoder housed in a compact but rugged enclosure and features thirty-seven velocity-sensitive "Natural Touch" mini keys and an integrated high-quality 2+1 sound system. Combining analog modeling with a vocoder provides the user with a wide range of styles and sounds. The microKORG S features an updated sound set with 256 presets and 64 user sets for saving your own creations. What's more, eight favorites can be saved to the quick program selection for quick performance sets.

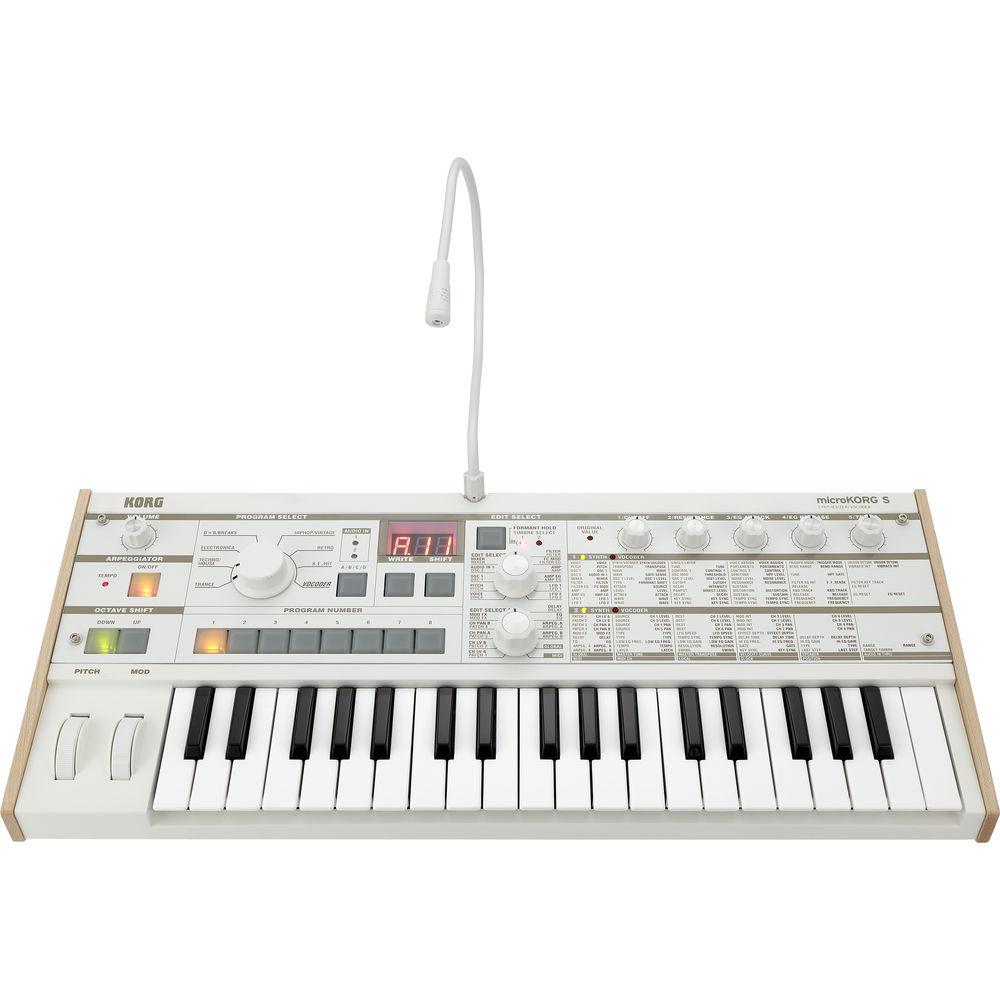

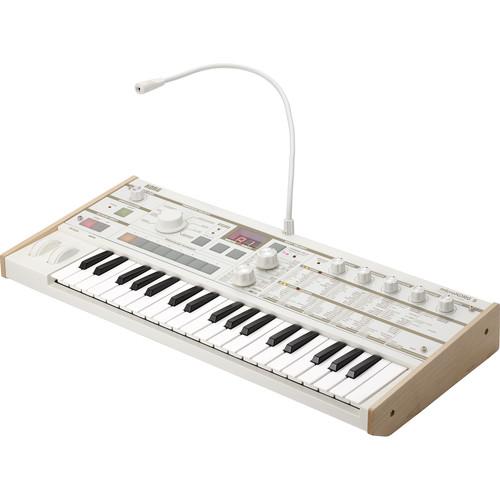

The vocoder consists of an 8-band filter bank that simulates the sounds of the past, while also allowing for filter-frequency shifting (Format Shift), or adjusting the level and pan of each band to dramatically change the overall character of a sound. A gooseneck microphone is included. Two master effects utilize the effect engine from the company's Kaoss Pad series, with a total of seventeen types including delay and echo, a ring modulator and grain shifter. Time-based effects can be synchronized to MIDI clock. - What's Notable

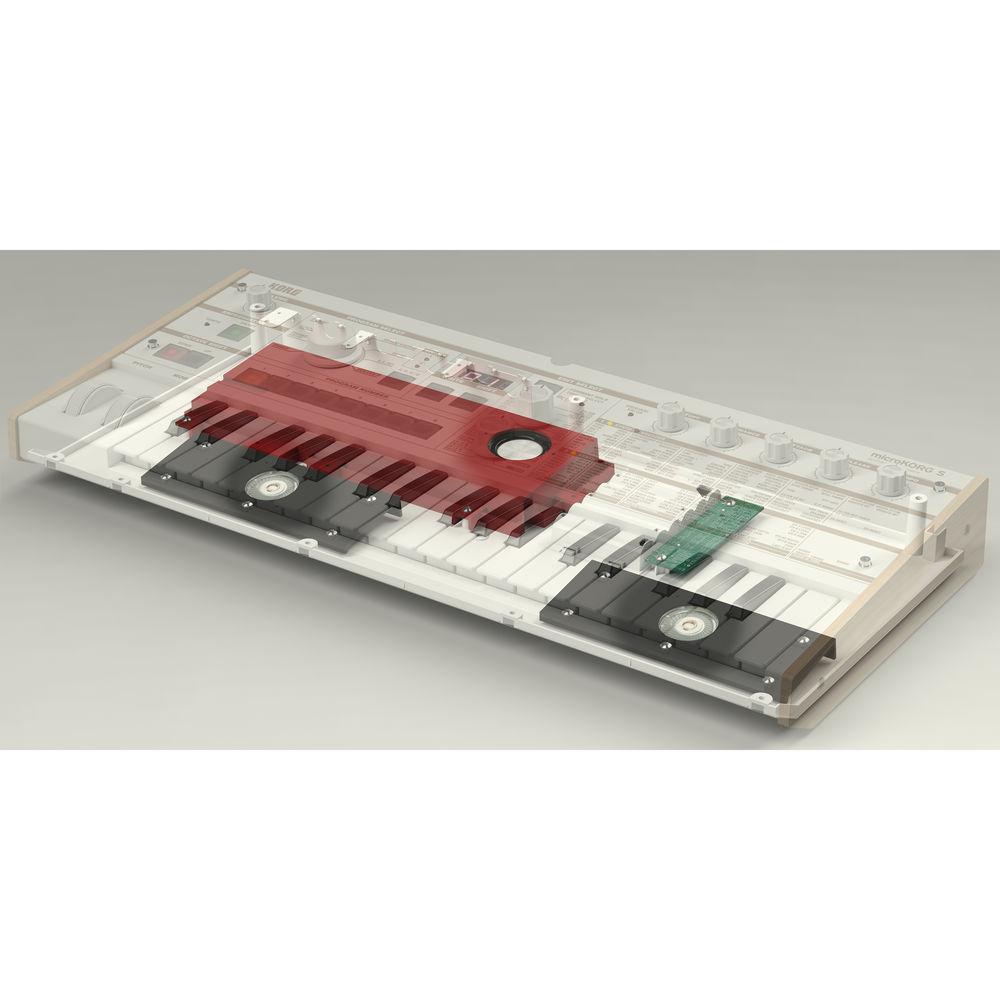

- Built-in 2+1 speaker system ensures a rich and full sound at any volume
Increased memory and additional factory and user programs
Elegant design retains the spirit of the original
Favorite Select function
All of the functionality of the original microKORG - Analog-Modeling Synthesizer
- The analog-modeling system of the microKORG S uses DSP technology to simulate an analog synthesizer. Starting with a variety of different oscillator algorithms (such as the sawtooth and square waves familiar to users of analog synthesizers) you can use the various controls located on the front panel to edit any sound, or to create sounds of your own. All sound parameters are organized into “sections”—by selecting the appropriate section and turning the appropriate knob you can edit sounds quickly, easily and intuitively. You can also modify the sound in real time as you perform
- Number of Timbres: Maximum 2 (when layer is used)
- Maximum Polyphony: 4 voices
- Structure: 2 oscillators + noise generator: sawtooth wave, square wave, triangle wave, sine wave, Vox wave, DWGS x 64, Noise, Audio In (eight types)
- PWM function, OSC Sync function, Ring Mod. function, OSC Sync+Ring Mod. function
- Multimode filters: -24 dB/oct LPF, -12 dB/oct LPF, -12 dB/oct BPF, -12 dB/oct HPF (four types)
- Filter EQ, Amp EG, LFO1, LFO2 (LFO: six waveforms, can be synchronized to the arpeggiator or to external MIDI clock)
- Vocoder
- You can connect a mic to one of the microKORG S's AUDIO IN 1 jacks, and use it as a vocoder – a device that imposes the spectral character of a voice (or other audio signal) on the sound of an oscillator, producing the impression that the oscillator is speaking. The vocoder consists of eight channels (sixteen filters used in pairs). In addition to simulating the sounds of classic vocoder units, you can change the filter frequency and adjust the level and pan of each band to create original vocoder sounds
- Maximum Polyphony: 4 voices
- Structure: 8-channel vocoder, adjustable level/pan for each channel, Formant Shift function, 1 oscillator + noise generator (eight types)
- Filter EG, Amp EG, LFO1, LFO2 (LFO: six waveforms, can be synchronized to the arpeggiator or to external MIDI clock)
- 256 Built-In Programs
- The microKORG S contains 256 built-in programs. When shipped, the TRANCE-S.E./HIT banks contain synth programs, and the VOCODER bank contains vocoder programs
- External Input Source
- The waveform of an external audio source can be input via the Audio In 1 and 2 jacks, and processed in the same way as the internal waveforms
- Virtual Patch Function
- Modulators and controllers such as filter EG, amp EG, LFO 1/2, keyboard tracking, and wheel can be virtually patched (without using actual patch cables) to parameters such as pitch, cutoff, and amp. This gives you even more creative flexibility
- Effects
- For even greater possibilities, the microKORG S provides three types of modulation effect, three types of delay, and an equalizer. The delay effect can be synchronized with the arpeggiator or an external MIDI clock, allowing numerous applications in live performance
- Step Arpeggiator
- The microKORG S's arpeggiator lets you produce an arpeggio simply by holding down a chord. You can choose from six arpeggio types, and adjust the duration and spacing of the arpeggiated notes. You can also specify whether a note will be on or off for each of up to eight steps, letting you create a broad range of modified rhythms and other effects
In the Box Korg microKORG S Synthesizer/Vocoder 9 VDC AC Power Adapter Gooseneck Microphone Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Korg microKORG S Synthesizer Vocoder in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKorg MICROKORGS Specs | Sound Generation | Analog modeling synthesis system | | Multitimbral | 2 (max, Split/Dual Mode) | | Structure | 2 x Oscillators + Noise Generator: Sawtooth wave, square wave, triangle wave, sine wave, Vox wave, DWGS x 64, Noise, Audio In (8 types)
PWM function, OSC Sync function, Ring Mod. function, OSC Sync + Ring Mod. function
Multimode filters: -24 dB/oct LPF, -12 dB/oct LPF, -12 dB/oct BPF, -12 dB/oct HPF (4 types)
Filter EG, Amp EG, LFO1, LFO2 (LFO: six waveforms, synchronizable to arpeggiator or external MIDI clock) | | Vocoder | Maximum polyphony: 4 voices
Structure: 8-channel vocoder, adjustable level and pan for each channel, Formant Shift function 1 oscillator + noise generator (8 types)
Filter EG, Amp EG, LFO1, LFO2, (LFO: six waveforms,
synchronizable to arpeggiator or external MIDI clock) | | Programs | 256 programs (192 Presets / 64 Users)
Up to eight favorite programs can be registered | | Effects | Modulation effects: flanger / chorus, phaser, ensemble (3 types)
Delay: stereo, cross, L/R (3 types)
Equalizer | | Arpeggiator | 6 types (UP, DOWN, ALT1/2, Random, Trigger), Step Arpeggiator function | | Controls | 5 x Real-time control knobs

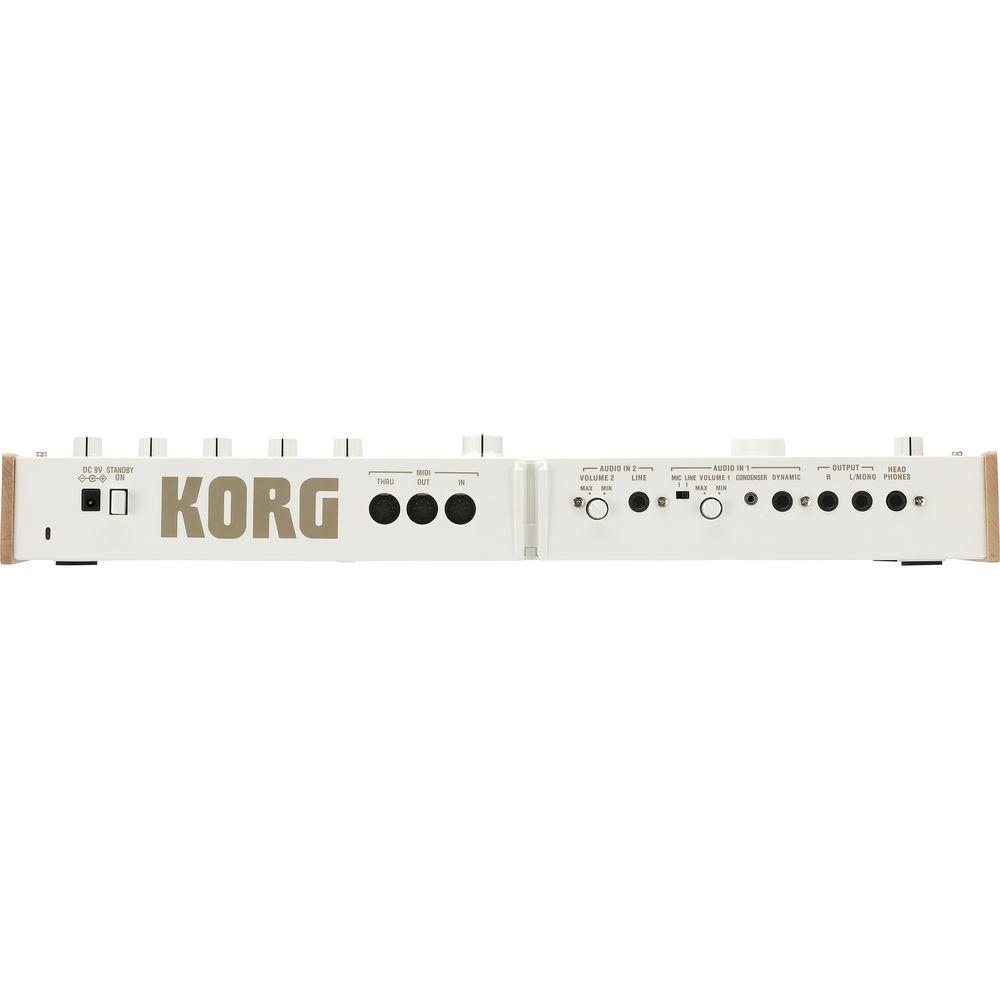

Arpeggiator On/Off | | Keyboard | 37 keys (mini keyboard, velocity-sensitive) | | Inputs | Audio In 1 Condenser jack (with MIC/LINE switch)
Connector +5 V mini-phone jack
Audio In 1 (Line)
Input impedance: 39 kOhms
Maximum input level: -3.5 dBu (Volume 1: Max)
Audio In 1 (Mic)
Input Impedance: 22 kOhms
Maximum Input Level: -33 dBu (Volume 1: Max)
Audio In 1 Dynamic Jack (with MIC/LINE switch)
Connector 1/4" phone jack (unbalanced)
Audio In 1 (Line)
Input Impedance: 39 kOhms
Maximum Input Level: -3.5 dBu (Volume 1: Max)
Input Impedance: 600 Ohms
Audio In 1 (Mic)
Input Impedance: 22 kOhms
Maximum Input Level -33 dBu (Volume 1: Max)
Input impedance: 600 Ohm
Audio In 2 Line Jack
Connector 1/4" phone jack (unbalanced)
Input Impedance: 39 kOhms
Maximum Input Level -3.5 dBu (Volume 2: Max)
Input Impedance: 600 Ohms | | Outputs | L/Mono, R Jacks
Output Impedance: 1.1 kOhms (Mono: 550 Ohms)
Maximum Output Level: +0.0 dBu or more
Load impedance: 100 kOhms
Headphones Jack
Output Impedance: 10 Ohms
Maximum Output Level: 35 mW
Load Impedance: 33 Ohms | | Speaker Amplifier | Amp Output / Speaker:
1 x 3 W / 1.6" / 4.0 cm
2 x 0.5 W / 1.4" / 3.5 cm | | Display | 3 characters x 1 line with 8-segment LED | | Power Supply | 9 VDC (AC adapter)
6 x AA alkaline batteries (sold separately) | | Battery Life | Approximately 4 hours or more (when using alkaline batteries) | | Dimensions | 20.6 x 9.1 x 2.8" / 524.0 x 231.9 x 70.1 mm | | Weight | 5.5 lb / 2.5 kg | | | | Package Weight | 8.75 lb | | Box Dimensions (LxWxH) | 26.0 x 12.0 x 5.3" |
