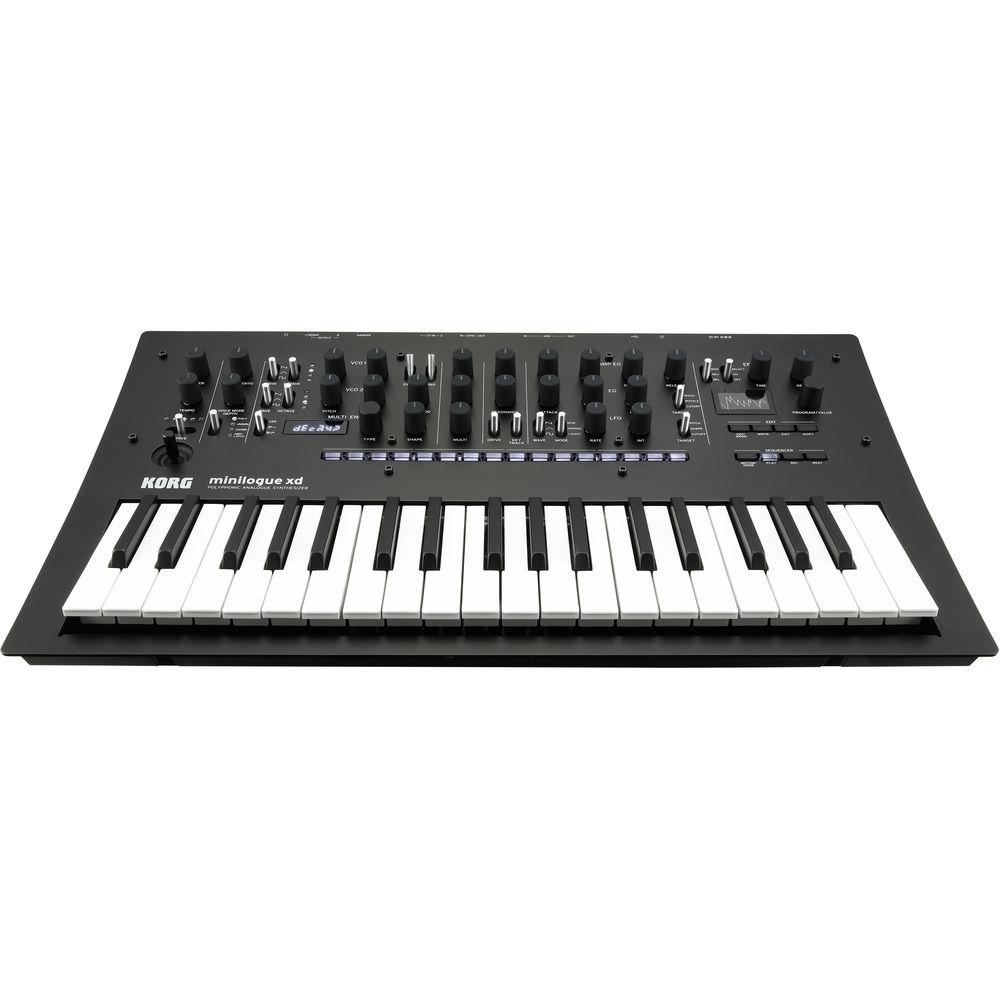

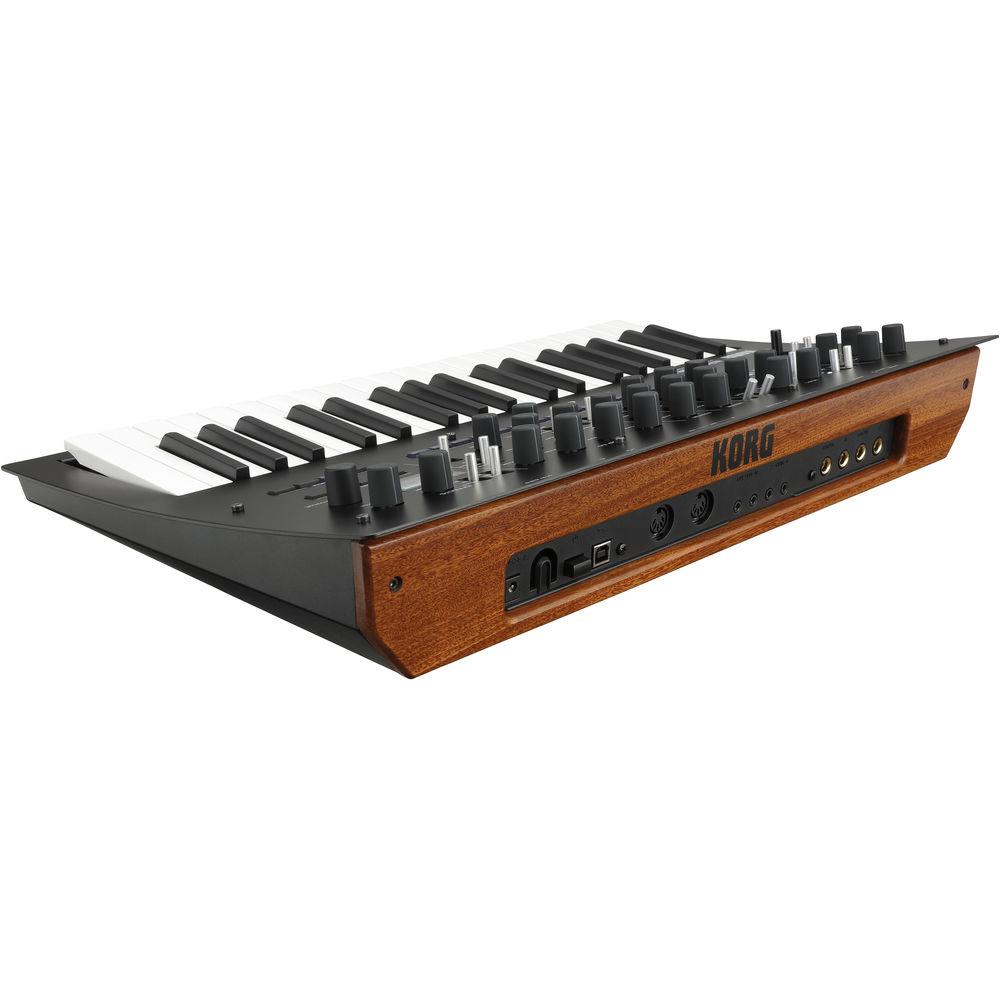

Product description - KORG minilogue xd: Analog Evolved
The 4-voice Korg Minilogue XD is Korg's latest polyphonic analog synthesizer that builds upon the success of the Minilogue, Monologue, and Prologue synthesizers and harnesses the most sought after features of each, culminating in one of the most advanced instruments available. By combining multivoice, multitimbre, and Multi Engine technology, the Minilogue XD utilizes a best of feature set from each 'logue product with additional features including a digital multi-engine, digital effects, a feature-rich sequencer, and microtuning, which further expands the possibilities for sound design and performance.
The synthesizer's architecture uses two VCOs + multi-engine (VCO3), a 12 dB/octave filter, two envelopes, a VCA, and an LFO. The multi-engine is equipped with three sound generation devices including a noise generator, a variable phase modulation (VMP/FM) generator, and a user oscillator, which allows you to load your own oscillator programs including custom wavetables via a free editor/librarian. The two-pole, low-pass filter with enhanced sharpness adds drive with powerful distortion, as well as a key-track switch. Its sound covers almost every sonic possibility: fat basses, powerful leads, and the lush pads that you expect from a polyphonic synthesizer.
Additional features include four voice modes, a powerful arpeggiator, a 16-step sequencer with step, real-time, & motion recording, and a 32-bit digital effects engine, which provides three simultaneous effects including modulation, reverb, and delay. The 37-note slim-key keyboard and assignable joystick provide remarkable touch and feel for inspired performances, while the OLED oscilloscope provides visual feedback of parameter changes in real-time. The Korg Minilogue XD ships with a power adapter. - General Features
-
- 4-voice analog synthesizer circuit
- 37-note slim-key keyboard with velocity sensitivity
- Digital multi-engine equipped with three modes: Noise, VPM, and User
- High-quality 32-bit digital effects (modulation, reverb, and delay)
- Open source software that can be customized by the user
- Bi-timbre support
- Voice modes that allow voices to be flexibly recombined
- Arpeggiator equipped with a variety of types and range settings
- 16-step polyphonic sequencer (step record, real-time record, motion record)
- Program Sort allows rapid access to 500 programs (200 factory & 300 user)

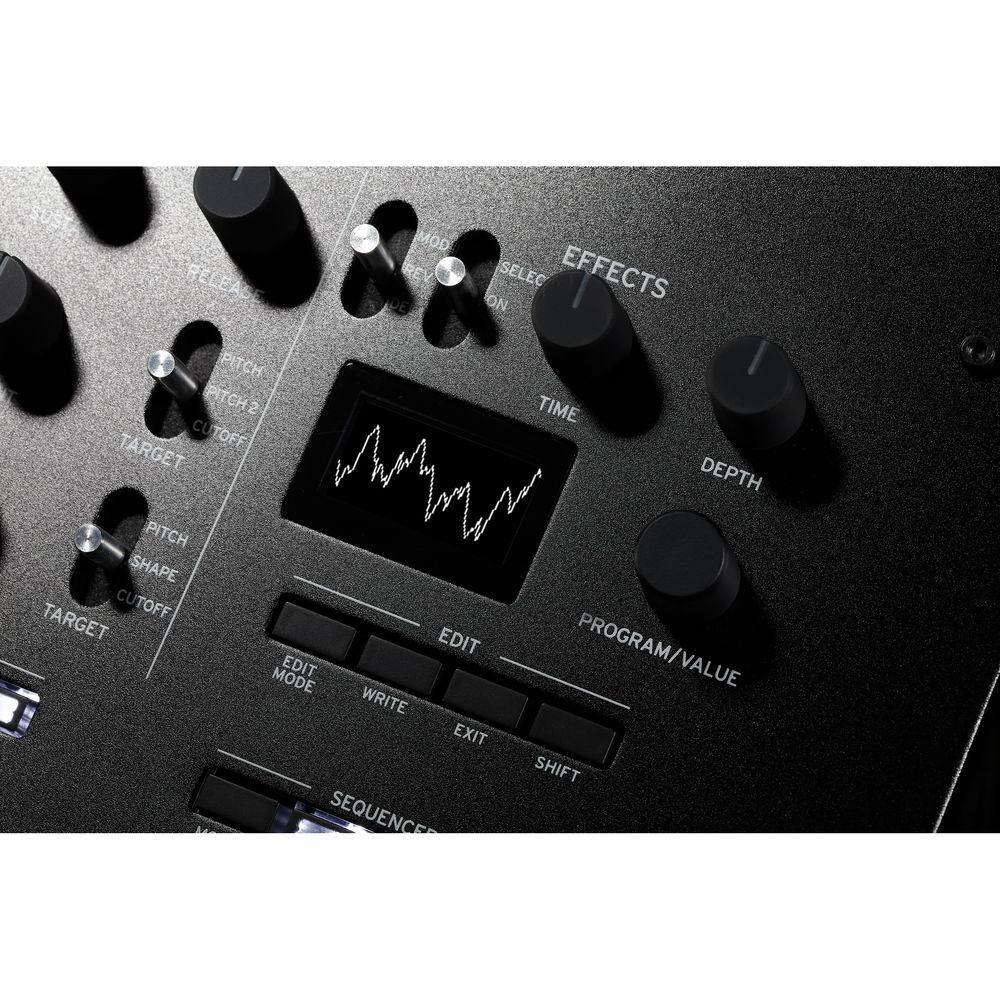

- OLED oscilloscope function shows the waveform visually
- Sync with another groove machine to enjoy jam sessions
- Multi-Engine
-
- The multi-engine is provided as VCO3, adding digital waveforms and FM via three different sound engines, which can be combined with the analog VCOs to expand Prologue’s sonic potential far beyond that of a traditional analog synthesizer
- Noise Generator: Four types of noise generators create percussive sounds or sound effects. Experience how digital filtering can produce direct changes in the color of the noise
- VPM Oscillator: The VPM (Variable Phase Modulation) / FM oscillator offers a metallic and sharp sound with complex overtones. With 16 types of oscillator and the Shape knob, you’ll have access to complex sound design possibilities
- User Oscillator: Load oscillator programs of your own creation. Sixteen slots are provided, and one type of morphing wavetable oscillator is built-in as a preset
- Voice Modes
-
- Four Voice Modes
- Poly: Operates as a poly synth with up to 4 voices. Turn the Voice Mode Depth knob to switch to Duo mode, in which the instrument operates with up to 4 voices
- Unison: Operates as an all-unison mono synth. Turn Voice Mode Depth knob to deepen detune
- Chord: Play chords using one to four voices
- Arp / Latch:
- Arp: Provides an arpeggiator with up to four voices that can also be used while the sequencer is running
- Latch: Switches latch on or off
- Effects
-
- 32-bit floating point DSP processing
- Add finishing touches to sound design platform
- Three Types of Effects: Modulation, reverb, delay
- Can be used simultaneously
- User effect slots allow you to load your own custom effect programs
- Program Sort
-
- The program sort function lets you instantly change the sorting order of the 500 programs
- Eight Program Sort Methods
- Prog Num: Sort by program number
- Category: Sort by program category
- Alphabetical: Sort programs alphabetically
- Like: Sort by programs that you liked
- Frequent: Sort by how frequently you used the program
- Envelope: Sort by envelope shape
- Random: Sort randomly
- Live Set: Sort programs registered in a live set
- Arpeggiator
-
- The powerful arpeggiator opens a world of limitless inspiration. It provides a four-octave range, and six arpeggiator types. From phrases that could not be performed on a keyboard to sequence-like sound designs, the arpeggiator can play a versatile array of roles
- Types:
- Manual
- Rise
- Fall
- Rise/fall
- Random
- Poly random
- User Customization
-
- Open source means that the Minilogue XD's development is ongoing. It provides 16 user oscillator slots and 16 user effect slots, and you can use the dedicated librarian software to create your very own oscillators and effect programs and load them into Minilogue XD
In the Box Korg Minilogue XD Polyphonic Analog Synthesizer with Multi-Engine (4-Voice) - Power Adapter
- Limited 1-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Korg Minilogue XD Polyphonic Analog Synthesizer with Multi-Engine in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKorg Minilogue XD Specs | Keyboard | 37 Keys (Slim-Key, Velocity Sensitive) | | Sound Generation | Analog Sound Generator + Multi-Engine Digital Sound Generator (Noise, VPM, User) | | Polyphony | 4 Voices | | Programs | 500 Programs (200 Factory, 300 User)
Each Program Provides Program Sort Function that Includes Voice Mode Settings
Favorite Function Built-In
| | Voices | Voice Mode: 4 (Poly, Unison, Chord, Arp/Latch)
Voice Mode Depth: Allows Different Parameters to be Varied for Each Mode | | Sequencer | 16-Step Polyphonic Sequencer Motion Sequence can be Used on up to Four Parameters | | Arpeggiator | 6 Types: Manual, Rise, Fall, Rise Fall, Random, Poly Random)

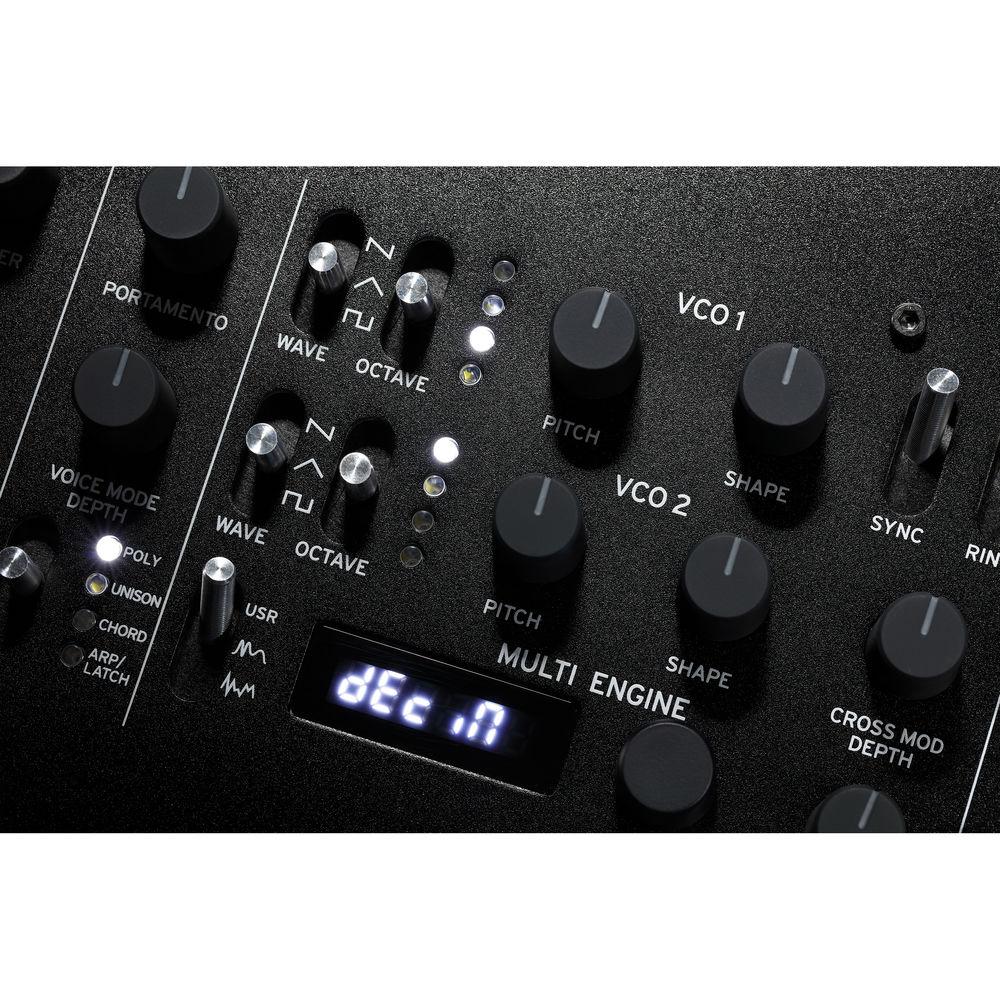

Tempo and Note Range Can Be Changed | | Synthesizer Structure | VCO1: Wave (Saw, Triangle, Square), Octave, Pitch, Shape
VCO2: Wave (Saw, Triangle, Square), Octave, Pitch, Shape
Modulation: Sync, Ring, Cross Mod Depth
Multi-Engine: Noise/VPM/User, Octave, Type, Shape
Multi-Engine Types:
Noise Generator: 4 types
VPM (Variable Phase Modulation) / FM Oscillator: 16 Types
User Oscillator: 16 slots
Mixer: VCO1, VCO2, Multi
VCF: Cutoff, Resonance, Drive, Keytrack
AMP EG: Attack, Decay, Sustain, Release
EG: Attack, Decay, EG Int, Target (Pitch, Pitch2, Cutoff)
LFO: Wave (Saw, Triangle, Square), Mode (BPM, Normal, 1-Shot), Rate, Int, Target (Pitch, Shape, Cutoff) | | Effects | Mod Effects:
Chorus: 8 Types
Ensemble: 3 Types
Phaser: 8 Types
Flanger: 8 Types
User: 16 Slots
Delay:
12 Types
User: 8 Slots
Reverb:
10 Types
User: 8 Slots | | Controls | Joystick: Modifies Parameters for Each Program
Knobs: Portamento | | Displays | Main: Real-Time OLED Oscilloscope Provides Visual Feedback of Parameter Changes

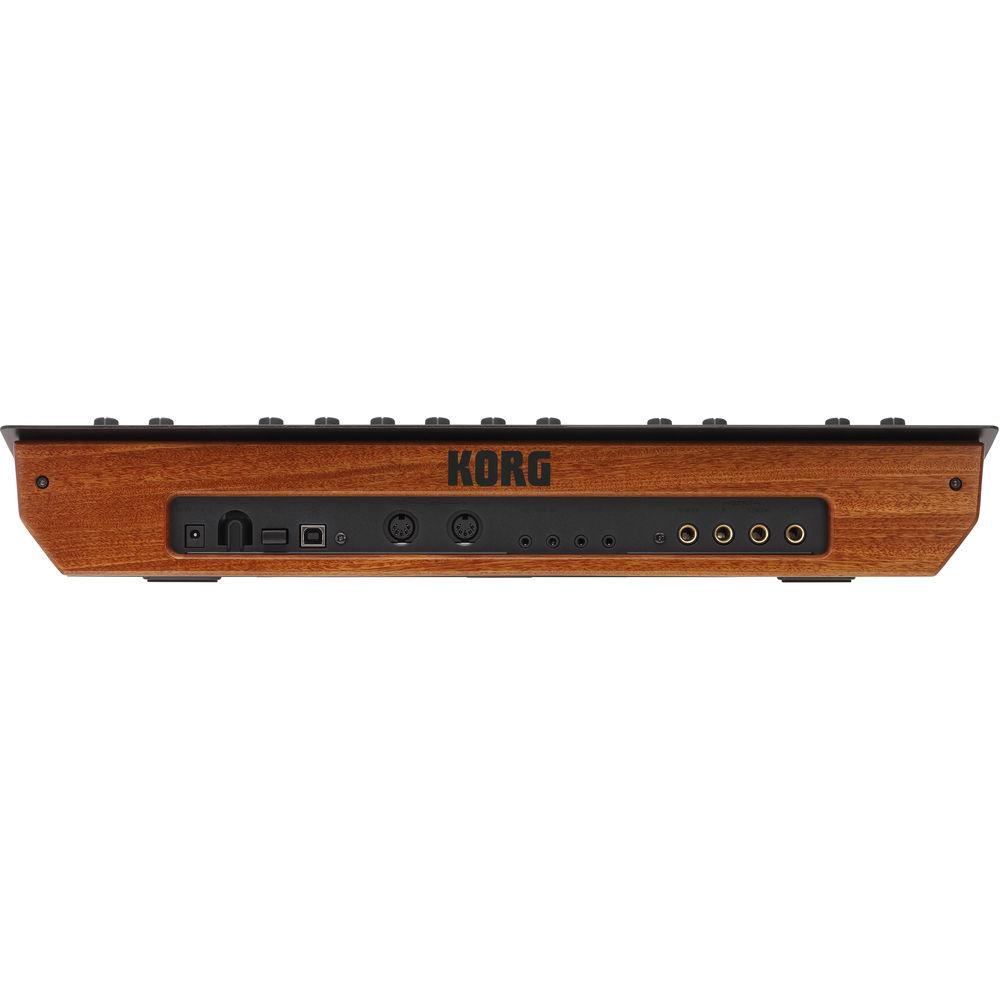

Multi-Engine Section: 7-Segment 6-Digit LED Display | | Inputs and Outputs | Audio:
Stereo Headphone: 1/4" / 6.35 mm TRS
Output (Left/Mono, Right) 2 x 1/4" / 6.35 mm TS
Sync:
Sync In: 1/8" / 3.5 mm (Maximum Input Level 20 V)
Sync Out: 1/8" / 3.5 mm (Output Level 5 V)
CV In: 2 x 1/8" / 3.5 mm
Controls:
MIDI: USB Type-B
TS MIDI I/O: 2 x 5-pin DIN
Damper/Sustain Jack: 1/4" / 6.35 mm (Half Damper is Not Supported) | | Control Voltage Inputs | CV Connector Voltages:
Modulation Mode: -5 to +5 V
CV/Gate Mode: -3 to +5 V | | Power | Power Supply: 9 VDC Adapter
Power Consumption: 8 W | | Dimensions (W x D x H) | 19.7 x 11.8 x 3.4" / 500 x 300 x 85 mm | | Weight | 6.2 lb / 2.8 kg | | | | Package Weight | 8.64 lb | | Box Dimensions (LxWxH) | 24.4 x 16.5 x 6.1" |
