Product description - Korg Monologue: Quick Listen
- Choosing Your First Hardware Synthesizer for Under $1000

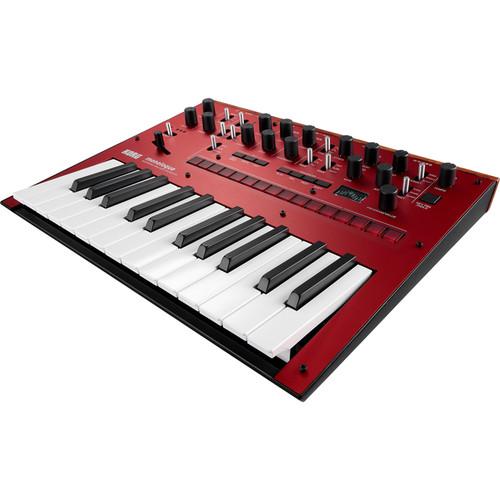

The red Monologue from Korg is a monophonic all-analog synthesizer with a fully programmable single-voice architecture and 100 fully editable presets, well suited for musicians and analog enthusiasts. Building upon the success of the Minilogue Polyphonic Synthesizer, Korg reworked the knob-per-function layout, voicing, and sound-sculpting abilities to create a distinctive-sounding instrument for all types of musicians and sound designers.
The synth offers two VCOs and a redesigned filter with a powerful low-end punch. A drive circuit has been added to apply aggressive overtones and distortion to the sound for huge bass sounds and sharp lead tones. The LFO rate can be adjusted into an unprecedentedly ultra-high-speed range to generate crazy space-shattering sounds, or it can be switched to one-shot mode to act as an additional envelope. The OLED display offers parameter information and features a real-time oscilloscope, providing eye-catching visual feedback on the sound being played. A 16-step sequencer not only records notes, but motion sequences of knob movements as well.

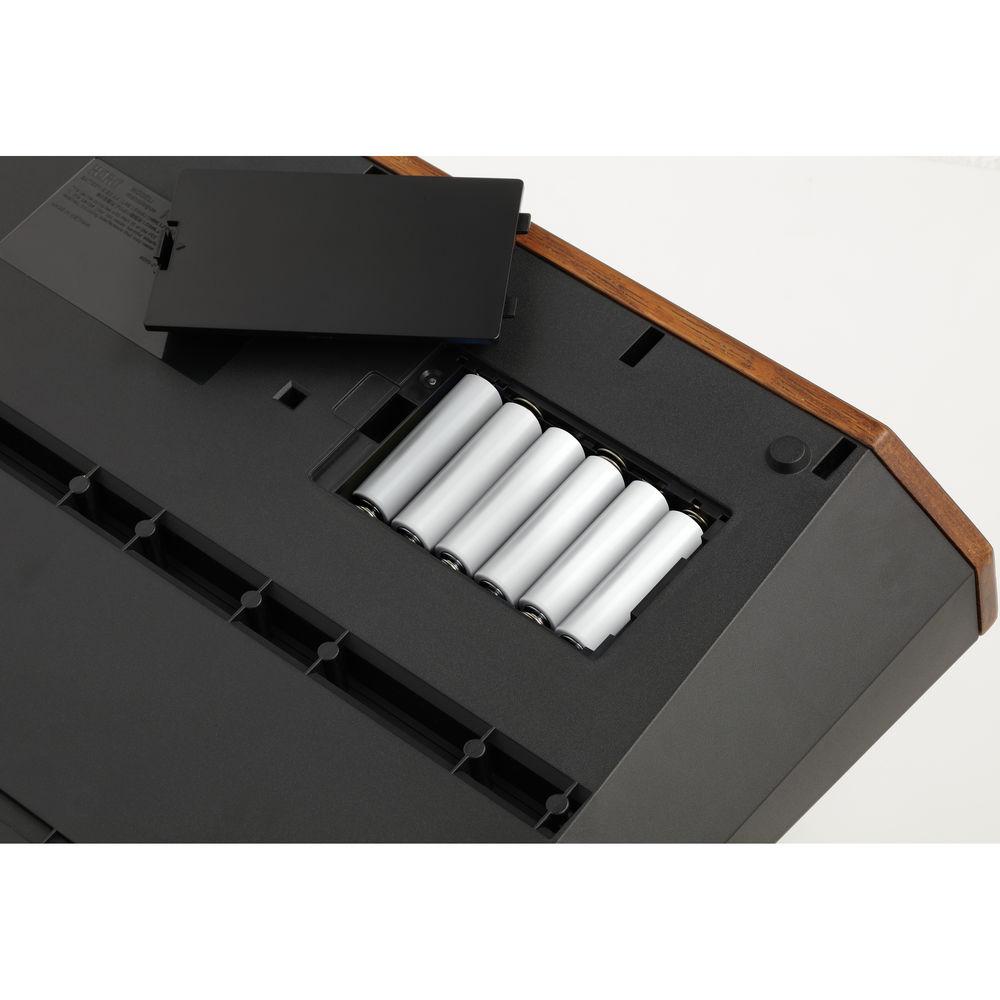

The Monologue has a set of factory tuning as well as 12 user slots for creating custom microtunings. Aphex Twin has come onboard as an advisor for the implementation and also to offer scales, sounds, and sequences as part of the factory presets. The enclosure is crafted from a curved aluminum panel, populated by chassis-mounted metal shaft pots with rubber-coated knobs, and a solid pyinkado-wood rear panel. Programming is a breeze with a single-knob-per-function architecture that satisfies seasoned synth professionals and beginner programmers. The Monologue ships with six AA batteries and can be powered by an optional 9 VDC power supply. -
- Analog synthesizer with a redesigned synthesis structure optimized for monophonic inspiring sounds and sequences
- Fully programmable, with 100 program memories (80 presets included)
- 16-step sequencer with extensive motion-sequence technology to make your sound move
- Microtuning lets you freely create scales and alternate tonalities
- Oscilloscope function helps visualize the waveform in real time
- Battery-powered for portability
- Rugged and stylish with aluminum top panel, chassis-mounted pots, rubber-coated knobs, and real-wood back panel
- MIDI, USB MIDI, and Audio Sync for all types of in-studio and live connectivity, including direct sync with minilogue, SQ1, volca, electribe, and more
In the Box Korg Monologue Monophonic Analog Synthesizer (Red) 6 x AA Batteries Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Korg Monologue Monophonic Analog Synthesizer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKorg MONOLOGUERD Specs | Keyboard | 25 slim keys with velocity sensitivity | | Polyphony | 1 | | Synthesis Method | Analog | | Presets | 100 programs (80 Presets / 20 Users)
Each program includes microtuning and sequence data settings | | Synthesizer Structure | Master: Drive
VCO1: Wave (Saw, Triangle, Square), Shape
VCO2: Octave, Wave (Saw, Triangle, Noise), Sync/Ring, Pitch, Shape
Mixer: VCO1, VCO2
Filter: Cutoff, Resonance
EG: Type (A/D, A/G/D, G), Attack, Decay, Int, Target (Pitch, Pitch 2, Cutoff)
LFO: Wave (Saw, Triangle, Square), Mode (Fast, Slow, 1-Shot), Rate, Int, Target (Pitch, Shape, Cutoff) | | Sequencer | 16-step monophonic sequencer
Motion sequence can be used on up to four parameters - See more at: | | Tuning Modes | Microtuning: 32 settings (20 Preset tunings / 6 User scales / 6 User octaves)

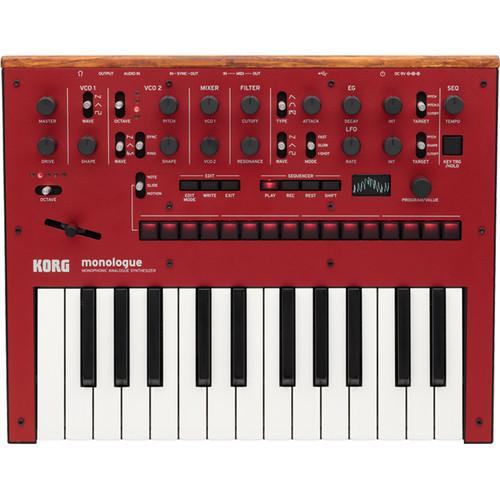

Each setting can be set to the key | | Controls | 23 dedicated panel controls deliver immediate parameter access

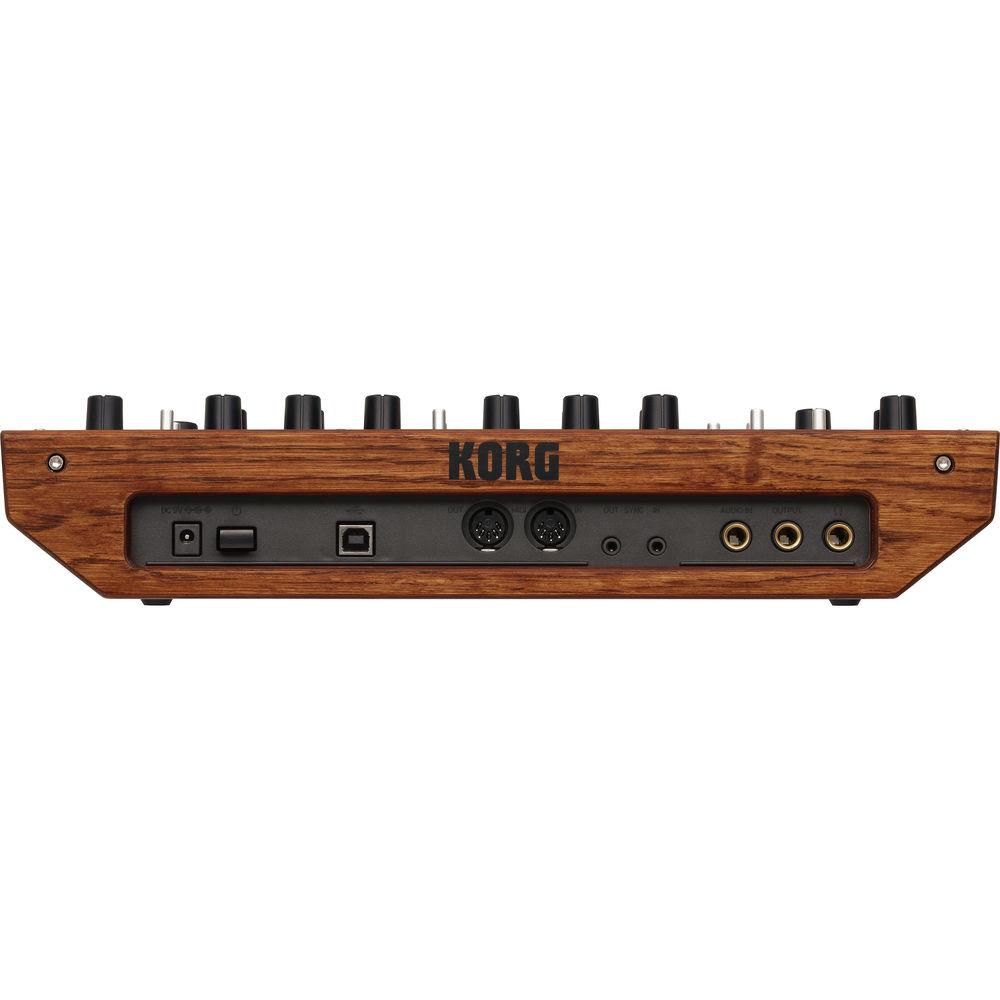

A slider can control different parameters for each program | | Display | Real-time OLED oscilloscope provides visual feedback of parameter changes | | Connectors | Headphones: 1/4" / 6.35 mm stereo phone jack
Output: 1/4" / 6.35 mm monaural phone jack
Audio In: 1/4" / 6.35 mm monaural phone jack
Sync In: 1/8" / 3.5 mm monaural mini jack
Sync Out: 1/8" / 3.5 mm monaural mini jack
MIDI In
MIDI Out
USB Type-B | | Power Supply | 6 x AA alkaline battery or AA nickel-metal hydride battery
AC adapter (9 VDC) (optional) | | Power Consumption | 2.5 W | | Dimensions (WxDxH) | 13.8 x 10.9 x 3.0" / 350.0 x 276.1 x 75.9 mm | | Weight | 3.8 lb / 1.7 kg | | | | Package Weight | 5.65 lb | | Box Dimensions (LxWxH) | 16.4 x 14.1 x 4.2" |
