User Manual for Korg Monotron DELAY Analog Ribbon Synthesizer Click to enlarge the picture
Contents of the user manual for the Korg Monotron DELAY Analog Ribbon Synthesizer
- Product category: Synthesizer Keyboards Korg
- Brand: Korg
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Korg Synthesizer Keyboards
 |
User manual for the Korg Monotron DELAY Analog Ribbon Synthesizer contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Korg product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Korg user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Korg product will considerably shorten its lifespan!
|
Product description - Korg Monotron Duo and Delay Demo

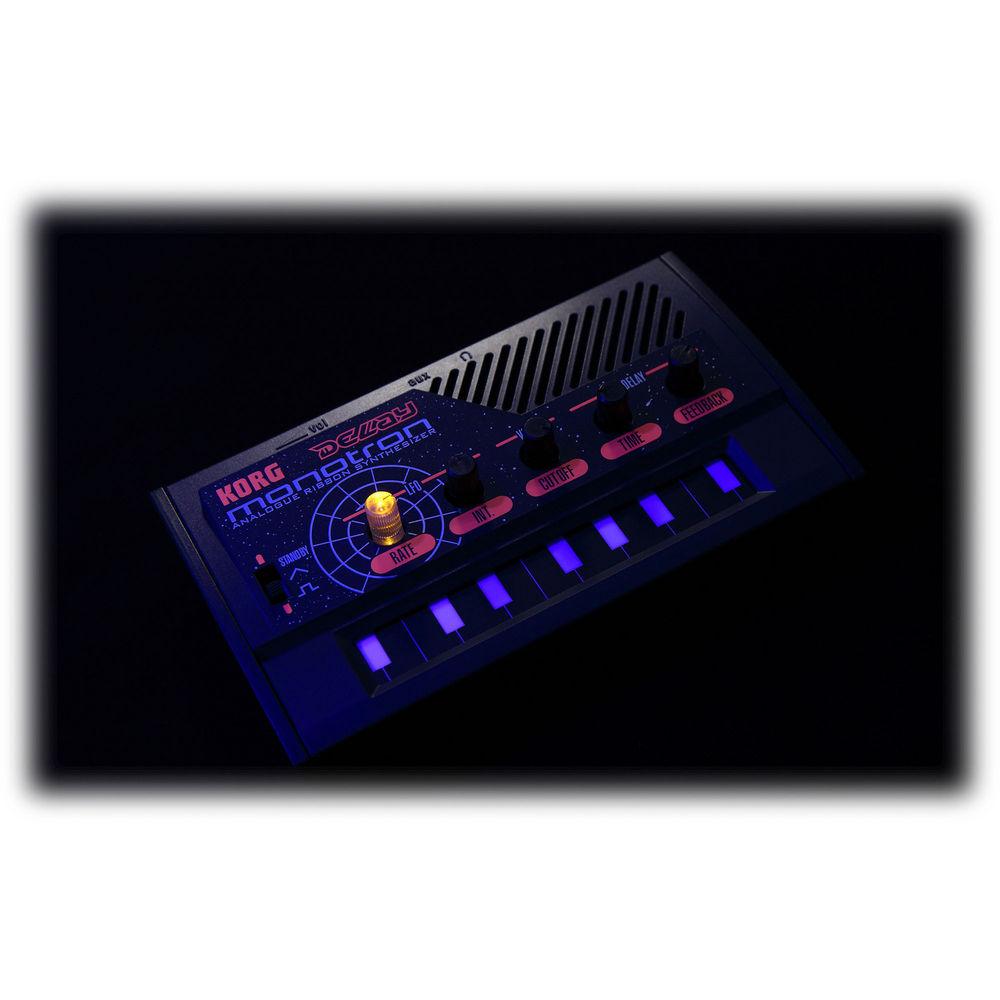

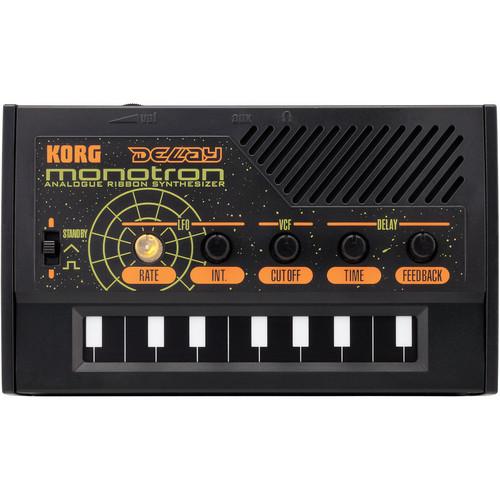

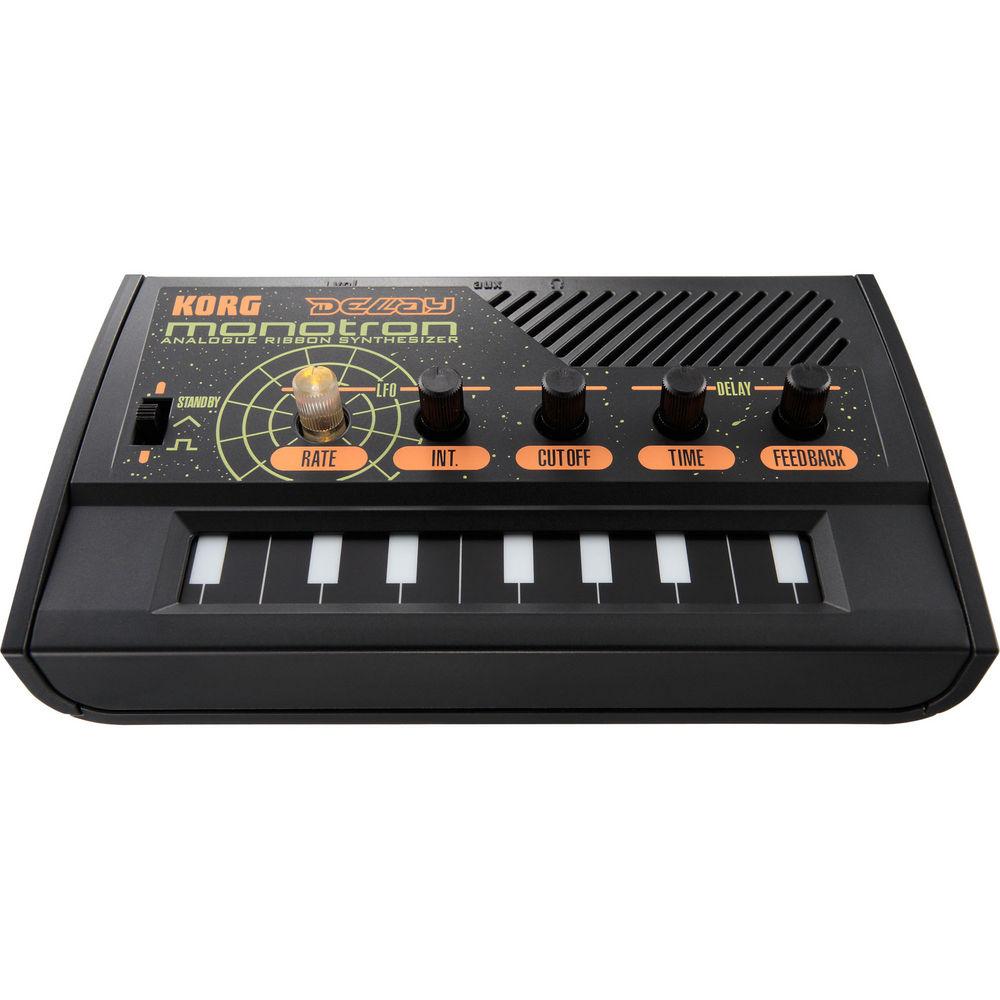

The Monotron DELAY Analog Ribbon Synthesizer by Korg is a pocket sized, all-analog synthesizer optimized for sound effects with a miniature ribbon keyboard, built-in speaker, headphone jack and 1/8" (3.5 mm) mini Aux input. In addition to its analog oscillator, filter and LFO, it also provides an essential Space Delay for swooping, cosmic type sounds.
Play the keyboard with a swiping finger motion across the ribbon and discover a wealth of possibilities for performances, DJs and entertainment. The Monotron DELAY features the same analog (VCF) filter found in the legendary Korg MS-10 and MS-20; and the VCF and LFO sections provide seemingly limitless programming. Its portable, pocket-sized design can be taken nearly anywhere and powered with just two AAA batteries. - True analog synthesizer with ribbon keyboard and waveshape, rate and intensity control
- Space delay and VCF with time, feedback and cutoff control
- Features the same classic analog filter found in the legendary Korg MS-10 and MS-20
- Filter any external source using the fun, intuitive controls and audio input jack
- LFO modulates pitch and filter cutoff
- Portable, battery operated and pocket-sized design
- Internal speaker or 1/8" headphone jack allows you to play it most anywhere
In the Box Korg Monotron DELAY Analog Ribbon Synthesizer Limited 1 Year Warranty User Manual PDF 6.6mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Korg Monotron DELAY Analog Ribbon Synthesizer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKorg DELAY Specs | Synthesizer Structure | 1 VCO (Sawtooth Wave)
1 VCF
1 LFO
Delay | | Knobs | LFO rate
LFO int.
VCF cutoff
Delay time
Delay feedback
Rear panel trim pot: LFO Shape | | Controllers | Wide range ribbon controller | | Connector | Aux input: 1/8" stereo jack
Headphone output: 1/8" stereo jack with volume | | Speaker | Miniature internal; disabled when headphones are in use | | Power | 2 x AAA alkaline batteries | | Battery Life | Approximately 8 hours (with alkaline batteries) | | Dimensions (WxDxH) | 4.72" x 2.83" x 1.10" (11.98 x 7.18 x 2.79 cm) | | Weight | 3.35 oz. (without batteries) | | | | Package Weight | 0.3 lb | | Box Dimensions (LxWxH) | 8.9 x 6.1 x 1.7" |
Rating94% users recommend this product to others. And what about you?
This product has already been rated by 30 owners. Add your rating and experience with the product.
