Product description The Nuvibe from Korg is a vibrato/chorus floor pedal that faithfully recreates the late-'60s original while adding several modern features, all created under supervision of the original designer. Starting with the creation of circuits that simulate hard-to-obtain parts, the distinctive modulation sound of the original unit has been perfectly reproduced.
As on the original model, the unit features a switch for selecting either vibrato or chorus, and intensity and speed knobs for varying the distinctive effect. The buffer circuit that was crucial to the sonic character has been redesigned, and a dedicated expression pedal is also included. Ten "wave" sliders have been added, allowing for custom LFO waveforms to be generated.
The CdS photoresistor at the heart of the original model was a component that used the varying brightness of a small lamp to modify the output signal. Unfortunately, this component is now classified as a hazardous material. Finding a substitute for this part was an absolute requirement in order to match the original model, and the solution was to simulate the process using transistors.
As on the original model, a dedicated expression pedal for controlling the modulation effect is included. There's also an unlatch switch that allows for cancelling the modulation effect by returning the pedal to the heel-down position. Additionally, the guitarist can use the unit's effect as a buffer amp, just as on the original model. Its two-way power supply allows operation on batteries as well as with an optional AC adapter. It also features a true bypass design. - Resurrected under the supervision of the developer of the original model
- Additional features added for today's musicians
- Discrete design using almost eighty transistors
- The CdS photoresistor that lies at the heart of the sound is simulated by an original circuit using transistors
- Wave sliders allow users to create their own LFO waveforms
- New buffer circuit designed by the developer of the original model

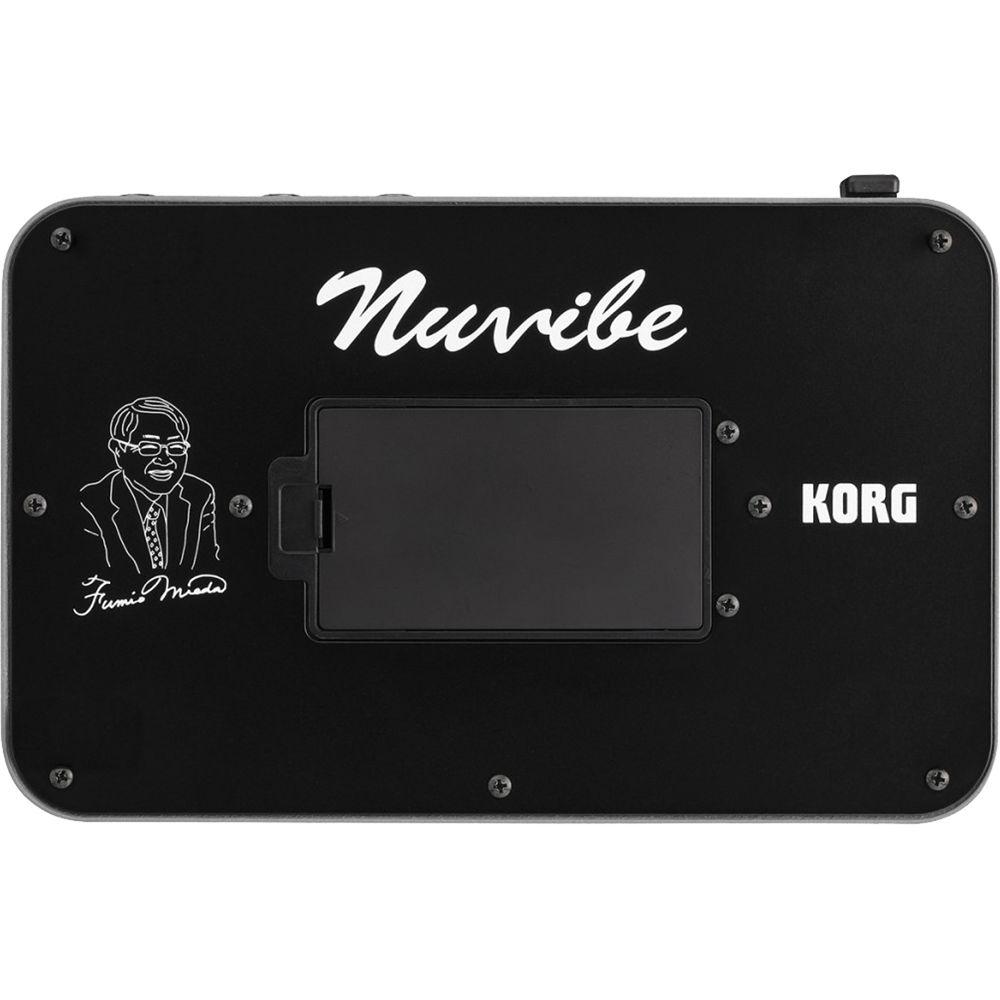

- Battery operation (six AA batteries allow up to four hours of operation)
- True bypass design that was not available on the original model
- Dedicated expression pedal included
- Unlatch switch bypasses the internal circuitry when the effect is off
In the Box Korg Nuvibe - Vibrato Chorus Effector 6 x AA Batteries (For Verifying Operation) Stereo Cable One (1) Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Korg Nuvibe - Vibrato Chorus Effector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

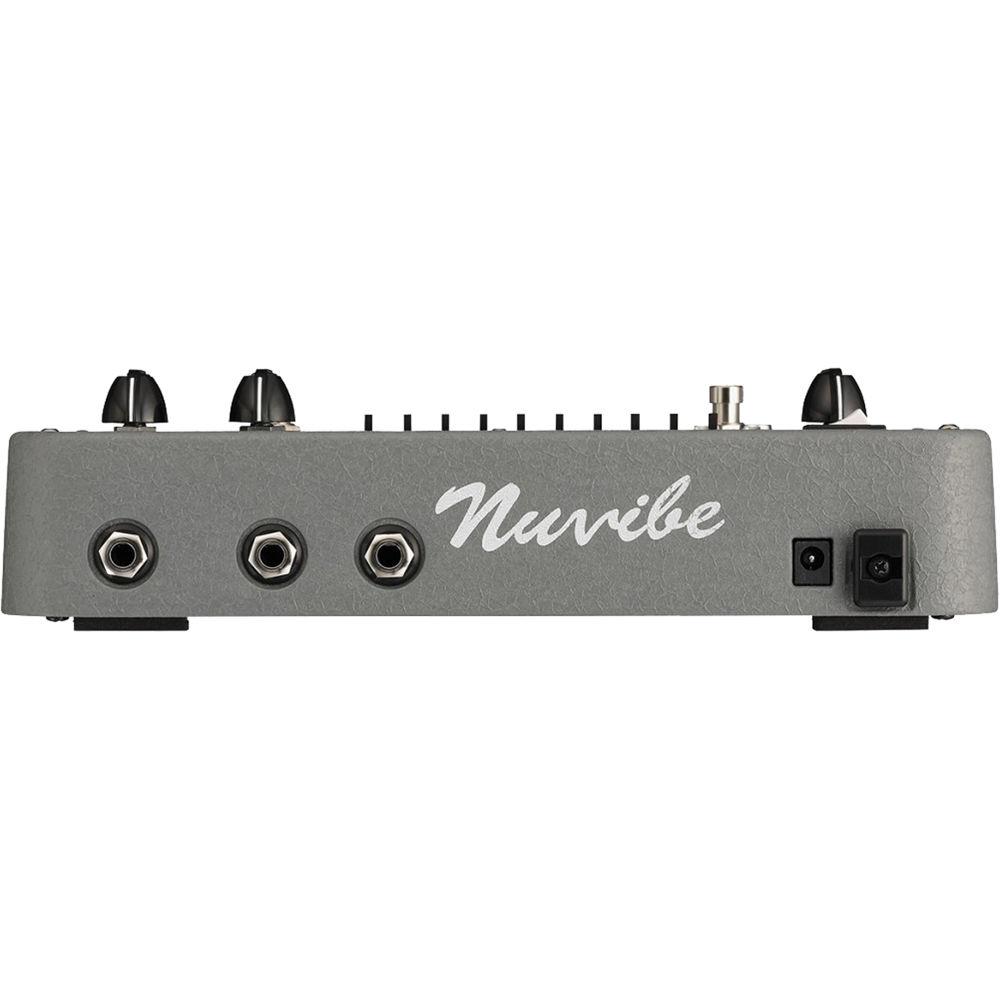

Technical parametersKorg NuVibe Specs | Input Impedance | 47 kΩ | | Output Impedance | 20 kΩ | | Connectors | 1 x 1/4" TS Input
1 x 1/4" TS Output, unbalanced
1 x 1/4" TRS Expression Pedal | | Power Requirements | 6 x AA batteries
9 VDC optional power adapter
200 mA power consumption | | Battery Life | Approximately 4 hours with alkaline batteries | | Dimensions (WxDxH) | Nuvibe Console: 10.2 x 6.7 x 2.6" (260 x 170 x 67 mm)
Expression Pedal: 3.7 x 9.7 x 3.2" (94 x 246 x 81 mm) | | Weight | Nuvibe Console: 3.3 lb (1.5 kg)
Expression Pedal: 2.4 lb (1.1 kg) | | | | Package Weight | 7.6 lb | | Box Dimensions (LxWxH) | 15.2 x 10.6 x 3.2" |
