User Manual for Korg OT120 Chromatic Orchestral Tuner Click to enlarge the picture
Contents of the user manual for the Korg OT120 Chromatic Orchestral Tuner
- Product category: Tuners Korg
- Brand: Korg
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Korg Tuners
|
User manual for the Korg OT120 Chromatic Orchestral Tuner contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Korg product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Korg user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Korg product will considerably shorten its lifespan!
|

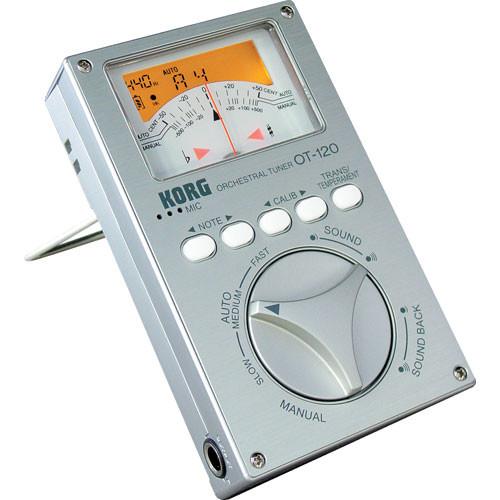

Product description The Korg OT120 Chromatic Orchestral Tuner is intended for orchestral instruments, precise metering packaged in a vertical design that's easy to hold and operate. It features a dual-display; an easy-to-see needle-type indicator, and a backlit LCD screen that shows the battery life, sound output level, calibration, key and note name. Additional design features include a large dial that makes it easy to select the desired mode and soft-touch buttons. Another of the OT120's advantages is its long battery life; 100 hours when running on two AAA batteries. It can also be used with an AC adapter (sold separately). It has a rear-mounted stand that lets the unit stand by itself. - Designed for Function
- The OT-120 chromatic tuner packs precise performance and sophisticated functionality in a vertical design that's easy to hold and operate. It includes a dual-display that includes an easy-to-see needle-type indicator. Its backlit screen shows the battery life, sound output level, calibration, key and note name. The design also includes a large dial, soft-touch buttons and a rear-mounted stand that lets the unit stand by itself.
- Tune Orchestral Instruments
- With its wide tuning range extending from A0 to C8, the OT-120 lets you quickly tune any type of band instrument including, orchestra, wind, string, brass or piano. The OT-120 also provides a wide range of calibration to support concert pitches in a range of A440=349-499 Hz (1 Hz steps).
- Precise Tuning
- The OT-120 uses a high-precision needle-type meter for accurate pitch discrepancy measurement. The speed at which the needle responds to the input can be changed to fast, medium or slow to match your tuning preference.
- Auto and Manual Tuning
- You can choose Auto mode, which automatically detects the pitch of a single note you play on your instrument, or Manual mode, which lets you specify the desired note name. In Manual mode the needle movement is shown in a range of plus or minus 50 cents, letting you view the tuning discrepancy over a wide range. In addition to the needle meter, the LEDs located below the meter also indicate pitch deviation or a perfect match, making precise tuning easy even in dim locations.
- Wide Range Reference Tone
- Sound Back mode provides a reference tone that's ideal for tuning string or wind instruments. The OT-120 produces a reference tone in a five-octave range extending from C2 (65.41 Hz) to C7 (2093 Hz).
- Transposing Keys
- This unit offers supports for transposing instruments and historical temperaments. For conveniently tuning any wind instrument, twelve types of transposing keys are provided, including both sharps and flats.
- Long Battery Life
- The OT-120 is designed for an extended battery life of approximately 100 hours when running on two AAA batteries.
UPC: 603384043986 In the Box Korg OT120 Chromatic Orchestral Tuner 1-Year Warranty User Manual PDF 182.6kbaxqyyeevuactxxza Table of Contents
|
Upload User Manual
Have you got an user manual for the Korg OT120 Chromatic Orchestral Tuner in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKorg OT120 Specs | Tempo Range | N/A | | Pitch Calibration Range | A0 (27.50 Hz) - C8 (4186 Hz)
Reference Tone: C2 (65.41 Hz) - C7 (2093 Hz), Five Octave, Two-Step Volume Control | | Connectors | Input 1/4" Jack, Output 1/4" Jack, DC IN (9 V) | | Speaker Type | Not Specified by Manufacturer | | Power Supply | 2 x AAA Batteries, or AC Adapter (Sold Separately) | | Battery Life | Approx. 100 hrs. (With Alkaline Batteries, in Meter Mode MEDIUM), Continuous A4 Tone, without Backlit) | | Dimensions (WxDxH) | 2.91 x 1.42 x 4.71" (in.) (74 x 36 x 120mm) | | Weight | 6.81 oz. (including batteries); 193 g (including batteries) |
Rating72% users recommend this product to others. And what about you?
This product has already been rated by 68 owners. Add your rating and experience with the product.
