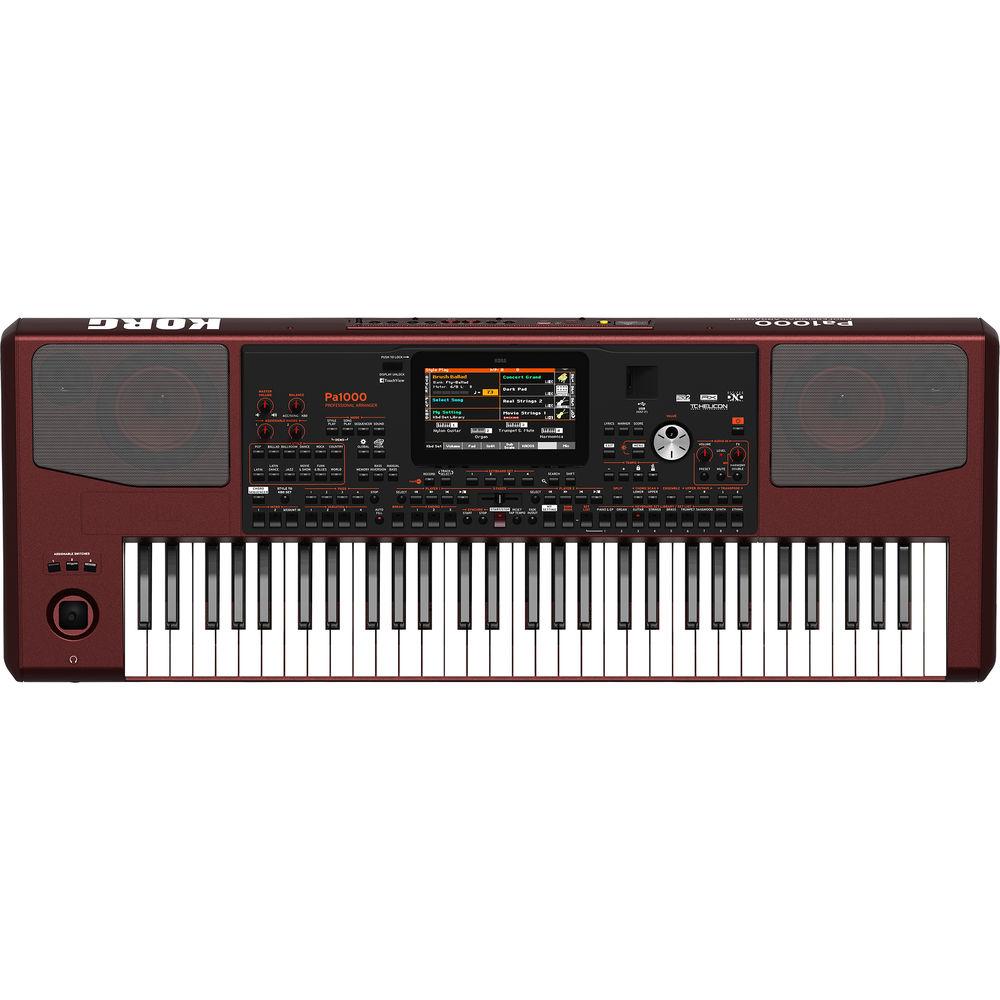

Product description

Feel the Keyboard
• The 61-key keyboard offers a semi-weighted action and features naturally responsive key-on/key-off velocity sensitivity and aftertouch. It is designed for musicians of all levels.

Slim, Powerful, and Easy to Use

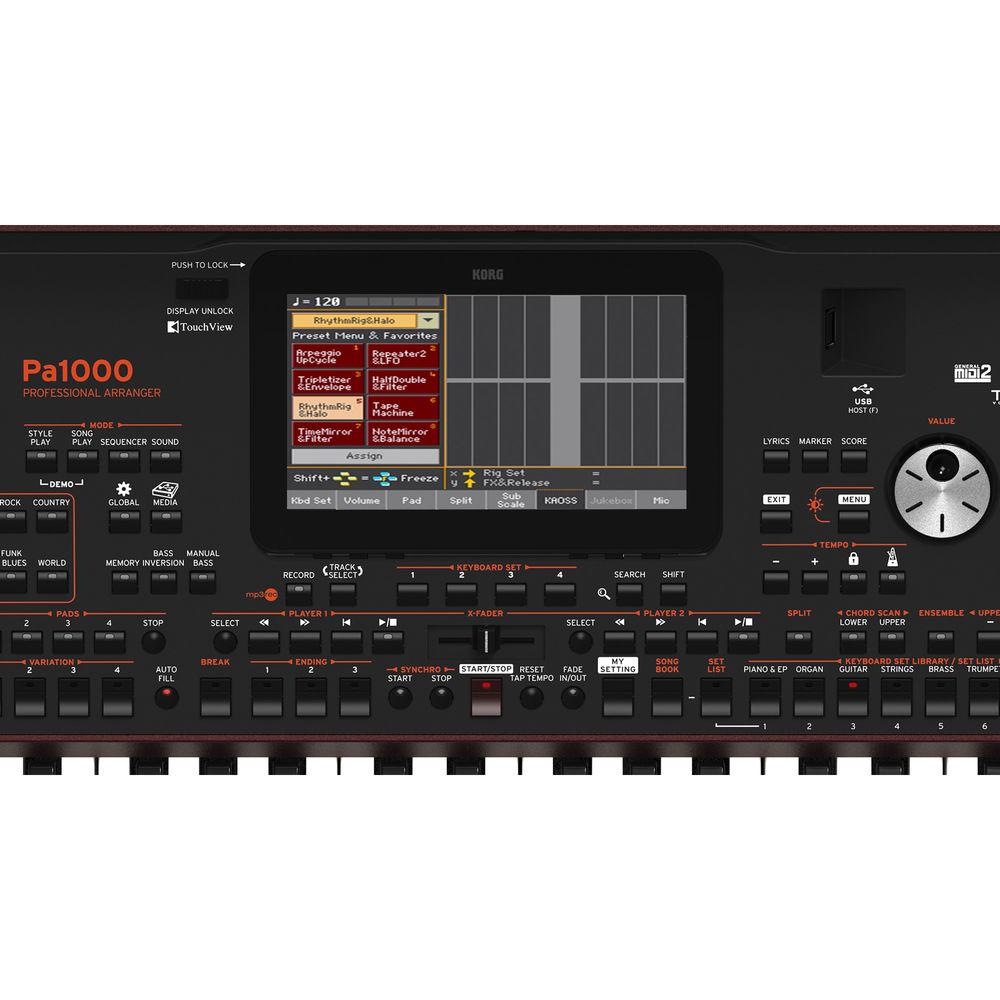

• Featuring a slim profile with a professional motif, the Pa1000 has two 33W amplifiers that drive four loudspeakers in a bass-reflex enclosure. It generates a rich, full-bodied listening experience. Furthermore, the main panel has been optimized to ensure that all controls are ergonomically positioned and located to deliver a smooth performance that is natural. The TouchView display has been redesigned and is easier to read, even under demanding lighting environments.

Sound Quality
• KORG's advanced EDS-X (Enhanced Definition Synthesis-eXpanded) sound engine comes complete with over 1750 ready-to-play sounds. The collection offers a gathering of classic and contemporary keyboards, band and orchestral instruments, plus electronic and acoustic instruments. Also included are two new multi-layer stereo grand pianos, plus electric pianos from the KORG SV-1 Stage Piano. Furthermore, the digital drawbar organ includes key on/off noises, leakage, and rotary speaker emulation. In addition, the Pa1000 has been equipped with new wind instruments, strings, basses, and acoustic and electric guitars.

Do It with Style
• The Pa1000 delivers over 430 Styles, straight out of the box. Each one is a fully realized musical environment dedicated to creating a particular musical style. It can provide instant access to a vast and robust range of musical genres. Each Style features 4 Fill Ins + Break patterns, one for each variation. Using the new Auto Fill function, they can be automatically recalled as you move between the four variations. Also, the Pa1000 has 1152 user locations in which to save your new Styles and settings. Each Style can be enhanced by using the four Pads. Each Pad can add a one-time or repeating riff, a percussion part, an accent sound, or even a sound effect.

Built-In Standard MIDI Files
• Thanks to an all-new, built-in Standard MIDI File to Style converter, you can quickly and easily have on-board styles of the latest songs! Just obtain a new Standard MIDI File, load it into the Pa1000, and the built-in converter will easily and quickly turn it into a full KORG style while also creating a chord sequence from the song's chords.

Studio-Quality Effects
• The Pa1000 includes popular selections from the KORG library. 2 insert and 2 master effects can be used for the accompaniment tracks, while 1 insert and 2 master effects can be used for the real-time keyboard tracks. 148 effect types are available, including reverbs, delays, vintage stomp box simulations, amp and cabinet simulators, and more.

TC-Helicon Voice Processor
• The TC-Helicon Voice Processor ensures your vocals have the highest possible sound quality. Up to 3 realistic voices are available and can be controlled by the keyboard, or by MIDI events. Five other effect blocks are available, including EQ, Compressor, Gate, and two FX.

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

Korg PA1000 Specs

Keyboard	61 semi-weighted keys (C2 to C7) with velocity and aftertouch
System	Upgradable operating system, multitasking, load while play
Sound Generator	EDS-X (Enhanced Definition Synthesis - eXpanded) Filters with resonance, 3-band EQ on each sound
Polyphony	128 voices, 128 oscillators
Effects	Accompaniment/Song: 2 insert effects; 2 master effects (148 types) Keyboard Sounds: 1 insert effect; 2 master effects (148 types) Final Mastering Effects: Limiter, master EQ Voice Processor: EQ, compressor, gate, 3-voice harmonizer (or double), 2 x FX Harmonizer and Double: Technology by TC-Helicon Presets: More than 30 factory, 64 user Guitar Processor: 3 x FX. Presets: 45 factory, 64 user
Sounds and Drum Kits	Factory: More than 1750 factory sounds, including two multi-layer stereo pianos with damper and body resonance, GM/XG sound sets and 107 Drum Kits User: 512 sounds, 256 drum kits Digital Drawbars: 9 footages, percussion, key on/off, leakage, rotary speaker effect DNC (Defined Nuance Control) technology, natural ambience drums full sounds/drum kits editing
Sampling	User PCM Sample Memory: 300 MB compressed (equivalent to 600 MB linear data) Loads KORG, WAV, AIFF, and SoundFont formats Saves KORG, WAV, and AIFF formats Full Edit, Time Slice, Sampling
Styles	Factory: More than 430 factory styles, freely reconfigurable sets User: 1152 locations, including user and direct banks Eight accompaniment tracks, 4 keyboard sets, 4 pads per style; style settings (Sounds and Arranger parameters) on each style Guitar mode 2, parallel and fixed NTT (Note Transposition Table) Style/pad record with step record, track and event edit Style creator Bot (MIDI song to style converter)
Style Controls	3 intros, 4 variations, 4 fills, break, 3 endings, synchro start, synchro stop, tap tempo/reset, bass inversion, auto fill, manual bass, memory, accompaniment mute, drum mapping, snare & kick designation, style to keyboard set mode
Chord Sequencer	Chord sequence recorder and player in style play mode Chord sequences can be saved to style and songBook entries Edit Functions: Delete, copy from style/songbook, import/export from/to SMF
Keyboard Set Library	Memorize keyboard sound settings Factory: More than 300 keyboard sets, freely configurable User: 864 locations, including user and direct banks 'My Setting' special keyboard set
KAOSS FX	Automatic MIDI FX generator with more than 65 factory presets
Song Play	Patented XDS crossfade dual sequencer player with X-fader control Supported Formats: MIDI, KAR, MP3+lyrics, MP3+G Two players with separate select, start/stop, home, rewind and fast forward controls Lyrics, score, and chord data can be displayed on screen, or on an external video monitor Markers with add, delete, edit, and loop functions Jukebox function
MP3 Player and Recorder	Double MP3 player and MP3 recorder Transpose (+6/-5 semitones), Tempo change ( Rating 90% users recommend this product to others. And what about you? This product has already been rated by 46 owners. Add your rating and experience with the product. Discussion Ask our technicians if you have a problem with your settings, or if anything is unclear in the user manual you have downloaded. You can make use of our moderated discussion. The discussion is public and helps other users of our website who may be encountering similar problems. The discussion is empty - enter the first post Post a new topic / query / comment: Items marked with * are required. Your name *: E-mail : Subject *: Message *: Your email address will not be displayed. Do not forget to fill it in if you want to receive a reply to your enquiry/contribution. Processing of personal data in accordance with GDPR
